BLM03BC560SN1J

Description
Ferrite Chip, 1 Function(s), 0.1A, EIA STD PACKAGE SIZE 0201, 2 PIN
CategoryAnalog mixed-signal IC    filter
File Size772KB,29 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

BLM03BC560SN1J Overview

Ferrite Chip, 1 Function(s), 0.1A, EIA STD PACKAGE SIZE 0201, 2 PIN

BLM03BC560SN1J Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMurata
package instructionEIA STD PACKAGE SIZE 0201, 2 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionBLM03_N1J Series EMI Suppression Filter 56Ω±25% at 100MHz 100mA @85℃
shell code0201
structureChip Bead
Maximum DC resistance1.05 Ω
filter typeFERRITE CHIP
maximum frequency100 MHz
minimum frequency100 MHz
high0.3 mm
length0.6 mm
MaterialFerrite
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output impedance56 OHM Ω
method of packingTAPE AND REEL
physical sizeL0.6XB0.3XH0.3 (mm)/L0.024XB0.012XH0.012 (inch)
Rated current0.1 A
width0.3 mm
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
1
EMIFILr (Inductor type)
I
Dimensions
0.6±0.03
0.3±0.03
Chip Ferrite Bead
BLM03B Series (0201 Size)
I
Equivalent Circuit
0.15±0.05
0.3±0.03
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
15000
50000
1000
I
Rated Value (p: packaging code)
Part Number
BLM03BD750SN1p
BLM03BD121SN1p
BLM03BD241SN1p
BLM03BD471SN1p
BLM03BD601SN1p
BLM03BB100SN1p
BLM03BB220SN1p
BLM03BB470SN1p
BLM03BB750SN1p
BLM03BB121SN1p
BLM03BC330SN1p
BLM03BC560SN1p
BLM03BC800SN1p
Number of Circuits: 1
Continued on the following page.

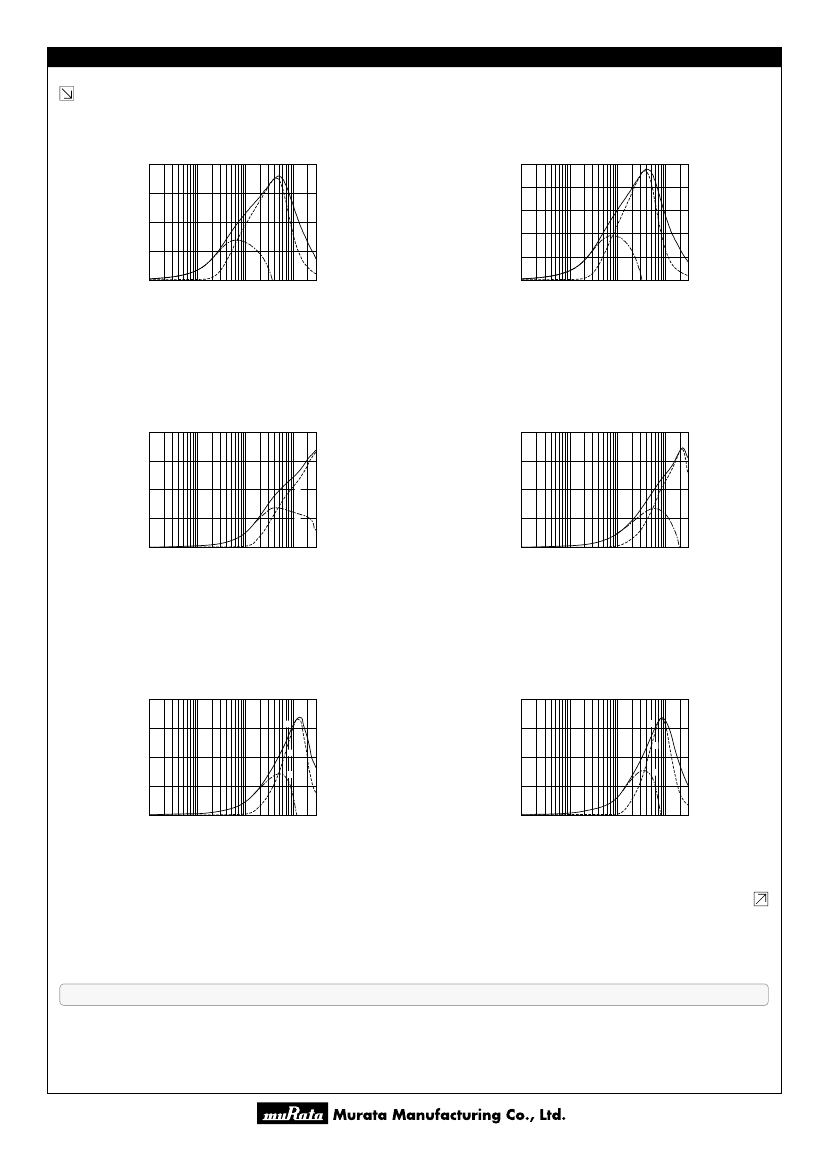

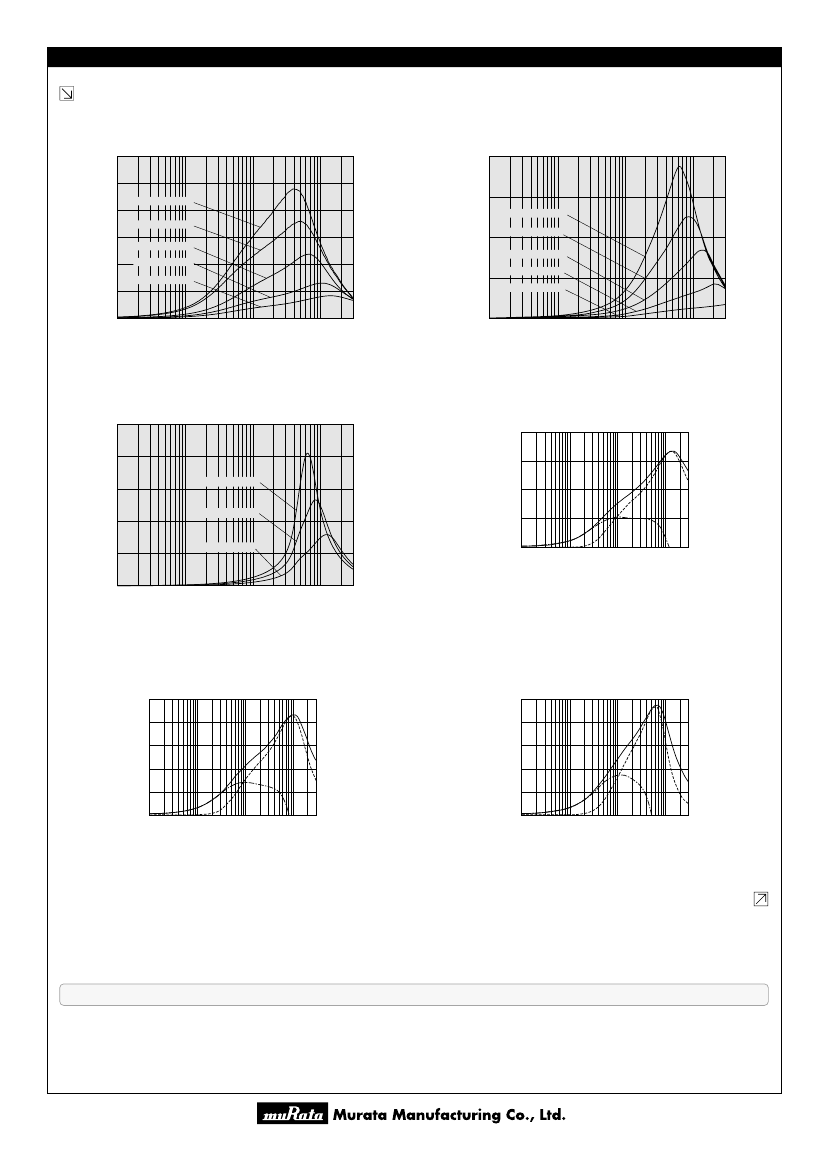

Impedance
(at 100MHz/20°C)
75ohm
±25%
120ohm
±25%
240ohm
±25%
470ohm
±25%
600ohm
±25%
10ohm
±25%
22ohm
±25%
47ohm
±25%
75ohm
±25%
120ohm
±25%
33ohm
±25%
56ohm
±25%
80ohm
±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
-
-
-
-
-
-
-
Rated Current
300mA
250mA
200mA
215mA
200mA
300mA
200mA
200mA
200mA
100mA
150mA
100mA
100mA
DC Resistance
0.4ohm max.
0.5ohm max.
0.8ohm max.
1.5ohm max.
1.7ohm max.
0.4ohm max.
0.5ohm max.
0.7ohm max.
1.0ohm max.
1.5ohm max.
0.85ohm max.
1.05ohm max.
1.40ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
