AC08FGMR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> AC08FGMR

AC08FGMR: DescriptionTRIAC, 600V V(DRM), 8A I(T)RMS, TO-220AB,; CategoryAnalog mixed-signal IC Trigger device; File Size108KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

AC08FGMR Overview

TRIAC, 600V V(DRM), 8A I(T)RMS, TO-220AB,

AC08FGMR Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	3 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	8 A
Maximum repetitive peak off-state leakage current	2000 µA
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC

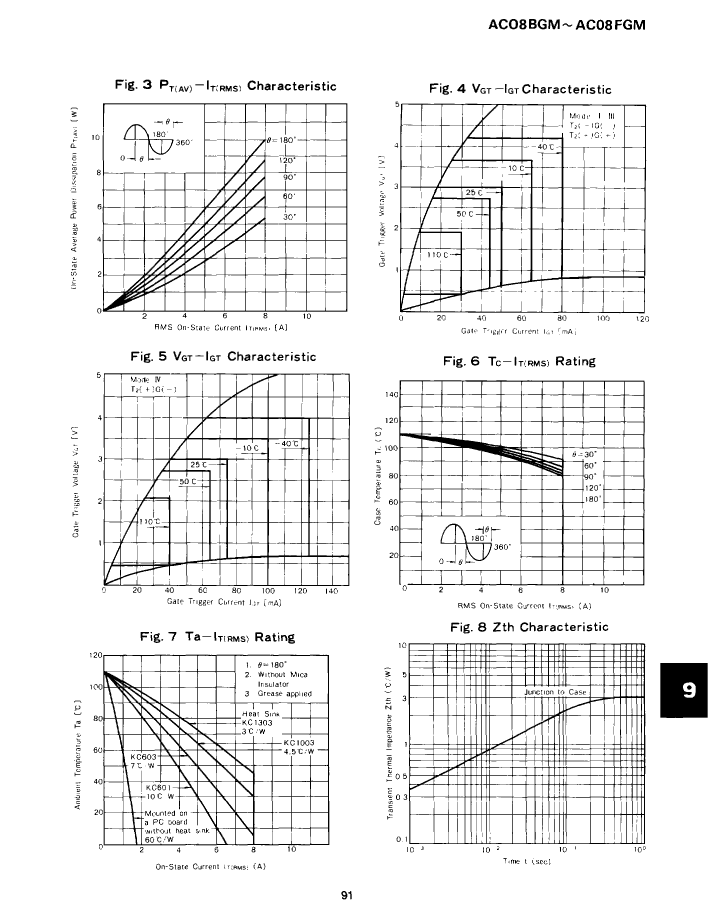

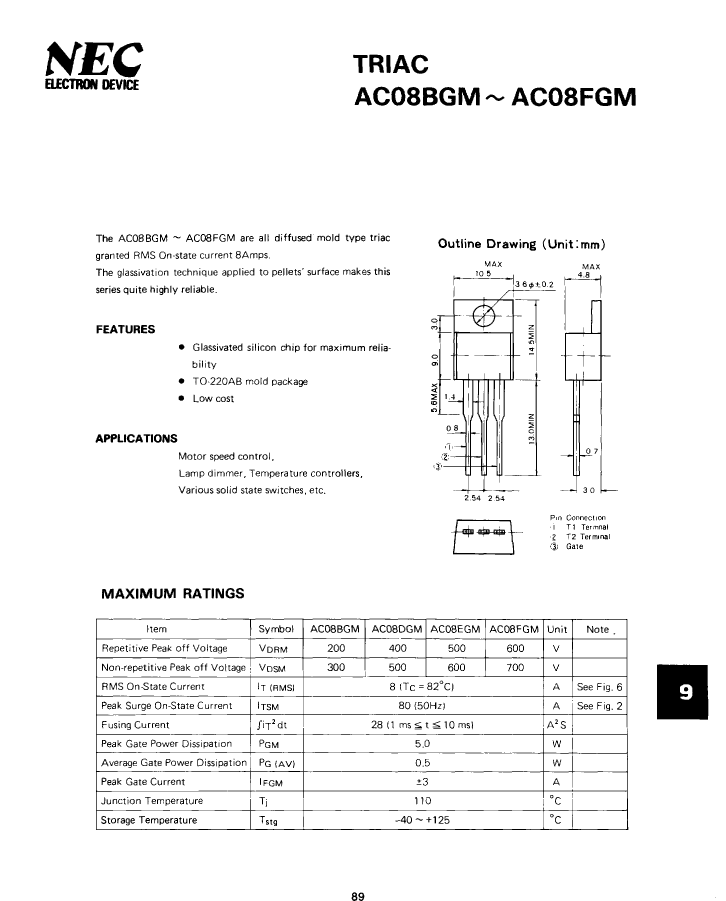

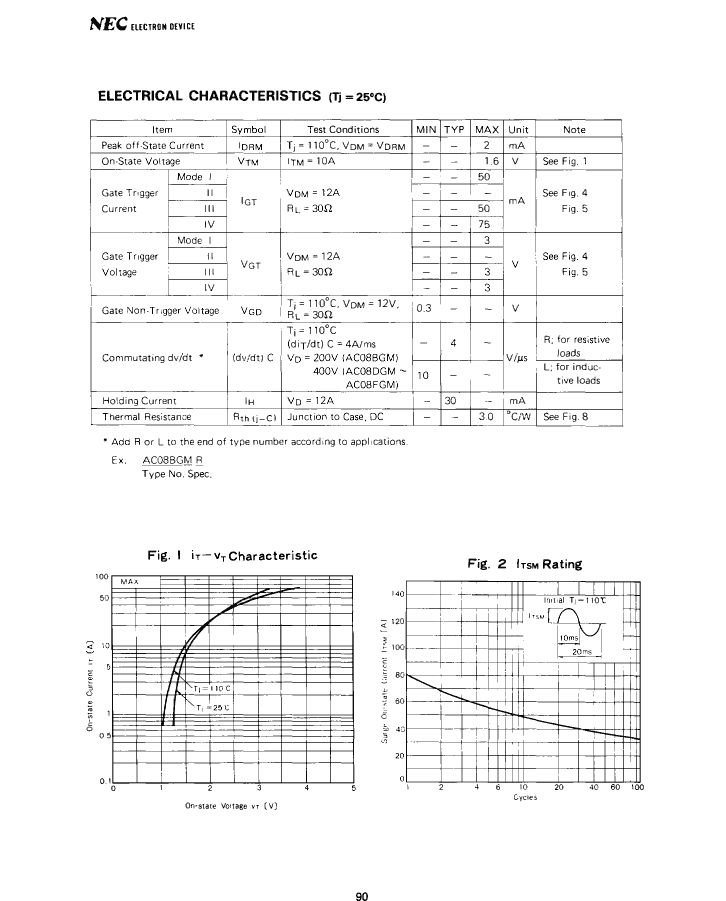

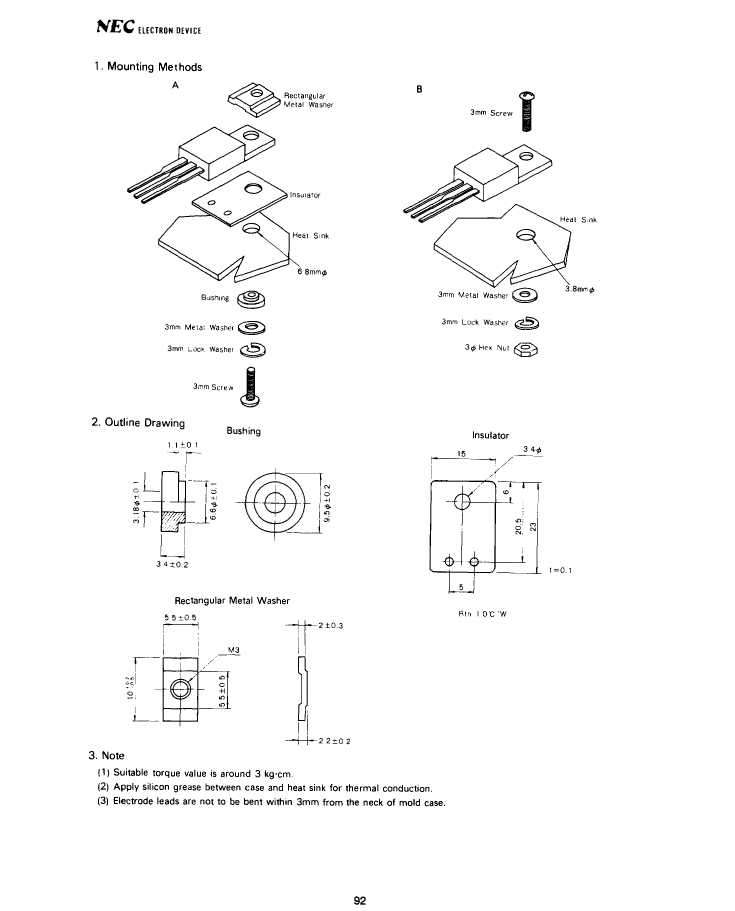

Preview

Download Datasheet

View All

AC08FGMR Related Products

	AC08FGMR	AC08BGML	AC08DGML	AC08EGML	AC08FGML	AC08EGMR	AC08DGMR	AC08BGMR
Description	TRIAC, 600V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 200V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 400V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 500V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 600V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 500V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 400V V(DRM), 8A I(T)RMS, TO-220AB,	TRIAC, 200V V(DRM), 8A I(T)RMS, TO-220AB,
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Maximum repetitive peak off-state leakage current	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA
Off-state repetitive peak voltage	600 V	200 V	400 V	500 V	600 V	500 V	400 V	200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
