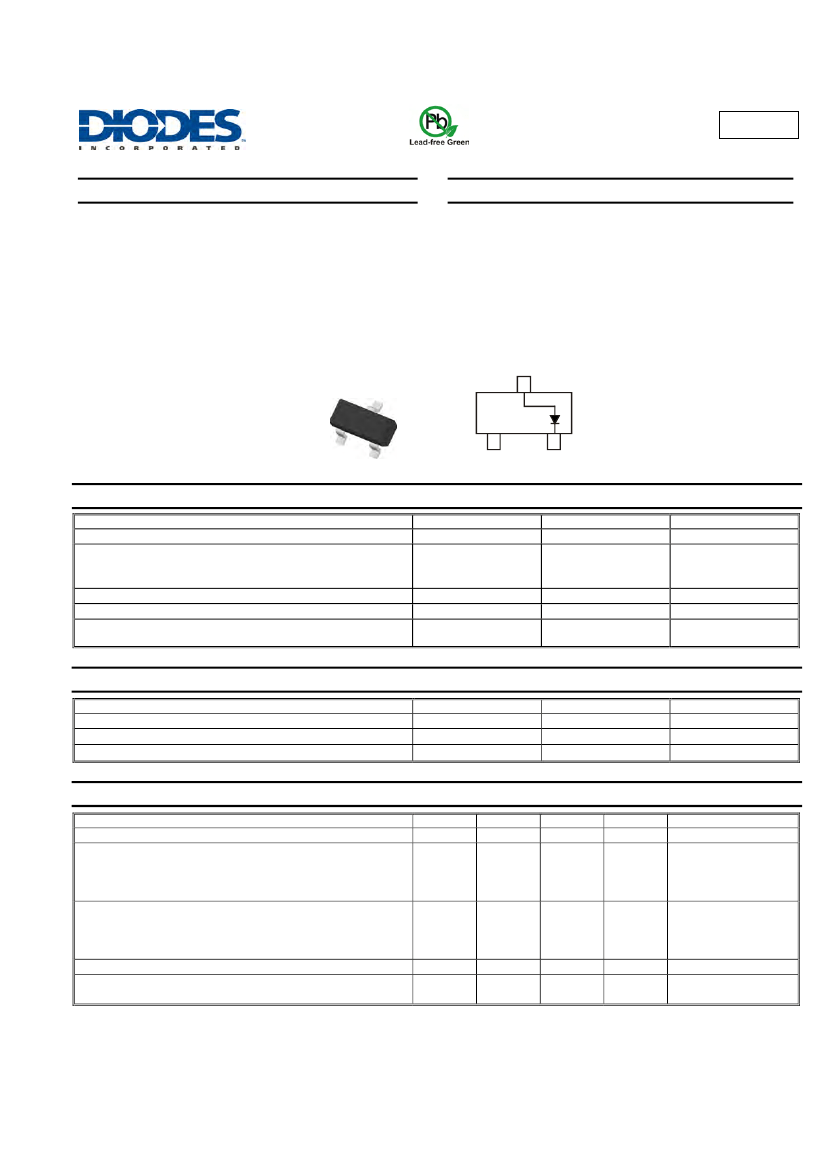

BAL99
SURFACE MOUNT SWITCHING DIODE
Features
•
•
•
•
•
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Conductance
Lead Halogen and Antimony Free, RoHS Compliant
"Green" Device (Notes 3 and 4)
Mechanical Data
•
•
•
•
•
•
•
•
•
SOT-23
Case: SOT-23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagram
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.008 grams (approximate)
TOP VIEW
TOP VIEW
Internal Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
@ t = 1.0μs
@ t = 1.0s
I
FSM
Value
100
75
53
300
2.0
1.0
Unit
V
V
V
mA
A
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
350
357
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
75
⎯
Max
⎯
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
V
μA
μA
μA
nA
pF
ns
Test Condition
I
R
= 100μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= 150°C
V
R
= 25V, T
J
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
1.
2.
3.
4.
I
R
C
T
t
rr
⎯
⎯
⎯
Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration pulse test used to minimize self-heating effect.
No purposefully added lead. Halogen and Antimony Free.
Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
BAL99
Document number: DS12009 Rev. 15 - 2
1 of 3
www.diodes.com
May 2008
© Diodes Incorporated
BAL99
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
500
1
P
D
, POWER DISSIPATION (mW)
400
0.1
300
200
0.01
100
0
0
0.001
0
1.0
0.5
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

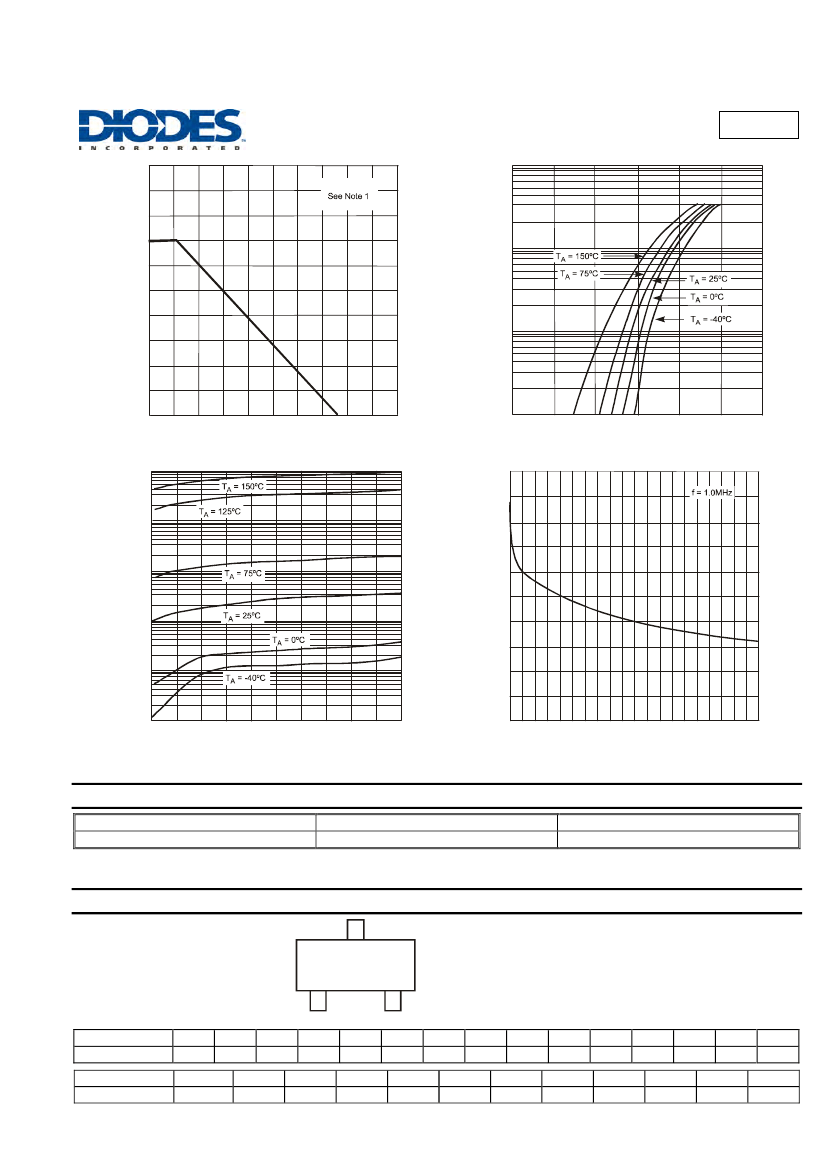

Fig. 2 Typical Forward Characteristics
100
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Power Derating Curve
200
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
2.0
1.8
C
T
, TOTAL CAPACITANCE (pF)
1,000
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0
60
80
100
20
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0.0
0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
Ordering Information
Part Number
BAL99-7-F
Notes:
(Note 5)
Case
SOT-23
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KJF = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
KJF
Date Code Key
Year
Code
Month
Code
1998
J
Jan
1
1999
K
2000
L
Feb
2
2001
M
Mar
3
2002
N
Apr
4
YM
2003
P
May
5
2004
R
2005
S
2006
T
Jul
7
2007
U
Aug
8
2008
V
Sep
9
2009
W
Oct
O
2010
X
2011
Y
Nov
N
2012
Z
Dec
D
May 2008
Jun
6
BAL99
Document number: DS12009 Rev. 15 - 2
2 of 3
www.diodes.com
© Diodes Incorporated
BAL99

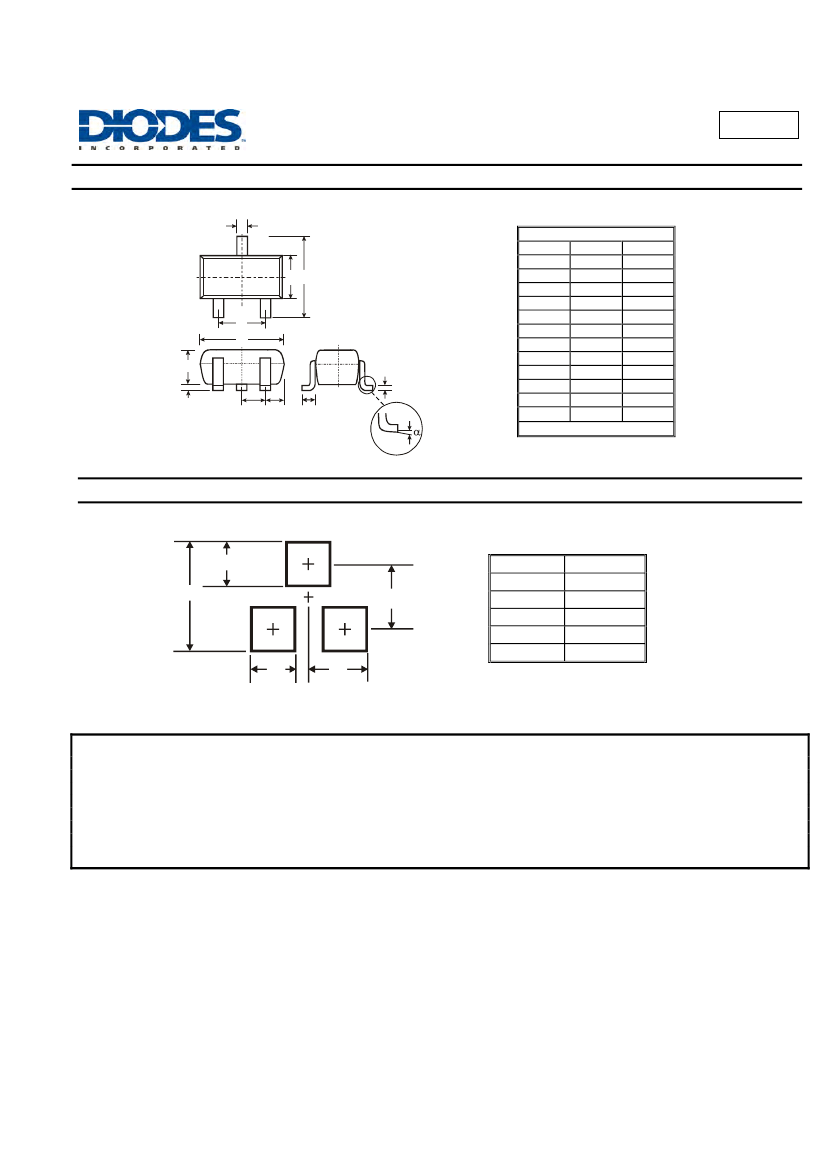

Package Outline Dimensions
A
TOP VIEW
B C
G
H
K
M
J
D
F
L
SOT-23
Dim
Min
Max
A
0.37
0.51
B
1.20
1.40
C
2.30
2.50
D
0.89
1.03
F
0.45
0.60
G
1.78
2.05
H
2.80
3.00
J
0.013
0.10
K
0.903
1.10
L
0.45
0.61
M
0.085
0.180
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
X
Y
C
E
X
E
2.9
0.8
0.9
2.0
1.35
