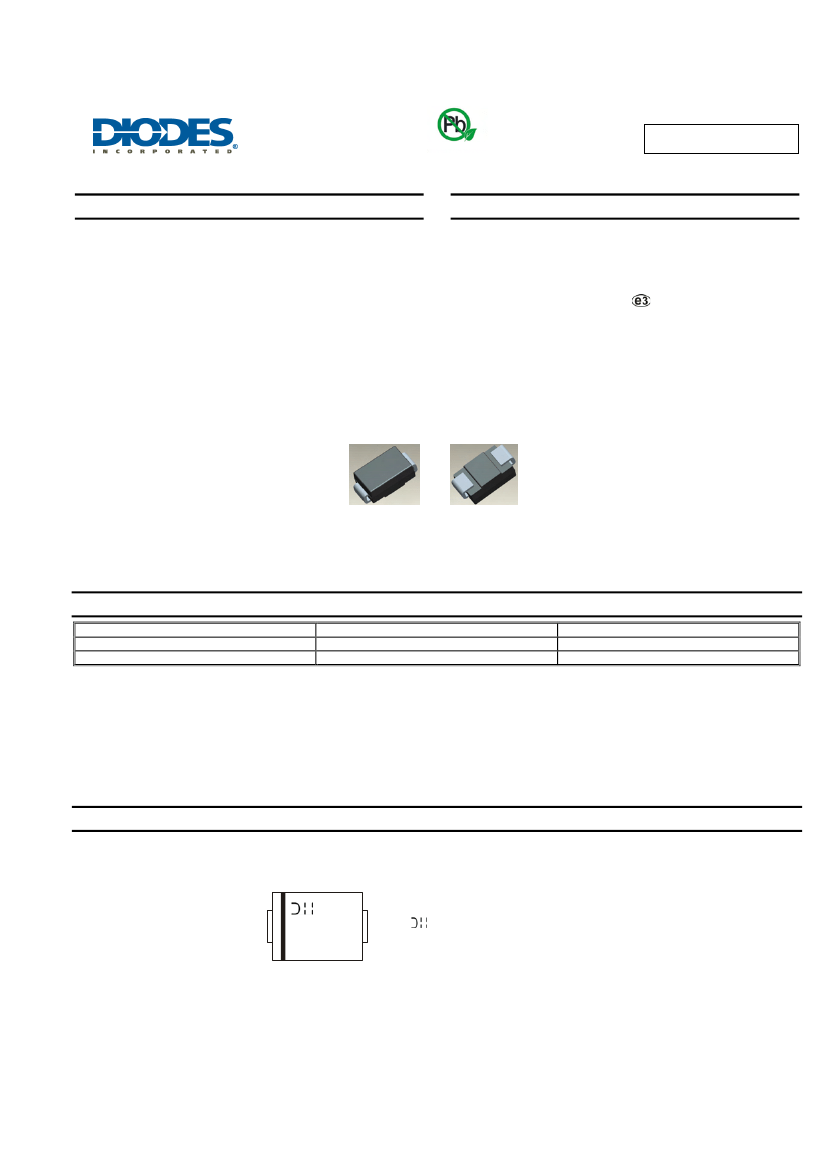

B220/A - B260/A

2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Features

•

Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 50A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

High Temperature Soldering: 260°C/10 Second at Terminal

Lead Free Finish/RoHS Compliant (Note 1)

Green Molding Compound (No Halogen and Antimony)

(Note 2)

Mechanical Data

•

Case: SMA/SMB

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band or Cathode Notch

Weight: SMA 0.064 grams (Approximate)

SMB 0.093 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 3)

Part Number

B2xxA-13-F

B2xx-13-F

* x = Device type, e.g. B260A-13-F (SMA package); B240-13-F (SMB package).

Notes:

1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.

2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.

3. For packaging details, go to our website at http://www.diodes.com.

Case

SMA

SMB

Packaging

5000/Tape & Reel

3000/Tape & Reel

Marking Information

YWW

B2X0(A)

B2X0A = Product type marking code, ex: B220A (SMA package)

B2X0 = Product type marking code, ex: B230 (SMB package)

= Manufacturers’ code marking

YWW = Date code marking

Y = Last digit of year (ex: 2 for 2002)

WW = Week code (01 to 53)

B220/A - B260/A

Document number: DS13004 Rev. 16 - 2

1 of 4

www.diodes.com

September 2010

B220/A - B260/A

Suggested Pad Layout

SMA

Value (in mm)

Dimensions

6.5

1.5

1.7

2.5

4.0

SMB

Value (in mm)

Dimensions

6.7

1.8

2.3

2.5

4.3
