BS870_08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BS870_08

BS870_08: Description250 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET; Categorysemiconductor Discrete semiconductor; File Size97KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

BS870_08 Overview

250 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET

BS870_08 Parametric

Parameter Name	Attribute value
Number of terminals	3
Minimum breakdown voltage	60 V
Processing package description	GREEN, PLASTIC PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	MATTE TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE WITH BUILT-IN DIODE
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Channel type	N-CHANNEL
field effect transistor technology	METAL-OXIDE SEMICONDUCTOR
operating mode	ENHANCEMENT
Transistor type	GENERAL PURPOSE SMALL SIGNAL
Maximum leakage current	0.2500 A
feedback capacitor	5 pF
Maximum drain on-resistance	5 ohm

Preview

Download Datasheet

View All

BS870

N-CHANNEL ENHANCEMENT MODE MOSFET

Features



Low On-Resistance

Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3 & 4)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT23

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.008 grams (approximate)

Drain

SOT23

Gate

Source

Top View

Equivalent Circuit

Top View

Ordering Information

(Note 5)

Part Number

BS870-7-F

Notes:

Case

SOT23

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb

Fire Retardants.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

K70

K70 = Product Type Marking Code

YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)

= Date Code Marking for CAT (Chengdu Assembly/ Test site)

Y or

= Year (ex: A = 2013)

M = Month (ex: 9 = September)

Chengdu A/T Site

Shanghai A/T Site

Date Code Key

Year

Code

Month

Code

1998

Jan

1999

Feb

2000

2001

Mar

2002

Apr

2003

May

2004

Jun

…

2011

Jul

2012

Aug

2013

Sep

2014

Oct

2015

2016

Nov

2017

Dec

BS870

Document number: DS11302 Rev. 18 - 2

1 of 5

www.diodes.com

August 2013

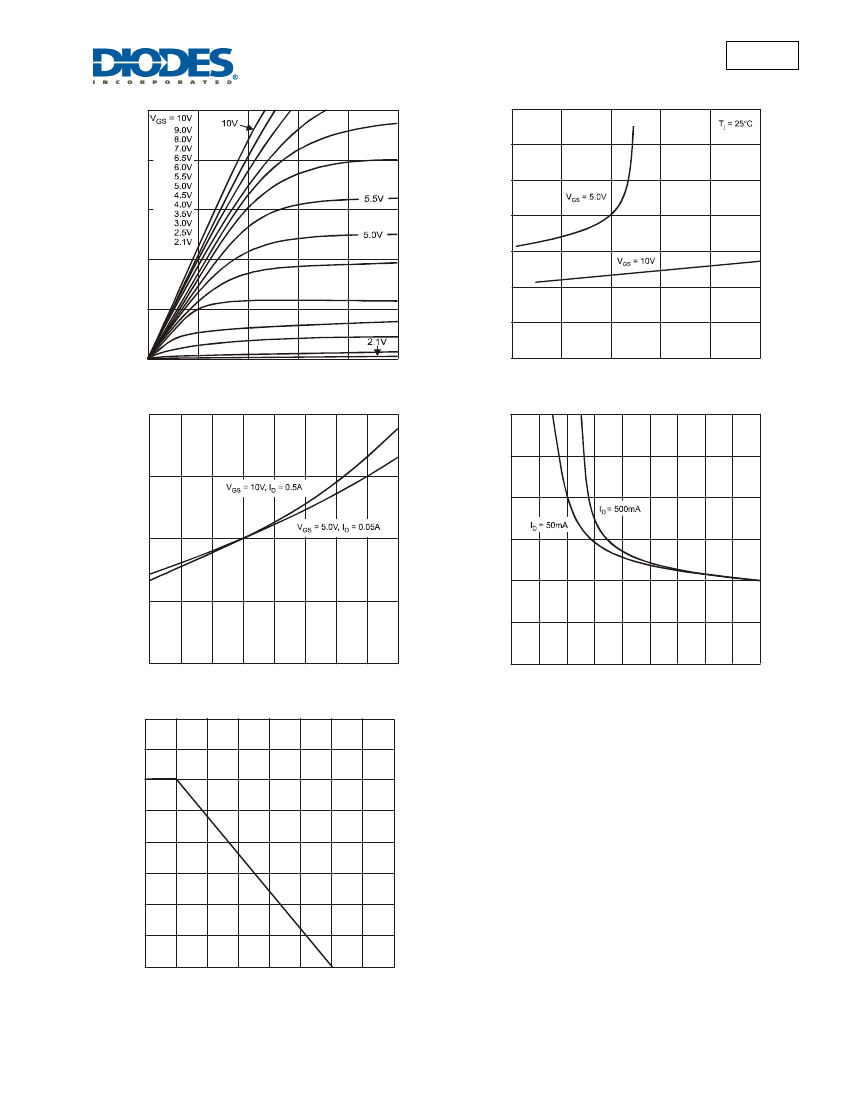

BS870

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

BS870

Document number: DS11302 Rev. 18 - 2

5 of 5

www.diodes.com

August 2013
