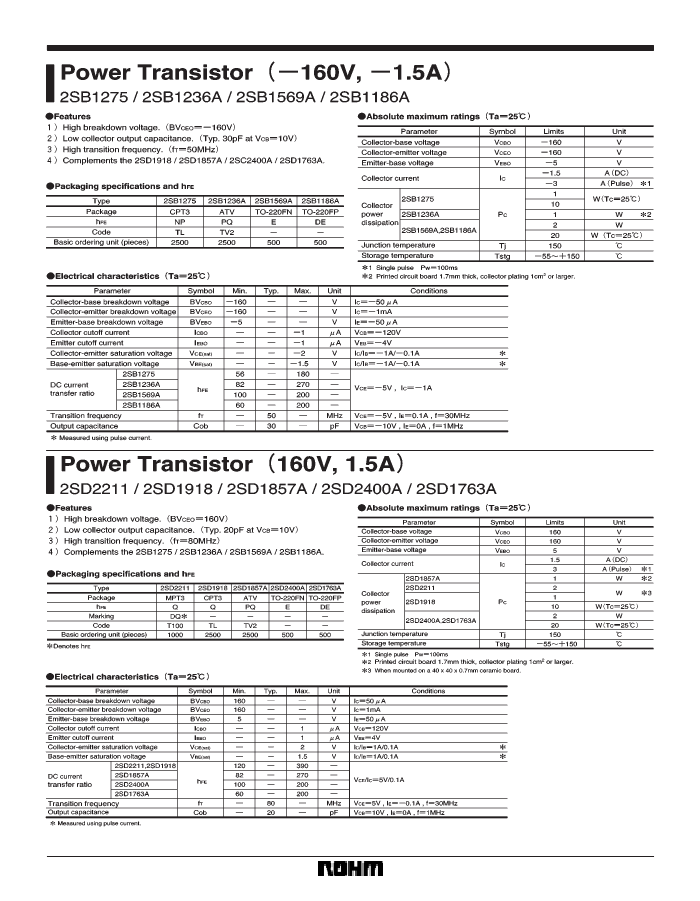

2SD1763AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD1763AD

2SD1763AD: DescriptionPower Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size48KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

2SD1763AD Overview

Power Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN

2SD1763AD Parametric

Parameter Name	Attribute value
Parts packaging code	TO-220FP
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	160 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	80 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

Transistors

2SB1275 / 2SB1236A / 2SB1569A / 2SB1186A

2SD2211 / 2SD1918 / 2SD1857A / 2SD2400A / 2SD1763A

(96-612-A58)

(96-744-C58)

277

2SD1763AD Related Products

	2SD1763AD	2SD2400AE	2SD2400A/E	2SB1569A/E	2SB1569AE	2SB1186AD	2SB1186A/D	2SB1186A/E	2SD1763A/E	2SD1763A/D
Description	Power Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FN, 3 PIN	1.5A, 160V, NPN, Si, POWER TRANSISTOR, TO-220FN, TO-220FN, 3 PIN	1.5A, 160V, PNP, Si, POWER TRANSISTOR, TO-220FN, TO-220FN, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FN, 3 PIN	Power Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	1.5A, 160V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	1.5A, 160V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	1.5A, 160V, NPN, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	1.5A, 160V, NPN, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN
Parts packaging code	TO-220FP	TO-220FN	TO-220FN	TO-220FN	TO-220FN	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	TO-220FN, 3 PIN	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3	3	3	3	3	3
Reach Compliance Code	unknow	compli	unknow	unknow	compli	unknow	unknow	unknow	unknow	unknow
Shell connection	ISOLATED	COLLECTOR	ISOLATED	ISOLATED	COLLECTOR	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Collector-emitter maximum voltage	160 V	160 V	160 V	160 V	160 V	160 V	160 V	160 V	160 V	160 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	100	100	100	100	60	60	100	100	60
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN	NPN	PNP	PNP	PNP	PNP	PNP	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	80 MHz	80 MHz	80 MHz	80 MHz	50 MHz	50 MHz	50 MHz	50 MHz	80 MHz	80 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	-	-	150 °C	150 °C	-	-	150 °C	150 °C	150 °C	150 °C
Maximum power consumption environment	-	-	20 W	20 W	-	-	20 W	20 W	20 W	20 W
VCEsat-Max	-	-	2 V	2 V	-	-	2 V	2 V	2 V	2 V
