2.7x1.2mm SMD CHIP LED LAMP
APE2712MGC
MEGA GREEN
Features
!
2.7mmx1.2mm SMT LED,1.3mm THICKNESS.
!
LOW
!
WIDE
!
IDEAL
Description
The Mega Green source color devices are made
with DH InGaAlP on GaAs substrate Light Emitting
Diode.
POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
:2000PCS / REEL.
!
VARIOUS
!
PACKAGE
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.008")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAB3240
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/15/2003
DRAWN: K.ZHANG
PAGE: 1 OF 4
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
APE2712MGC
MEGA GREEN (InGaAlP)
WATER CLEAR
36
Ty p .
70
V i ew i n g
An g l e
2θ1/2
12 0 °
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Mega Green
Mega Green
Mega Green
Mega Green
Mega Green
Mega Green
Ty p .
574
568
26
20
2.1
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Meg a Gr een
105
30
150
5
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
SPEC NO: DSAB3240
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/15/2003
DRAWN: K.ZHANG
PAGE: 2 OF 4

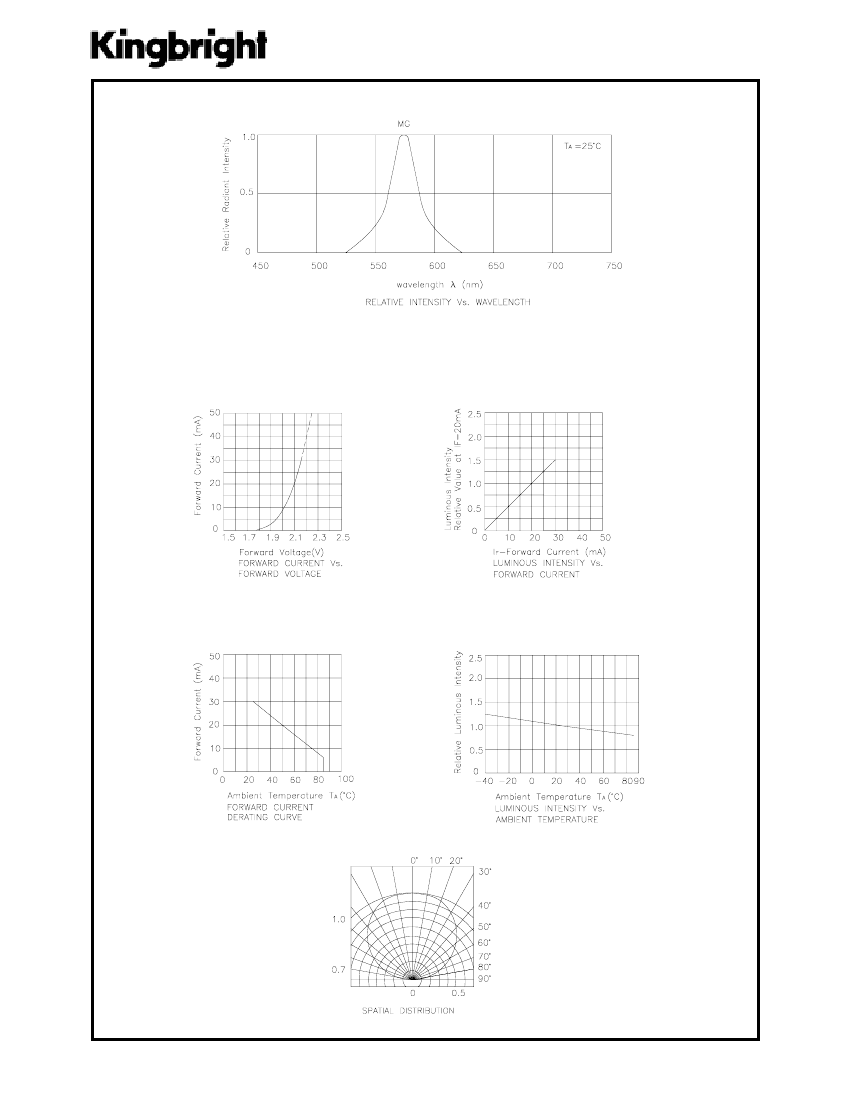

Mega Green
APE2712MGC
SPEC NO: DSAB3240
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/15/2003
DRAWN: K.ZHANG
PAGE: 3 OF 4
APE2712MGC
SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAB3240
APPROVED: J. Lu
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/15/2003
DRAWN: K.ZHANG
PAGE: 4 OF 4
