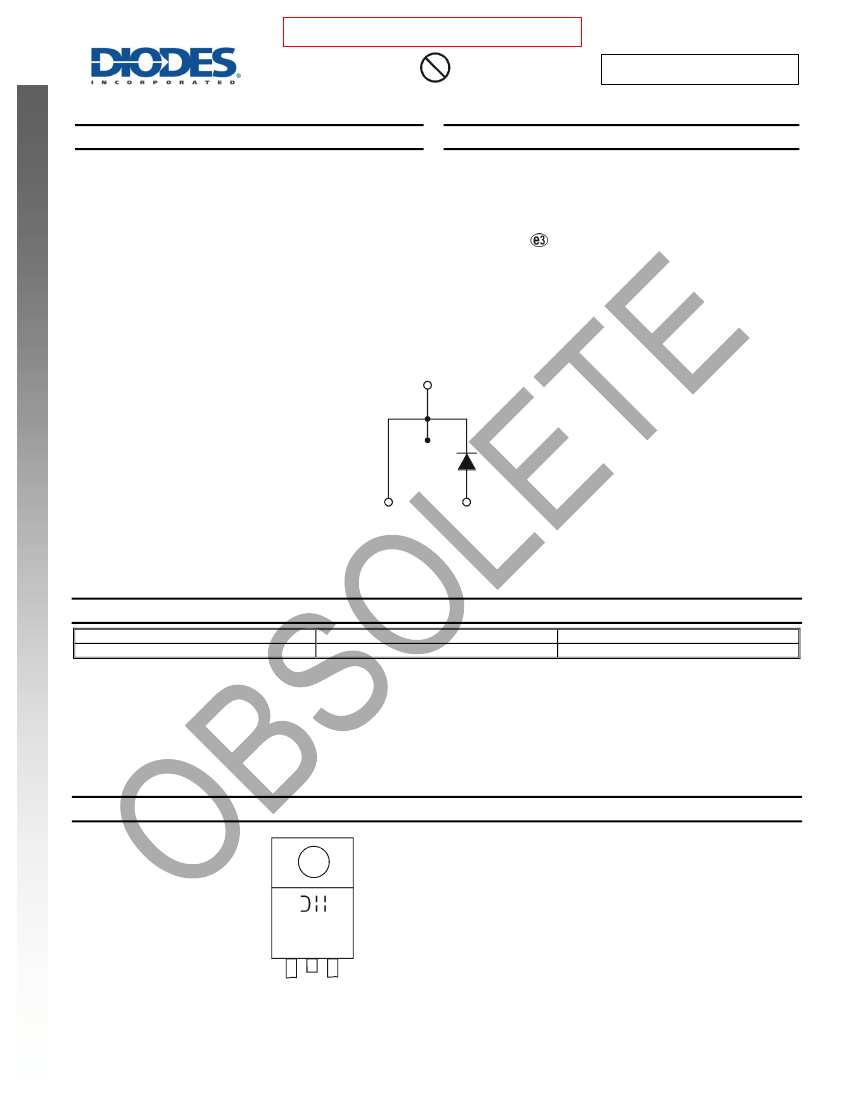

MBR1030 – MBR1050
10A SCHOTTKY BARRIER RECTIFIER
Features
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
High Surge Capability
High Current Capability and Low Forward Voltage Drop
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Mechanical Data
Case: TO-220AC
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish – Tin. Solderable per MIL-STD-202,
Method 208
Polarity: See Diagram
Marking: Type Number
Weight: 2.24 grams (approximate)
OBSOLETE – PART DISCONTINUED
Base
Cathode
1
1
Cathode
3
Anode
Package Pin Out
Configuration
Ordering Information
(Note 3)
Part Number
MBR10xx*
* xx = Device type, e.g. MBR1045
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Case
TO-220AC
Packaging
50/Tube
Marking Information
MBR10xx
YYWW AB
MBR10xx = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 - 53)
MBR1030 – MBR1050
Document number: DS23009 Rev. 11 - 4
1 of 4
www.diodes.com
June 2015
© Diodes Incorporated
MBR1030 – MBR1050

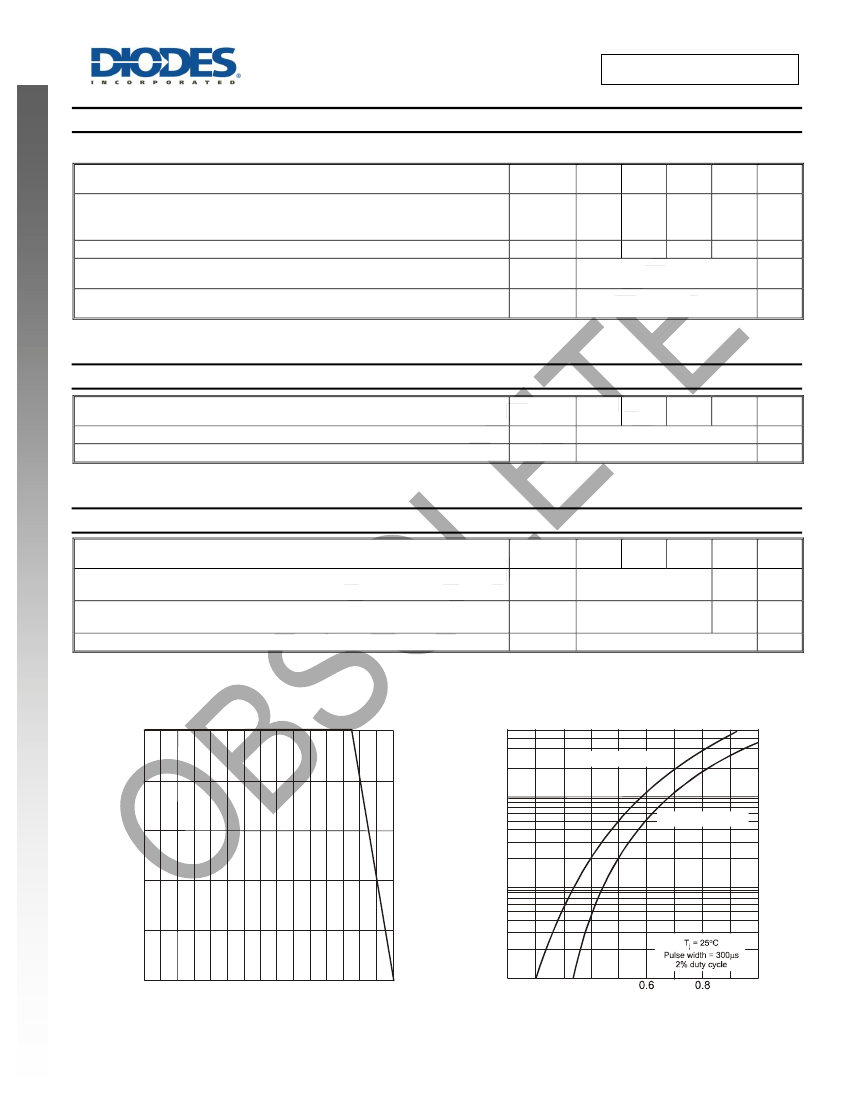

Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60 Hz, resistive or inductive load
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 7)
RMS Reverse Voltage
Average Rectified Output Current
(Note 4)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
@T
C
= +125°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
MBR
1030
30
21
MBR
1035
35
24.5
10
150
MBR
1045
45
31.5
MBR
1050
50
35
Unit
V
V
A
A
OBSOLETE – PART DISCONTINUED
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Case (Note 5)
Operating and Storage Temperature Range
Symbol
R
θJC
T
J,
T
STG
MBR
1030
MBR
1035
2.5
-65 to +150
MBR
1045
MBR
1050
Unit
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
@ I
F
= 10A, T
C
= +25°C
@ I
F
= 10A, T
C
= +125°C
@T
C
= +25°C
@T
C
= +125°C
V
FM
I
RM
C
T
MBR
1030
MBR
1035
0.84
0.57
0.1
15
400
MBR
1045
MBR
1050
0.95
0.70
0.1
25
Unit
V
mA
pF
Characteristic
Forward Voltage Drop
Peak Reverse Current
at Rated DC Blocking Voltage (Note 7)
Typical Total Capacitance (Note 5)
Notes:
4. Thermal resistance junction to case mounted on heatsink.
5. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
6. RoHS revision 13.2.2003. High temperature solder exemptions applied, see EU Directive Annex Note 7.
7. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
50
MBR1030 - MBR1045
I
(AV)
, AVERAGE FORWARD CURRENT (A)
8
10
MBR1050 / MBR1060
6
4
1.0
2
0
0
50
100
150
T
C
, CASE TEMPERATURE ( °C)
Figure 1 Forward Current Derating Curve
0.1
0.2
0.4
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics
MBR1030 – MBR1050
Document number: DS23009 Rev. 11 - 4
2 of 4
www.diodes.com
June 2015
© Diodes Incorporated
MBR1030 – MBR1050
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
300
250
1,000
T
J
= 25°C
f = 1.0MHz
200
150
OBSOLETE – PART DISCONTINUED
100
50
C
T
, TOTAL CAPACITANCE (pF)
10
100
NUMBER OF CYCLES AT 60Hz

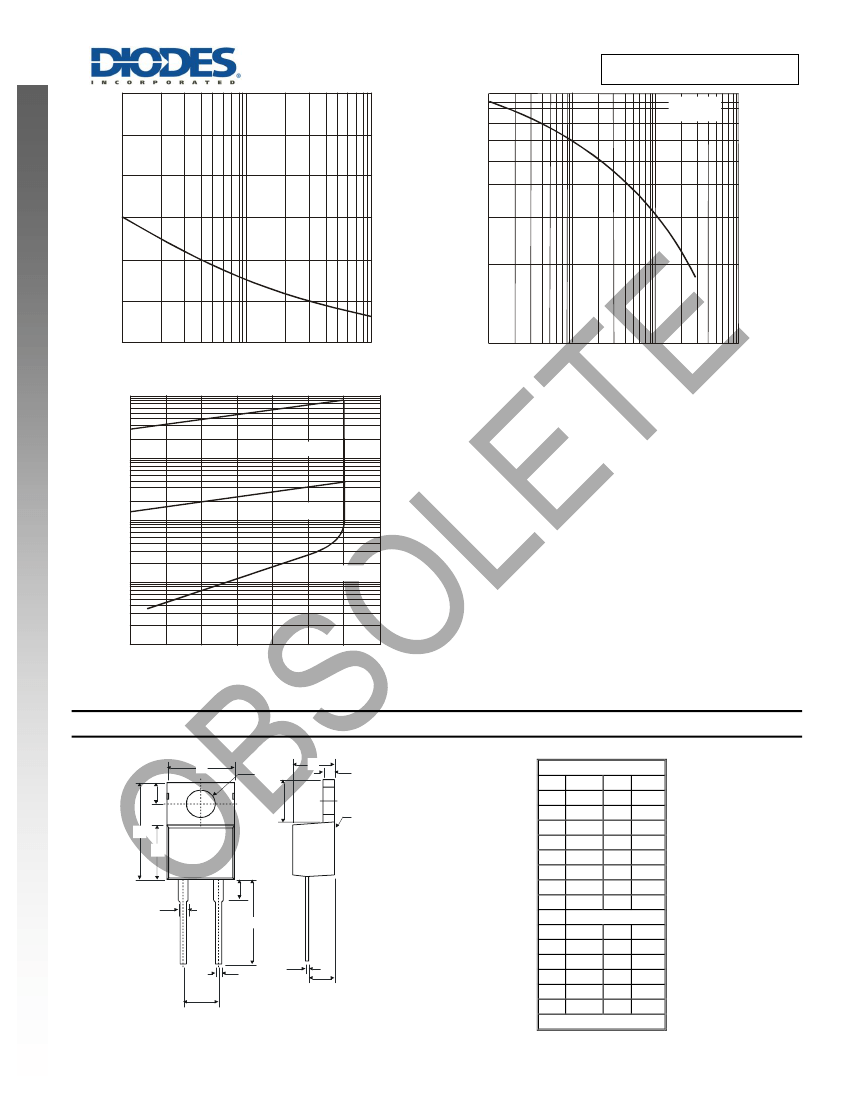

Figure 3 Max Non-Repetitive Surge Current
100
0.1
0
1
1.0
10
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Typical Total Capacitance
100
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
10
1.0
T
J
= 125°C
0.1
T
J
= 75°C
0.01
T
J
= 25°C
0.001
0
40
60
80
100
120 140
20
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Figure 5 Typical Reverse Characteristics
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
E
Q
A
P
H1
A1
D
D1
L1
b2
b
e1
c
A2
TO220AC
Dim Min Typ Max
A
3.56
-
4.82
A1
0.51
-
1.39
A2
2.04
-
2.92
b
0.39 0.81 1.01
b2
1.15 1.24 1.77
c
0.356
-
0.61
D
14.22
- 16.51
D1
8.39
-
9.01
e1
5.08
E
9.66
- 10.66
H1
5.85
-
6.85
L
12.70
- 14.73
L1
-
-
6.35
P
3.54
-
4.08
Q
2.54
-
3.42
All Dimensions in mm
