HR31-5.08R-5PD(73) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HR31-5.08R-5PD(73)

Preview

HR31-5.08R-5PD(73): DescriptionRectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size200KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

HR31-5.08R-5PD(73) Overview

Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle

HR31-5.08R-5PD(73) Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HR31
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

s

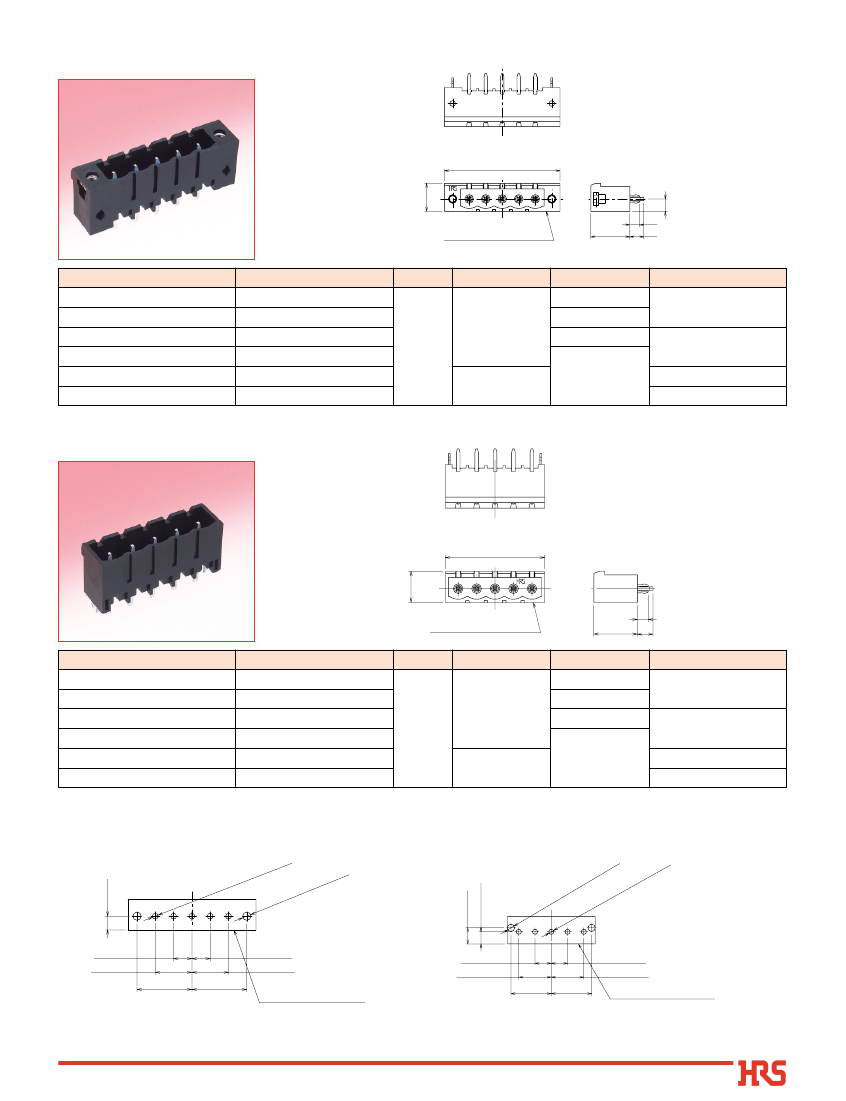

Receptacle (Straight through hole type with screw lock)

35.5

1

2

3

4

5

8.6

Connector mounting side B

12

3

4.3

HR31-5.08R-5PD

Part No.

HR31-5.08R-5PD(71)

HR31-5.08R-5PD(72)

HR31-5.08R-5PD(73)

HR31-5.08R-5PD(74)

HR31-5.08R-5PD(75)

HR31-5.08R-5PD(76)

CL No.

131-0003-5-71

131-0003-5-72

131-0003-5-73

131-0003-5-74

131-0003-5-75

131-0003-5-76

4g

Black

Weight

Color

Contact plating

Tin

Gold

Tin

Board retention pin

With

3.8

Without

With

Without

Green

Gold

Receptacle (Straight through hole type without screw lock)

27.4

8.6

1

2

3

4

5

3

HR31-5.08RA-5PD

Part No.

HR31-5.08RA-5PD(71)

HR31-5.08RA-5PD(72)

HR31-5.08RA-5PD(73)

HR31-5.08RA-5PD(74)

HR31-5.08RA-5PD(75)

HR31-5.08RA-5PD(76)

CL No.

131-0016-7-71

131-0016-7-72

131-0016-7-73

131-0016-7-74

131-0016-7-75

131-0016-7-76

2g

Connector mounting side B

12

4.3

Weight

Color

Contact plating

Tin

Board retention pin

With

Black

Gold

Tin

Without

With

Without

Green

Gold

BPCB

mounting pattern

q

With screw lock

3.8±0.05

6

Ø1.

.1

+0

0

q

Without screw lock

(Th

gh

rou

e)

hol

oug

ole

hh

)

5.08±0.05

10.16±0.05

15.24±0.05

5.08±0.05

10.16±0.05

5.08±0.05

10.16±0.05

12.6±0.05 12.6±0.05

3.8±0.05

5±0.05

5-

hr

te)

(No

3

+00.1

(T

.

Ø2

2-

ro

hro

)

.1

(Th

.1

(T

+00

ote .3

+00

(N 2

.6

Ø

Ø1

2-

5-

h

ug

ho

le)

h

ug

ho

le)

5.08±0.05

10.16±0.05

Connector mounting side B

(Board thickness =1.6)

Note: Dia. 2.3 through hole is not required on the board when using connectors without the retention pin.

5

HR31-5.08R-5PD(73) Related Products

	HR31-5.08R-5PD(73)	HR31-5.08R-5PD(71)	HR31-5.08RA-5PD(73)	HR31-5.08RA-5PD(71)
Description	Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle	Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle	Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle	Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle
Maker	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HR31	HR31	HR31	HR31
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	5	5	5
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
