SBL2030CT - SBL2060CT
20A SCHOTTKY BARRIER RECTIFIER
SPICE MODELS: SBL2030CT SBL2035CT SBL2040CT SBL2045CT SBL2050CT SBL2060CT
Features
·
·
·
·
·
·
·
Schottky Barrier Chip
Guard Ring Die Construction for
Transient Protection
Low Power Loss, High Efficiency
High Surge Capability
High Current Capability and Low Forward
Voltage Drop
For Use in Low Voltage, High Frequency
Inverters, Free Wheeling, and Polarity
Protection Applications
Plastic Material: UL Flammability
Classification Rating 94V-0
TO-220AB
L
B
C
D
K
A
1
2
3
Dim
M
Min
14.22
9.65
2.54
5.84
¾
12.70
2.29
0.51
3.53Æ
3.56
1.14
0.30
2.03
Max
15.88
10.67
3.43
6.86
6.35
14.73
2.79
1.14
4.09Æ
4.83
1.40
0.64
2.92
A
B
C
D
E
G
H
E
G
J
N
Mechanical Data
·
·
·
·
·
·
Case: Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: As Marked on Body
Weight: 2.24 grams (approx.)
Mounting Position: Any
Marking: Type Number
J
K
L
H H
Pin 1 +
Pin 2 -
Pin 3 +
+
Case
P
M
N
P
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@ T
C
= 95°C
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load
(JEDEC Method)
Forward Voltage Drop
Peak Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance Junction to Case (Note 1)
Operating and Storage Temperature Range
@ I
F
= 10A, T
C
= 25°C
@T
C
= 25°C
@ T
C
= 100°C
@ T
A
= 25°C unless otherwise specified
SBL
Symbol 2030CT
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
C
j
R
qJC
T
j,
T
STG
30
21
SBL
2035CT
35
24.5
SBL
2040CT
40
28
SBL
2045CT
45
31.5
SBL
2050CT
50
35
SBL
2060CT
60
42
Unit
V
V
A
A
20
250
0.55
1.0
50
650
2.8
-65 to +150
0.75
V
mA
pF
°C/W
°C
Notes:
1. Thermal resistance junction to case mounted on heatsink.
2. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0V DC.
DS23015 Rev. F-2
1 of 2
www.diodes.com
SBL2030CT-SBL2060CT
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
20
I
(AV)
, AVERAGE FORWARD CURRENT (A)
40
16
SBL2030CT - SBL2045CT
10
12
SBL2045CT - SBL2060CT
8
1.0
4
0
0
50
100
150
T
C
, CASE TEMPERATURE (°C)

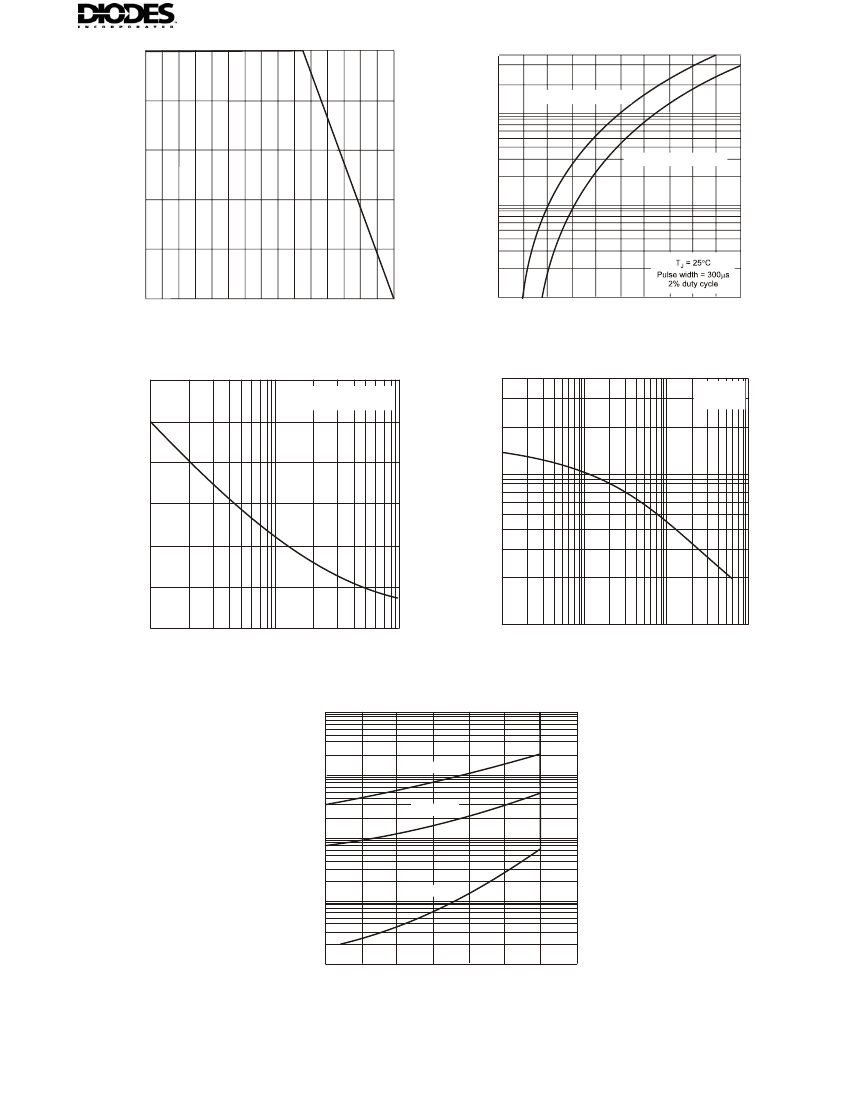

Fig. 1 Forward Current Derating Curve
0.1
0.1
0.3
0.5
0.7
0.9
1.1
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Voltage
300
8.3 ms single half-sine-wave
JEDEC method
4000
T
j
= 25°C
f = 1.0MHz
I
FSM
, PEAK FORWARD CURRENT (A)
250
C
j
, CAPACITANCE (pF)
200
1000
150
100
50
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Maximum Non-Repetitive Surge Current
100
0.1
1.0
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
100
10
T
j
= 100°C
T
j
= 75°C
1.0
0.1
T
j
= 25°C
0.01
0
40
80
120
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics
DS23015 Rev. F-2
2 of 2
www.diodes.com
