PTM-84A-100B: Description60MHz - 140MHz, 0deg - 360deg RF/MICROWAVE DIGITALLY CONTROLLED PH SHFTR; CategoryWireless rf/communication Radio frequency and microwave; File Size106KB，2 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PTM-84A-100B Overview

60MHz - 140MHz, 0deg - 360deg RF/MICROWAVE DIGITALLY CONTROLLED PH SHFTR

PTM-84A-100B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Interpoint （ Crane Aerospace & Electronics ）
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
Maximum input power (CW)	10 dBm
Maximum insertion loss	4 dB
Maximum operating frequency	140 MHz
Minimum operating frequency	60 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
maximum phase shift	360 deg
minimum phase shift
RF/Microwave Device Types	COAXIAL MECHANICAL PHASE SHIFTER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

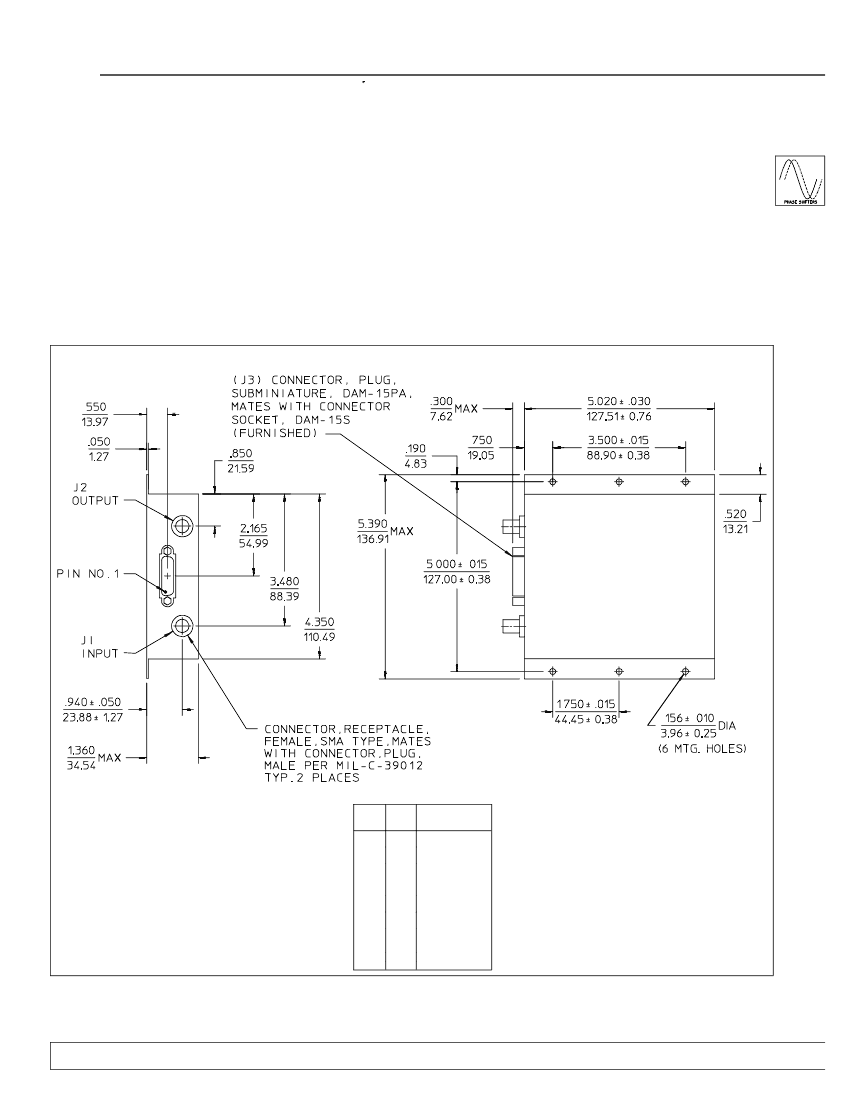

PTB & PTM-84A Series

8-BIT DIGITAL PHASE SHIFTER

20 to 100 MHz / 1.4 Phase Resol. / Monotonic / Broadband, Switched Cable Design / BNC or SMA

PRINCIPAL SPECIFICATIONS

Calibration

Frequency,

f

c,

MHz

20 to 100

Usable

Bandwidth

f

c

±

40%

SMA

Model

Number

PTM-84A-**B

BNC

Model

Number

PTB-84A-**B

GENERAL SPECIFICATIONS

Phase Shift Range:

Least Significant Bit:

Most Significant Bit :

Accuracy at, f

c

:

0° to 360° nom. @ f

c

1.4°

180°

1/2 of LSB typ.

guaranteed monotonic

For complete model number replace ** with desired calibration frequency, f

c

in MHz.

General Notes:

1. PTB- & PTM-84A series phase shifters provide up to 360° of phase shift at a

selected calibration frequency in 8 binary increments (255 steps) resulting in 1.4°

resolution. Each step is generated with different cable lengths switched with PIN

diodes. Advantages of the switched-line phase shifter over the digitally controlled

analog type include potential for higher accuracy and smaller value of the Least

Significant Bit (LSB).

2. Phase shifters based on cable switching are inherently stable and well

matched. Phase shift can be set and held very closely in binary increments from

the LSB to the MSB (Most Significant Bit).

3. This series can be calibrated up to 100 MHz and used to 180 MHz while the

related PTM-84B series extends coverage to 500 MHz.

Impedance:

50

Ω

nom.

VSWR:

1.3:1 max.

2.5 dB nom., 4 dB max.

Insertion Loss, I

L

:

I

L

, Variation vs. Cont:

±0.2

dB @ mid band

Max. Input Power:

+10 dBm

Control Input:

8 Bit TTL

@ 2 loads max. per Bit

Logic Sense:

Supply Power:

Settling Time:

Weight, nominal:

Operating Temp:

Positive

4

µs

max.

10 oz (285 g)

-- 55° to +85°C

+5 VDC@250 mA max.

Functional Schematic Diagram

24May96

F rf t e if r to c n a t

M ERRI AC /41 Faifel Pl,W estCal

o ur h r n o ma in o t c

M

ri d .

dwel,NJ,07006 / 973- 1300 /FAX 973 575-

l

575-

0531
