M37471E8FP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> M37471E8FP

M37471E8FP: DescriptionMicrocontroller, 8-Bit, OTPROM, 4MHz, CMOS, PQFP56, 0.80 MM PITCH, PLASTIC, QFP-56; CategoryThe embedded processor and controller Microcontrollers and processors; File Size591KB，18 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M37471E8FP Overview

Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PQFP56, 0.80 MM PITCH, PLASTIC, QFP-56

M37471E8FP Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
Parts packaging code	QFP
package instruction	0.80 MM PITCH, PLASTIC, QFP-56
Contacts	56
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	15
bit size	8
boundary scan	NO
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G56
length	14 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	36
Number of serial I/Os	1
Number of terminals	56
Number of timers	4
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	384
rom(word)	16384
ROM programmability	OTPROM
Maximum seat height	3.05 mm
speed	4 MHz
Maximum slew rate	8 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

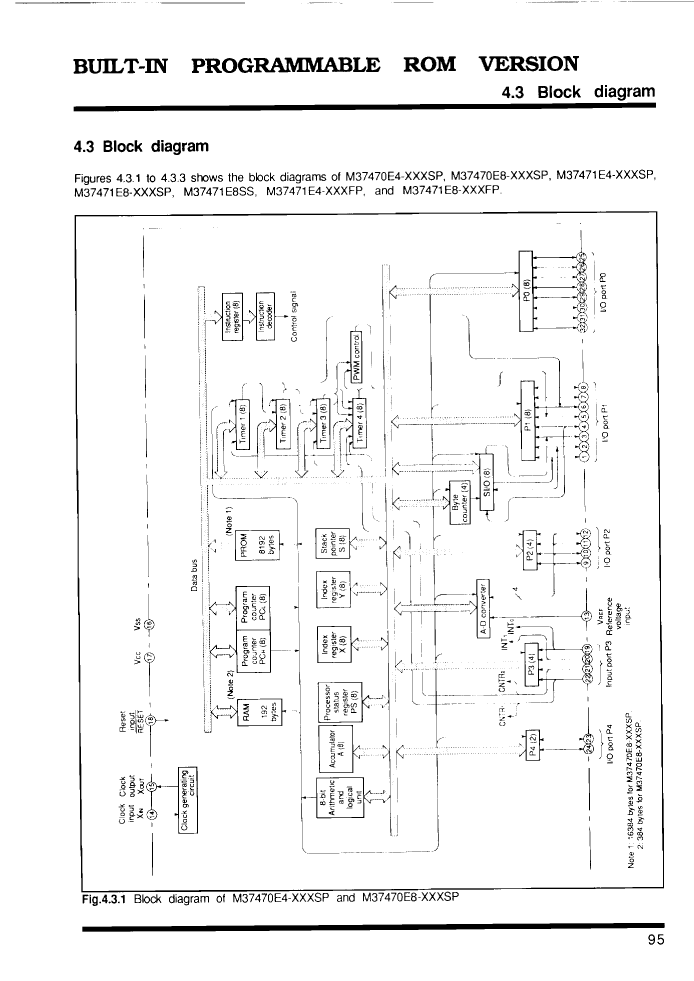

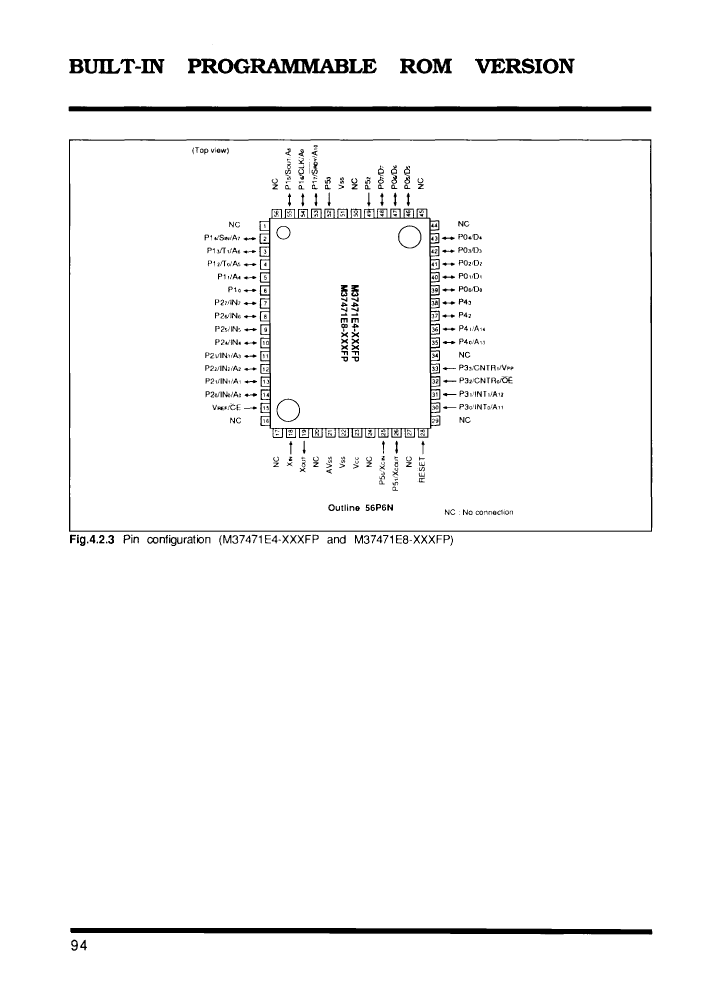

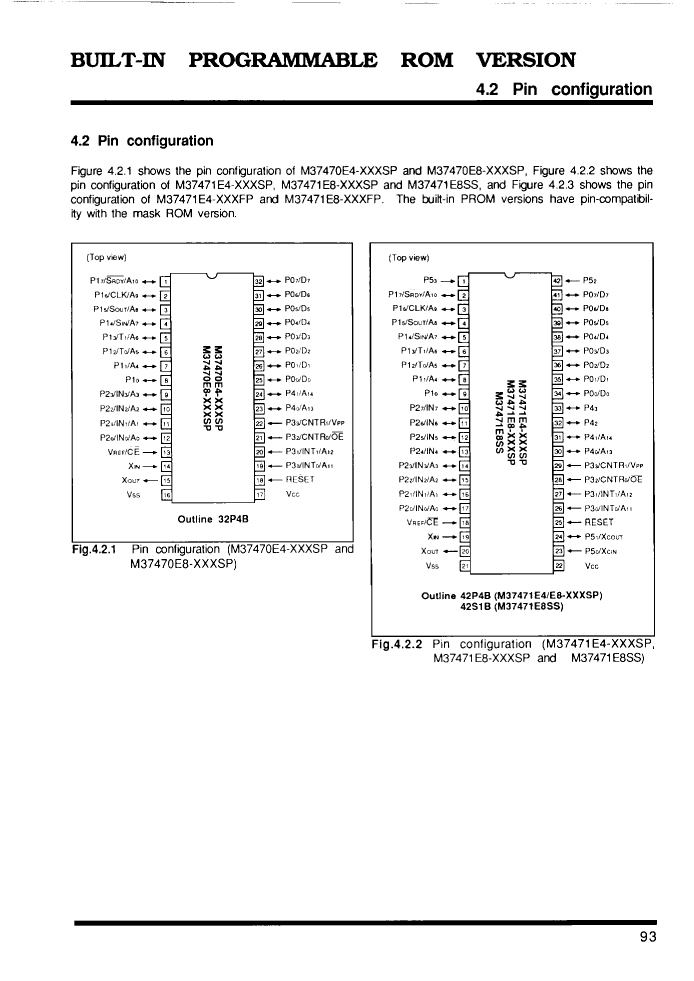

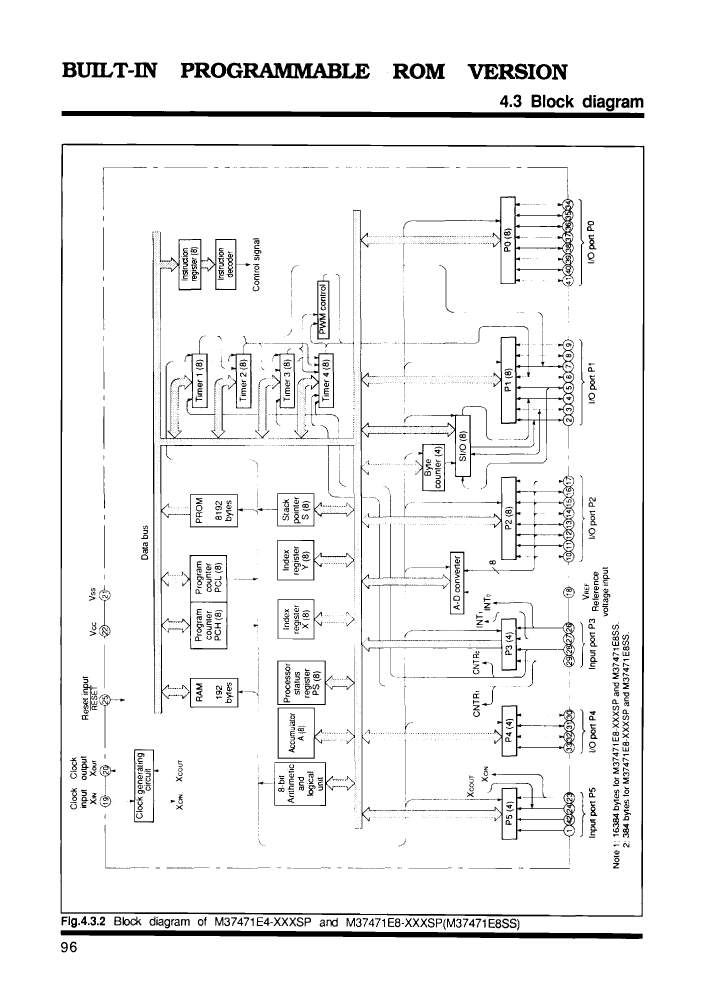

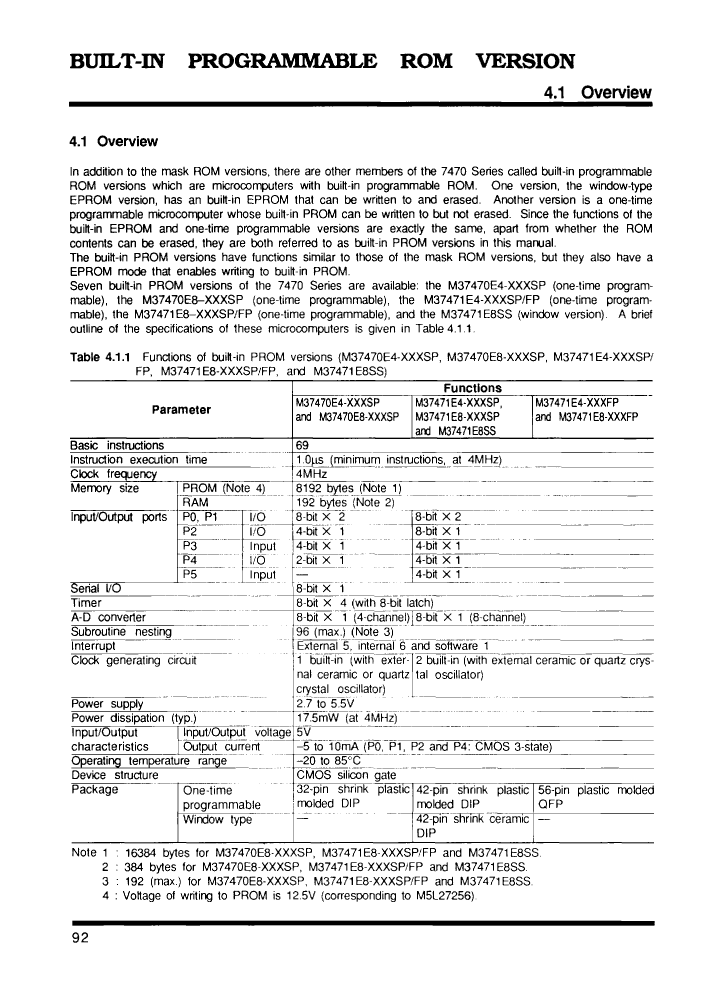

Preview

Download Datasheet

View All

M37471E8FP Related Products

	M37471E8FP	M37471E4FP	M37471E8SP	M37471E4SP
Description	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PQFP56, 0.80 MM PITCH, PLASTIC, QFP-56	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PQFP56, 0.80 MM PITCH, PLASTIC, QFP-56	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDIP42, SHRINK, PLASTIC, DIP-42	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDIP42, SHRINK, PLASTIC, DIP-42
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Parts packaging code	QFP	QFP	DIP	DIP
package instruction	0.80 MM PITCH, PLASTIC, QFP-56	0.80 MM PITCH, PLASTIC, QFP-56	SHRINK, PLASTIC, DIP-42	SHRINK, PLASTIC, DIP-42
Contacts	56	56	42	42
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES
Address bus width	15	15	15	15
bit size	8	8	8	8
boundary scan	NO	NO	NO	NO
maximum clock frequency	4 MHz	4 MHz	4 MHz	4 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-PQFP-G56	R-PQFP-G56	R-PDIP-T42	R-PDIP-T42
length	14 mm	14 mm	36.7 mm	36.7 mm
low power mode	YES	YES	YES	YES
Number of external interrupt devices	4	4	4	4
Number of I/O lines	36	36	36	36
Number of serial I/Os	1	1	1	1
Number of terminals	56	56	42	42
Number of timers	4	4	4	4
On-chip data RAM width	8	8	8	8
On-chip program ROM width	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	SDIP	SDIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	384	192	384	192
rom(word)	16384	8192	16384	8192
ROM programmability	OTPROM	OTPROM	OTPROM	OTPROM
Maximum seat height	3.05 mm	3.05 mm	5.5 mm	5.5 mm
speed	4 MHz	4 MHz	4 MHz	4 MHz
Maximum slew rate	8 mA	8 mA	8 mA	8 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	0.8 mm	0.8 mm	1.778 mm	1.778 mm
Terminal location	QUAD	QUAD	DUAL	DUAL
width	10 mm	10 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
