SMA6853M Overview

High Voltage 3-Phase Motor Drivers

SMA6853M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SANKEN
Parts packaging code	ZFM
package instruction	,
Contacts	24
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	AC MOTOR CONTROLLER
JESD-30 code	R-XZFM-T24
Number of terminals	24
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SMA6850M Series

High Voltage 3-Phase Motor Drivers

Features and Benefits

▪

Built-in pre-drive IC

MOSFET power element

CMOS compatible input (5 V)

High-side gate driver using bootstrap circuit or floating

power supply

Built-in protection circuit for controlling power supply

voltage drop

Built-in overtemperature detection circuit (TD)

Output of fault signal during operation of protection

circuits

Output current 1.5, 2, and 2.5 A

Small SIP (SMA 24-pin)

Description

The SMA6850M inverter power module (IPM) series provides

a robust, highly-integrated solution for optimally controlling

3-phase motor power inverter systems and variable speed

control systems used in energy-conserving designs to drive

motors of residential and commercial appliances. These ICs

take 230 VAC input voltage, and up to 2.5 A (continuous)

output current. They can withstand voltages of up to 500 V

(MOSFET breakdown voltage).

The SMA6850M power package includes an IC with all of

the necessary power elements (six MOSFETs), pre-driver

ICs (two), and flyback diodes (six), needed to configure the

main circuit of an inverter. This enables the main circuit of

the inverter to be configured with fewer external components

than traditional designs.

Applications include residential white goods (home

applications) and commercial appliance motor control:

• Air conditioner fan

• Small ventilation fan

• Dishwasher pump

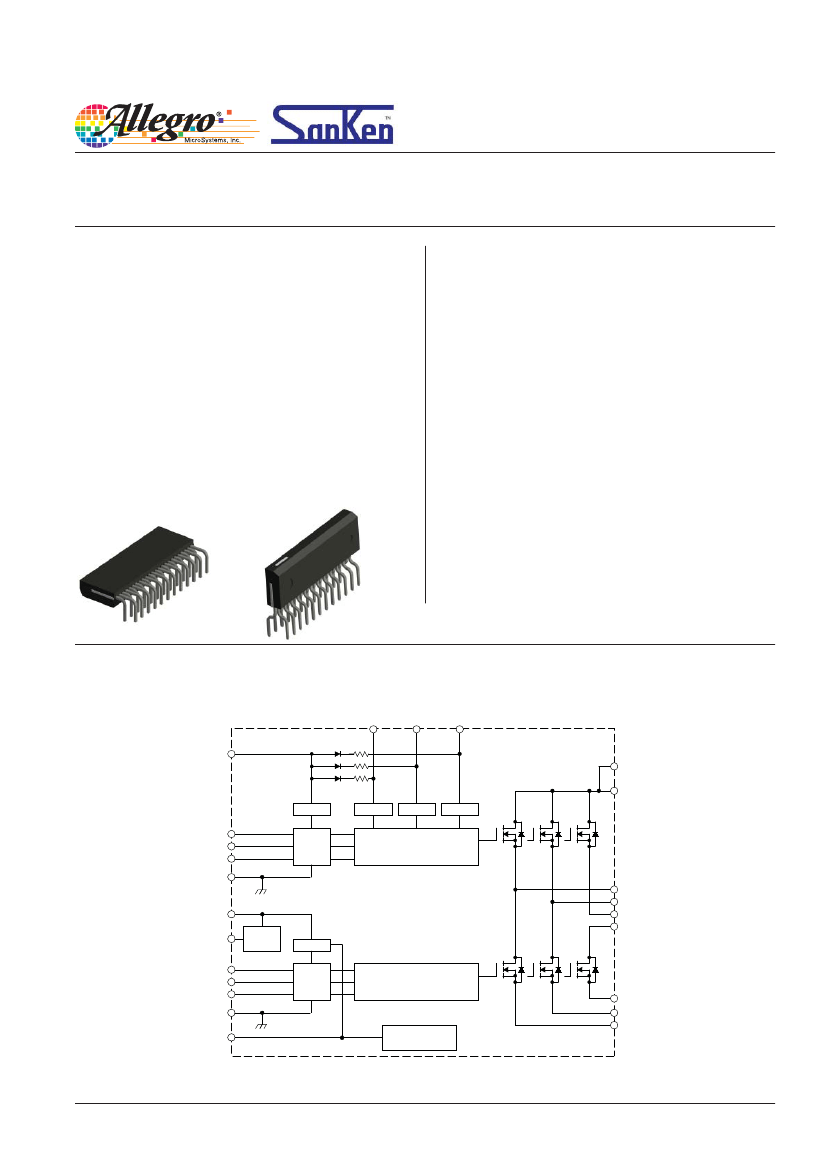

Packages: Power SIP

Not to scale

Leadform

2451

Leadform

2452

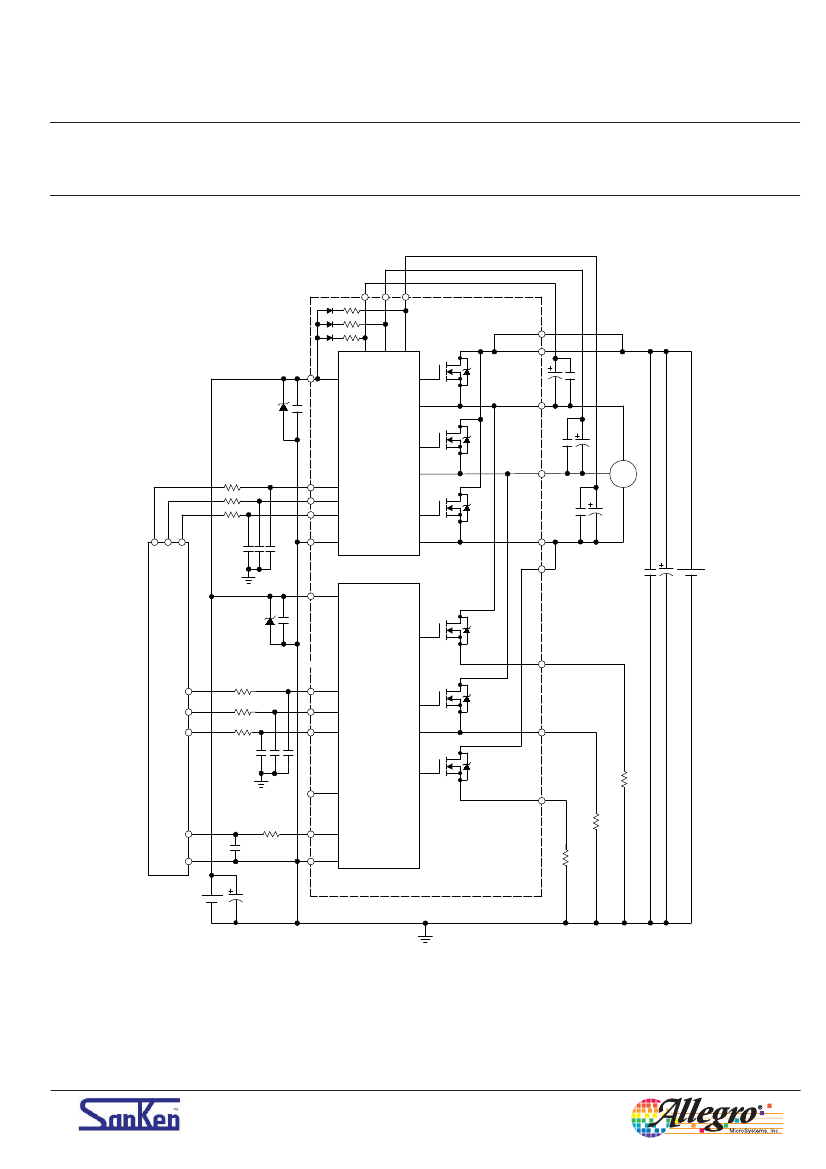

Functional Block Diagram

VB 1

VB 2

VB3

VCC1

VBB 1

VBB 2

UVLO

HIN1

HIN2

HIN3

COM1

UVLO

Input

Logic

Low Side

Driver

Input

Logic

UVLO

High Side

Level Shift Driver

VCC2

VREG

LIN1

LIN2

LIN3

COM2

Thermal

Detect

7.5V

Reg.

LS 3

LS 2

LS1

Figure 1. Driver block diagram

28610.20
