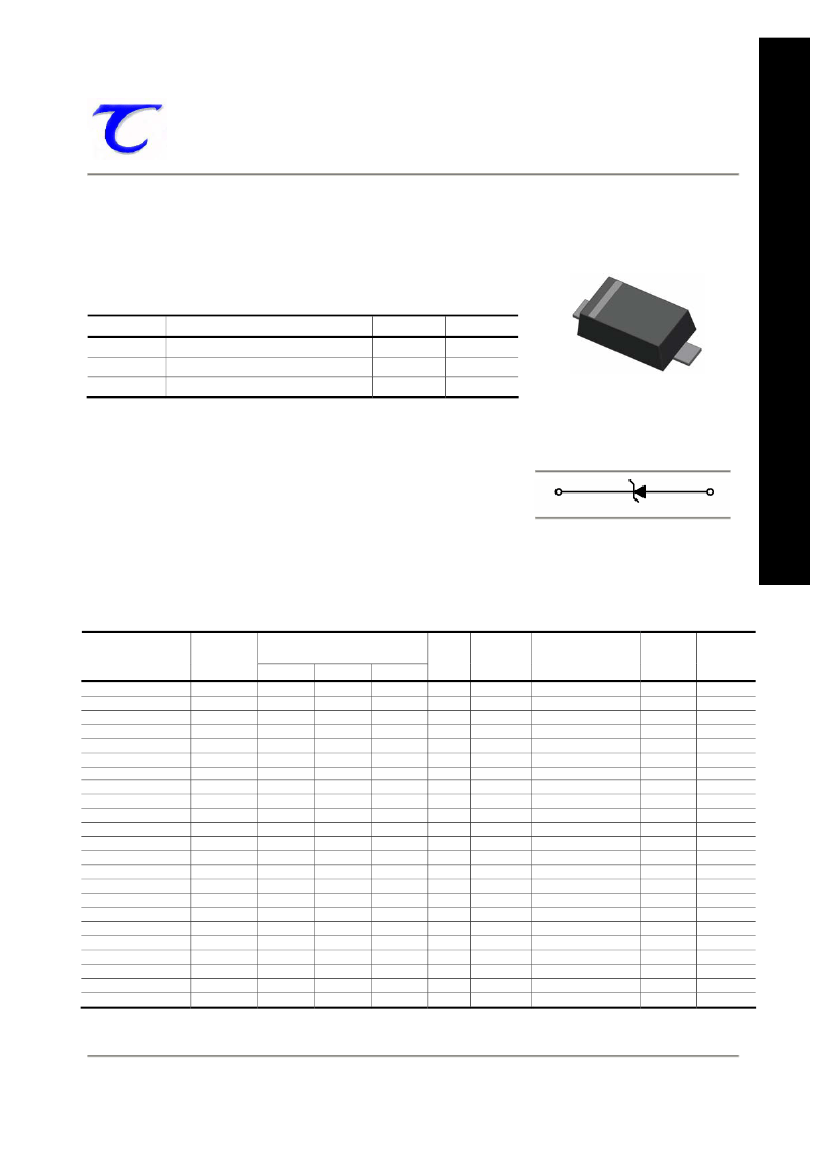

TAK CHEONG
®
PRELIMINARY DATASHEET
500mW SOD-123 SURFACE MOUNT
Flat Lead Surface Mount Plastic Package
Zener Voltage Regulators
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
OPR
Power Dissipation
Storage Temperature Range
Operating Temperature Range
T
A
= 25°C unless otherwise noted
Value
500
-65 to +150
-65 to +150
Units
mW
°C
°C
SOD-123 Flat Lead
Parameter
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Wide Zener Voltage Range Selection, 2.4V to 56V
VZ Tolerance Selection of ±5%
Flat Lead SOD-123 Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
Clip Bonding Construction, Good Thermal Capability
RoHS Compliant
Matte Tin(Sn) Lead Finish
Band Indicates Cathode
Cathode
ELECTRICAL SYMBOL
Anode
Electrical Characteristics
Device
Type
TCMMSZ5221B
TCMMSZ5222B
TCMMSZ5223B
TCMMSZ5224B
TCMMSZ5225B
TCMMSZ5226B
TCMMSZ5227B
TCMMSZ5228B
TCMMSZ5229B
TCMMSZ5230B
TCMMSZ5231B
TCMMSZ5232B
TCMMSZ5233B
TCMMSZ5234B
TCMMSZ5235B
TCMMSZ5236B
TCMMSZ5237B
TCMMSZ5238B
TCMMSZ5239B
TCMMSZ5240B
TCMMSZ5241B
TCMMSZ5242B
TCMMSZ5243B
Device
Marking
T
A
= 25°C unless otherwise noted
V
Z
@ I
ZT
(Volts)
Min
Nom
2.4
2.5
2.7
2.8
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
Max
2.52
2.63
2.84
2.94
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.30
6.51
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
2.28
2.38
2.57
2.66
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.70
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
30
30
30
30
29
28
24
23
22
19
17
11
7
7
5
6
8
8
10
17
22
30
13
Z
ZK
@ I
ZK
= 0.25mA
(Ω)
Max
1200
1250
1300
1400
1600
1600
1700
1900
2000
1900
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
I
R
@ V
R
(µA)
Max
100
100
75
75
50
25
15
10
5
5
5
5
5
5
3
3
3
3
3
3
2
1
0.5
V
R
(Volts)
1
1
1
1
1
1
1
1
1
2
2
3
3.5
4
5
6
6.5
6.5
7
8
8.4
9.1
9.9
Z2V4
Z2V5
Z2V7
Z2V8
Z3V0
Z3V3
Z3V6
Z3V9
Z4V3
Z4V7
Z5V1
Z5V6
Z6V0
Z6V2
Z6V8
Z7V5
Z8V2
Z8V7
Z9V1
Z10V
Z11V
Z12V
Z13V
January 2007 Release, Revision B
Page 1
TCMMSZ5221B through TCMMSZ5263B
TAK CHEONG
Electrical Characteristics
Device
Type
Device
Marking
Min
®
PRELIMINARY DATASHEET
T
A
= 25°C unless otherwise noted
V
Z
@ I
ZT
(Volts)
Nom
Max
9
8.5
7.8
7.4
7
6.6
6.2
5.6
5.2
5
4.6
4.5
4.2
3.8
3.4
3.2
3
2.7
2.5
2.2
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
15
16
17
19
21
23
25
29
33
35
41
44
49
58
70
80
93
105
125
150
Z
ZK
@ I
ZK
= 0.25mA
(Ω)
Max
600
600
600
600
600
600
600
600
600
600
600
600
600
700
700
800
900
1000
1100
1300
I
R
@ V
R
(µA)
Max
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(Volts)
10
11
12
13
14
14
15
17
18
19
21
21
23
25
27
30
33
36
39
43
TCMMSZ5244B
Z14V
13.30
14
14.70
TCMMSZ5245B
Z15V
14.25
15
15.75
TCMMSZ5246B
Z16V
15.20
16
16.80
TCMMSZ5247B
Z17V
16.15
17
17.85
TCMMSZ5248B
Z18V
17.10
18
18.90
TCMMSZ5249B
Z19V
18.05
19
19.95
TCMMSZ5250B
Z20V
19.00
20
21.00
TCMMSZ5251B
Z22V
20.90
22
23.10
TCMMSZ5252B
Z24V
22.80
24
25.20
TCMMSZ5253B
Z25V
23.75
25
26.25
TCMMSZ5254B
Z27V
25.65
27
28.35
TCMMSZ5255B
Z28V
26.60
28
29.40
TCMMSZ5256B
Z30V
28.50
30
31.50
TCMMSZ5257B
Z33V
31.35
33
34.65
TCMMSZ5258B
Z36V
34.20
36
37.80
TCMMSZ5259B
Z39V
37.05
39
40.95
TCMMSZ5260B
Z43V
40.85
43
45.15
TCMMSZ5261B
Z47V
44.65
47
49.35
TCMMSZ5262B
Z51V
48.45
51
53.55
TCMMSZ5263B
Z56V
53.20
56
58.80
V
F
Forward Voltage = 900mV Maximum @
I
F
= 10 mA for all types
Notes:
1.
2.
3.
4.
The zener voltage (V
Z
) is tested under pulse condition of 15mS. The measured
V
Z
is guaranteed to be within specification with
device junction in thermal equilibrium.
The device numbers listed have a standard tolerance on the nominal zener voltage of ±5%.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.

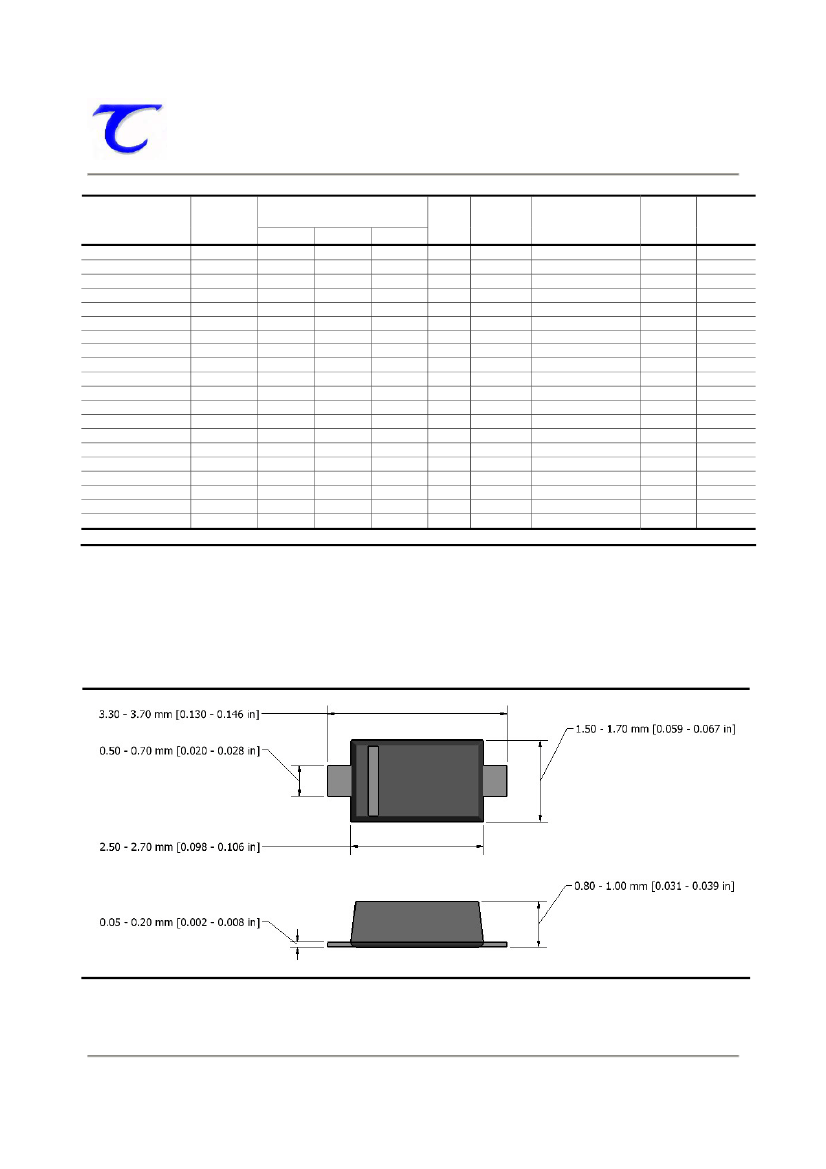

Flat Lead SOD-123 Package Outline
January 2007 Release, Revision B
Page 2
TAK CHEONG
®
PRELIMINARY DATASHEET
This datasheet presents technical data of Tak Cheong’s Zener Diodes. Complete specifications for the individual devices are
provided in the form of datasheets. A comprehensive Selector Guide is included to simplify the task of choosing the best set of
components required for a specific application. For additional information, please visit our website
http://www.takcheong.com.
Although information in this datasheet has been carefully checked, no responsibility for the inaccuracies can be assumed by Tak
Cheong. Please consult your nearest Tak Cheong’s sales office for further assistance.
Tak Cheong reserves the right to make changes without further notice to any products herein to further improve reliability,
function or design, cost and productivity.
TAK CHEONG
®
and
are registered trademarks of Tak Cheong Electronics (Holdings) Co., Ltd.
January 2007 Release, Revision B
Page 3
