NJM386D datasheet, PDF - EEWORLD Datasheet

NJM386D: DescriptionAudio Amplifier, 0.5W, 1 Channel(s), 1 Func, Bipolar, PDIP8, DIP-8; CategoryAnalog mixed-signal IC Consumption circuit; File Size341KB，10 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

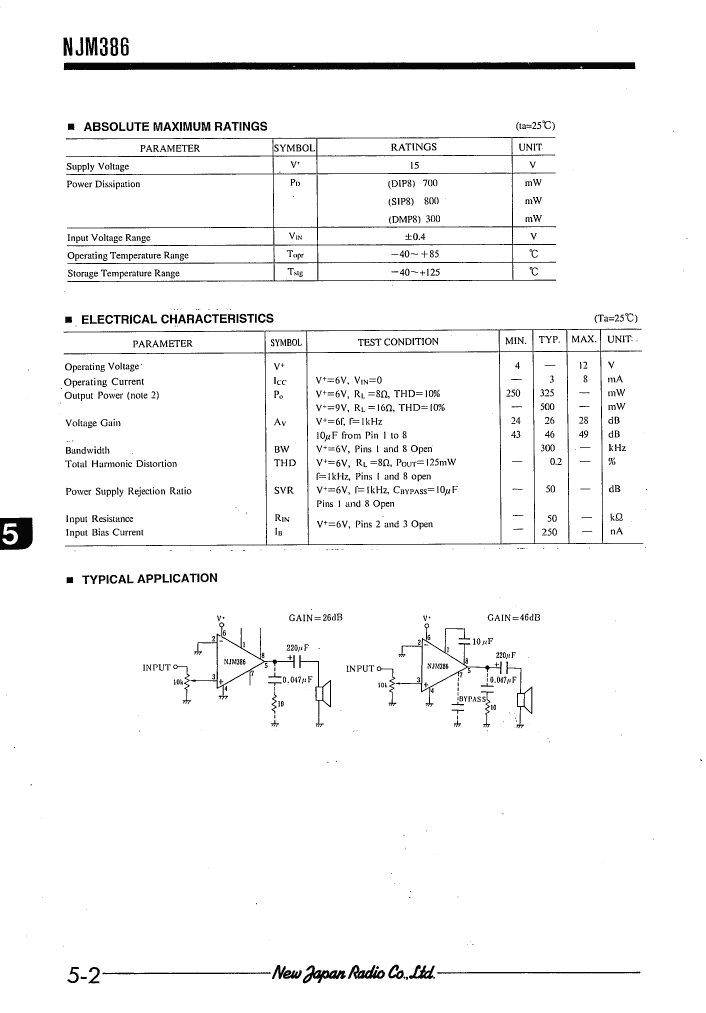

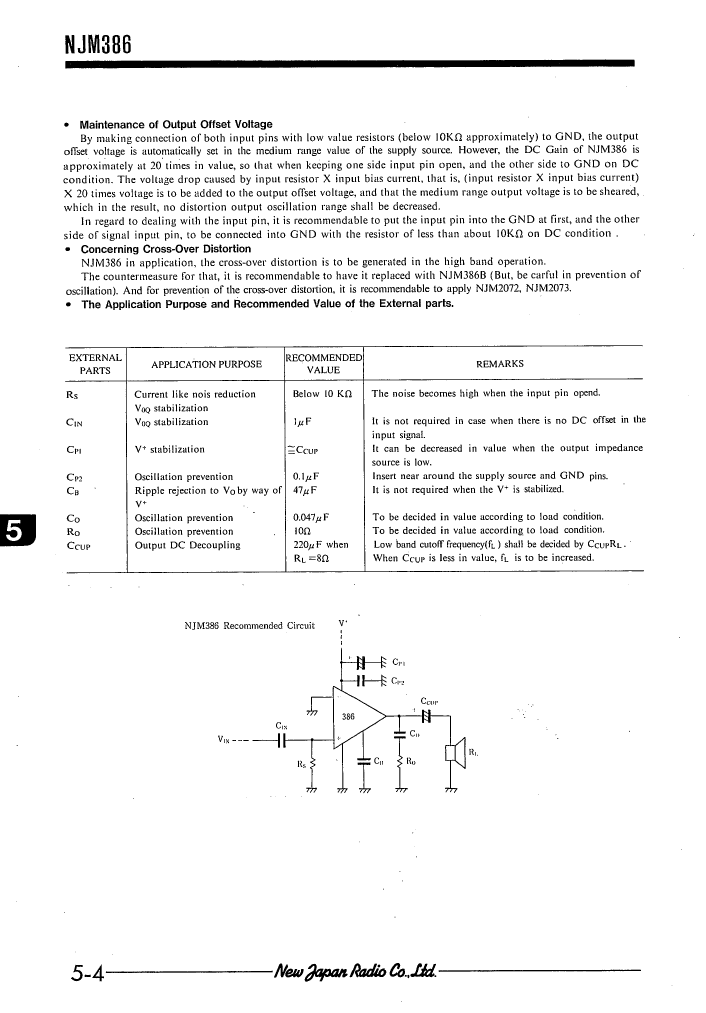

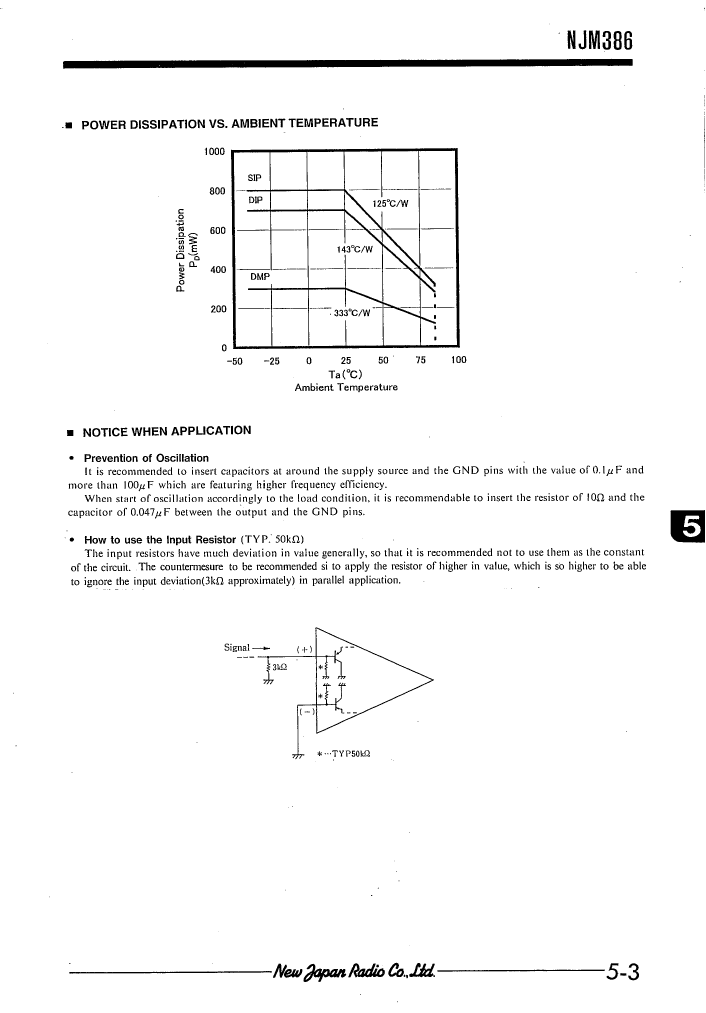

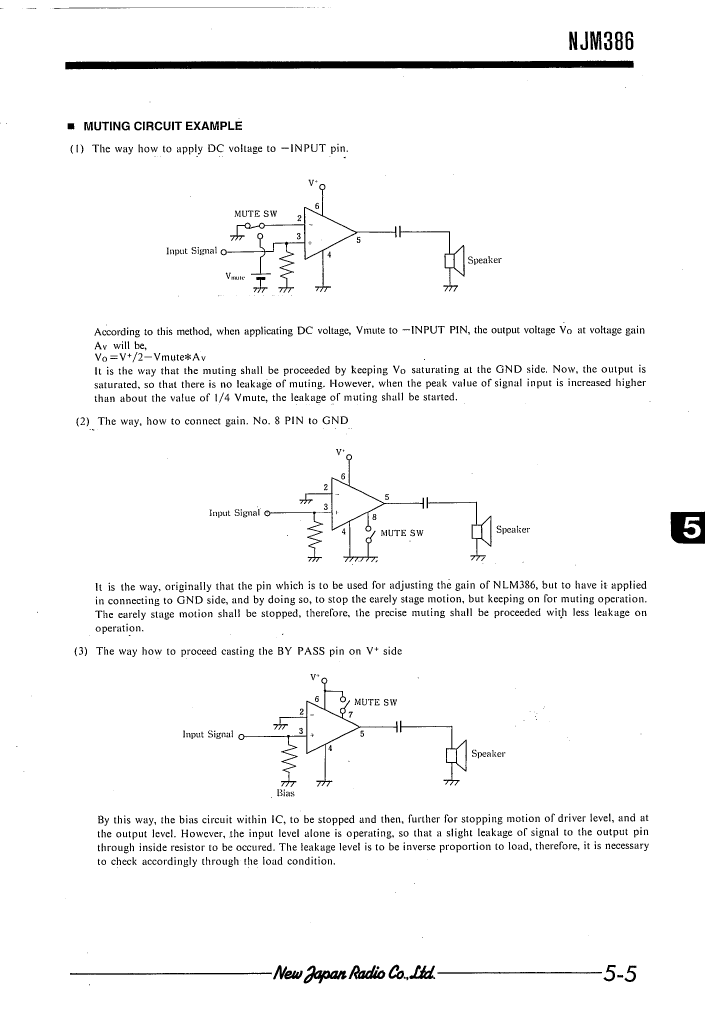

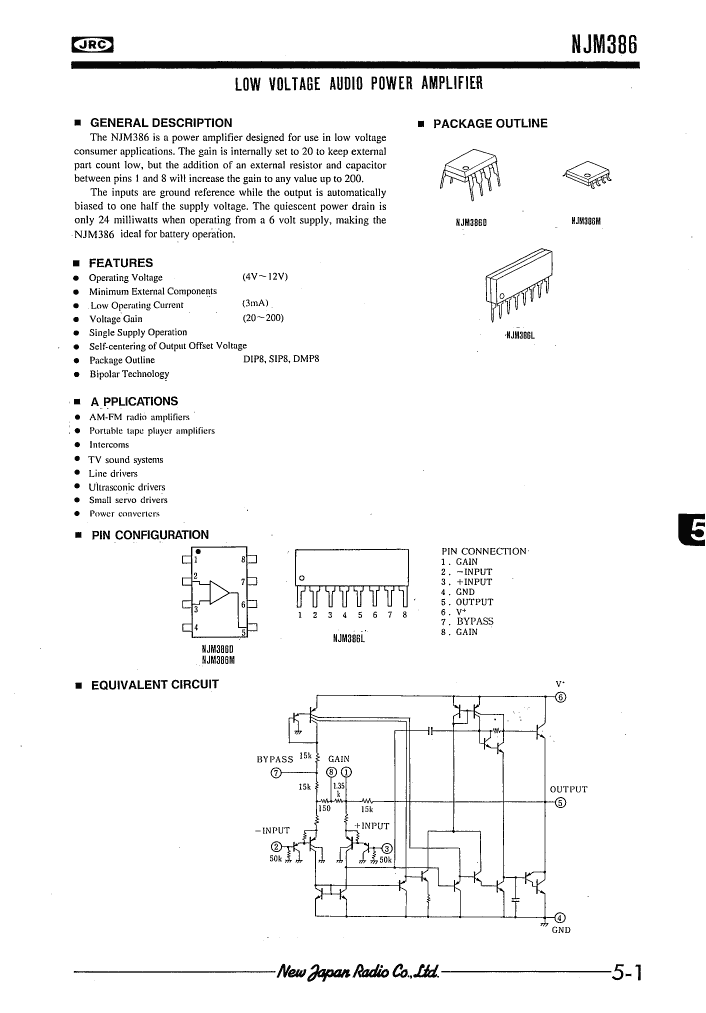

Download Datasheet Parametric View All

NJM386D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJM386D	-	-	View	Buy Now

Audio Amplifier, 0.5W, 1 Channel(s), 1 Func, Bipolar, PDIP8, DIP-8

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Nominal bandwidth	300 kHz
Commercial integrated circuit types	AUDIO AMPLIFIER
Gain	46 dB
harmonic distortion	10%
JESD-30 code	R-PDIP-T8
JESD-609 code	e6
length	8.8 mm
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output power	0.5 W
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.7 mm
Maximum slew rate	8 mA
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	4 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
