BAT54W_08

Description
0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Categorysemiconductor    Discrete semiconductor
File Size362KB,5 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric Compare View All

BAT54W_08 Overview

0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAT54W_08 Parametric

Parameter NameAttribute value
Number of terminals3
Number of components2
Processing package descriptionGREEN, ULTRA SMALL, PLASTIC PACKAGE-3
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE Tin
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
CraftsmanshipSCHOTTKY
structure系列 CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materialssilicon
Maximum power consumption limit0.2000 W
Diode typeSignal diode
Maximum reverse recovery time0.0050 us
Maximum repetitive peak reverse voltage30 V
Maximum average forward current0.2000 A

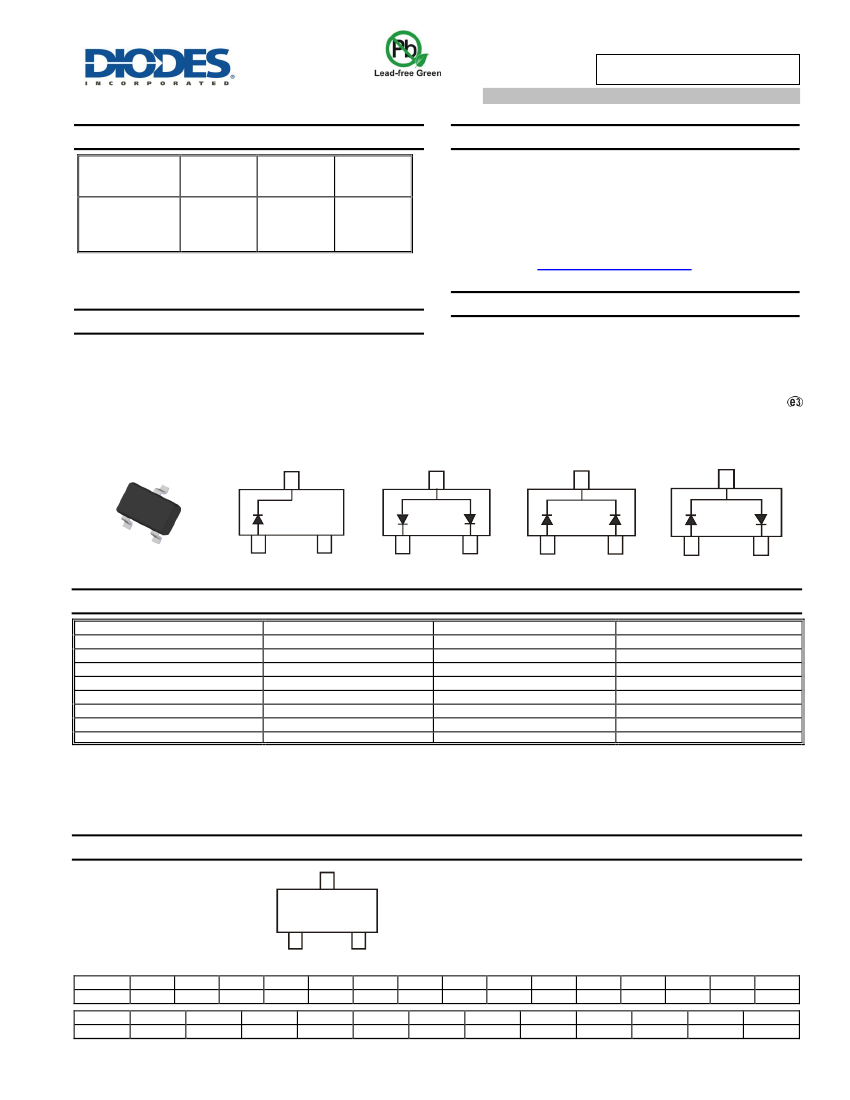

BAT54W /AW /CW /SW
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
(@ +25°
C)
V
RRM
(V)
I
F
(mA)
V
F
Max
(mV)
@ 1mA
320
I
R
Max (µA)
@ 25V
Features and Benefits
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
An Automotive-Compliant Part is Available Under Separate
Datasheet (BAT54WQ
/AWQ /CWQ /SWQ)
30
200
2
Mechanical Data
Applications
SMPS
DC-DC Converter
Freewheeling Diodes
Reverse Polarity Protection
Blocking Diodes
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagrams Below
Weight: 0.006 grams (Approximate)
SOT323
Top View
BAT54W
BAT54AW
BAT54CW
BAT54SW
Ordering Information
(Note 4)
Part Number
BAT54W-7-F
BAT54W-13-F
BAT54AW-7-F
BAT54AW-13-F
BAT54CW-7-F
BAT54CW-13-F
BAT54SW-7-F
BAT54SW-13-F
Notes:
Compliance
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Case
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
Packaging
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
xxx = Product Type Marking Code
KL5 = BAT54W
KL6 = BAT54AW
KL7 = BAT54CW
KL8 = BAT54SW
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
2016
D
Jun
6
1 of 5
www.diodes.com
2017
E
2018
F
Jul
7
2019
G
Aug
8
2020
H
Sep
9
2021
I
Oct
O
2022
J
2023
K
Nov
N
2024
L
Dec
D
January 2018
© Diodes Incorporated
xxx
Date Code Key
Year
2010
Code
X
Month
Code
Jan
1
2011
Y
Feb
2
2012
Z
2013
A
Mar
3
2014
B
Apr
4
YM
2015
C
May
5
BAT54W /AW /CW /SW
Document number: DS30065 Rev. 16 - 2

BAT54W_08 Related Products

BAT54W_08 BAT54W
Description 0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE 0.2 A, 30 V, SILICON, SIGNAL DIODE
Number of terminals 3 2
Number of components 2 1
Processing package description GREEN, ULTRA SMALL, PLASTIC PACKAGE-3 GREEN, PLASTIC PACKAGE-2
state ACTIVE ACTIVE
packaging shape Rectangle Rectangle
Package Size SMALL OUTLINE SMALL OUTLINE
surface mount Yes Yes
Terminal form GULL WING FLAT
terminal coating MATTE Tin MATTE Tin
Terminal location pair pair
Packaging Materials Plastic/Epoxy Plastic/Epoxy
Craftsmanship SCHOTTKY SCHOTTKY
structure 系列 CONNECTED, CENTER TAP, 2 ELEMENTS single
Diode component materials silicon silicon
Maximum power consumption limit 0.2000 W 0.4000 W
Diode type Signal diode Signal diode
Maximum reverse recovery time 0.0050 us 0.0050 us
Maximum repetitive peak reverse voltage 30 V 30 V
Maximum average forward current 0.2000 A 0.2000 A
