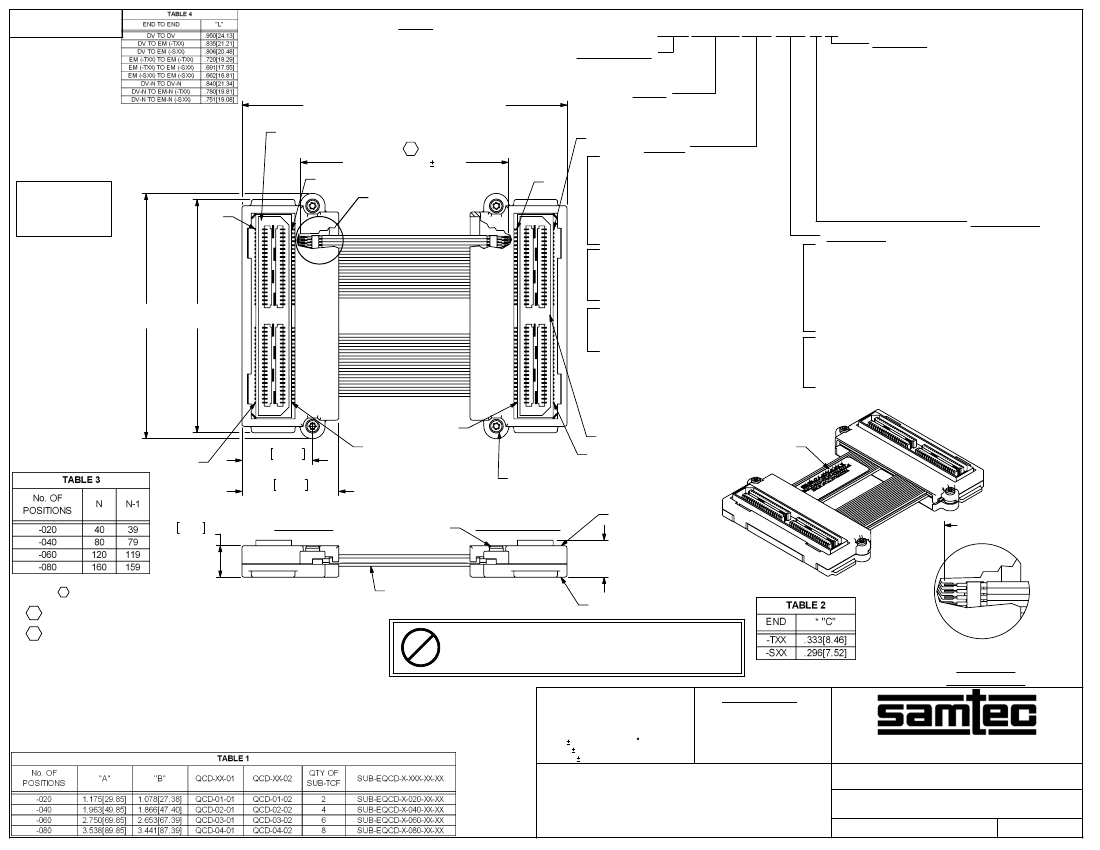

REVISION V
VERTICAL
(EQCD-040-XX.XX-STR-STR-1 SHOWN)
FIG. 1
EQCD-XXX-XX.XX-XXX-XXX-X-X
No OF POSITIONS
-020, -040, -060, -080
(PER ROW)
LENGTH
-XX.XX (INCHES)
(03.75[95.3] MIN)
(SEE NOTE 2)
(SEE NOTE 9)
FIRST END
LENGTH: XX.XX + "L" REF (SEE TABLE 4)
SUB-EQCD-X-XXX-XX-XX
C1
02
01%
01
LENGTH: XX.XX
02
DO NOT
SCALE FROM
THIS PRINT
'A'
01
-TTR: TERMINAL, TOP, RIGHT
-TTL: TERMINAL, TOP, LEFT
-TBR: TERMINAL, BOTTOM, RIGHT
-TBL: TERMINAL, BOTTOM, LEFT
-STR: SOCKET, TOP, RIGHT
-STL: SOCKET, TOP, LEFT
-SBR: SOCKET, BOTTOM, RIGHT
-SBL: SOCKET, BOTTOM, LEFT
(SEE TABLE 1 & SHEET 2)
-TEU: TERMINAL, EDGE MOUNT, UP
-TED: TERMINAL, EDGE MOUNT, DOWN
-SEU: SOCKET, EDGE MOUNT, UP
-SED: SOCKET, EDGE MOUNT, DOWN
(SEE TABLE 5 & SHEET 5)
-TPU: TERMINAL, PANEL MOUNT, UP
-TPD: TERMINAL, PANEL MOUNT, DOWN
-SPU: SOCKET, PANEL MOUNT, UP
-SPD: SOCKET, PANEL MOUNT, DOWN
(SEE TABLE 10 & SHEET 5)
(ONLY AVAILABLE ON -020,-040, AND -060)
-F: SCREW OPTION FIRST END ONLY (NOT AVAILABLE
WITH XPX OPTIONS)
-S: SCREW OPTION SECOND END ONLY
-B: SCREW OPTION BOTH ENDS (NOT AVAILABLE WITH XPX
OPTIONS)
-L: FIRST END RT1 OPTION (SEE NOTE 10 & 11)
-R: SECOND END RT1 OPTION (SEE NOTE 10 & 11)
-D: BOTH ENDS RT1 OPTION (SEE NOTE 10 & 11)
-1: FIRST END SCREW OPTION, SECOND END RT1 OPTION
(SEE NOTE 10 & 11)
-2: FIRST END RT1 OPTION, SECOND END SCREW OPTION
(SEE NOTE 10 & 11)
-N: NO CAPS
(LEAVE BLANK FOR STANDARD CAPS BOTH ENDS)
(SEE FIG. 3, SHEET 5 FOR EDGE MOUNT END OPTIONS)
(SEE FIG. 4, SHEET 5 FOR DOUBLE VERTICAL END OPTIONS)
(RT1 OPTIONS NOT AVAILABLE WITH XPX OR XEX OPTIONS)
(RT1 OPTIONS NOT AVAILABLE FOR 080 POSITION)
(SEE SHEET 6 FOR RT1 AND NO CAP OPTIONS)
END OPTION
SECOND END
-TTR: TERMINAL, TOP, RIGHT
-TTL: TERMINAL, TOP, LEFT
-TBR: TERMINAL, BOTTOM, RIGHT
-TBL: TERMINAL, BOTTOM, LEFT
-STR: SOCKET, TOP, RIGHT
-STL: SOCKET, TOP, LEFT
-SBR: SOCKET, BOTTOM, RIGHT
-SBL: SOCKET, BOTTOM, LEFT
(SEE TABLE 1 & SHEET 3)

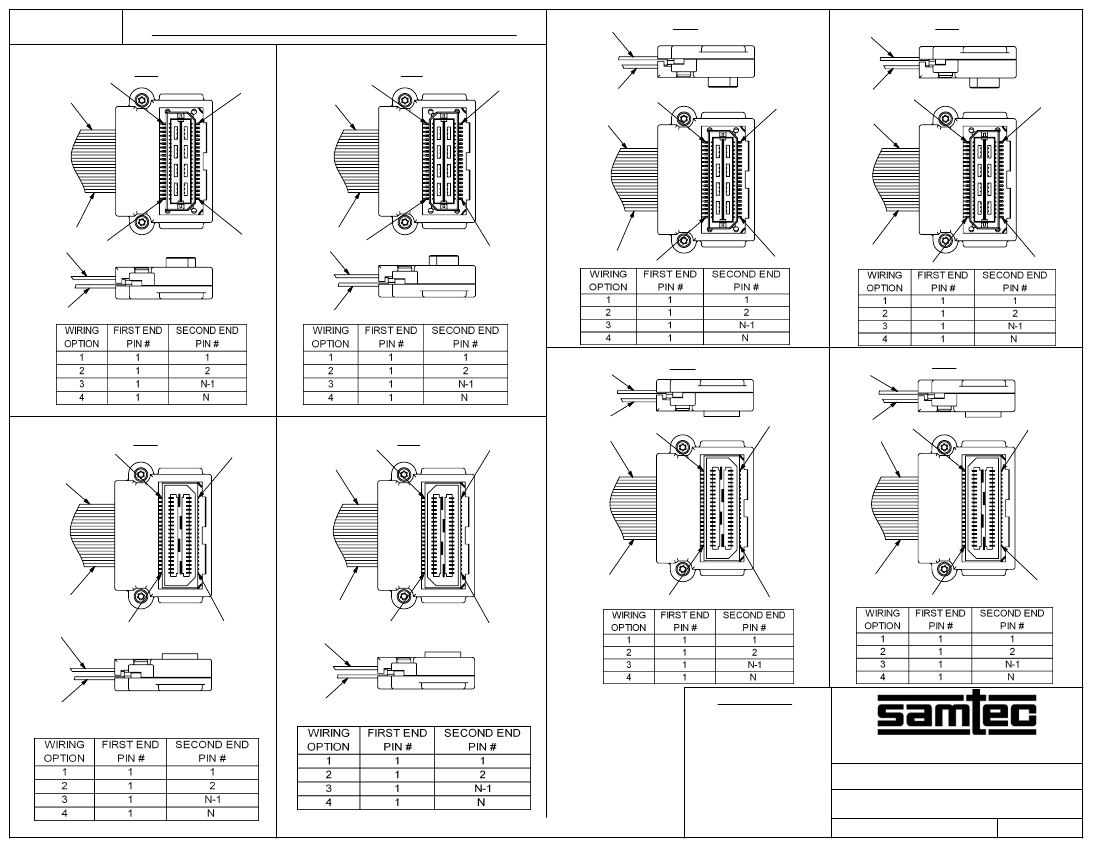

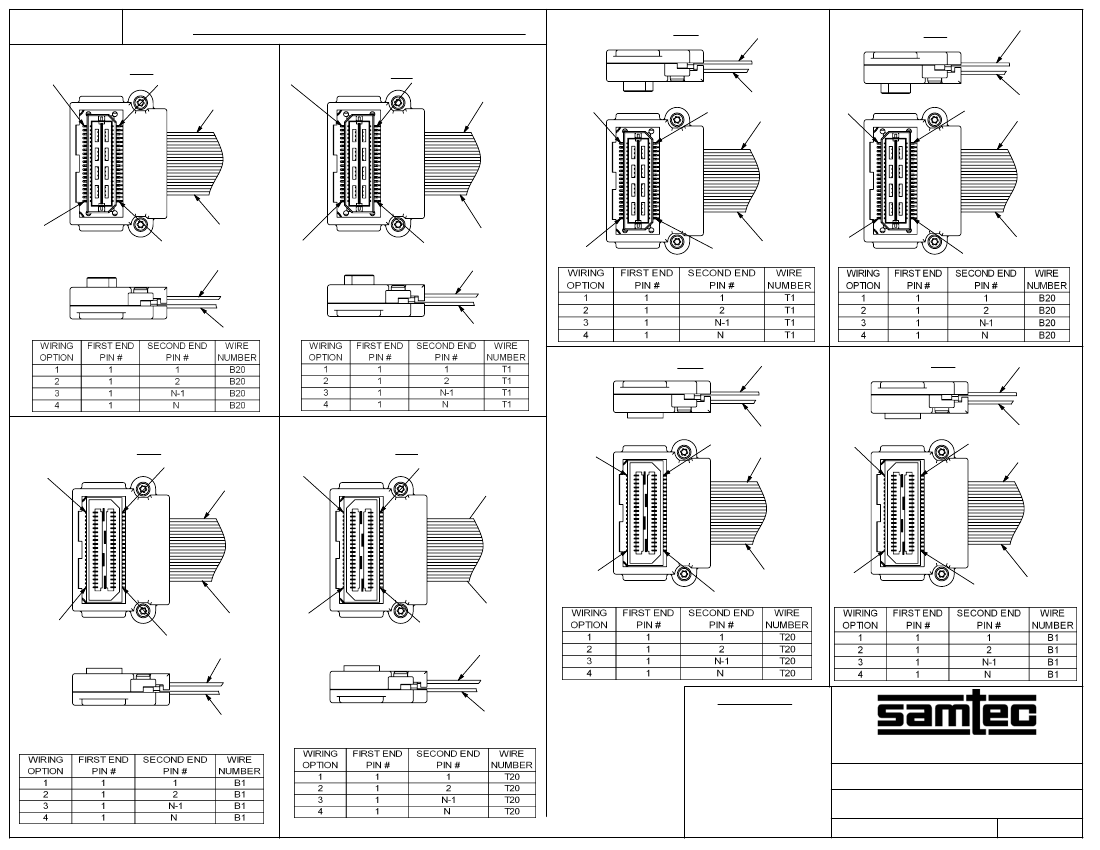

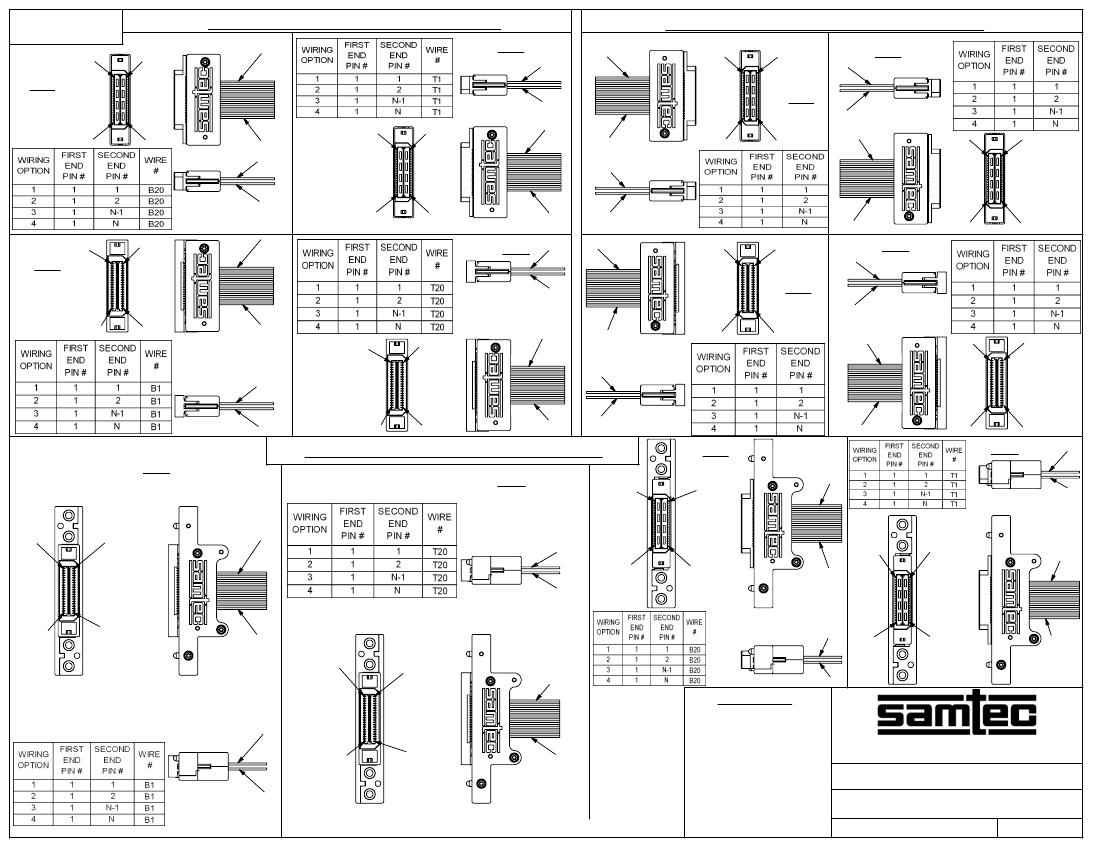

WIRING OPTION
-1: PIN 1 TO PIN 1
-2: PIN 1 TO PIN 2
-3: PIN 1 TO PIN N-1
-4: PIN 1 TO PIN N
(SEE TABLE 9, SHEET 7)
"A" REF
(TYP)
"B" REF
(TYP)
-TEU: TERMINAL, EDGE MOUNT, UP
-TED: TERMINAL, EDGE MOUNT, DOWN
-SEU: SOCKET, EDGE MOUNT, UP
-SED: SOCKET, EDGE MOUNT, DOWN
(SEE TABLE 5 & SHEET 5)
N-1
(SEE TABLE 3)
N-1
(SEE TABLE 3)
.565 14.35
REF (TYP)
.775 19.69 REF
(TYP)
.253 6.42
REF (TYP)
N
(SEE TABLE 3)
SUB-EQCD-X-XXX-XX-XX
N
(SEE TABLE 3)
STS-01
(TIGHTEN TO 1.4-1.7 IN/LBS)
(4 PLCS)
QCD-XX-01
HDRL-11
(SEE NOTE 5)
FIRST END
SEE NOTE 7
SECOND END
LENGTH REF
* "C" REF
NOTES:
SUB-TCF-3850-20-01-XX.XX
1.
C
REPRESENTS A CRITICAL DIMENSION.
(SEE TABLE 1 FOR QTY)
2. SUB-TCF LENGTH IS EQUAL TO EQCD LENGTH.
C2
3. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED
FOR SHORTS AND OPENS.
C3
4. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 300V.
5. TOP SUB-TCF NOT SHOWN IN THIS VIEW FOR CLARITY; HDRL-11
TO BE CENTERED ON LOWER SUB-TCF AS SHOWN; HDRL-11 IS
TO CONTAIN PART NUMBER, SHOP ORDER & DATE CODE.
6. PACKAGE ASSEMBLIES IN ANTI-STATIC & STATIC DISSIPATIVE BAGS.
7. TOP SURFACE OF SCREW TO BE FLUSH OR BELOW TOP SURFACE OF CAP.
8. PARTS TO BE PROCESSED PER SAMTEC ACCEPTABILITY REQUIREMENTS:
HDR-PI-01 "CABLE ASSEMBLY WORKMANSHIP STANDARDS".
9. CABLE LENGTHS LONGER THAN 40.00 INCHES ARE NOT SUPPORTED BY S.I. TEST DATA.
10. RT1 OPTION IS NOT AVAILABLE WITH EDGEMOUNT OR PANEL MOUNT END OPTIONS.
11. RT1 OPTION IS NOT AVAILABLE WITH -080 POSITIONS.
QCD-XX-02
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
* -DV END OPTIONS ONLY
DETAIL 'A'
SCALE 2.5 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.8
0.8mm HIGH-SPEED COAX CABLE ASSEMBLY
EQCD-XXX-XX.XX-XXX-XXX-X-X
02/19/03
SHEET
1
OF
7
c:\enterprisevault\DWG\MISC\MKTG\EQCD-XXX-XX.XX-XXX-XXX-X-X-MKT.SLDDRW
BY:
KEVIN B
REVISION V

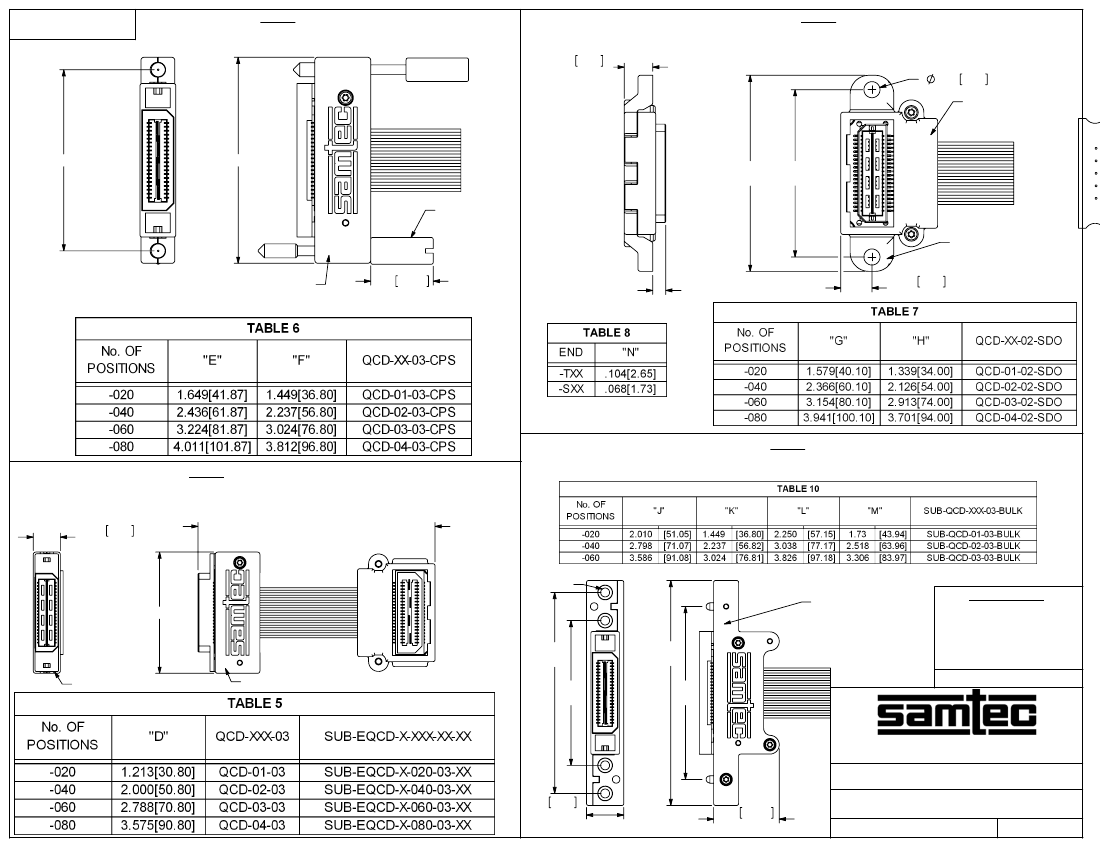

EDGE MOUNT (WITH CAPTIVE PANEL SCREWS)
(EQCD-020-XX.XX-SEU-XXX-1-F SHOWN)
(SAME AS FIG. 2, UNLESS OTHERWISE STATED)
FIG. 3
.228 5.79
REF
DOUBLE VERTICAL (WITH SCREW DOWN OPTION)
(EQCD-020-XX.XX-TTR-XXX-1-F SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
.129 3.28 REF (TYP)
QCD-XX-01
FIG. 4
"F" REF
"E" REF
"G"
REF
CPS-4-40-01-X
"H"
REF
QCD-XX-02-SDO
.500 12.70
REF (TYP)
(FULLY TIGHTENED)
.250 6.34
(TYP)
QCD-XX-03-CPS (TYP)
"N" REF
EDGE MOUNT (NO CAPTIVE PANEL SCREWS)
(EQCD-020-XX.XX-TEU-STR-X SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
.271 6.88
REF
LENGTH: XX.XX + "L" REF (SEE TABLE 4, SHEET 1)
FIG. 2
PANEL MOUNT (BULK HEAD SCREW INSERTS)
(EQCD-020-XX.XX-TPU-XXX-X SHOWN)
(SAME AS FIG. 2, UNLESS OTHERWISE STATED)
FIG. 5
4-40 THD
REF (TYP)
"D" REF
"J"
REF
SUB-EQCD-X-XXX-03-XX
QCD-XX-03 (TYP)
"K"
REF
"L"
REF
"M"
REF
SUB-QCD-XXX-03-BULK
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
SHEET SCALE: 1.25:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
0.8mm HIGH-SPEED COAX CABLE ASSEMBLY
.372 9.45
REF
DWG. NO.
DESCRIPTION:
c:\enterprisevault\DWG\MISC\MKTG\EQCD-XXX-XX.XX-XXX-XXX-X-X-MKT.SLDDRW
.656 16.67
REF
BY:
KEVIN B
EQCD-XXX-XX.XX-XXX-XXX-X-X
02/19/03
SHEET
5
OF
7
