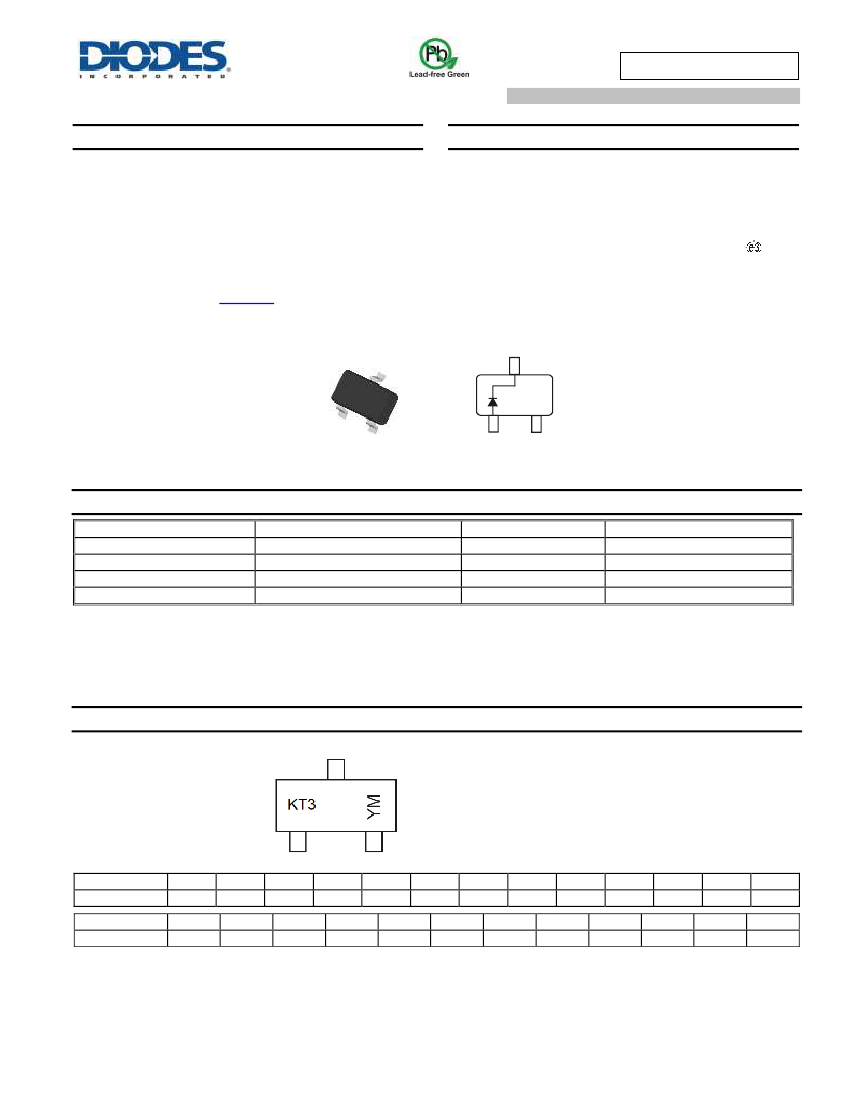

BAS19W - BAS21W
SURFACE MOUNT FAST SWITCHING DIODE
Features
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Conductance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under
Separate Data Sheet (BAS21WQ)
Mechanical Data
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminal Connections: See Diagram
Terminals: Solderable per MIL-STD-202, Method 208
Lead-Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe)
Weight: 0.006 grams (Approximate)
SOT323
Top View
Top View
Internal Schematic
Ordering Information
(Note 4)
Part Number
BAS19W-7-F
BAS20W-7-F
BAS21W-7-F
BAS21W-13-F
Notes:
Compliance
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Case
SOT323
SOT323
SOT323
SOT323
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
KT3 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: F = 2018
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
2000
L
Jan
1
2001
M
Feb
2
…
…
Mar
3
2016
F
Apr
4
2017
G
May
5
2018
H
Jun
6
2019
I
2020
J
Jul
7
2021
K
Aug
8
2022
L
Sep
9
2023
M
Oct
O
2024
N
Nov
N
2025
O
Dec
D
BAS19W - BAS21W
Document number: DS30118 Rev. 16 - 2
1 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS19W - BAS21W
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5)
Average Rectified Output Current (Note 5)
Non-Repetitive Peak Forward Surge Current
Repetitive Peak Forward Surge Current
@ t = 1.0µs
@ t = 1.0s
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
I
FRM
BAS19W
120
100
71
BAS20W
200
150
106
400
200
2.5
0.5
625
BAS21W
250
200
141
Unit
V
V
V
mA
mA
A
mA
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 6)
BAS19W
BAS20W
BAS21W
Symbol
V
(BR)R
V
F
I
R
C
T
t
RR
Min
120
200
250
Max
1.0
1.25
100
15
5.0
50
Unit
V
Test Condition
I
R
= 100µA
I
F
= 100mA
I
F
= 200mA
T
J
= +25°C
T
J
= +100°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
RR
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
Reverse Current
@ Rated DC Blocking Voltage (Note 6)
Total Capacitance
Reverse Recovery Time
Notes:
V
nA
µA
pF
ns
5. Part mounted on FR-4 PC board with minimum recommended pad layout per Diodes Inc.’s website at http://www.diodes.com/package-outlines.html.
I
FM,
I
O
are valid provided that terminals are kept at ambient temperature.
6. Short duration pulse test used to minimize self-heating effect.
BAS19W - BAS21W
Document number: DS30118 Rev. 16 - 2
2 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS19W - BAS21W
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
250
Note 5
1
P
D
, POWER DISSIPATION (mW)
200
0.1
150
100
0.01
50
0
0
100
T
A
, AMBIENT TEMPERATURE (°C)

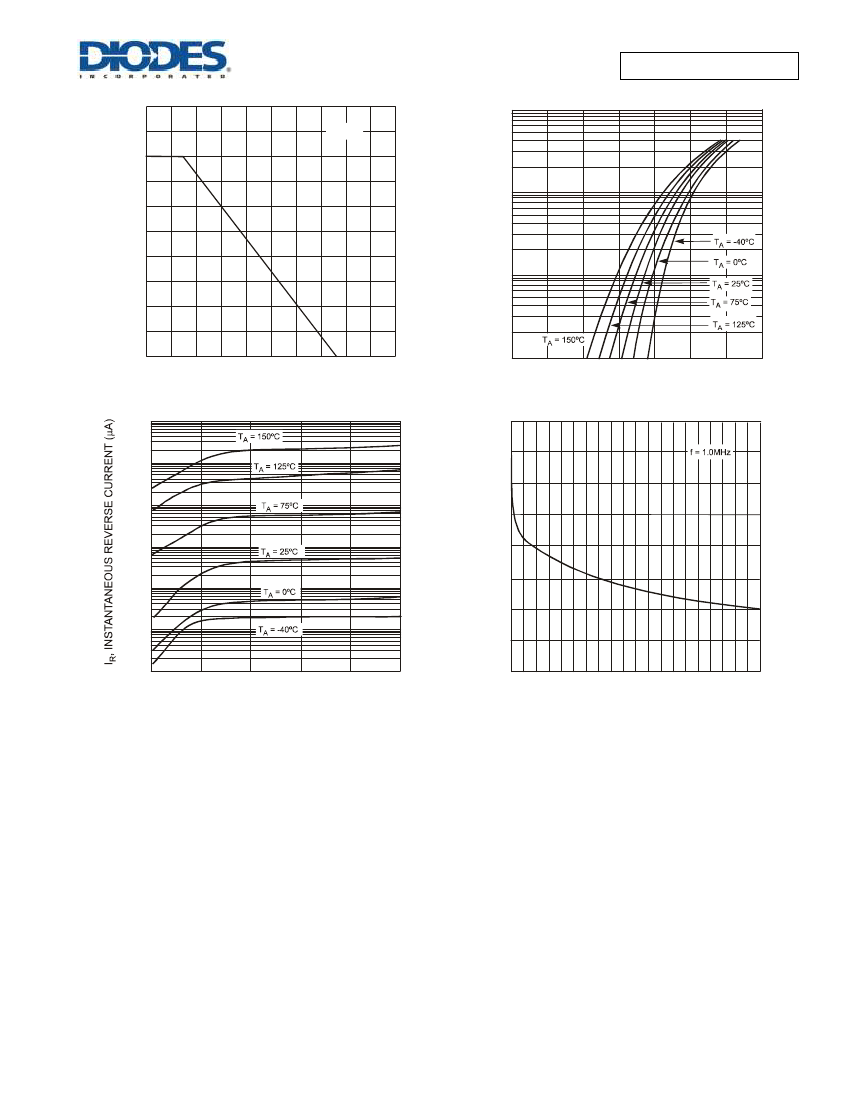

Fig. 1 Power Derating Curve
200
0.001
0
0.2
0.4
0.8
1.0
1.2
0. 6
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
4.0
3.5
C
T
, TOTAL CAPACITANCE (pF)
10
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1
0.1
0.01
0.001
0.0001
0
150
200
50
100
250
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0
10
20
30
40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
BAS19W - BAS21W
Document number: DS30118 Rev. 16 - 2
3 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS19W - BAS21W

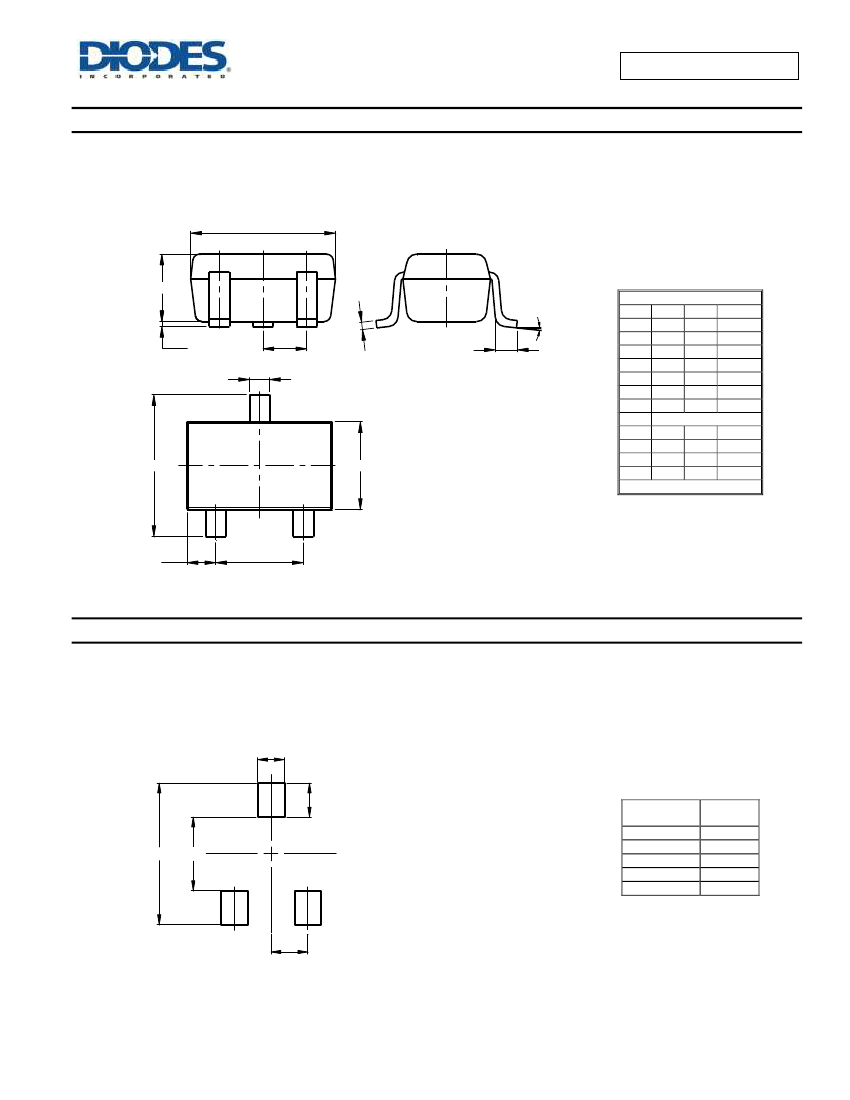

Package Outline Dimensions
