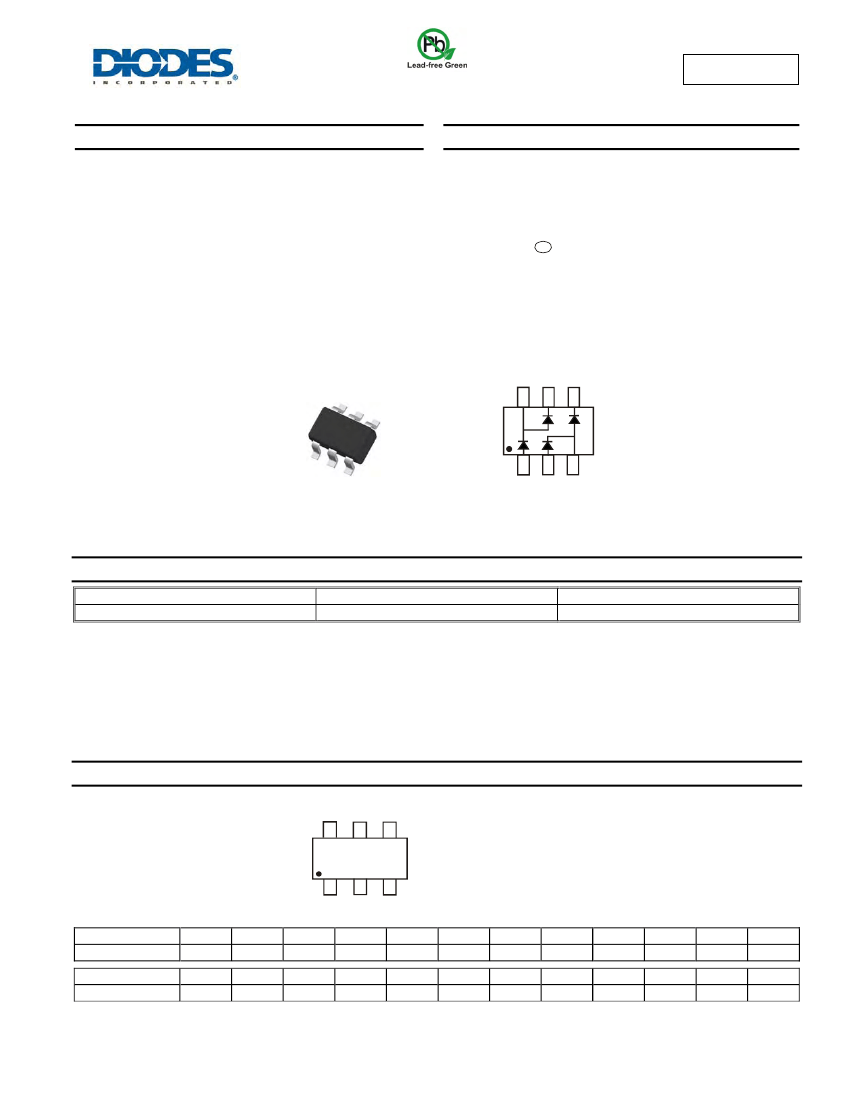

BAV99BRW
QUAD SURFACE MOUNT SWITCHING DIODE ARRAY
Features
•
•
•
•
•
•
•
•
•
•
Fast Switching Speed
Low Forward Voltage: Maximum of 0.715V at 1mA
Fast Reverse Recovery: Maximum of 4ns
Low Capacitance: Maximum of 2pF
Small Surface Mount Package
For General Purpose Switching Applications
Two “BAV99” Circuits In One Package
Easily Connected As Full-Wave Bridge
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-363
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
e3
Polarity: See Diagram
Weight: 0.006 grams (approximate)
SOT-363
AC
1
C
1
C
2
A
1
A
2
AC
2
TOP VIEW
TOP VIEW
Internal Schematic
Ordering Information
(Note 4)
Part Number
BAV99BRW-7-F
Notes:
Case
SOT-363
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KGJ
KGJ = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: Z = 2012
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
2001
M
Jan
1
2002
N
Feb
2
2003
P
Mar
3
…..
…..
Apr
4
YM
…..
…..
May
5
2012
Z
Jun
6
2013
A
Jul
7
2014
B
Aug
8
2015
C
Sep
9
2016
D
Oct
O
2017
E
Nov
N
2018
F
Dec
D
BAV99BRW
Document number: DS30155 Rev. 11 - 2
1 of 5
www.diodes.com
July 2012
© Diodes Incorporated
BAV99BRW
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5)
Average Rectified Output Current (Note 5)
Non-Repetitive Peak Forward Surge Current
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
@ t = 1.0µs
@ t = 1.0s
I
FSM
Value
100
75
53
300
150
2.0
1.0
Unit
V
V
V
mA
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 6)
Forward Voltage
Symbol
V
(BR)R
V
F
Min
75
⎯
Max
⎯
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
V
Test Condition
I
R
= 2.5µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°C
V
R
= 25V, T
J
= +150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Reverse Current (Note 6)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
⎯
⎯
⎯
µA
µA
µA
nA
pF
ns
5. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
6. Short duration pulse test used to minimize self-heating effect.
BAV99BRW
Document number: DS30155 Rev. 11 - 2
2 of 5
www.diodes.com
July 2012
© Diodes Incorporated
BAV99BRW
Note 5
250
P
D
, POWER DISSIPATION (mW)
200
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
300
1
0.1
150
100
0.01
50
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
150
0.001
0.5
1.0
1.5
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

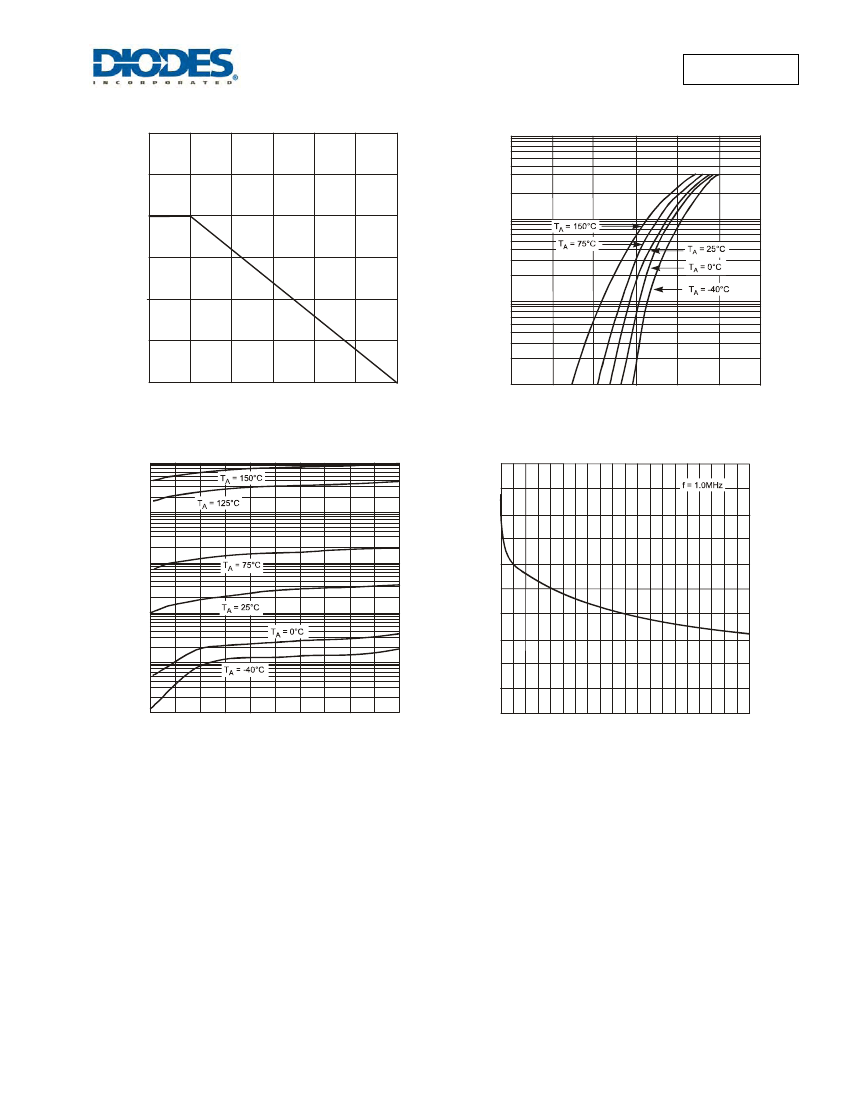

Figure 2 Typical Forward Characteristics, Per Element
Figure 1 Power Derating Curve, Total Package
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
2.0
1.8
1,000
C
T
, TOTAL CAPACITANCE (pF)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics, Per Element
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Total Capacitance vs. Reverse Voltage, Per Element
0
0.0
10
BAV99BRW
Document number: DS30155 Rev. 11 - 2
3 of 5
www.diodes.com
July 2012
© Diodes Incorporated
BAV99BRW

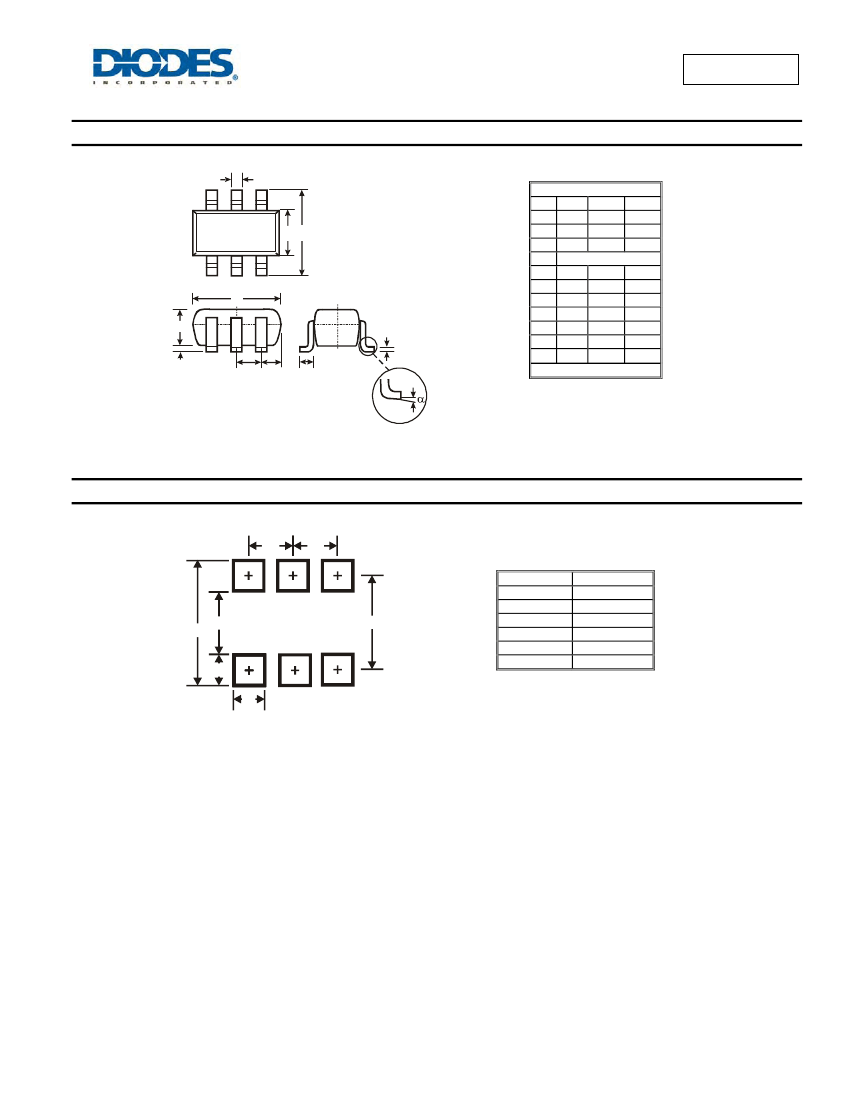

Package Outline Dimensions
A
B C
H
K
M
J
D
F
L
SOT363
Dim Min Max Typ
A
0.10 0.30 0.25
B
1.15 1.35 1.30
C
2.00 2.20 2.10
D
0.65 Typ
F
0.40 0.45 0.425
H
1.80 2.20 2.15
J
0
0.10 0.05
K
0.90 1.00 1.00
L
0.25 0.40 0.30
M
0.10 0.22 0.11
0°
8°
-
α
All Dimensions in mm
Suggested Pad Layout
C2
C2
Dimensions Value (in mm)
Z
2.5
G
1.3
X
0.42
Y
0.6
C1
1.9
C2
0.65
Z
G
C1
Y
X
BAV99BRW
Document number: DS30155 Rev. 11 - 2
4 of 5
www.diodes.com
July 2012
© Diodes Incorporated
BAV99BRW
