TMP86CH29AU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP86CH29AU

TMP86CH29AU: DescriptionIC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP64, 10 X 10 MM, 0.50 MM PITCH, PLASTIC, LQFP-64, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size7MB，130 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP86CH29AU Overview

IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP64, 10 X 10 MM, 0.50 MM PITCH, PLASTIC, LQFP-64, Microcontroller

TMP86CH29AU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	FQFP,
Contacts	64
Reach Compliance Code	unknown
Has ADC	YES
Other features	OPERATES AT 1.8 TO 5.5V SUPPLY @ 4.2 MHZ
Address bus width
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
length	10 mm
Number of I/O lines	39
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	1.85 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

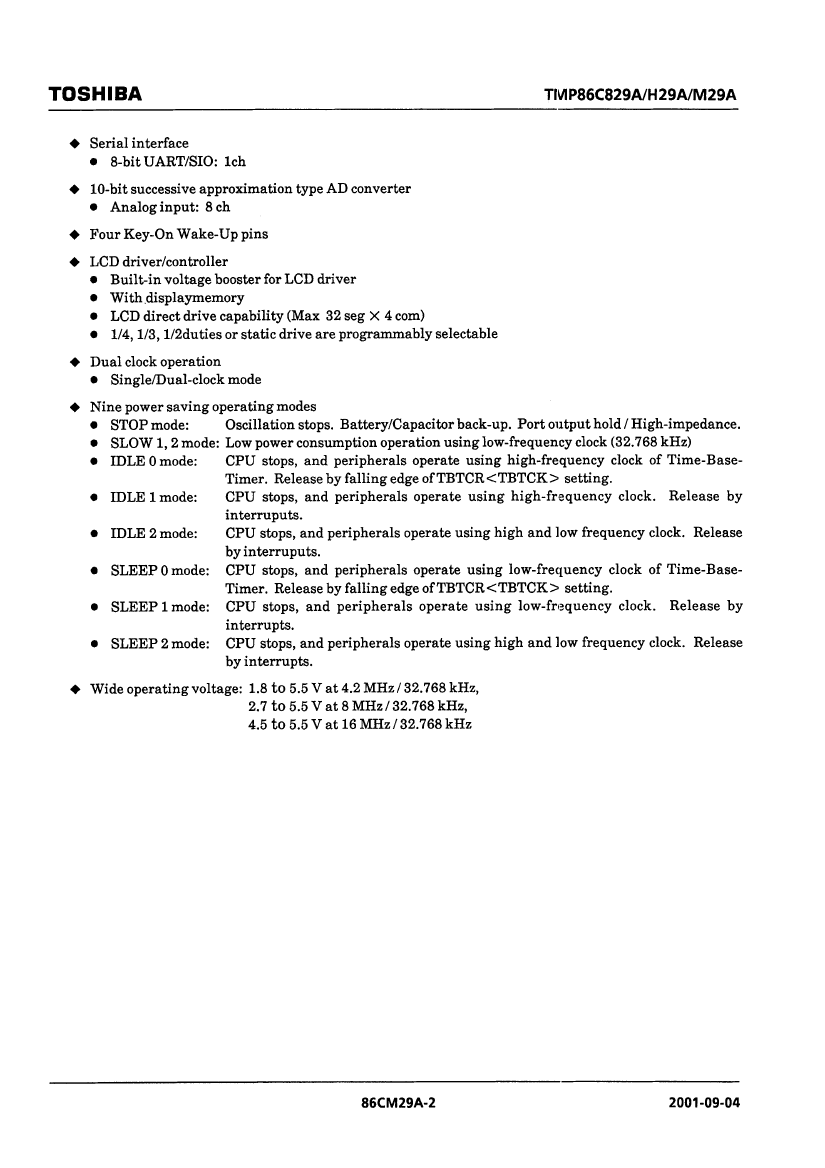

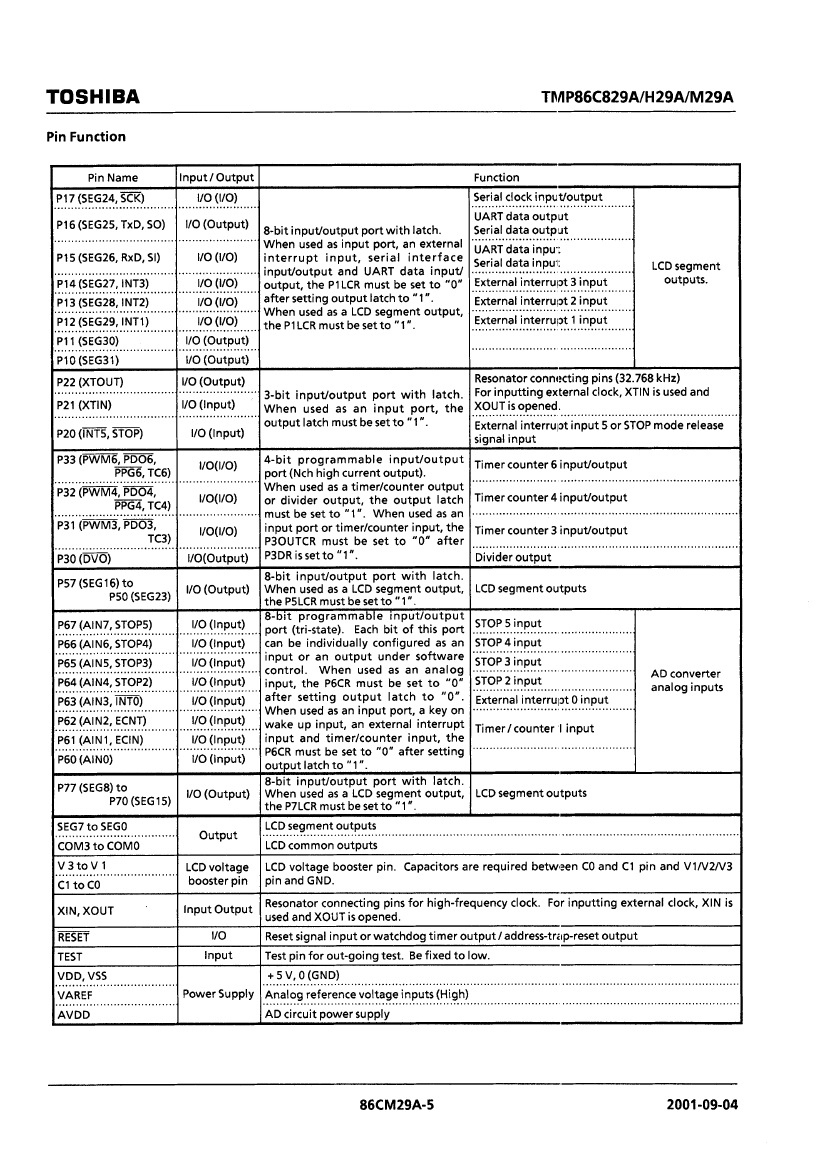

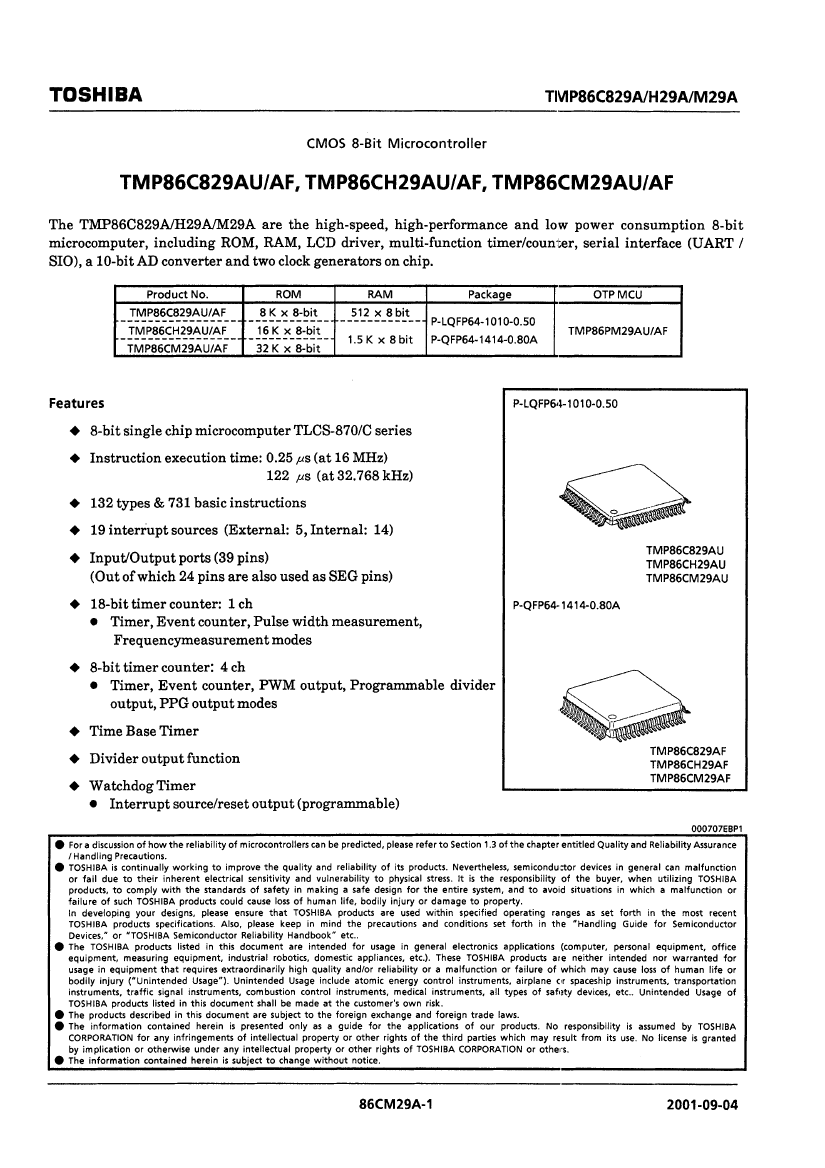

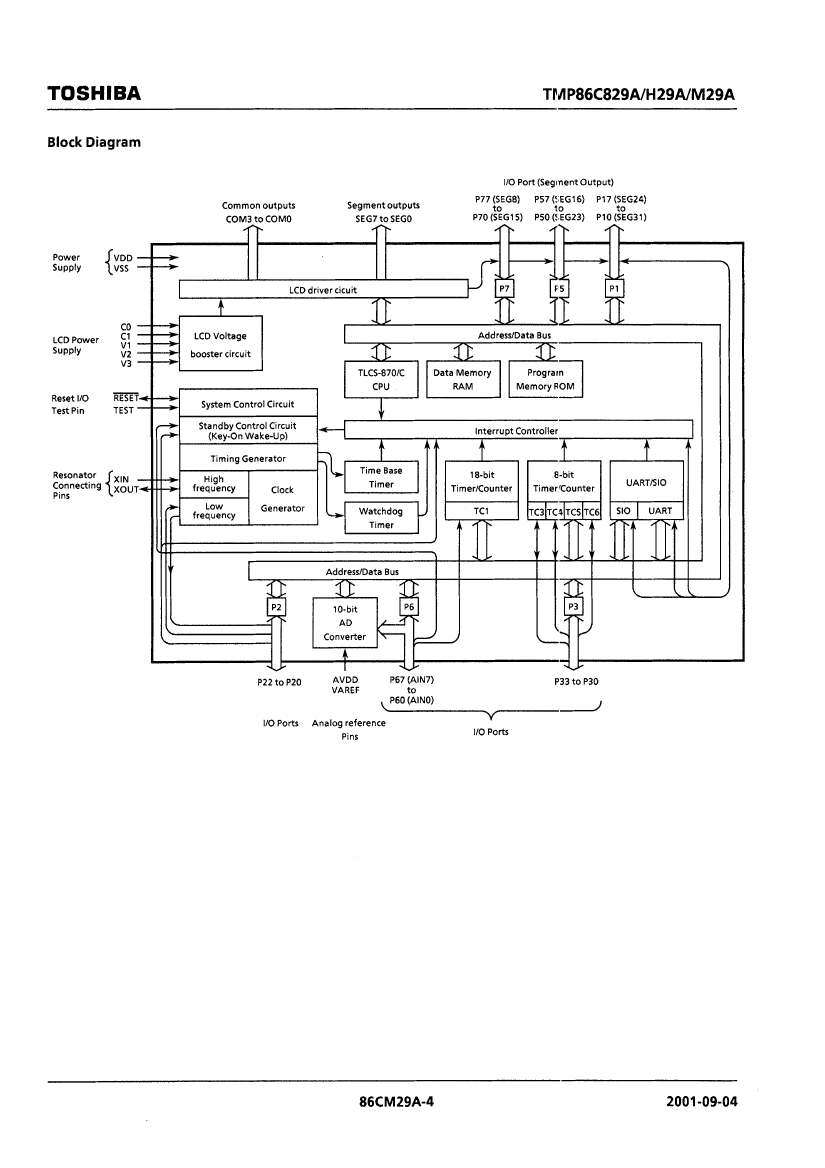

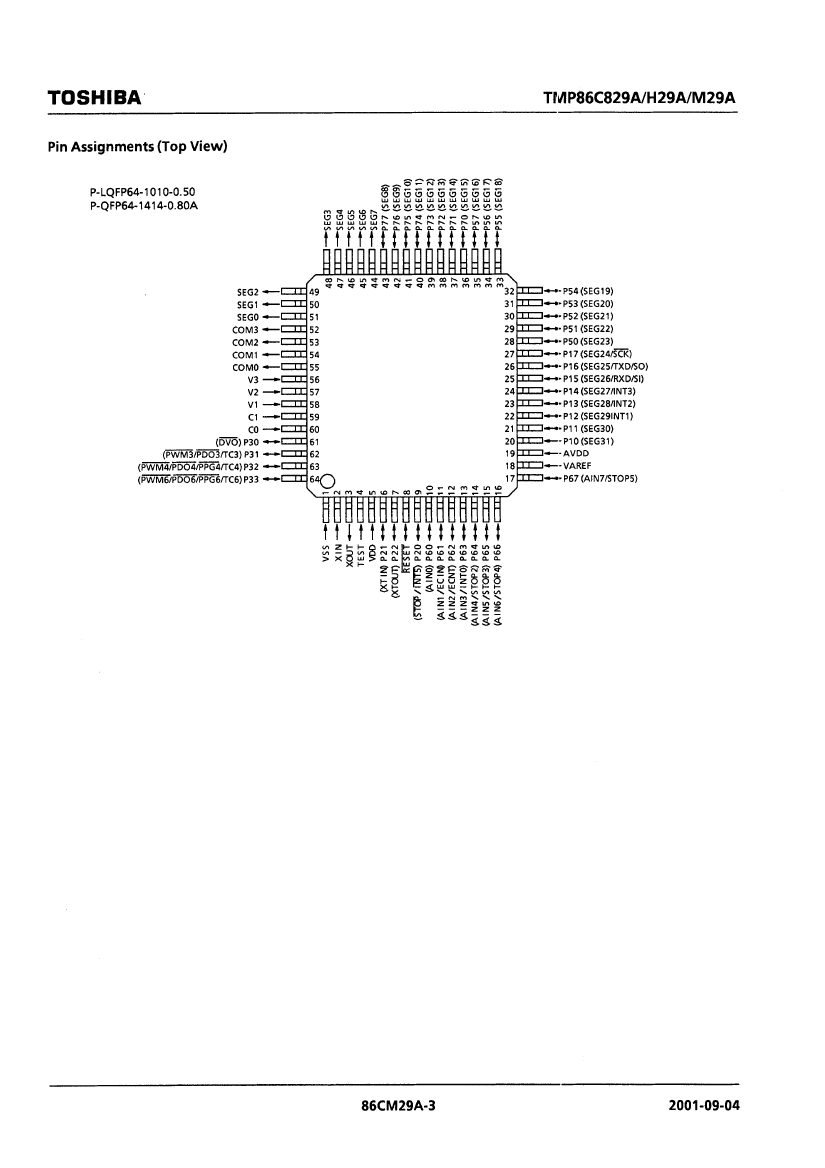

Preview

Download Datasheet

View All

TMP86CH29AU Related Products

	TMP86CH29AU	TMP86C829AF	TMP86CH29AF	TMP86C829AU
Description	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP64, 10 X 10 MM, 0.50 MM PITCH, PLASTIC, LQFP-64, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP64, 14 X 14 MM, 0.80 MM PITCH, PLASTIC, QFP-64, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP64, 14 X 14 MM, 0.80 MM PITCH, PLASTIC, QFP-64, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP64, 10 X 10 MM, 0.50 MM PITCH, PLASTIC, LQFP-64, Microcontroller
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	QFP	QFP
package instruction	FQFP,	QFP,	QFP,	FQFP,
Contacts	64	64	64	64
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES
Other features	OPERATES AT 1.8 TO 5.5V SUPPLY @ 4.2 MHZ	OPERATES AT 1.8 TO 5.5V SUPPLY @ 4.2 MHZ	OPERATES AT 1.8 TO 5.5V SUPPLY @ 4.2 MHZ	OPERATES AT 1.8 TO 5.5V SUPPLY @ 4.2 MHZ
bit size	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64
length	10 mm	14 mm	14 mm	10 mm
Number of I/O lines	39	39	39	39
Number of terminals	64	64	64	64
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	FQFP	QFP	QFP	FQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, FINE PITCH	FLATPACK	FLATPACK	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	1.85 mm	3.15 mm	3.15 mm	1.85 mm
speed	16 MHz	16 MHz	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.8 mm	0.8 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10 mm	14 mm	14 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor
