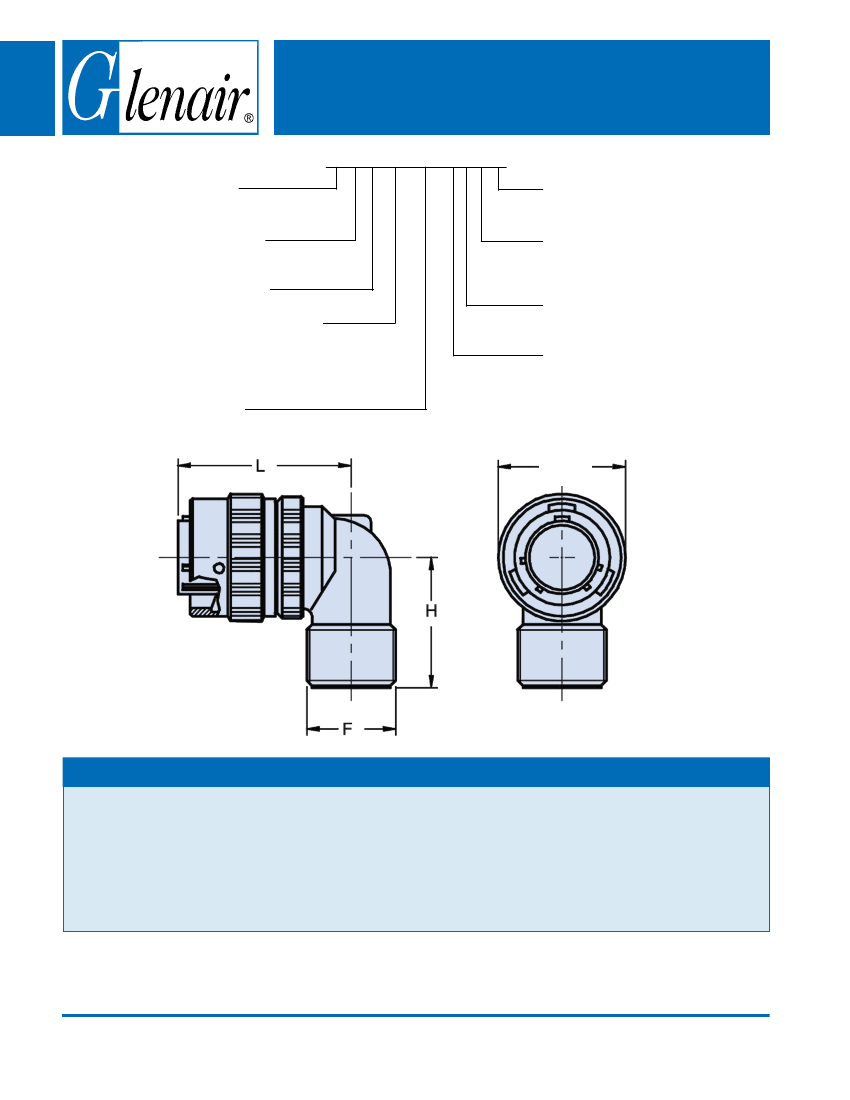

with 90° EMI Shield Termination Backshell Suitable for
MS3057 Cable Clamp (Not Included)
IPT G 08 AM 18-11 S Z C XX
MIL-C-26482
Series l Type
Grounding Finger
(Omit for Standard)
08 - 90° Backshell
Connector/Backshell Class
AM - Non-Environmental with
Backshell for EMI Shield Termination
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket
IPT 08 AM
Plug Connector
IPT Series
Bayonet Lock
Connectors
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
G
APPLICATION NOTES
APPLICATION NOTES
1. Plug with 90° backshell for cable clamp MS3057-A/B/C (not included).
2. Connector/Backshell Class “A” (non-environmental)––no grommet supplied.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-102
with 90° EMI Shield Termination Backshell Suitable for
MS3057 Cable Clamp (Not Included)
TABLE I: DIMENSIONS
Shell size
8
10
12
14
16
18
20
22
24
F
Thread in inches
.5000 - 28 UNEF
.6250 - 24 UNEF
.7500 - 20 UNEF
.8750 - 20 UNEF
1.0000 - 20 UNEF
1.1875 - 18 UNEF
1.1875 - 18 UNEF
1.4375 - 18 UNEF
1.4375 - 18 UNEF
G
Max.
19.05
21.80
26.20
29.40
32.55
35.35
38.90
42.10
45.10
H
±1
19
24
27
28
30
32
34
36
39
L
±1
32
32
35
38
41
44
48
51
56
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
N0
- Connector Less Backshell
GXXX
- Custom Designed Connector
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-103
IPT Series
Bayonet Lock
Connectors
IPT 08 AM
Plug Connector
