B130LAW_08: Description1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER; File Size282KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Compare View All

B130LAW_08 Overview

1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Preview

Download Datasheet

View All

B130LAW

1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Features



Guard Ring Die Construction for Transient Protection

Very Low Forward Voltage Drop

Totally Lead-Free & Fully RoHS Compliant(Note 1 & 2)

Halogen and Antimony Free.”Green” Device(Note 3)

Mechanical Data



Case: SOD123

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Lead Free Plating (Matte Tin Finish

Annealed over Alloy 42 Leadframe) Solderable per MIL-STD-

202, Method 208

Polarity: Cathode Band

Weight: 0.01 grams (Approximate)

Top View

Ordering Information

(Note 4)

Part Number

B130LAW-7-F

Notes:

Case

SOD123

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

Date Code Key

Year

2013

Code

Month

Code

Jan

SX = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: E = 2017)

M = Month (ex: 9 = September)

2018

Jun

2019

Jul

2020

Aug

2021

Sep

2022

Oct

2023

Nov

2024

Dec

2014

Feb

2015

Mar

2016

Apr

2017

May

Maximum Ratings

(@T

= +25° unless otherwise specified.)

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current

Non-Repetitive Peak Forward Surge Current 8.3ms

Single Half Sine-Wave Superimposed on Rated Load

Symbol

RRM

RWM

R(RMS)

F(AV)

FSM

Value

1.0

Unit

B130LAW

Document number: DS30308 Rev. 10 - 2

1 of 5

www.diodes.com

April 2017

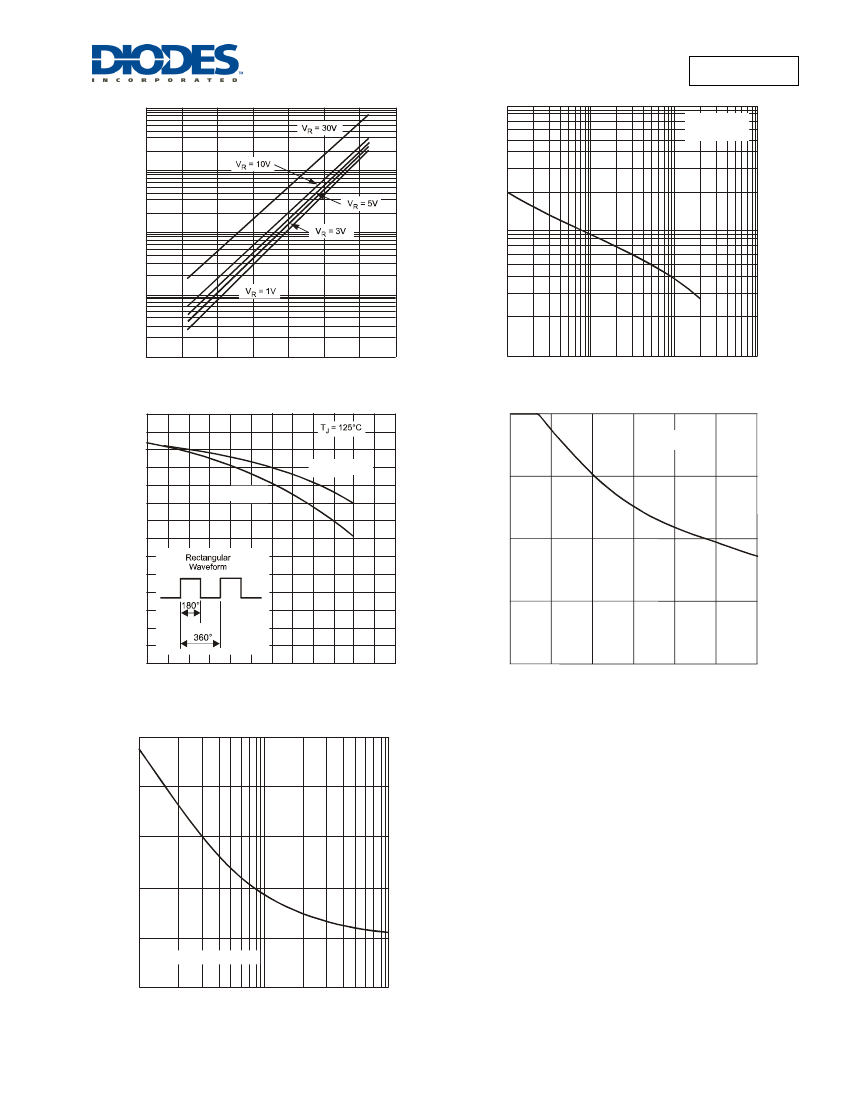

B130LAW

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

B130LAW

Document number: DS30308 Rev. 10 - 2

5 of 5

www.diodes.com

April 2017
