BAS21T
SURFACE MOUNT FAST SWITCHING DIODE
Features
Ultra-Small Surface Mount Package
Fast Switching Speed
For General Purpose Switching Applications
High Reverse Breakdown Voltage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SOT-523
Case Material: Molded Plastic, "Green" Molding Compound
(Note 5). UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe)
Polarity: See Diagram
Weight: 0.002 grams (Approximate)
SOT-523
TOP VIEW
TOP VIEW
Internal Schematic
Ordering Information
(Notes 4)
Part Number
BAS21T-7-F
Notes:
Compliance
Commercial
Case
SOT-523
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/package-outlines.html.
5. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date Code
UO are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
Marking Information
T3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
T3YM
Date Code Key
Year
Code
Month
Code
2001
M
Jan
1
2002
N
Feb
2
2003
P
Mar
3
…..
…..
Apr
4
2017
E
May
5
2018
F
Jun
6
2019
G
Jul
7
2020
H
Aug
8
2021
I
Sep
9
2022
J
Oct
O
2023
K
Nov
N
2024
L
Dec
D
BAS21T
Document number: DS30264 Rev. 11 - 2
1 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS21T
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Average Rectified Output Current (Note 6)
Non-Repetitive Peak Forward Surge Current
Repetitive Peak Forward Surge Current
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
@ t = 1.0µs
@ t = 1.0s
I
FSM
I
FRM
Value
250
200
141
400
200
2.5
0.5
625
Unit
V
V
V
mA
mA
A
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
ϴJA
T
J
, T
STG
Value
150
833
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Reverse Current @ Rated DC Blocking Voltage (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
250
Max
1.0
1.25
100
15
5.0
50
Unit
V
V
nA
µA
pF
ns
Test Condition
I
R
= 100ΩA
I
F
= 100mA
I
F
= 200mA
T
J
= 25°C
T
J
= 100°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 × I
R
, R
L
= 100Ω
6. Device mounted on FR-4 PCB with recommended pad layout, which can be found on our website at http://www.diodes.com/package-outlines.html.
I
FM,
I
O
are valid provided that terminals are kept at ambient temperature.
7. Short duration pulse test used to minimize self-heating effect.
BAS21T
Document number: DS30264 Rev. 11 - 2
2 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS21T
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
200
Note
Note 6
1
1
P
D
, POWER DISSIPATION (mW)
150
0.1
100
0.01
50
0
0
100
T
A
, AMBIENT TEMPERATURE (
C)

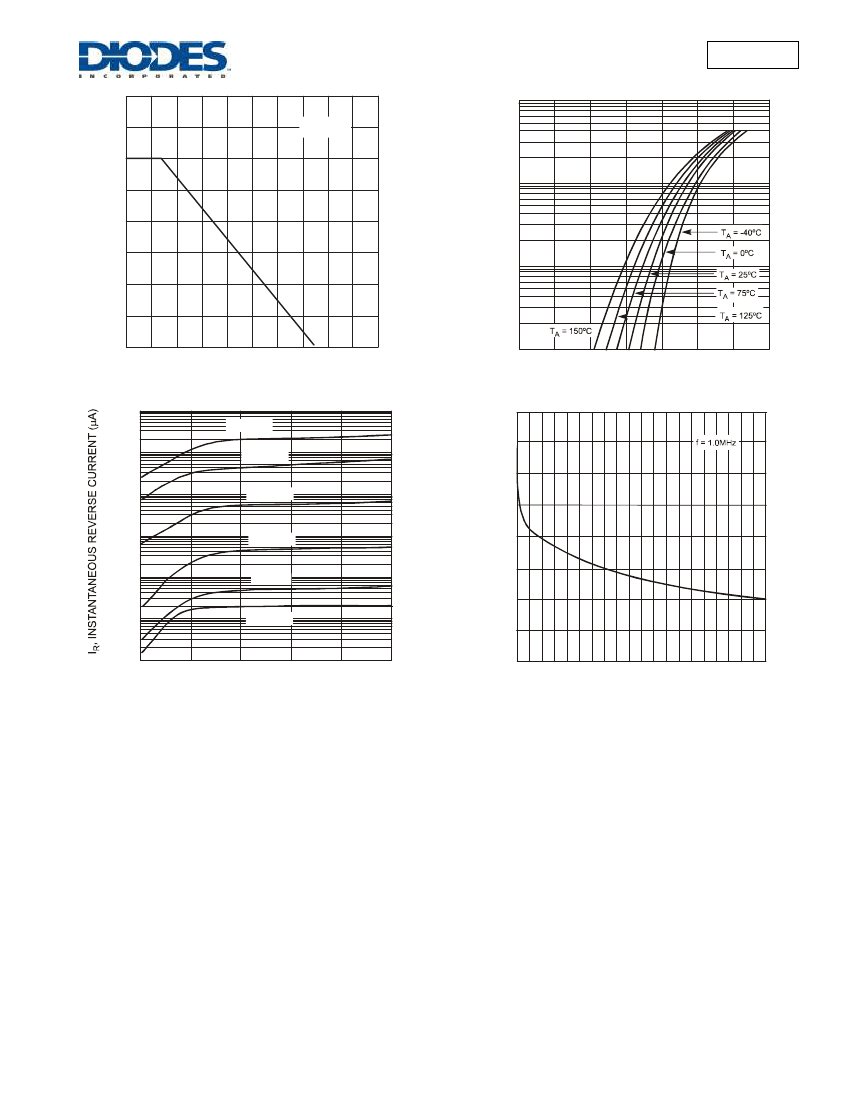

Fig. 1 Power Derating Curve
200
0.001
0
0.2
0.4
0.8
1.0
0. 6
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
T
A
= 150ºC
4.0
3.5
C
T
, TOTAL CAPACITANCE (pF)
10
T
A
= 125ºC
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1
T
A
= 75ºC
0.1
T
A
= 25ºC
0.01
T
A
= 0ºC
0.001
T
A
= -40ºC
0.0001
0
150
200
250
50
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
10
BAS21T
Document number: DS30264 Rev. 11 - 2
3 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS21T

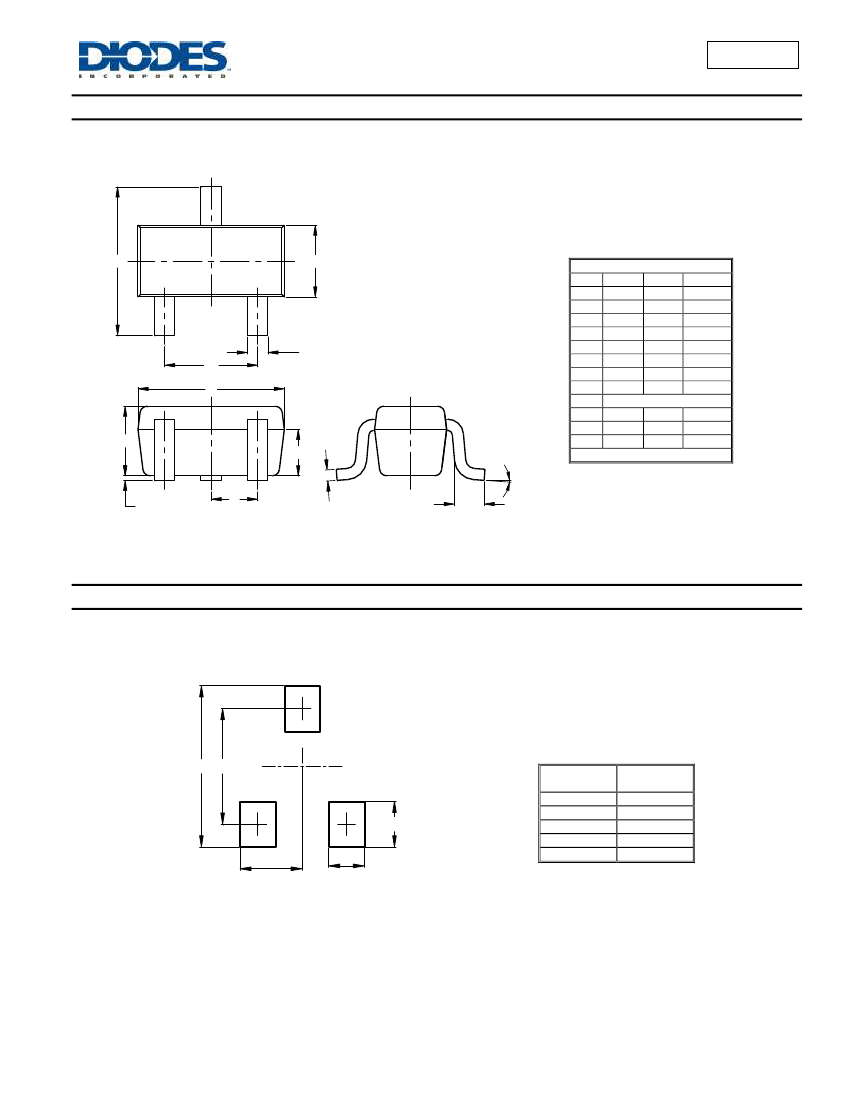

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT523
E
E1
e1
D
b
A2
A3
c
A1
e
L
a
SOT523
Dim Min
Max
Typ
A1
0.00
0.10
0.05
A2
0.60
0.80
0.75
A3
0.45
0.65
0.50
b
0.15
0.30
0.22
c
0.10
0.20
0.12
D
1.50
1.70
1.60
E
1.45
1.75
1.60
E1
0.75
0.85
0.80
e
0.50 BSC
e1
0.90
1.10
1.00
L
0.20
0.40
0.33
a
0°
--
8°
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT523
Y1 C
Dimensions
C
X
X1
Y
Y1
Y
X1
X
Value
(in mm)
1.29
0.40
0.70
0.51
1.80
BAS21T
Document number: DS30264 Rev. 11 - 2
4 of 5
www.diodes.com
June 2018
© Diodes Incorporated
BAS21T
