BAV170
DUAL SURFACE MOUNT LOW LEAKAGE DIODE
Features
Surface Mount Package Ideally Suited for Automated Insertion
Very Low Leakage Current
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT23
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating).
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.008 grams (Approximate)
SOT23
Top View
Top View
Internal Schematic
Ordering Information
(Note 5)
Part Number
BAV170-7-F
BAV170-13-F
BAV170Q-7-F (Note 4)
BAV170Q-13-F (Note 4)
Notes:
Qualification
Commercial
Commercial
Automotive
Automotive
Case
SOT23
SOT23
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are
electrically and thermally the same, except where specified. For more information, please refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
K51
K51 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2001
M
Jan
1
2002
N
Feb
2
…..
…..
Mar
3
2014
B
Apr
4
YM
2015
C
May
5
2016
D
Jun
6
2017
E
Jul
7
2018
F
Aug
8
2019
G
Sep
9
2020
H
Oct
O
2021
I
Nov
N
2022
J
Dec
D
BAV170
Document number: DS30234 Rev. 12 - 2
1 of 4
www.diodes.com
February 2018
© Diodes Incorporated
BAV170
Maximum Ratings
(@T
A
= 25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Single Diode
Double Diode
@ t = 1.0µs
@ t = 1.0ms
@ t = 1.0s
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
I
FSM
Value
85
60
215
125
500
4.0
1.0
0.5
Unit
V
V
mA
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
JA
T
J
, T
STG
Value
250
500
-65 to +150
Unit
mW
C/W
C
Electrical Characteristics
(@T
A
= 25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Symbol
V
(BR)R
V
F
Min
85
Typ
Max
0.90
1.0
1.1
1.25
5.0
80
3.0
Unit
V
V
nA
nA
pF
µs
Test Condition
I
R
= 100µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= 150C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Leakage Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
2
6. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com.
7. Short duration pulse test used to minimize self-heating effect.
BAV170
Document number: DS30234 Rev. 12 - 2
2 of 4
www.diodes.com
February 2018
© Diodes Incorporated
BAV170
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
300
250
1,000
P
D
, POWER DISSIPATION (mW)
Note 6
100
200
T
A
= 150ºC
150
10
T
A
= 125ºC
T
A
= 85ºC
T
A
= 25ºC
100
1
T
A
= -55ºC
50
0
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

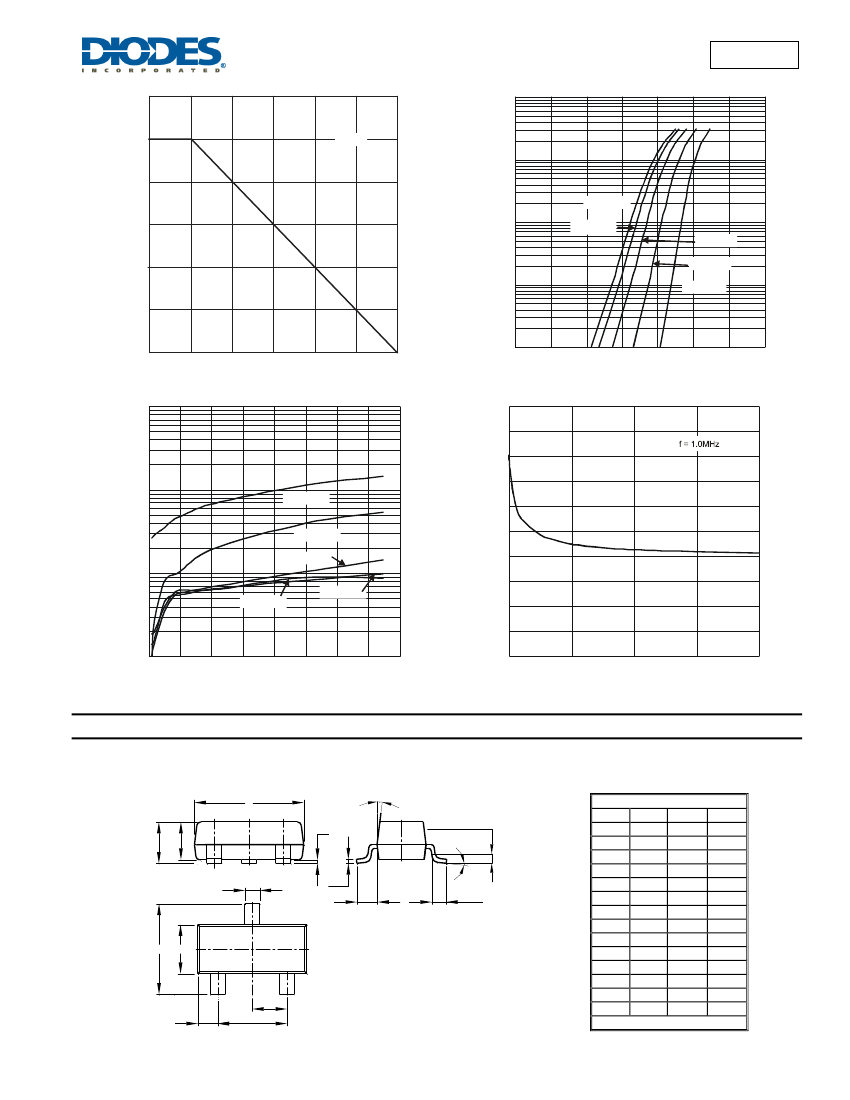

Fig. 2 Typical Forward Characteristics
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Power Derating Curve
150
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
100
C
T
, TYPICAL TOTAL CAPACITANCE (
F)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
10
30
40
20
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Capacitance vs. Reverse Voltage
10
T
A
= 150ºC
T
A
= 125ºC
T
A
= 85ºC
1
T
A
= -55ºC
T
A
= 25ºC
0.1
0
10
20
30
40
50
60
70 80
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
H
J
All 7°
GAUGE PLANE
0.25
K1
K
a
A
M
L
L1
C
B
D
F
G
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.890 1.00 0.975
K1
0.903 1.10 1.025
L
0.45
0.61
0.55
L1
0.25
0.55
0.40
M
0.085 0.150 0.110
a
0°
8°
--
All Dimensions in mm
BAV170
Document number: DS30234 Rev. 12 - 2
3 of 4
www.diodes.com
February 2018
© Diodes Incorporated
BAV170
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Y
Y1
C
Dimensions
C
X
X1
Y
Y1
Value (in mm)
2.0
0.8
1.35
0.9
2.9
X
X1
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2018, Diodes Incorporated
www.diodes.com
BAV170
Document number: DS30234 Rev. 12 - 2
4 of 4
www.diodes.com
February 2018
© Diodes Incorporated
