BSS84DW

DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

-50V

DS(on) max

10 @ V

= -5V

= +25°C

-130mA

Features and Benefits



Low On-Resistance

Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

This MOSFET has been designed to minimize the on-state resistance

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Mechanical Data



Case: SOT363

Case Material: Molded Plastic. “Green” Molding Compound. UL

Flammability Classification Rating 94V-0



Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Terminal Connections: See Diagram

Weight: 0.006 grams (approximate)

Applications



General Purpose Interfacing Switch

Power Management Functions

Analog Switch



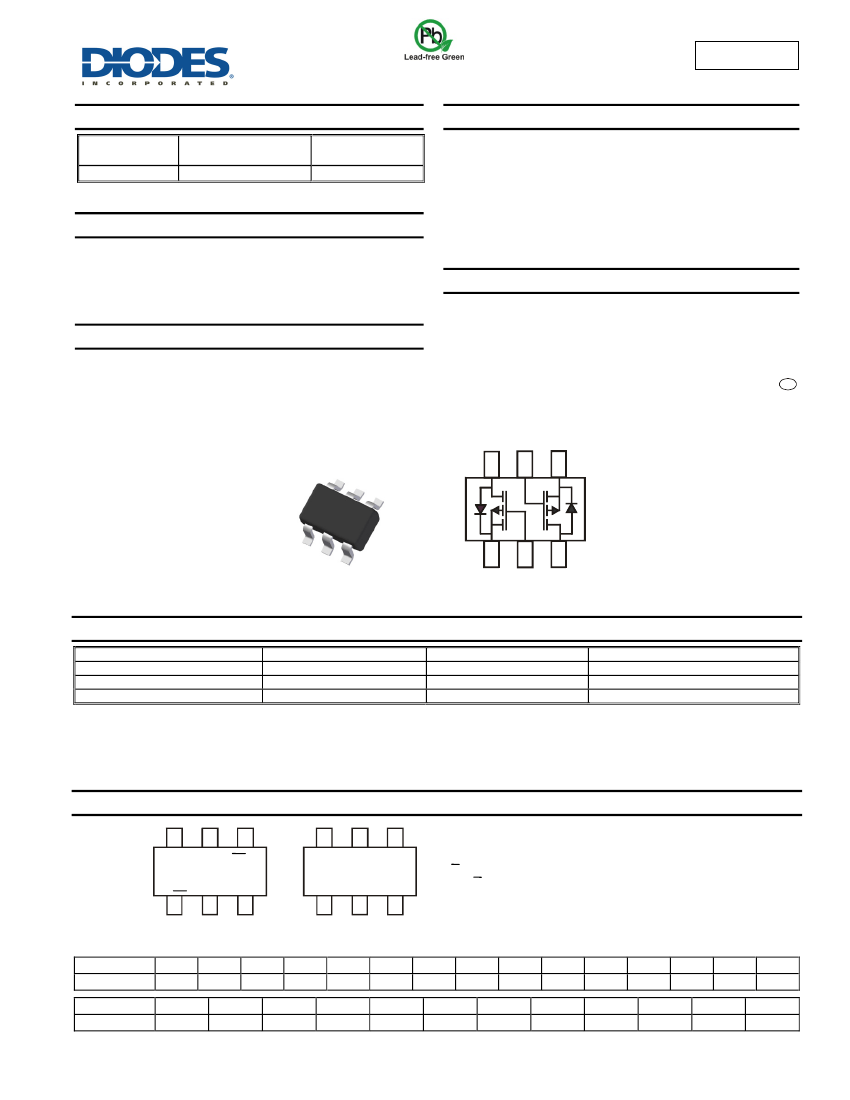

SOT363

Top View

Internal Schematic

Ordering Information

(Note 4)

Part Number

BSS84DW-7-F

BSS84DWQ-13

BSS84DWQ-7

Notes:

Compliance

Standard

Automotive

Case

SOT363

Packaging

3,000/Tape & Reel

10,000/Tape & Reel

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

K84

Date Code Key

Year

1998

Code

Month

Code

Jan

K84

1999

Feb

2000

Mar

K84

2001

2002

Apr

K84

2003

May

2004

K84 = Product Type Marking Code

YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)

YM = Date Code Marking for CAT (Chengdu Assembly/ Test site)

Y or Y = Year (ex: A = 2013)

M = Month (ex: 9 = September)

2005

2006

Jul

2007

Aug

2008

Sep

2009

Oct

2010

2011

Nov

2012

Dec

Jun

BSS84DW

Document number: DS30204 Rev. 18 - 2

1 of 5

www.diodes.com

January 2014
