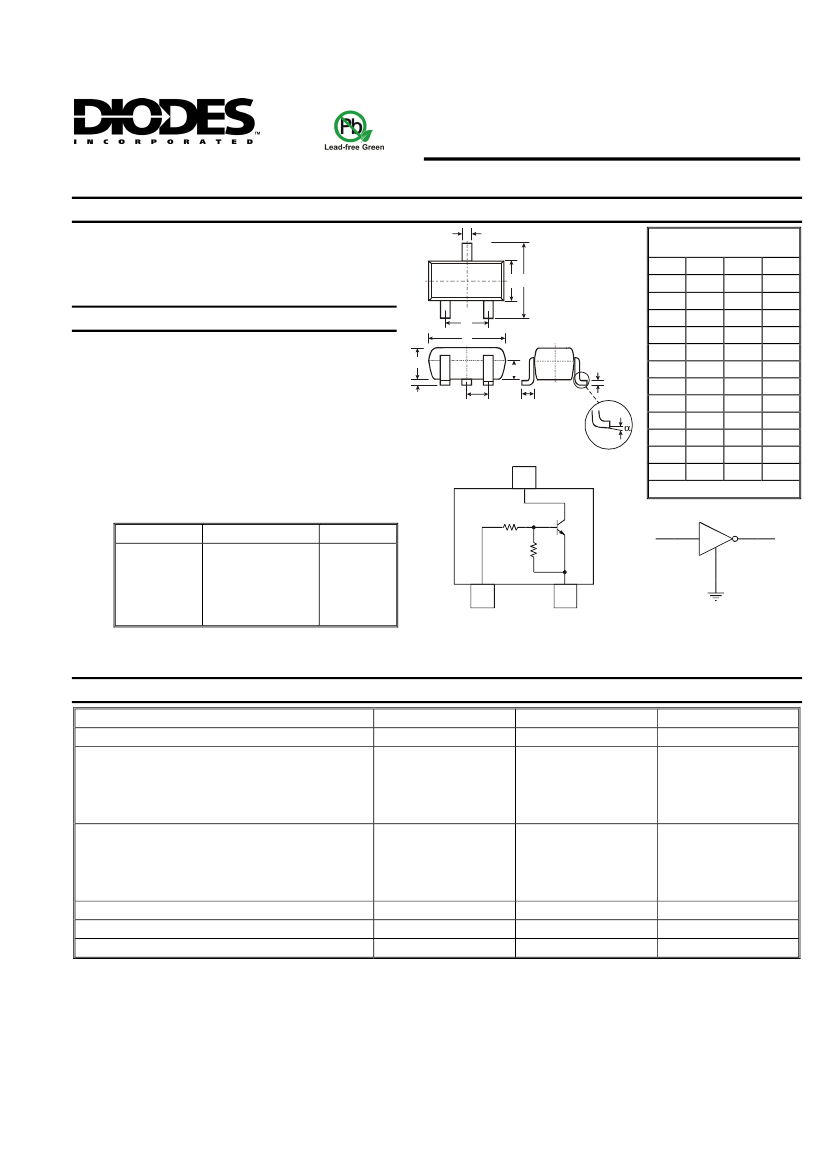

DDTC (R1 = R2 SERIES) E
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Types Available (DDTA)
Built-In Biasing Resistors, R1 = R2
Lead Free/RoHS Compliant (Note 1)
"Green" Device (Note 3 and 4)
A
SOT-523
Dim
Min
0.15
0.75
1.45
—
0.90
1.50
0.00
0.60
0.10
0.10
0.45
Max
0.30
0.85
1.75
—
1.10
1.70
0.10
0.80
0.30
0.20
0.65
Typ
0.22
0.80
1.60
0.50
1.00
1.60
0.05
0.75
0.22
0.12
0.50
B C
TOP VIEW
A
B
C
D
G
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-523
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020C
Terminal Connections: See Diagram
Terminals: Finish - Solderable per MIL-STD-202, Method
208
Lead Free Plating (Matte Tin Finish annealed over Alloy
42 leadframe).
Marking Information: See Table Below and Page 7
Ordering Information: See Page 7
Weight: 0.002 grams (approximate)
P/N
DDTC123EE
DDTC143EE
DDTC114EE
DDTC124EE
DDTC144EE
DDTC115EE
R1, RN (NOM)
2.2KΩ
4.7KΩ
10KΩ
22KΩ
47KΩ
100KΩ
Marking
N04
N08
N13
N17
N20
N24
K
G
H
M
N
H
J
K
L
M
J
D
L
OUT
3
C
B
R1
R2
N
—
0°
8°
α
All Dimensions in mm
IN B
1
3
C OUT
E
1
IN
2
GND(0)
GND (0)
Equivalent Inverter Circuit
Schematic and Pin Configuration
Maximum Ratings
Supply Voltage (3) to (2)
Input Voltage (1) to (2)
@T
A
= 25°C unless otherwise specified
Symbol
V
CC
DDTC123EE
DDTC143EE
DDTC114EE
DDTC124EE
DDTC144EE
DDTC115EE
DDTC123EE
DDTC143EE
DDTC114EE
DDTC124EE
DDTC144EE
DDTC115EE
(Note 2)
Value
50
-10 to +12
-10 to +30
-10 to +40
-10 to +40
-10 to +40
-10 to +40
100
100
50
30
100
20
150
833
-55 to +150
Unit
V
Characteristic
2
E
V
IN
V
Output Current
I
O
mA
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
P
d
R
θ
JA
T
j,
T
STG
mW
°C/W
°C
No purposefully added lead.
Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30313 Rev. 9 - 2
1 of 6
www.diodes.com
DDTC (R1 = R2 SERIES) E
© Diodes Incorporated
Electrical Characteristics
Characteristic
@T
A
= 25°C unless otherwise specified
Symbol
V
I(off)
Min
0.5
Typ
1.1
Max
—
Unit
Test Condition
V
CC
= 5V, I
O
= 100mA
V
O
= 0.3V, I
O
= 20mA, DDTC123EE
V
O
= 0.3V, I
O
= 20mA, DDTC143EE
V
O
= 0.3V, I
O
= 10mA, DDTC114EE
V
O
= 0.3V, I
O
= 5mA, DDTC124EE
V
O
= 0.3V, I
O
= 2mA, DDTC144EE
V
O
= 0.3V, I
O
= 1mA, DDTC115EE
I
O
/I
l
=10mA/0.5mA, DDTC123EE
I
O
/I
l
=10mA/0.5mA, DDTC143EE
I
O
/I
l
=10mA/0.5mA, DDTC114EE
I
O
/I
l
=10mA/0.5mA, DDTC124EE
I
O
/I
l
=10mA/0.5mA, DDTC144EE
I
O
/I
l
= 5mA/0.25mA, DDTC115EE
Input Voltage
V
I(on)
—
1.9
3
V
Output Voltage
V
O(on)
—
0.1
0.3
V
Input Current
DDTC123EE
DDTC143EE
DDTC114EE
DDTC124EE
DDTC144EE
DDTC115EE
DDTC123EE
DDTC143EE
DDTC114EE
DDTC124EE
DDTC144EE
DDTC115EE
I
I
—
—
Output Current
I
O(off)
—
20
20
30
56
68
82
-30
0.8
—
—
3.8
1.8
0.88
0.36
0.18
0.15
0.5
mA
V
l
= 5V
μA
DC Current Gain
G
I
—
—
—
V
CC
= 50V, V
I
= 0V
V
O
= 5V, I
O
= 20mA
V
O
= 5V, I
O
= 10mA
V
O
= 5V, I
O
= 5mA
V
O
= 5V, I
O
= 5mA
V
O
= 5V, I
O
= 5mA
V
O
= 5V, I
O
= 5mA
—
—
V
CE
= 10V, I
E
= 5mA, f = 100MHz
Input Resistor (R1) Tolerance
Resistance Ratio
Gain-Bandwidth Product*
* Transistor – For Reference Only
ΔR
1
R
2/
R
1
f
T
—
1
250
+30
1.2
—
%
—
MHz
Electrical Characteristics
250
@T
A
= 25°C unless otherwise specified
5
f = 1MHz
P
d
, POWER DISSIPATION (mW)
200
C
OB
, CAPACITANCE (pF)
4
150
3
100
2
50
1
0
-50
0
0
50
100
150
0
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Derating Curve
20
15
5
10
25
V
R
, REVERSE BIAS VOLTAGE (V)
Fig. 2 Output Capacitance
30
DS30313 Rev. 9 - 2
2 of 6
www.diodes.com
DDTC (R1 = R2 SERIES) E
© Diodes Incorporated

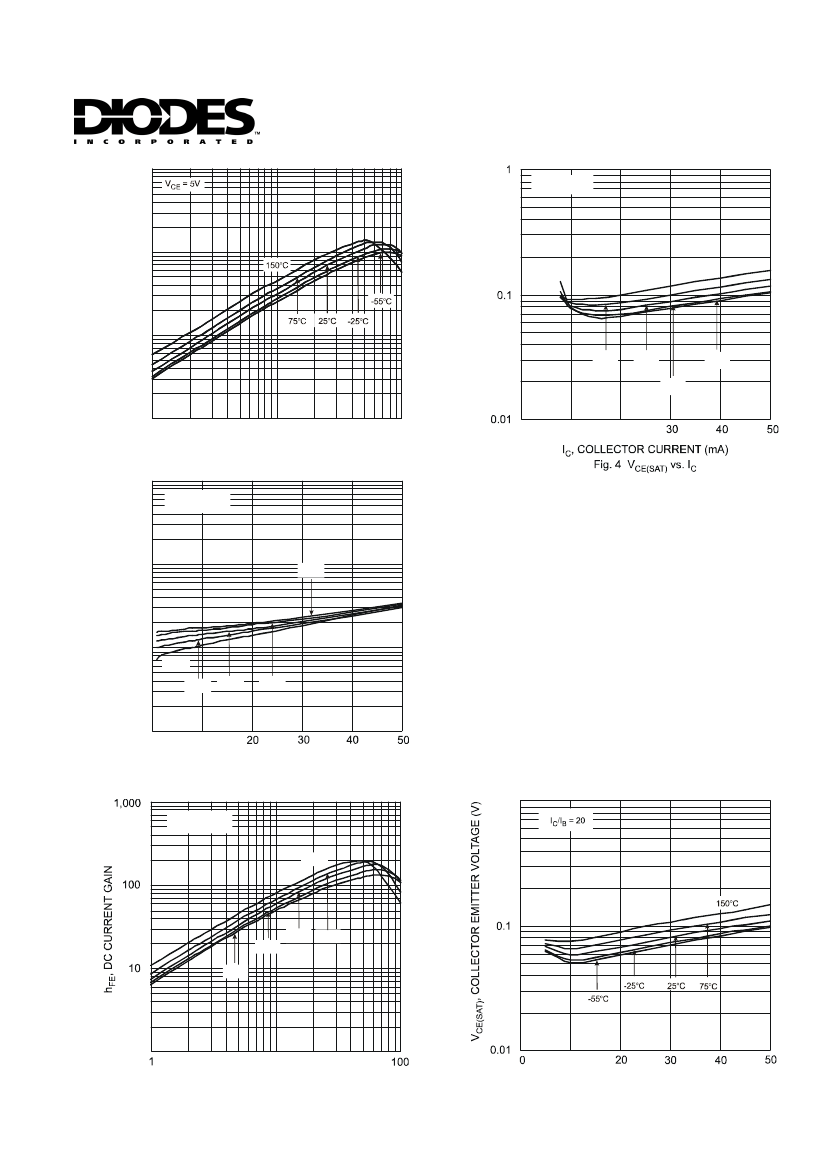

1,000
Typical Curves – DDTC123EE
V
CE(SAT)
, COLLECTOR EMITTER VOLTAGE (V)
I
C
/I
B
= 20
h
FE
, DC CURRENT GAIN
100
150
°
C
10
75
°
C
25
°
C
-25
°
C
-55
°
C
1
1
100
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 3 Typical DC Current Gain vs. Collector Current
0
10
20
100
V
CE
= 0.3V
V
IN
, INPUT VOLTAGE (V)
10
-55
°
C
1
150
°
C
75
°
C
25
°
C
-25
°
C
0.1
0
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 5 Input Voltage vs. Collector Current
Typical Curves – DDTC143EE
1
V
CE
= 5V
150
°
C
25
°
C
-25
°
C
-55
°
C
75
°
C
1
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Typical DC Current Gain vs. Collector Current
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 7 V
CE(SAT)
vs. I
C
DS30313 Rev. 9 - 2
3 of 6
www.diodes.com
DDTC (R1 = R2 SERIES) E
© Diodes Incorporated

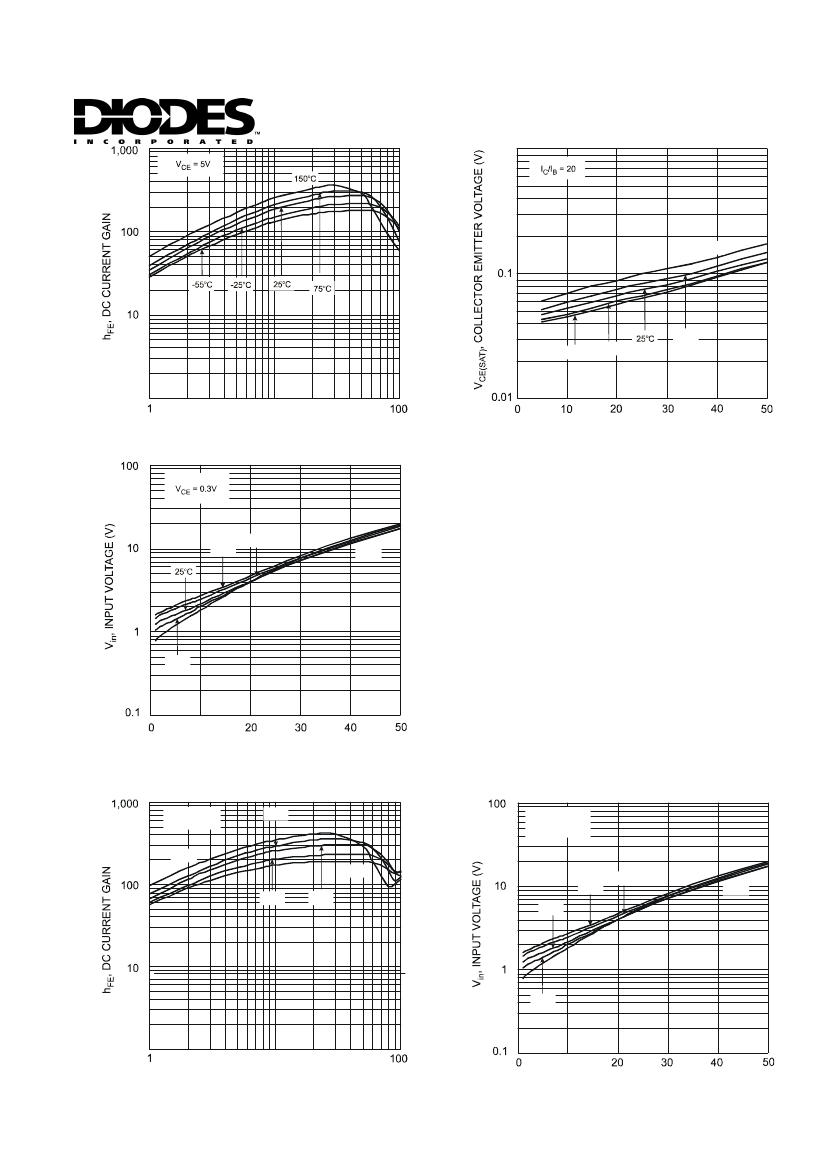

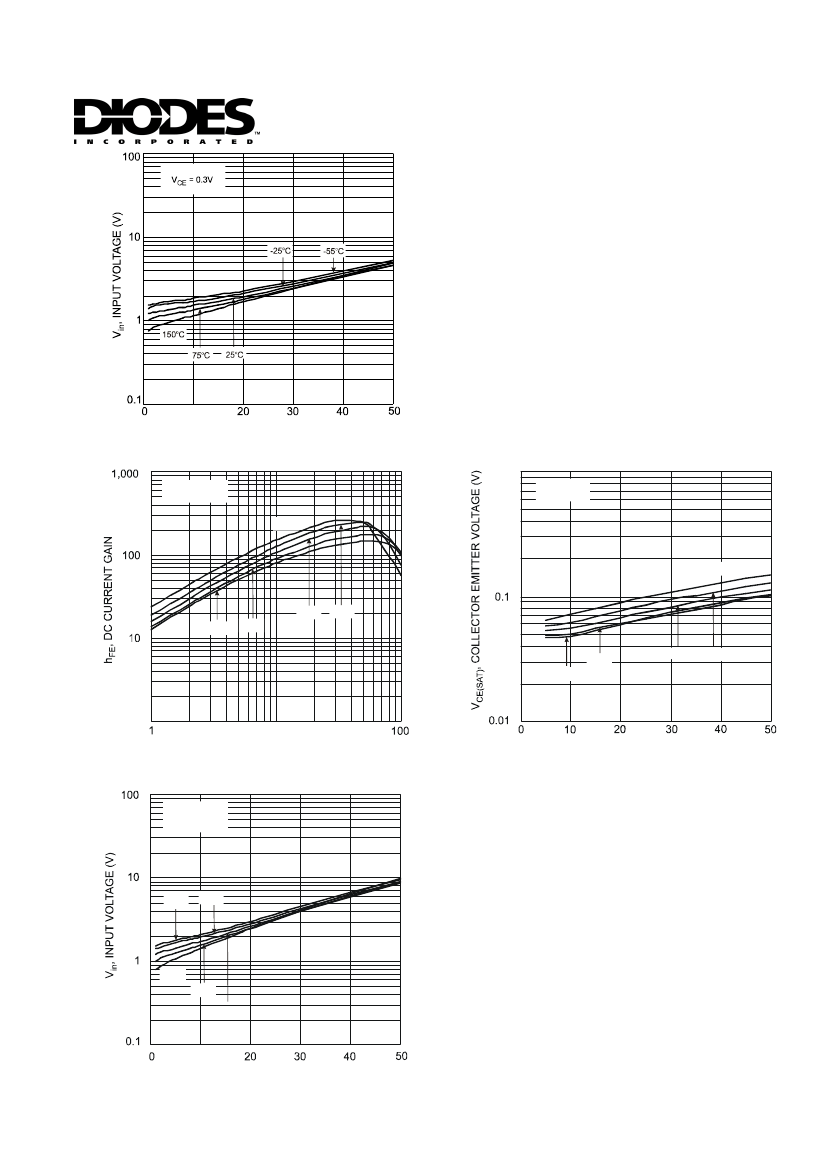

Typical Curves – DDTC124EE
1
150
°
C
75
°
C
-55
°
C
-25
°
C
1
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 12 Typical DC Current Gain vs. Collector Current
I
C
, COLLECTOR CURRENT (mA)
Fig. 13 V
CE(SAT)
vs. I
C
-55
°
C
-25
°
C
150
°
C
75
°
C
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 14 Input Voltage vs. Collector Current
Typical Curves – DDTC144EE
V
CE
= 5V
75
°
C
V
CE
= 0.3V
150
°
C
-55
°
C
-55
°
C
-25
°
C
25
°
C
-25
°
C
150
°
C
25
°
C
75
°
C
1
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 15 Typical DC Current Gain vs. Collector Current
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 16 Input Voltage vs. Collector Current
DS30313 Rev. 9 - 2
5 of 6
www.diodes.com
DDTC (R1 = R2 SERIES) E
© Diodes Incorporated
