DLP05LC
LOW CAPACITANCE UNIDIRECTIONAL TVS
Features
•
•
•
•
•
•
•
•
300 Watts Peak Pulse Power (tp = 8x20ms)
Transient Protection for Data, Signal, and VCC Bus to
IEC61000-4-2 level 4 (ESD) and IEC 61000-4-4 (EFT)
Low Capacitance, typ. <2 pF
Low Leakage Current
Unidirectional Configuration
Surface Mount Package Ideally Suited for Automated Insertion
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
e3
Weight: 0.008 grams (approximate)
LINE TO
BE PROTECTED
TVS
G
NC
Top View
Device Schematic
Ordering Information
Part Number
DLP05LC-7-F
Notes:
(Note 4)
Marking
A05
Reel Size
7”
Tape width
8mm
Quantity per Reel
3000
Case
SOT-23
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
A05 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
A05
Date Code Key
Year
Code
Month
Code
2010
X
Jan
1
2011
Y
Feb
2
Mar
3
2012
Z
Apr
4
2013
A
May
5
YM
2014
B
Jun
6
2015
C
Jul
7
2016
D
Aug
8
Sep
9
2017
E
Oct
O
2018
F
Nov
N
2019
G
Dec
D
DLP05LC
Document number: DS30283 Rev. 12 - 2
1 of 5
www.diodes.com
June 2014
© Diodes Incorporated
DLP05LC
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Power (tp = 8x20μs)
Symbol
P
pk
Value
300
Unit
W
Thermal Characteristics
Characteristic
Thermal Resistance, Junction to Ambient (Note 5)
Operating and Storage Temperature Range
Symbol
R
θ
JA
T
J
, T
STG
Value
408
-55 to +150
Unit
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Reverse
Standoff
Voltage
V
RWM
(V)
5
Notes:
Breakdown Voltage
V
BR
@ I
T
Min (V)
6.0
Test
Current
I
T
(mA)
1.0
Max. Reverse
Leakage @ V
RWM
I
R
(μA)
20
Max. Clamping
Voltage @ I
pp
= 1A
(Note 8)
V
C
(V)
11.0
Max. Peak Pulse
Current (Note 7)
(A)
17
Typical Total
Capacitance
(Note 6)
(pF)
1.6
Max (V)
⎯
5. Device mounted on FR-4 PCB, single sided with 2oz Cu traces and with pad dimensions 1” * 1”
6. V
R
= 0V, f = 1MHz.
7 . tp = 8x20µs.
8. Clamping voltage value is based on an 8x20µs peak pulse current (I
pp
) waveform.
9. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
100
I
pp
, PEAK PULSE CURRENT (%I
pp
)
0
25
50
75 100 125 150 175
T
A
, AMBIENT TEMPERATURE (
°
C)

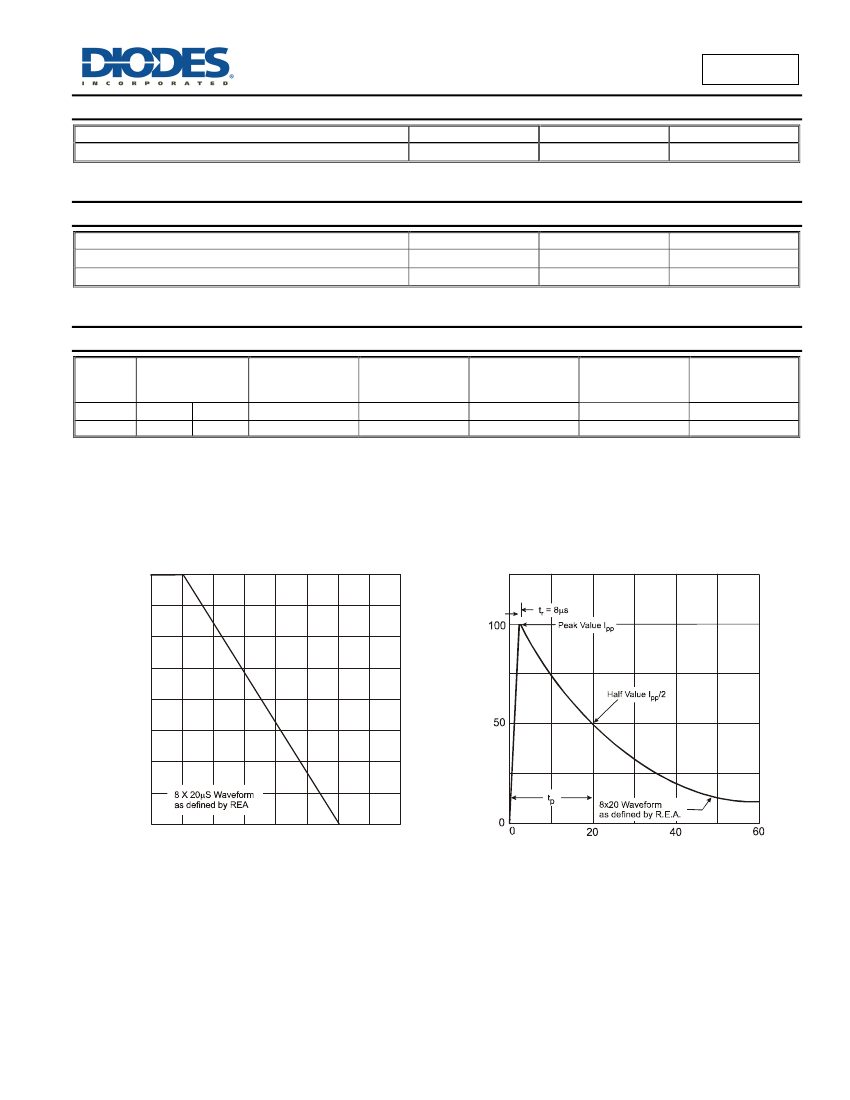

Fig. 1 Pulse Derating Curve
200
t, TIME (µs)
Fig. 2 Pulse Waveform
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
50
25
0
DLP05LC
Document number: DS30283 Rev. 12 - 2
2 of 5
www.diodes.com
June 2014
© Diodes Incorporated
DLP05LC
