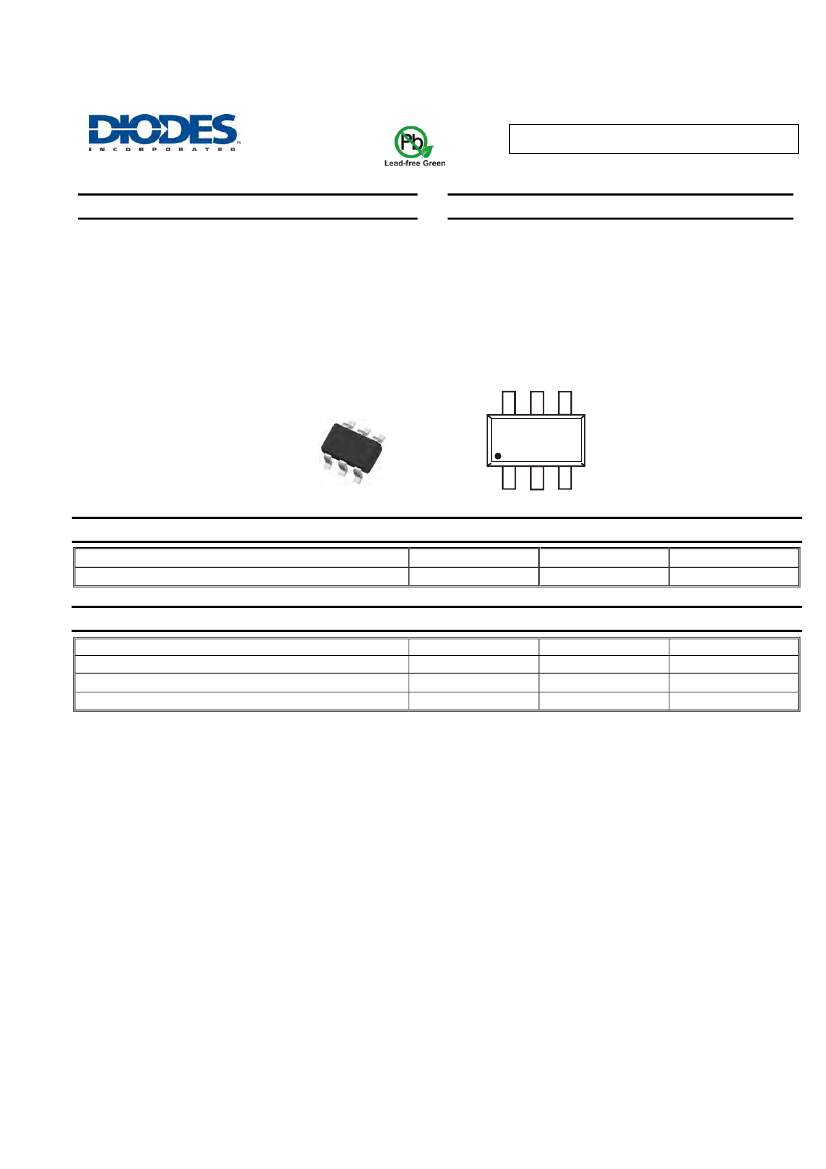

MMBZ5221BTS - MMBZ5259BTS
TRIPLE SURFACE MOUNT ZENER DIODE ARRAY
Features
•
•
•
•
•
Three Isolated Zeners in Ultra-Small Surface Mount Package
Ideally Suited for Automated Assembly Processes
Lead Free/RoHS Compliant (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
"Green" Device (Note 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-363
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Orientation: See Diagram
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.006 grams (approximate)
C
1
C
2
C
3
A
1
A
2
A
3
Top View
Package Pin Configuration
Maximum Ratings
Forward Voltage
@T
A
= 25°C unless otherwise specified
Symbol
(Note 2)
@ I
F =
10mA
V
F
Value
0.9
Unit
V
Characteristic
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
5.
Symbol
(Note 1)
(Note 1)
P
D
R
θ
JA
T
J,
T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration pulse test used to minimize self-heating effect.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
MMBZ5221BTS - MMBZ5259BTS
Document number: DS30184 Rev. 12 - 2
1 of 4
www.diodes.com
June 2008
© Diodes Incorporated
MMBZ5221BTS - MMBZ5259BTS
Electrical Characteristics
Type
Number
Marking
Code
Nom (V)
MMBZ5221BTS
MMBZ5223BTS
MMBZ5225BTS
MMBZ5226BTS
MMBZ5227BTS
MMBZ5228BTS
MMBZ5229BTS
MMBZ5230BTS
MMBZ5231BTS
MMBZ5232BTS
MMBZ5233BTS
MMBZ5234BTS
MMBZ5235BTS
MMBZ5236BTS
MMBZ5237BTS
MMBZ5238BTS
MMBZ5239BTS
MMBZ5240BTS
MMBZ5241BTS
MMBZ5242BTS
MMBZ5243BTS
MMBZ5245BTS
MMBZ5246BTS
MMBZ5248BTS
MMBZ5250BTS
MMBZ5251BTS
MMBZ5252BTS
MMBZ5254BTS
MMBZ5255BTS
MMBZ5256BTS
MMBZ5257BTS
MMBZ5258BTS
MMBZ5259BTS
Notes:
@T
A
= 25°C unless otherwise specified
Zener Voltage Range (Note 6)
V
Z @
I
ZT
Min (V)
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.70
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
26.60
28.50
31.35
34.20
37.05
Max (V)
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.30
6.51
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
29.40
31.50
34.65
37.80
40.95
I
ZT
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
8.5
7.8
7.0
6.2
5.6
5.2
5.0
4.5
4.2
3.8
3.4
3.2
30
30
30
28
24
23
22
19
17
11
7
7
5
6
8
8
10
17
22
30
13
16
17
21
25
29
33
41
44
49
58
70
80
Maximum Zener
Impedance (Note 2)
Z
ZT
@
I
ZT
Maximum Reverse
Leakage Current (Note 6)
I
R
μA
@
Z
ZK @
I
ZK
= 0.25mA
Ω
1200
1300
1600
1600
1700
1900
2000
1900
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
600
600
600
600
600
600
600
700
700
800
V
R
V
KSB
KSC
KSD
KSE
KSF
KSG
KSH
KS1
KS2
KS3
KRF
KS4
KS5
KS6
KS7
KRG
KS8
KS9
KR1
KR2
KR3
KR4
KR5
KR6
KR7
KR8
KR9
KRA
KRH
KRB
KRC
KRD
KRE
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
15
16
18
20
22
24
27
28
30
33
36
39
100
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
3.5
4.0
5.0
6.0
6.5
6.5
7.0
8.0
8.4
9.1
9.9
11
12
14
15
17
18
21
21
23
25
27
30
6. f = 1KHz.
MMBZ5221BTS - MMBZ5259BTS
Document number: DS30184 Rev. 12 - 2
2 of 4
www.diodes.com
June 2008
© Diodes Incorporated
MMBZ5221BTS - MMBZ5259BTS
0.4
1,000
P
D
, POWER DISSIPATION (W)
0.3
C
T
, TOTAL CAPACITANCE (pF)
0V BIAS
100
0.2
10
0.1
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
°
C)

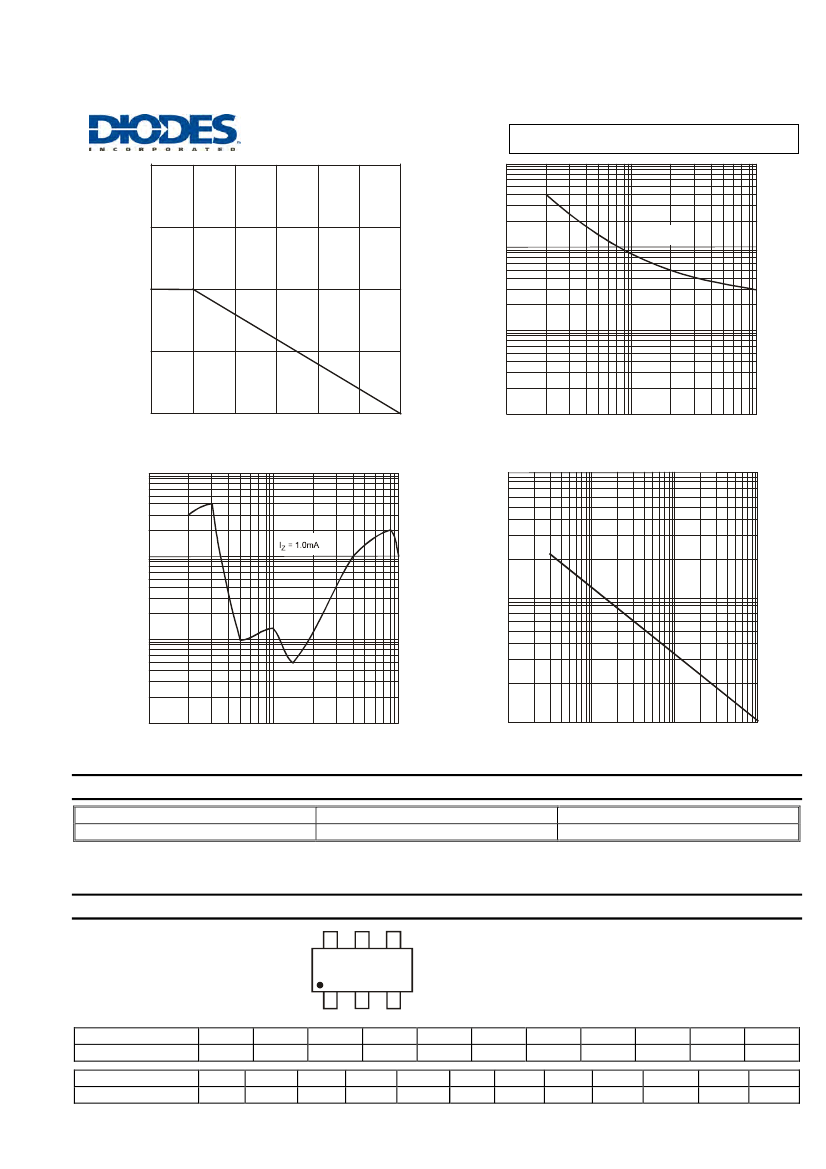

Fig. 1 Power Derating Curve
150
1
10
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 2 Typical Total Capacitance vs. Nominal Zener Voltage
100
1
1,000
100
P
PK
, PEAK SURGE POWER (W)
Z
Z
, ZENER IMPEDANCE (
Ω
)
10
10
1
1
10
100
V
Z
, ZENER VOLTAGE (V)
Fig. 3 Typical Zener Impedance Characteristics
1
1
1,000
10
100
PULSE WIDTH (ms)
Fig. 4 Maximum Non-repetitive Surge Power
Ordering Information
Device
(Type Number)-7-F*
Notes:
(Note 7)
Packaging
SOT-363
Shipping
3000/Tape & Reel
* Add “-7-F” to the appropriate type number in Electrical Characteristics Table, example: 6.2V Zener = MMBZ5234BTS-7-F.
7. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Kxx = Product Type Marking Code
(See Electrical Characteristic Table)
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
Kxx
Date Code Key
Year
Code
Month
Code
2002
N
Jan
1
2003
P
Feb
2
2004
R
Mar
3
2005
S
Apr
4
YM
2006
T
May
5
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2111
Y
Nov
N
2012
Z
Dec
D
June 2008
MMBZ5221BTS - MMBZ5259BTS
Document number: DS30184 Rev. 12 - 2
3 of 4
www.diodes.com
© Diodes Incorporated
MMBZ5221BTS - MMBZ5259BTS

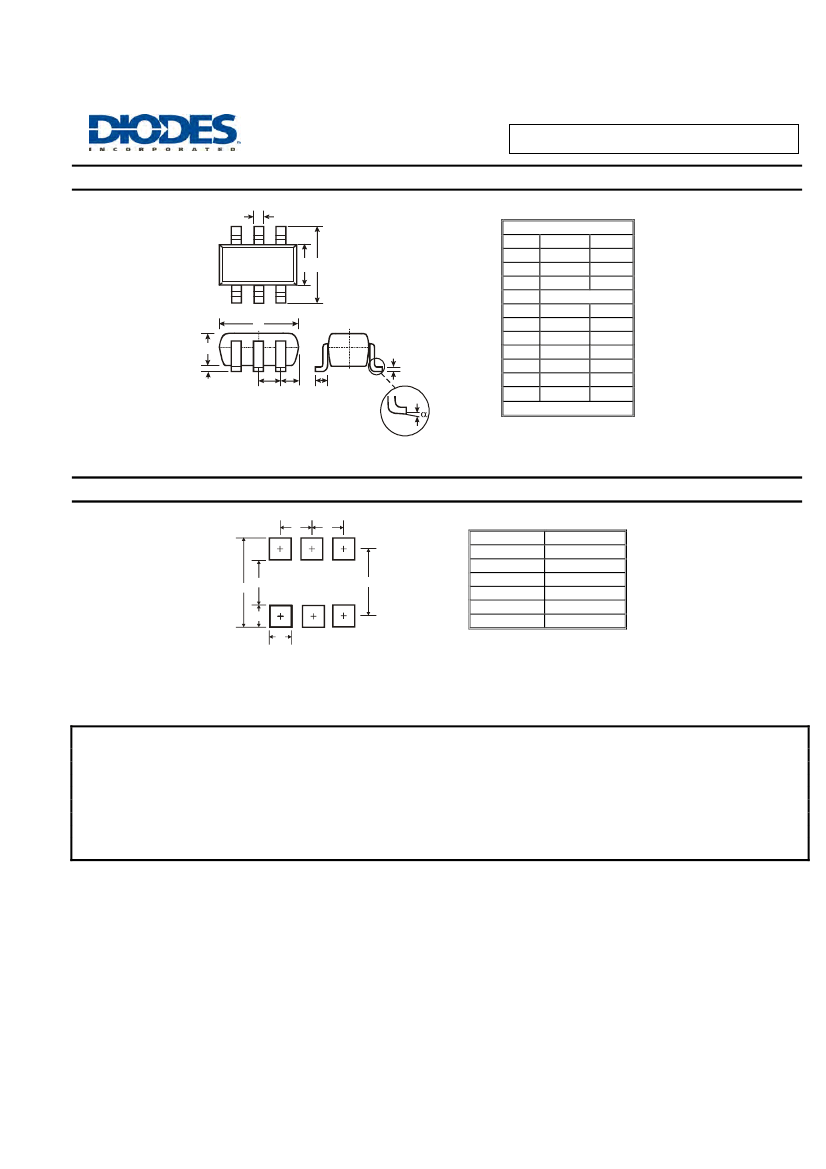

Package Outline Dimensions
A
B C
H
K
M
J
D
F
L
SOT-363
Dim
Min
Max
A
0.10
0.30
B
1.15
1.35
C
2.00
2.20
D
0.65 Nominal
F
0.40
0.45
H
1.80
2.20
J
0
0.10
K
0.90
1.00
L
0.25
0.40
M
0.10
0.22
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
E
E
Z
G
C
Y
X
Dimensions Value (in mm)
Z
2.5
G
1.3
X
0.42
Y
0.6
C
1.9
E
0.65
