UFZT758TC datasheet, PDF - EEWORLD Datasheet

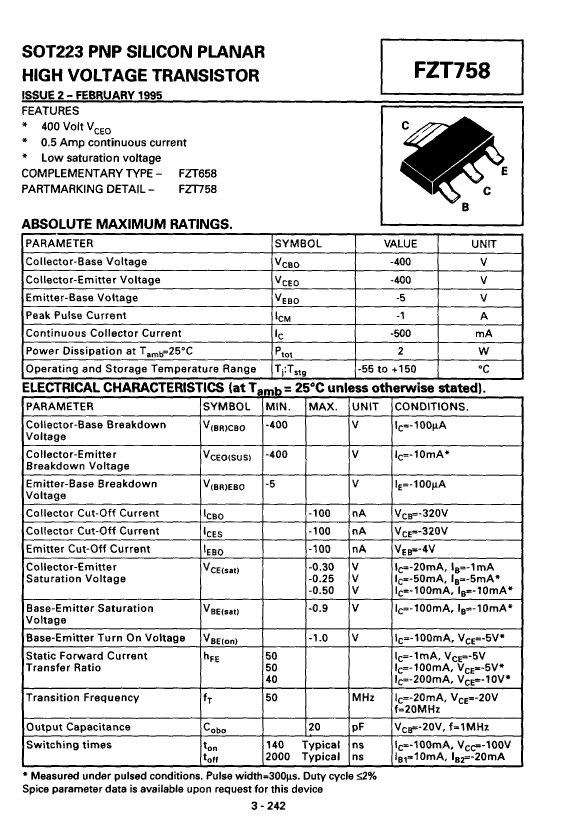

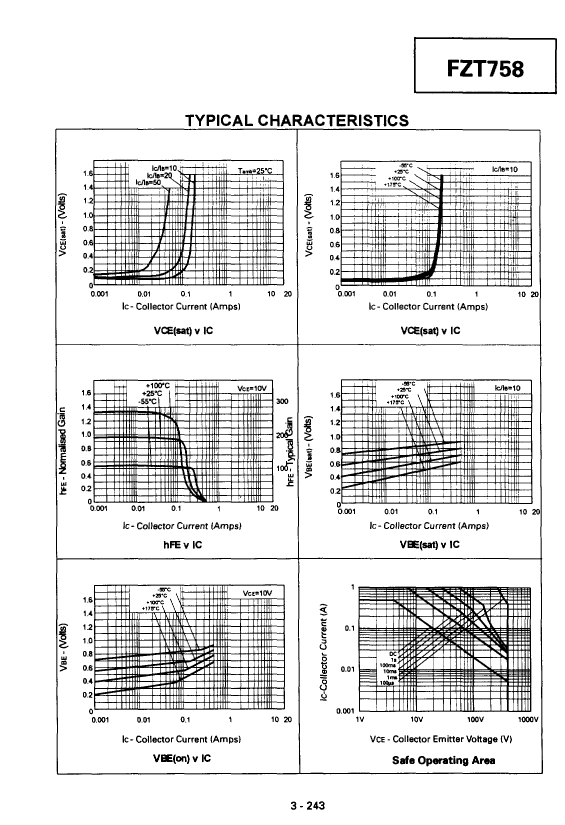

UFZT758TC: DescriptionPower Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin,; CategoryDiscrete semiconductor The transistor; File Size112KB，2 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UFZT758TC Overview

Power Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.5 A
Collector-based maximum capacity	20 pF
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	50 MHz
VCEsat-Max	0.5 V

	UFZT758TC	UFZT758TA
Description	Power Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin,	Power Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin,
Is it Rohs certified?	conform to	conform to
Maker	Zetex Semiconductors	Zetex Semiconductors
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.5 A	0.5 A
Collector-based maximum capacity	20 pF	20 pF
Collector-emitter maximum voltage	400 V	400 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50
JESD-30 code	R-PDSO-G4	R-PDSO-G4
JESD-609 code	e3	e3
Humidity sensitivity level	1	1
Number of components	1	1
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	PNP	PNP
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	50 MHz	50 MHz
VCEsat-Max	0.5 V	0.5 V
