1N5614/US thru 1N5622/US
Standard
STANDARD RECOVERY
RECTIFIERS
______________________________________________________________________________________
TECHNICAL DATA
A
V AI L AB L E AS
DATA SHEET 874, REV. C.3
1 N , J AN , J AN T X , J ANT XV
JANS
JAN EQUIVALENT *
SJ*, SX*, SV*, SS*
SENSITRON
___
SEMICONDUCTOR
Standard Recovery Rectifiers
Qualified per MIL-PRF-19500/427
DESCRIPTION:
This voidless hermetically sealed standard recovery rectifier diode series is military qualified per
MIL-PRF-19500/427 and is targeted for commerical and military aircraft, space, military vehicles,
shipboard markets and all high reliability applications.
FEATURES / BENEFITS
Hermetic, non-cavity glass package
Category I Metallurgically bonded
All parts are 100% hot solder dipped
JAN/ JANTX/JANTXV available per
MIL-PRF-19500/427
“JANS Plus” removes atypical/out of family V
F
MAXIMUM RATINGS
Operating and Storage Temperature: -65 C to +175 C
Solder temperature: 260 C for 10s (max)
Thermal Resistance: 36 C (junction to lead)
Thermal Resistance: 13 C (junction to endcap)
Forward surge current: 30A @ 8.3 ms half-sine
o
o
o
o
o
ELECTRICAL CHARACTERISTICS
TYPE
NUMBER
PEAK
INVERSE
VOLTAGE
MIN
BREAKDOWN
VOLTAGE
AVG
RECTIFIED
CURRENT
Amps
55C
100C
MAXIMUM
REVERSE
CURRENT
@ PIV
Amps
25C
100C
MAX. PEAK
FORWARD
VOLTAGE
(PULSED)
VF @ 3A
V
MAX.
SURGE
CURRENT
1
IFSM
Amps
MAXIMUM
REVERSE
RECOVERY
TIME
2
Trr
nsec
Volts
Volts
1N5614/US
200
220
TECHNICAL DATA
1N5616/US
400
440
DATA SHEET 874, REV. C.2
1N5618/US
600
660
1N5620/US
800
880
1N5622/US
1000
1100
Note 1: I
o
= 1A, 8ms surge

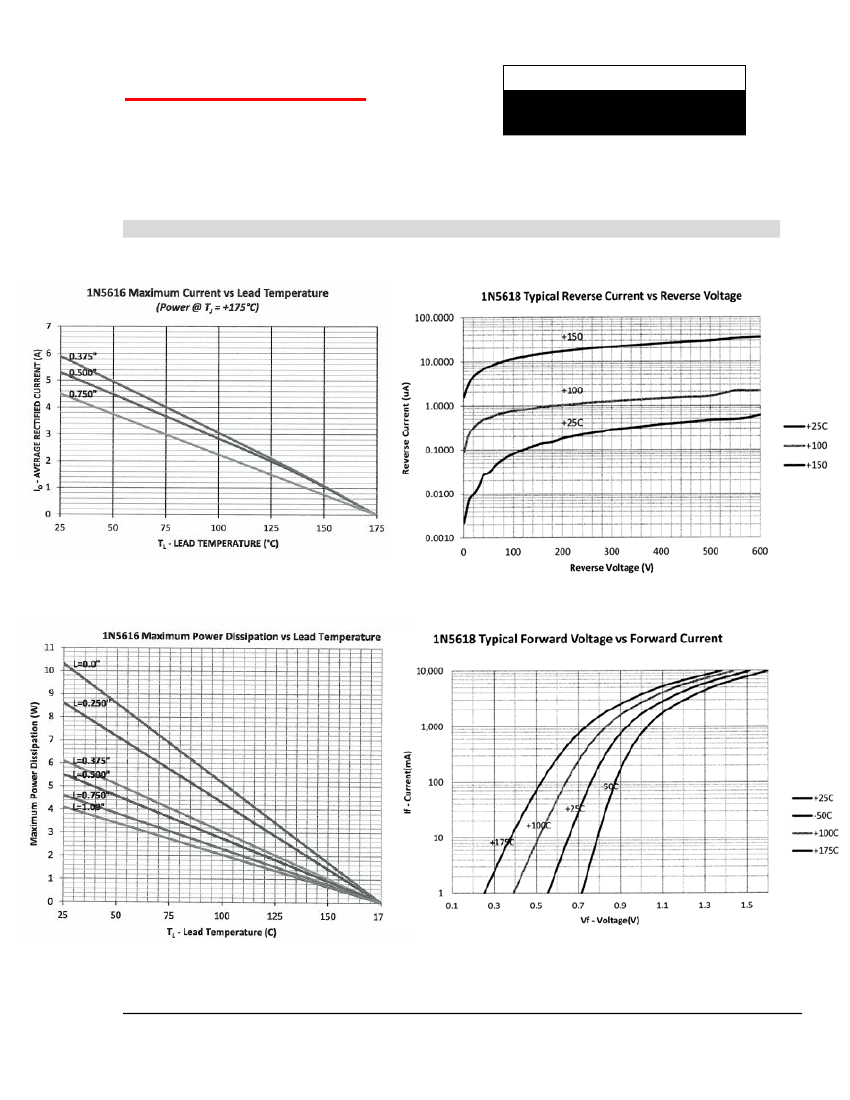

GRAPHS
Note 2: I
F
=0.5A, I
RM
=1A, I
r(REC)
=.25A
1.0
.750
.5
25
1.3
30
2000
*Sensitron equivalent diodes are manufactured and screened to MIL-PRF-19500 flow and guidelines starting from wafer
fabrication through assembly and testing using our internal specification.
©2012 Sensitron Semiconductor
221 West Industry Court
Deer Park, NY 11729-4681
Phone (631) 586 7600 Fax (631) 242 9798
www.sensitron.com
sales@sensitron.com
SENSITRON
___
SEMICONDUCTOR
1N5614/US thru 1N5622/US
Standard
STANDARD RECOVERY
RECTIFIERS
______________________________________________________________________________________
TECHNICAL DATA
DATA SHEET 874, REV. C.3
PACKAGE DIMENSIONS (inches/mm)
0.033 (.84
0.026 .66)
.110 (2.79
.065 1.65)
.225 (5.72
.130 3.30)
1.30 (33.0
1.00 25.4)
PKG.102
Termination Finish:
Axial leads and
Endcaps are copper with Tin/Lead finish.
PART ORDERING INFORMATION
The following part numbers can be purchased in either axial or surface mount devices and screened and tested to the
military screening flow. The parts are marked in accordance with the testing performed, example:
Sensitron Screening Level
*Part Number--
Leaded Package
(example for 1N5614)
1N5614
JAN1N5614
SJ5614
JANTX1N5614
SX5614
JANTXV1N5614
SV5614
JANS1N5614
SS5614
*Part Number--
Surface Mount Package
(example for 1N5614US)
1N5614US
JAN1N5614US
SJ5614US
JANTX1N5614US
SX5614US
JANTXV1N5614US
SV5614US
JANS1N5614US
SS5614US
1N
JAN
SJ
JANTX
SX
JANTXV
SV
JANS
SS
*Parts can also be ordered Tape & Reel
