CDR105B-560LC

Description
General Purpose Inductor, 56uH, 15%, 3935,
CategoryPassive components    inductor
File Size65KB,6 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Download Datasheet Parametric View All

CDR105B-560LC Overview

General Purpose Inductor, 56uH, 15%, 3935,

CDR105B-560LC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSUMIDA
package instruction3935
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes3935
structureMagnetically Shielded
DC Resistance0.19 Ω
Nominal inductance(L)56 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCDR105BSERIES
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Package height5 mm
Package length10 mm
Package formSMT
Package width9 mm
method of packingTR
Maximum rated current0.93 A
self resonant frequency11.1 MHz
seriesCDR105B SERIES
shieldYES
Tolerance15%
仕 様 書
1.外½

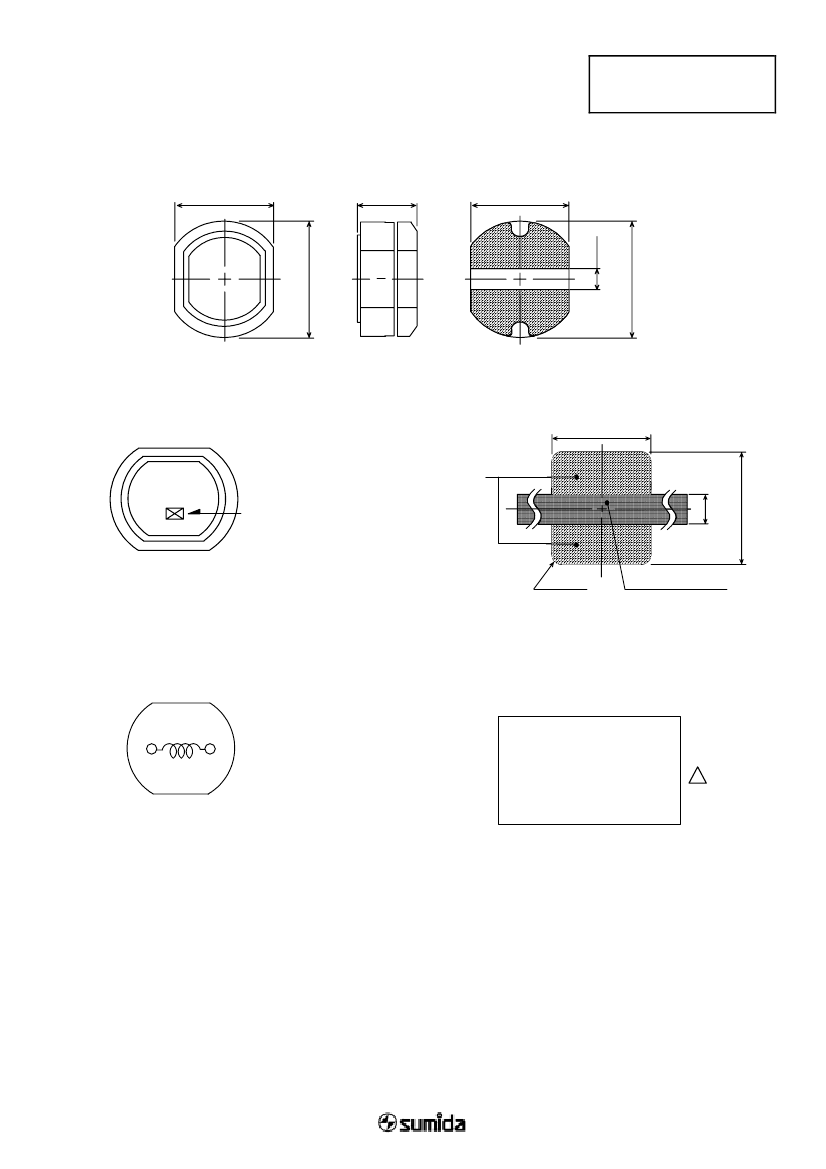

1-1.寸法図(mm)
9.0±0.4
5.0±0.5
9.0
½
CDR105B
φ10.0±0.4
2.4
* 公差のない寸法は参考値とする
1-2.捺印表示例

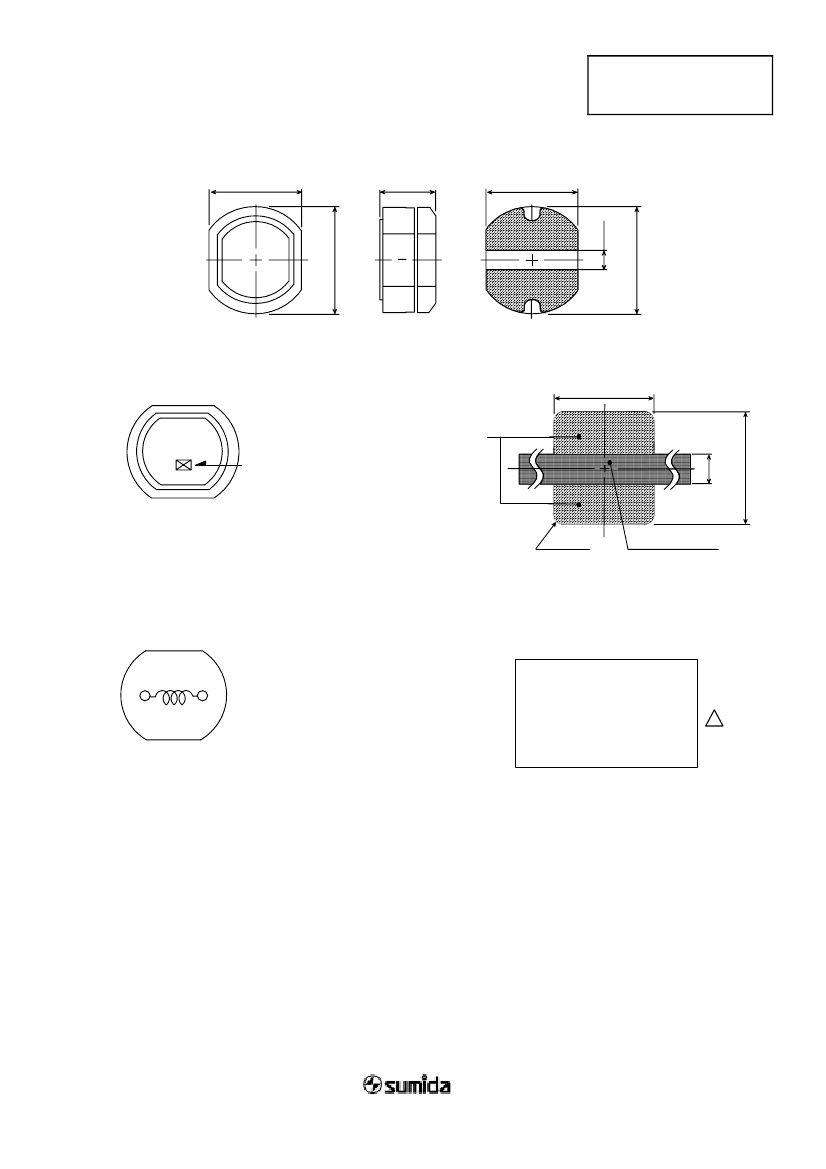

1-3.推奨ランド寸法(mm)
9 .5
電極部
10.0
½造密番
頭部直捺印
捺印½½不定
R 1.0
シルク処理部
電極(端子)間の隙間はシルク処理をして御½用下さい。
2.コイル仕様
2-1.端子接続図(裏面図)
RoHS
compliance
Cd:Max.0.01wt%
others:Max.0.1wt%
1
2. 5
100
1 2.5
