PEC11L-42320K-N0015 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> PEC11L-42320K-N0015

PEC11L-42320K-N0015: DescriptionROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED; File Size258KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

PEC11L-42320K-N0015 Overview

ROTARY OPTICAL POSITION ENCODER

PEC11L-42320K-N0015 Parametric

Parameter Name	Attribute value
state	ACTIVE
Optoelectronic device type	ROTARY

Preview

Download Datasheet

View All

Features

Push switch option

Compact, low profile

High rotational life and switch life

Metal bushing/shaft

RoHS compliant*

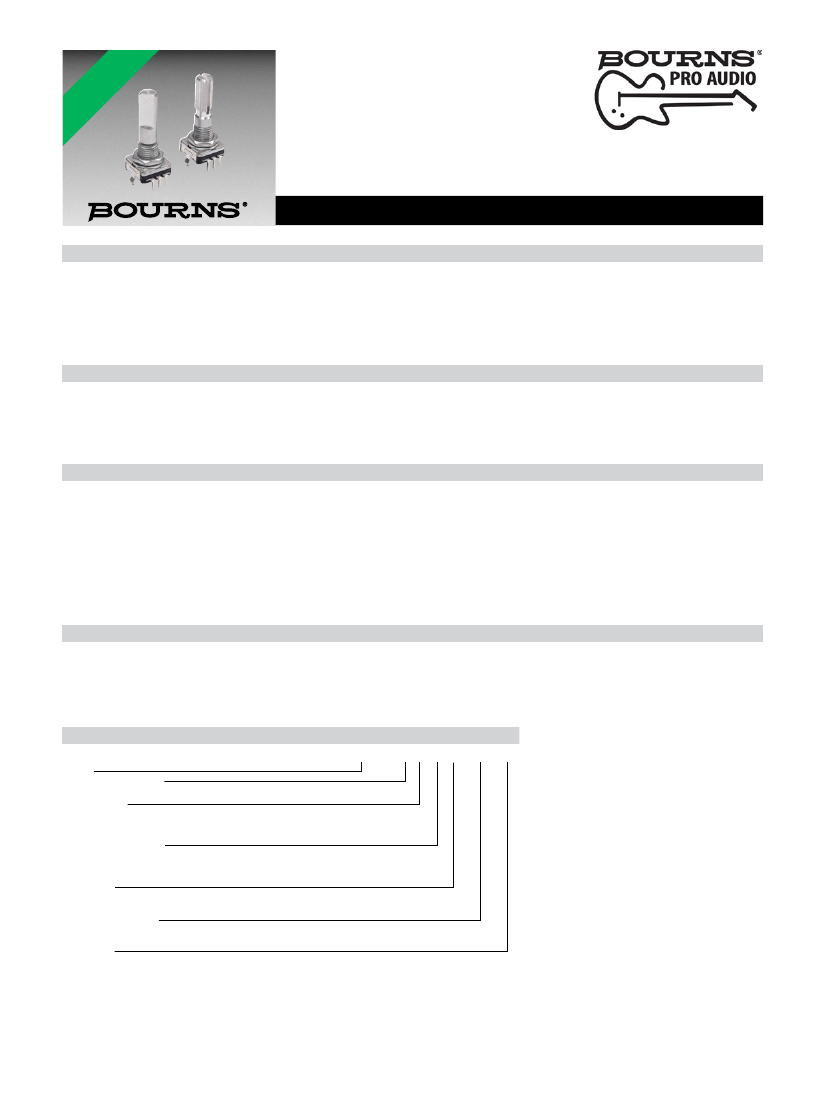

PEC11L Series - 11 mm Low Profile Encoder

Ro VE LEA

HS RS D

CO ION FRE

M SA E

PL R

IA E

Output ....................................................................................................................................................................................................2-bit quadrature code

Closed Circuit Resistance ................................................................................................................................................................ 100 milliohms maximum

Contact Rating .............................................................................................................................................................................................. 10 mA @ 5 VDC

Insulation Resistance ...................................................................................................................................................................100 megohms @ 250 VDC

Dielectric Withstanding Voltage

Sea Level ............................................................................................................................................................................................... 300 VAC minimum

Electrical Travel .....................................................................................................................................................................................................Continuous

Contact Bounce (60 RPM)..........................................................................................................................................................................10 ms maximum**

RPM (Operating) ..............................................................................................................................................................................................60 maximum**

Operating Temperature Range ......................................................................................................................................-25 °C to +80 °C (+13 °F to +176 °F)

Storage Temperature Range ..........................................................................................................................................-40 °C to +85 °C (-40 °F to +185 °F)

Humidity..................................................................................................................................................................MIL-STD-202, Method 103B, Condition A

Vibration ................................................................................................................................................................10~55~10 Hz / 1 min. / Amplitude 1.5 mm

Shock............................................................................................................................................................................................................................. 100 G

Rotational Life.................................................................................................................................................................................. 100,000 cycles minimum

IP Rating ..........................................................................................................................................................................................................................IP 40

Mechanical Angle ......................................................................................................................................................................................... 360 ° continuous

Torque

Detent ................................................................................................................................................................................20-200 gf-cm (0.27 to 2.8 oz-in)

Running .........................................................................................................................................................................10 to 150 gf-cm (0.14 to 2.1 oz-in)

Mounting ................................................................................................................................................................................70 N-cm (6.2 lb-in) maximum

Shaft Side Load (Static).................................................................................................................................................................2.04 kgf (4.5 lbs) minimum

Shaft Strength (Push-Pull) ............................................................................................................................................................................. 100 N (22.5 lbs)

Weight ............................................................................................................................................................................................. 5 gm (0.17 oz) maximum

Terminals ................................................................................................................................................................................. Printed circuit board terminals

Soldering Condition

Wave Soldering ............................................................................ Sn95.5/Ag2.8/Cu0.7 solder with no-clean flux: 260 °C ±5 °C max. for 3-5 seconds

Hand Soldering ................................................................................................................................................................................. Not recommended

Hardware ....................................................................................................................... One flat washer and one mounting nut supplied with each encoder

Switch Type ....................................................................................................................................................................Contact Push ON Momentary SPST

Switch Life .................................................................................................................................................................................100,000 actuations minimum

Power Rating (Resistive Load) ..................................................................................................................................................................... 10 mA at 5 V DC

Switch Travel ......................................................................................................................................................................................................0.5 ± 0.3 mm

Switch Actuation Force ........................................................................................................................................................610 ± 306 gf (8.47 ± 4.24 oz.-in.)

Electrical Characteristics

Environmental Characteristics

Mechanical Characteristics

Switch Characteristics

How To Order

Model

Terminal Configuration

4 = PC Pin Horizontal/Rear Facing

Detent Option

0 = No Detents (15, 20 pulses)

1 = 20 Detents (20 pulses)

2 = 30 Detents (15 pulses)

Standard Shaft Length

15 = 15.0 mm

20 = 20.0 mm

25 = 25.0 mm

Shaft Style

F = Metal Flatted Shaft

K = Metal Knurled Shaft

Switch Configuration

S = Push Momentary Switch

N = No Switch

Resolution

0015 = 15 Pulses per 360 ° Rotation

0020 = 20 Pulses per 360 ° Rotation

PEC11L - 4 0 20 F - S 0015

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

**Devices are tested using standard noise reduction filters. For optimum performance, designers should use noise reduction filters in their circuits.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.
