CDRH5D28RHPNP-4R7NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH5D28RHPNP-4R7NB

CDRH5D28RHPNP-4R7NB: Description1 ELEMENT, 4.7uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 2424, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size111KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH5D28RHPNP-4R7NB Overview

1 ELEMENT, 4.7uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 2424, HALOGEN FREE AND ROHS COMPLIANT

CDRH5D28RHPNP-4R7NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2424
Reach Compliance Code	unknown
uppercase and lowercase codes	2424
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.0431 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH5D28R/HP
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	6 mm
Package form	SMT
Package width	5.9 mm
method of packing	Box
Maximum rated current	2.8 A
series	CDRH5D28R/HP
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%

Preview

Download Datasheet

View All

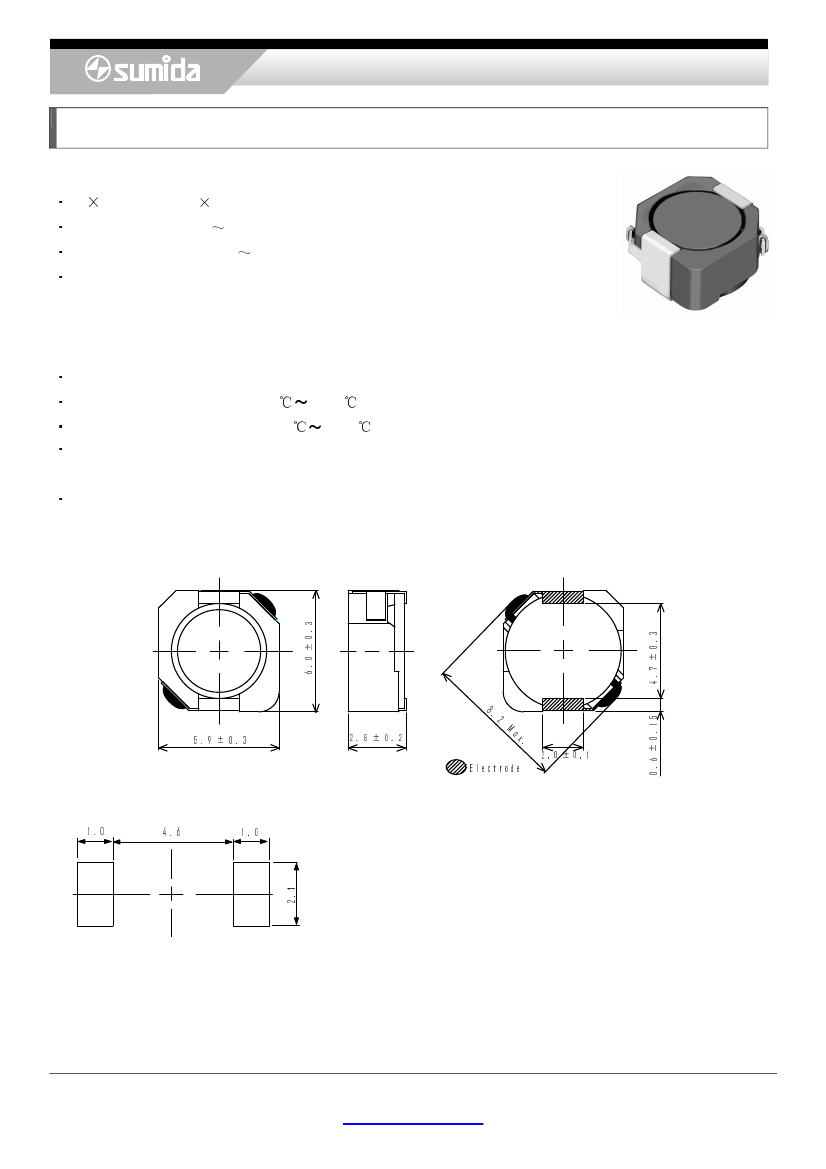

POWER INDUCTORS <SMD Type: CDRH Series>

Type:CDRH5D28R/HP

◆

Product Description

6.2 6.2mm Max.(L

W), 3.0mm Max. Height.

Inductance range:

2.2 47uH.

Rated current range:

0.85 3.8A.

In addition to the standards versions shown here,

custom inductors are also available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+105 (Including coil’s self temperature rise).

Ideally used in Notebook PC,HDD,DSC/DVC, LCD TV ,Game machine etc as DC-DC converter

RoHS compliance and Halogen Free.

inductors.

◆

Dimensions (mm)

◆

Land Pattern (mm)

0.1

6.4

0.1

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1.0± 0.2

edortcelE

2.0± 8.2

℃ ½℃

Storage temperature range: -40

3.0± 9.5

・

+105 .

1/2
