CY22391LTXC-XXXT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CY22391LTXC-XXXT

PDF

CY22391LTXC-XXXT: DescriptionClock Generator, 166MHz, CMOS, QFN-32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size280KB，10 Pages; ManufacturerCypress Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CY22391LTXC-XXXT Overview

Clock Generator, 166MHz, CMOS, QFN-32

CY22391LTXC-XXXT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cypress Semiconductor
Parts packaging code	QFN
package instruction	HVQCCN, LCC32,.2SQ,20
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATING AT -10 TO 70 DEGCEN AMBIENT TEMP
JESD-30 code	S-XQCC-N32
JESD-609 code	e4
length	5 mm
Humidity sensitivity level	3
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	166 MHz
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC32,.2SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Master clock/crystal nominal frequency	30 MHz
Certification status	Not Qualified
Maximum seat height	0.93 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	5 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

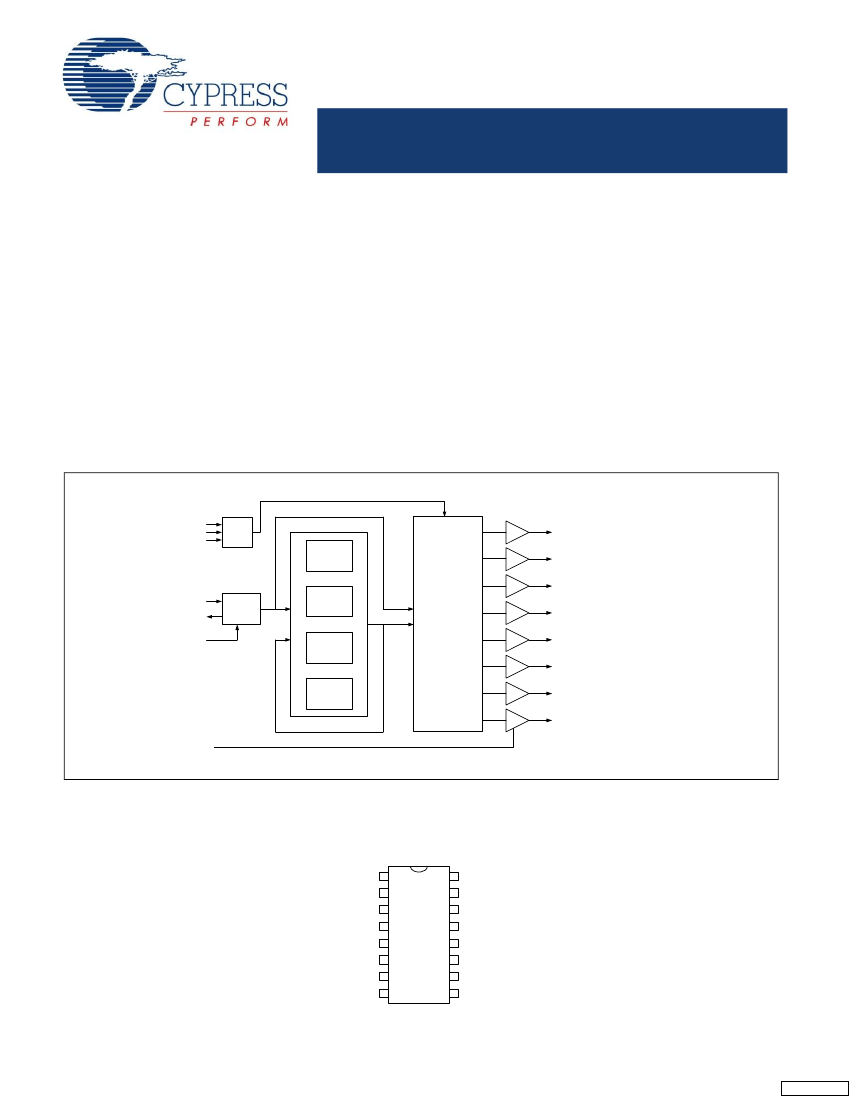

CY22388, CY22389, CY22391

Factory Programmable Quad PLL Clock

Generator with VCXO

Features

■

■

■

■

■

■

■

■

■

■

■

■

■

16-/20-pin TSSOP and 32-pin QFN packages

3.3V operation with 2.5V output buffer option

Fully integrated phase-locked loops (PLLs)

QFN package

40% smaller than 20-pin TSSOP

22% smaller than 16-pin TSSOP

Selectable Output Frequency

Programmable Output Frequencies

Output Frequency Range of 5–166 MHz

Input Frequency Range

Crystal: 10–30 MHz

External Reference: 1–100 MHz

Analog VCXO

Benefits

■

■

■

■

■

■

Meets most Digital Set Top Box, DVD Recorder, and DTV appli-

cation requirements

Multiple high-performance PLLs allow synthesis of unrelated

frequencies

Integration eliminates the need for external loop filter compo-

nents

Meets critical timing requirements in complex system designs

Enables application compatibility

Complete VCXO solution with ±120 ppm (typical pull range)

Logic Block Diagram

FS0

FS1

FS2

Select

Logic

CLKA

PLL1

CLKB

CLKC

XIN

VCXO

XOUT

VIN

PLL2

Dividers

&

Multiplexers

PLL3

CLKF

(CY22389 &

CY22391 only)

(CY22389 &

CY22391 only)

(CY22389 &

CY22391 only)

CLKD

CLKE

PLL4

CLKG

CLKH

OE/PD#

(CY22389 &

CY22391 only)

Pinouts

Figure 1. Pin Diagram - 16-Pin TSSOP CY22388

16-Pin TSSOP

XIN

FS0

FS1

VIN

VDD

VSS

CLKA

CLKB

1

2

3

4

5

6

7

8

CY22388

16

15

14

13

12

11

10

9

XOUT

VDD

FS2

VDD

VSS

CLKE

CLKD

CLKC

Cypress Semiconductor Corporation

Document #: 38-07734 Rev. *C

•

198 Champion Court

•

San Jose

,

CA 95134-1709

•

408-943-2600

Revised January 13, 2009

[+] Feedback

CY22391LTXC-XXXT Related Products

	CY22391LTXC-XXXT	CY22389FZXCT	CY22388ZXC-XXXT	CY22391LTXC-XXX	CY22389ZXC-XXXT	CY22391LFXC-XXXT
Description	Clock Generator, 166MHz, CMOS, QFN-32	Clock generators and supporting products 3 pll clk syn com	Clock Generator, 166MHz, CMOS, PDSO16, TSSOP-16	Clock Generator, 166MHz, CMOS, QFN-32	Clock Generator, 166MHz, CMOS, PDSO20, TSSOP-20	Clock Generator, 166MHz, CMOS, QFN-32
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
Maker	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	QFN	-	TSSOP	QFN	TSSOP	QFN
package instruction	HVQCCN, LCC32,.2SQ,20	-	TSSOP, TSSOP16,.25	HVQCCN, LCC32,.2SQ,20	TSSOP-20	HVQCCN,
Contacts	32	-	16	32	20	32
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Other features	ALSO OPERATING AT -10 TO 70 DEGCEN AMBIENT TEMP	-	ALSO OPERATING AT -10 TO 70 DEGCEN AMBIENT TEMP	ALSO OPERATING AT -10 TO 70 DEGCEN AMBIENT TEMP	ALSO OPERATING AT -10 TO 70 DEGCEN AMBIENT TEMP	ALSO OPERATING AT -10 TO 70 DEGCEN AMBIENT TEMP
JESD-30 code	S-XQCC-N32	-	R-PDSO-G16	S-XQCC-N32	R-PDSO-G20	S-XQCC-N32
JESD-609 code	e4	-	e3	e4	e3	e3
length	5 mm	-	5 mm	5 mm	6.5 mm	5 mm
Humidity sensitivity level	3	-	3	3	3	3
Number of terminals	32	-	16	32	20	32
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C	70 °C
Maximum output clock frequency	166 MHz	-	166 MHz	166 MHz	166 MHz	166 MHz
Package body material	UNSPECIFIED	-	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	HVQCCN	-	TSSOP	HVQCCN	TSSOP	HVQCCN
Encapsulate equivalent code	LCC32,.2SQ,20	-	TSSOP16,.25	LCC32,.2SQ,20	TSSOP20,.25	-
Package shape	SQUARE	-	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260	-	260	260	260	260
power supply	3.3 V	-	3.3 V	3.3 V	3.3 V	-
Master clock/crystal nominal frequency	30 MHz	-	30 MHz	30 MHz	30 MHz	30 MHz
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	0.93 mm	-	1.1 mm	0.93 mm	1.1 mm	0.93 mm
Maximum supply voltage	3.6 V	-	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	-	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	-	YES	YES	YES	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	-	Matte Tin (Sn)	Nickel/Palladium/Gold (Ni/Pd/Au)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	NO LEAD	-	GULL WING	NO LEAD	GULL WING	NO LEAD
Terminal pitch	0.5 mm	-	0.65 mm	0.5 mm	0.65 mm	0.5 mm
Terminal location	QUAD	-	DUAL	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	40	-	30	40	30	20
width	5 mm	-	4.4 mm	5 mm	4.4 mm	5 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	-	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
