DFLS230
2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
PowerDI
ä
123
Features
·
·
·
·
·
·
Guard Ring Die Construction for
Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current
Capacity
Low Forward Voltage Drop
Lead Free Finish, RoHS Compliant (Note 5)
"Green" Molding Compound (No Br, Sb)
A
D
H
PowerDI
ä
123
Dim
A
B
C
B
Min
3.50
2.60
1.63
0.93
0.85
0.15
0.45
—
—
—
0.90
Max
3.90
3.00
1.93
1.00
1.25
0.25
0.85
—
—
—
1.30
Typ
3.70
2.80
1.78
0.98
1.00
0.20
0.65
1.35
1.10
0.20
1.05
D
E
Mechanical Data
·
·
·
·
·
·
·
·
Case: PowerDI
ä
123
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Last Page
Ordering Information: See Last Page
Weight: 0.01 grams (approximate)
C
E
H
L
L
L1
L
L1
L2
L3
L4
E
L2
L4
A
L3
e
3
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current @ T
T
= 120°C
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load
Power Dissipation (Note 1)
Power Dissipation (Note 2)
Thermal Resistance Junction to Ambient (Note 1)
Thermal Resistance Junction to Ambient (Note 2)
Thermal Resistance Junction to Soldering (Note 3)
Operating Temperature Range
Storage Temperature Range
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
I
FSM
P
D
P
D
R
qJA
R
qJA
R
qJS
T
j
T
STG
@ T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
Min
30
¾
¾
¾
¾
Typ
¾
0.36
0.4
0.15
75
Max
¾
0.42
0.49
1.0
¾
Unit
V
V
mA
pF
Test Condition
I
R
= 1.5mA
I
F
= 1.0A
I
F
= 2.0A
V
R
= 30V, T
A
= 25°C
V
R
= 10V, f = 1.0MHz
Value
30
21
2.0
40
1.67
556
60
180
10
-55 to +125
-55 to +150
Unit
V
V
A
A
W
mW
°C/W
°C/W
°C/W
°C
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 4)
Forward Voltage
Leakage Current (Note 4)
Total Capacitance
Notes:
1.
2.
3.
4.
5.
Part mounted on 50.8mm X 50.8mm GETEK board with 25.4mm X 25.4mm copper pad, 25% anode, 75% cathode. T
A
= 25°C
Part mounted on FR-4 board with 1.8mm X 2.5mm cathode and 1.8mm X 1.2mm anode, 1 oz. copper pads. T
A
= 25°C
Theoretical R
qJS
calculated from the top center of the die straight down to the PCB cathode tab solder junction.
Short duration pulse test to minimize self-heating effect.
RoHS revision 13.2.2003. High Temperature Solder Exemption Applied, see
EU Directive Annex Note 7.
DS30518 Rev. 2 - 1
PowerDI is a trademark of Diodes Incorporated.
1 of 3
www.diodes.com
DFLS230
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
10,000
T
A
= 85
°
C
T
A
= 125
°
C
T
A
= 100
°
C
1000
1
100
T
A
= 25
°
C
0.1
T
A
= 125
°
C
T
A
= 100
°
C
T
A
= 85
°
C
10
1
.1
.01
0.8
1.0
T
A
= -40
°
C
0.01
T
A
= 25
°
C
T
A
= -40
°
C
0.001
0
0.2
0.4
0.6
5
10
15
20
25
30
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

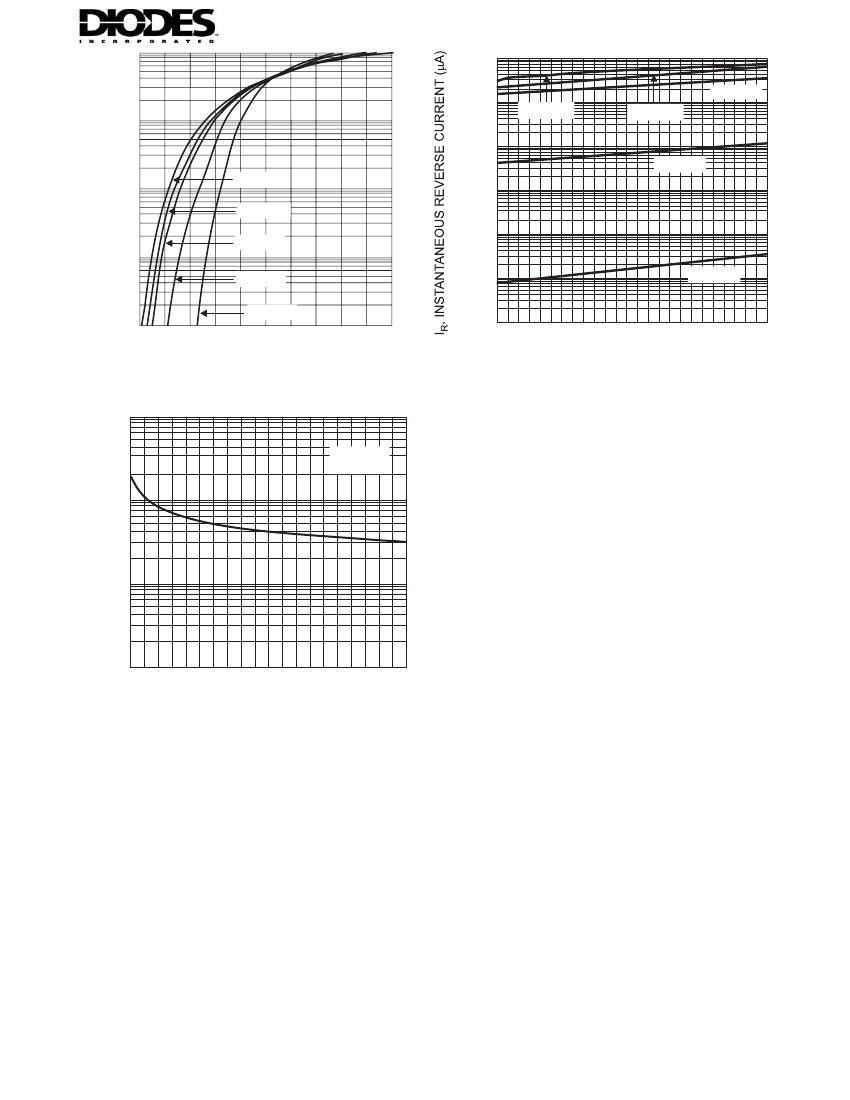

Fig. 1, Typical Forward Characteristics
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2, Typical Reverse Characteristics
1000
C
T
, TOTAL CAPACITANCE (pF)
f = 1MHz
100
10
1
0
5
10
15
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3, Typical Total Capacitance
DS30518 Rev. 2 - 1
PowerDI is a trademark of Diodes Incorporated.
2 of 3
www.diodes.com
DFLS230
Ordering Information
Device
DFLS230-7
Notes:
(Note 6)
Packaging
PowerDI 123
ä
Shipping
3000/Tape & Reel
6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
F01A
Date Code Key
Year
Code
Month
Code
Jan
1
Feb
2
2004
R
Mar
3
2005
S
Apr
4
F01A = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: R = 2004)
M = Month (ex: 9 = September)
2006
T
May
5
YM
2007
U
Jun
6
2008
V
Jul
7
2009
W
Aug
8
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
