DFLT5V0A_09 Overview

225W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Preview

Download Datasheet

View All

DFLT5V0A - DFLT51A

225W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

PowerDI

123

Features

•

225W Peak Pulse Power Dissipation (10μs x 1000μs waveform)

5.0V - 51V Standoff Voltages

Excellent Clamping Capability

Lead Free Finish, RoHS Compliant (Note 6)

"Green" Molding Compound (No Br, Sb)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

•

Case: PowerDI 123

Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminal Connections: Cathode Band

Terminals: Finish

⎯

Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Marking Information: See Page 3

Ordering Information: See Page 3

Weight: 0.01 grams (approximate)

Top View

Maximum Ratings

= 25°C unless otherwise specified

Symbol

FSM

Value

225

1125

3.5

Unit

Characteristic

Peak Pulse Power Dissipation (Note 1) 10/1000μs

(Note 2) 8/20μs

Peak Forward Surge Current, 8.3ms Single Half Sine Wave

Instantaneous Forward Voltage @ I

= 12A (Note 5)

Thermal Characteristics

Characteristic

DC Steady-State Power Dissipation (Note 3)

Thermal Resistance, Junction to Ambient (Note 3)

Thermal Resistance, Junction to Soldering Point (Note 4)

Operating and Storage Temperature Range

Notes:

Symbol

, T

STG

Value

1.0

125

-65 to +150

Unit

°C/W

°C

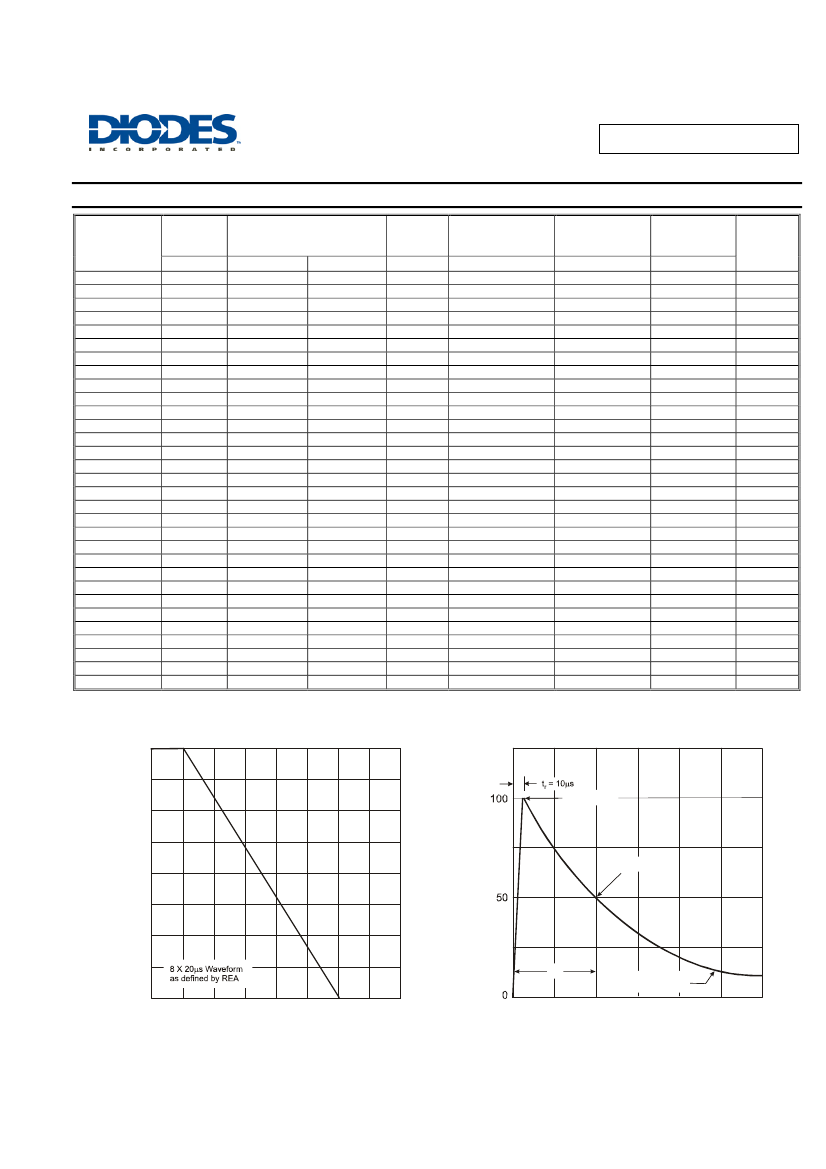

Non-Repetitive current pulse as shown in figure 2 and derated above T

= 25°C as per figure 1.

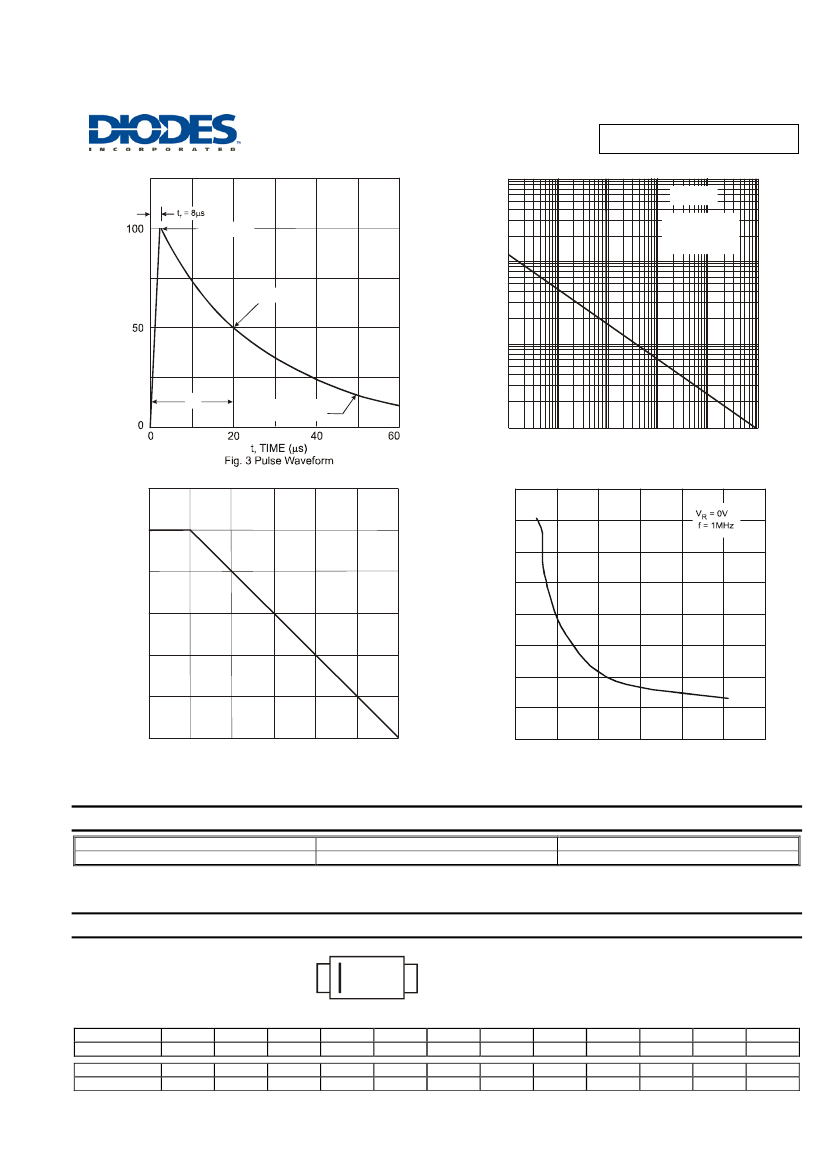

Non-Repetitive current pulse as shown in figure 3 and derated above T

= 25°C as per figure 1.

Device mounted on 1"x1", FR-4 PCB; 2 oz. Cu pad layout as shown on Diodes Inc. suggested pad layout document AP02001.pdf.

Theoretical R

θJS

calculated from the top center of the die straight down to the PCB/cathode tab solder junction.

1/2 sine wave (or equivalent square wave), pulse width = 8.3ms, duty cycle = 4 pulses/minute maximum.

EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html.

PowerDI is a registered trademark of Diodes Incorporated.

DFLT5V0A - DFLT51A

Document number: DS30581 Rev. 6 - 2

1 of 5

www.diodes.com

April 2009

DFLT5V0A - DFLT51A

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

PowerDI is a registered trademark of Diodes Incorporated.

DFLT5V0A - DFLT51A

Document number: DS30581 Rev. 6 - 2

5 of 5

www.diodes.com

April 2009
