CTCDR63B-220M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTCDR63B-220M

CTCDR63B-220M: DescriptionGeneral Purpose Inductor, 22uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size161KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTCDR63B-220M Overview

General Purpose Inductor, 22uH, 20%, 1 Element, SMD

CTCDR63B-220M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.32 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTCDR63B
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	2.52 MHz
Tolerance	20%

Preview

Download Datasheet

View All

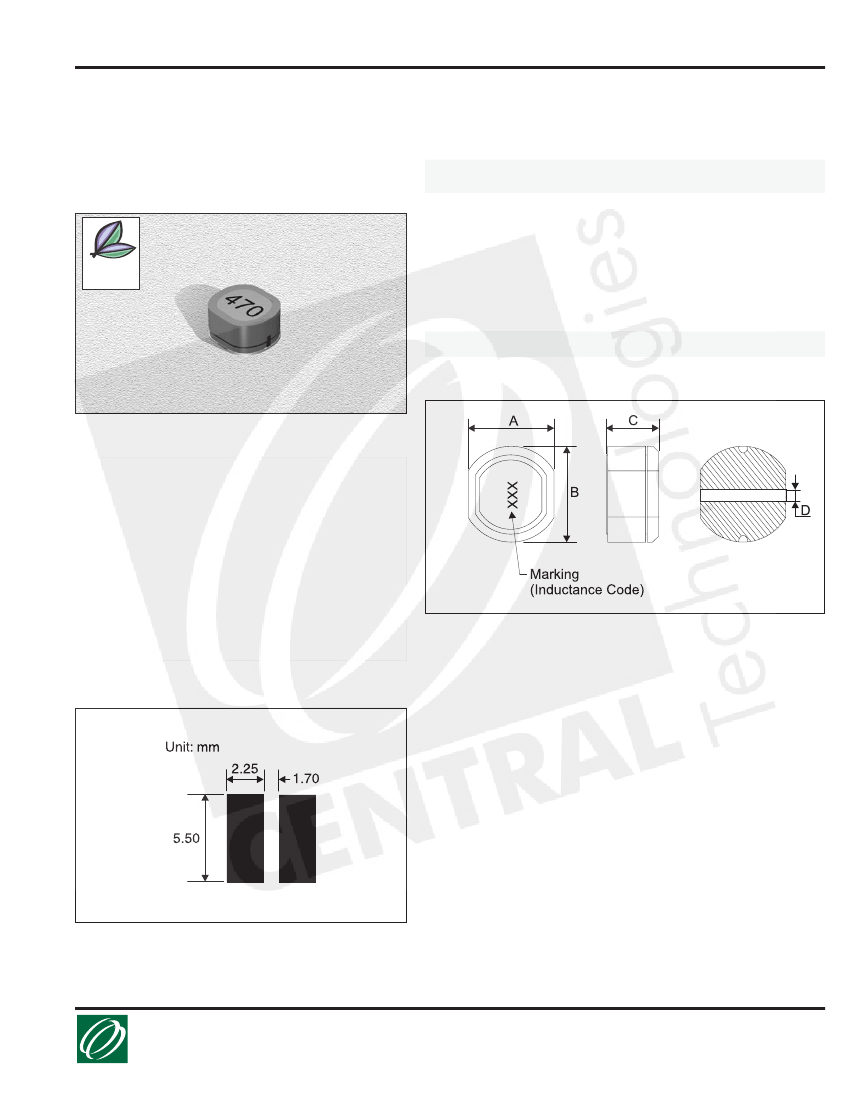

Power Inductors - Shielded

ctparts.com

CTCDR63B Series

From 10 µH to 68 µH

Part

Number

CTCDR63B_-100M

CTCDR63B_-120M

CTCDR63B_-150M

CTCDR63B_-180M

CTCDR63B_-220M

CTCDR63B_-270M

CTCDR63B_-330L

CTCDR63B_-390L

CTCDR63B_-470L

CTCDR63B_-560L

CTCDR63B_-680L

Not shown at actual size.

SPECIFICATIONS

Part numbers indicate tolerance available.

L = ±15%, M = ±20%

CTCDR63BF Please specify “F” for RoHS compliant

*Inductance drop = 10% typ. at IDC

L Test

Freq.

(MHz)

2.52

DCR

Max.

Ω

(Ω)

0.14

0.16

0.18

0.25

0.32

0.36

0.41

0.47

0.51

0.72

0.82

IDC

Max.

(A)

1.00

0.94

0.86

0.78

0.76

0.64

0.61

0.53

0.50

0.46

0.42

Inductance

(µH)

Compliant

Available

RoHS

PHYSICAL DIMENSIONS

Size

inches

Max.

5.9

0.23

Max.

6.5

0.26

Max.

3.5

0.14

Ref.

1.45

0.06

CHARACTERISTICS

Description:

SMD shielded power inductor

Applications:

VTR power supplies, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±15%, ±20%

Testing:

Inductance is tested on an HP4285A at 2.52MHz

Packaging:

Tape & Reel

Marking:

Marked with inductance code

Miscellaneous:

RoHS Compliant available.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PAD LAYOUT

03.24.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
