DZT2222A
NPN SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Type Available (DZT2907A)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Switching or Amplification Applications
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
3
2
1
4
SOT-223
COLLECTOR
NEW PRODUCT
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-223
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Matte Tin annealed over Copper Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Marking Information: See Page 4
Ordering Information: See Page 4
Weight: 0.115 grams (approximate)
3 E
C 4
2 C
1 B
TOP VIEW
1
BASE
2,4
3
EMITTER

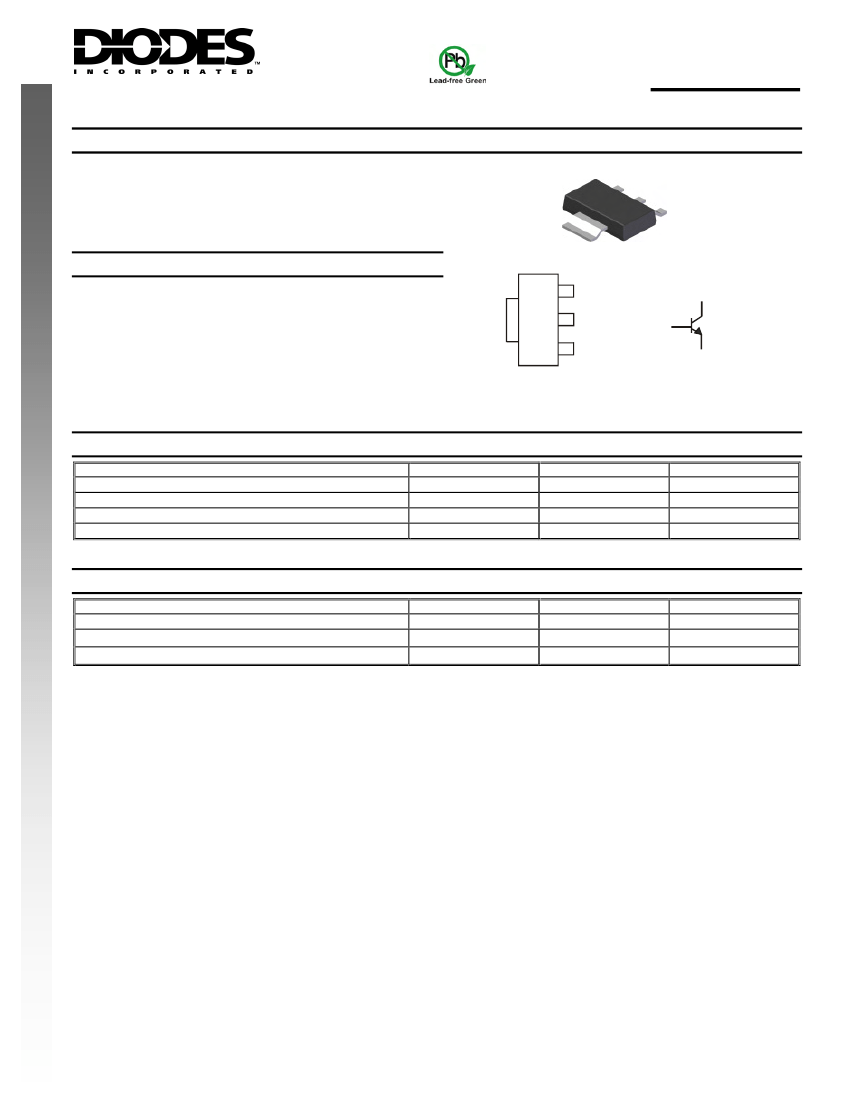

Schematic and Pin Configuration
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Continuous Current
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
Value
75
40
6
600
Unit
V
V
V
mA
Characteristic
Thermal Characteristics
Characteristic
Power Dissipation @ T
A
= 25°C (Note 3)
Thermal Resistance, Junction to Ambient Air (Note 3) @T
A
= 25°C
Operating and Storage Temperature Range
Notes:
1.
2.
3.
Symbol
P
d
R
θ
JA
T
j
, T
STG
Value
1
125
-55 to +150
Unit
W
°C/W
°C
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Device mounted on FR-4 PCB pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
DS30481 Rev. 5 - 2
1 of 4
www.diodes.com

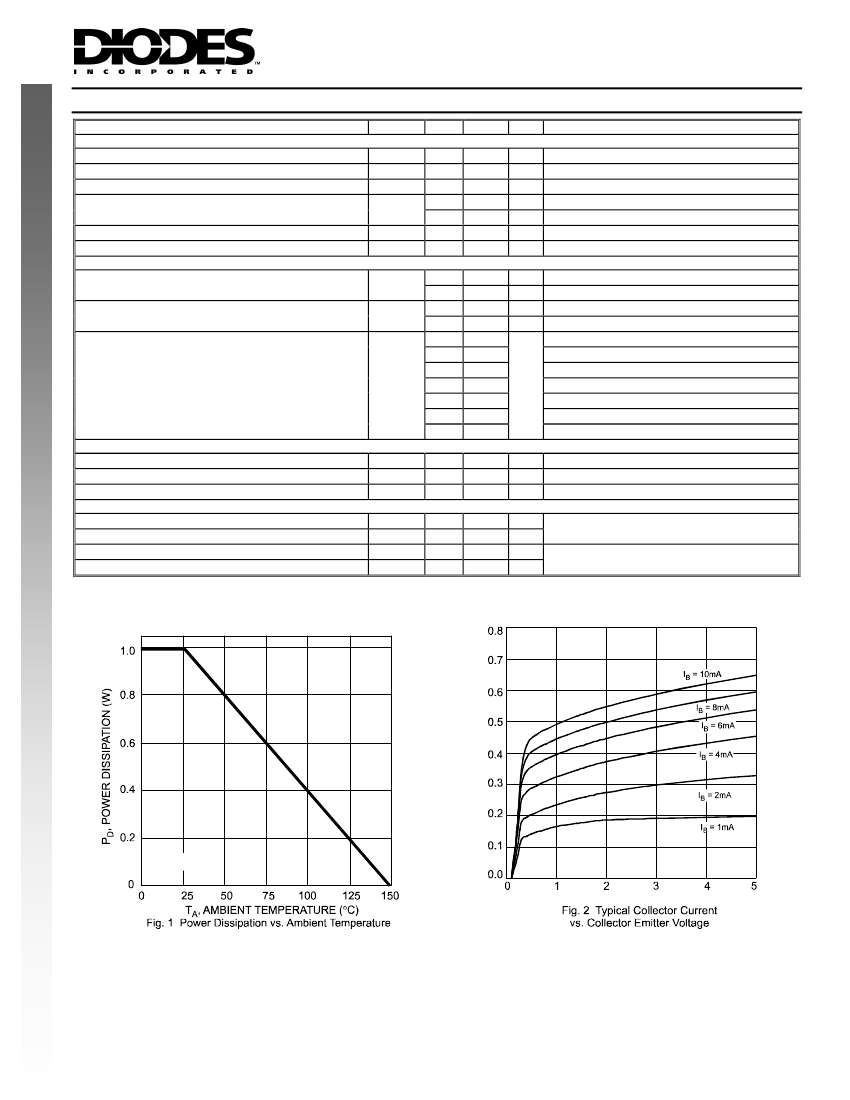

DZT2222A
© Diodes Incorporated
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 4)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
I
CEX
V
CE(SAT)
V
BE(SAT)
Min
75
40
6
⎯
⎯
⎯
⎯
⎯
⎯
0.6
⎯
35
50
75
35
100
50
40
300
⎯
⎯
⎯
⎯
⎯
⎯
Max
⎯
⎯
⎯
10
10
10
10
0.3
1.0
1.2
2.0
⎯
⎯
⎯
⎯
300
⎯
⎯
⎯
8
25
10
25
225
60
Unit
V
V
V
nA
μA
nA
nA
V
V
V
V
Test Conditions
I
C
= 10μA, I
E
= 0
I
C
= 10mA, I
B
= 0
I
E
= 10μA, I
C
= 0
V
CB
= 50V, I
E
= 0
V
CB
= 50V, I
E
= 0, T
A
= 150°C
V
EB
= 3V, I
C
= 0
V
CE
= 60V, V
EB(off)
= 3V
I
C
= 150mA, I
B
= 15mA
I
C
= 500mA, I
B
= 50mA
I
C
= 150mA, I
B
= 15mA
I
C
= 500mA, I
B
= 50mA
I
C
= 0.1mA, V
CE
= 10V
I
C
= 1mA, V
CE
= 10V
I
C
= 10mA, V
CE
= 10V
I
C
= 10mA, V
CE
= 10V, T
A
= -55°C
I
C
= 150mA, V
CE
= 10V
I
C
= 150mA, V
CE
= 1V
I
C
= 500mA, V
CE
= 10V
NEW PRODUCT
Collector Cut-Off Current
Emitter Cut-Off Current
Collector-Emitter Cut-Off Current
ON CHARACTERISTICS (Note 4)
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
DC Current Gain
h
FE
V
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
Output Capacitance
Input Capacitance
SWITCHING CHARACTERISTICS
Delay Time
Rise Time
Storage Time
Fall Time
Notes:
f
T
C
obo
C
ibo
t
d
t
r
t
s
t
f
MHz I
C
= 20mA, V
CE
= 20V, f = 100MHz
pF V
CB
= 10V, I
E
= 0, f = 1MHz
pF V
EB
= 0.5V, I
C
= 0, f = 1MHz
ns
ns
ns
ns
V
CE
= 30V, V
EB(off)
= 0.5V, I
C
= 150mA, I
B1
= 15mA
V
CE
= 30V, I
C
= 150mA, I
B1
= I
B2
=
15mA
4. Measured under pulsed conditions. Pulse width = 300
μS.
Duty Cycle, d< = 2%.
R
θJA
= 125°C/W
I
C
, COLLECTOR CURRENT (A)
V
CE
, COLLECTOR EMITTER VOLTAGE (V)
DS30481 Rev. 5 - 2
2 of 4
www.diodes.com
DZT2222A
© Diodes Incorporated
NEW PRODUCT
V
CE(SAT)
, COLLECTOR EMITTER
SATURATION VOLTAGE (V)
I
C
, COLLECTOR CURRENT (mA)
V
BE(SAT)
, BASE EMITTER SATURATION VOLTAGE (V)
V
BE(ON)
, BASE EMITTER TURN-ON VOLTAGE (V)
I
C
, COLLECTOR CURRENT (mA)
I
C
, COLLECTOR CURRENT (mA)
CAPACITANCE (pF)
V
CE
= 20V
f = 100MHz
V
R
, REVERSE VOLTAGE (V)

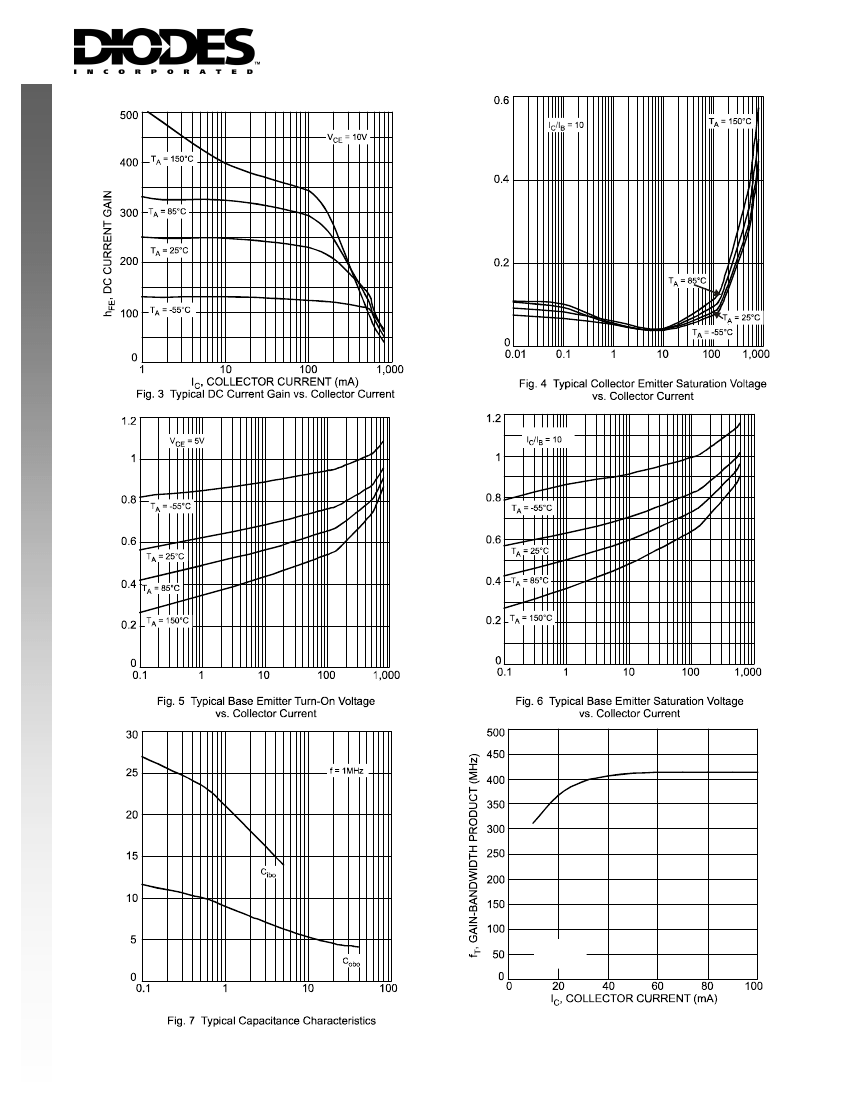

Fig. 8 Typical Gain-Bandwidth Product
vs. Collector Current
DS30481 Rev. 5 - 2
3 of 4
www.diodes.com
DZT2222A
© Diodes Incorporated
Ordering Information
Device
DZT2222A-13
Notes:
(Note 5)
Packaging
SOT-223
Shipping
2500/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
NEW PRODUCT
Marking Information
(Top View)
YWW
K1P
K1P = Product Type Marking Code
YWW = Date Code Marking
Y = Last Digit of Year ex: 7 = 2007
WW = Week Code 01-52

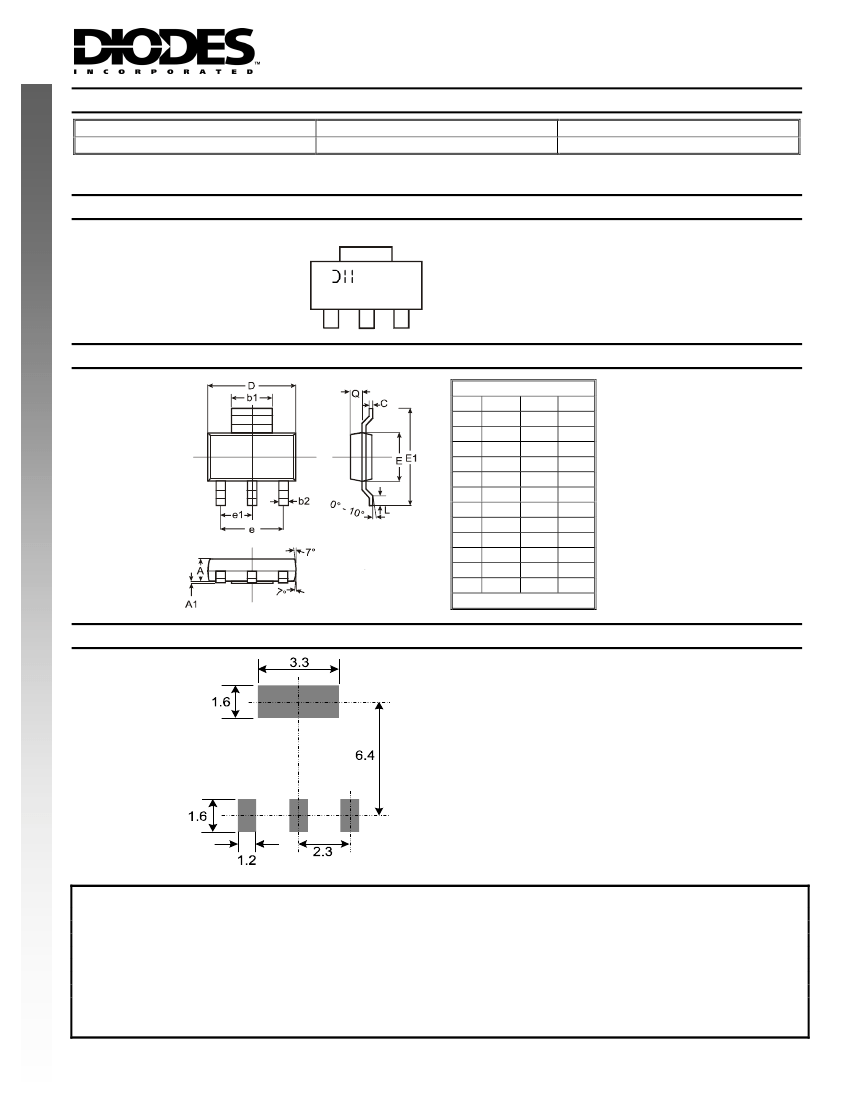

Package Outline Dimensions
SOT-223
Dim Min
Max
Typ
A
1.55 1.65 1.60
A1
0.010 0.15 0.05
b1
2.90 3.10 3.00
b2
0.60 0.80 0.70
C
0.20 0.30 0.25
D
6.45 6.55 6.50
E
3.45 3.55 3.50
E1
6.90 7.10 7.00
e
—
—
4.60
e1
—
—
2.30
L
0.55 0.75 0.65
Q
0.84 0.94 0.89
All Dimensions in mm
Suggested Pad Layout: (Based on IPC-SM-782)
(Unit: mm)
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
DS30481 Rev. 5 - 2
4 of 4
www.diodes.com
DZT2222A
© Diodes Incorporated
