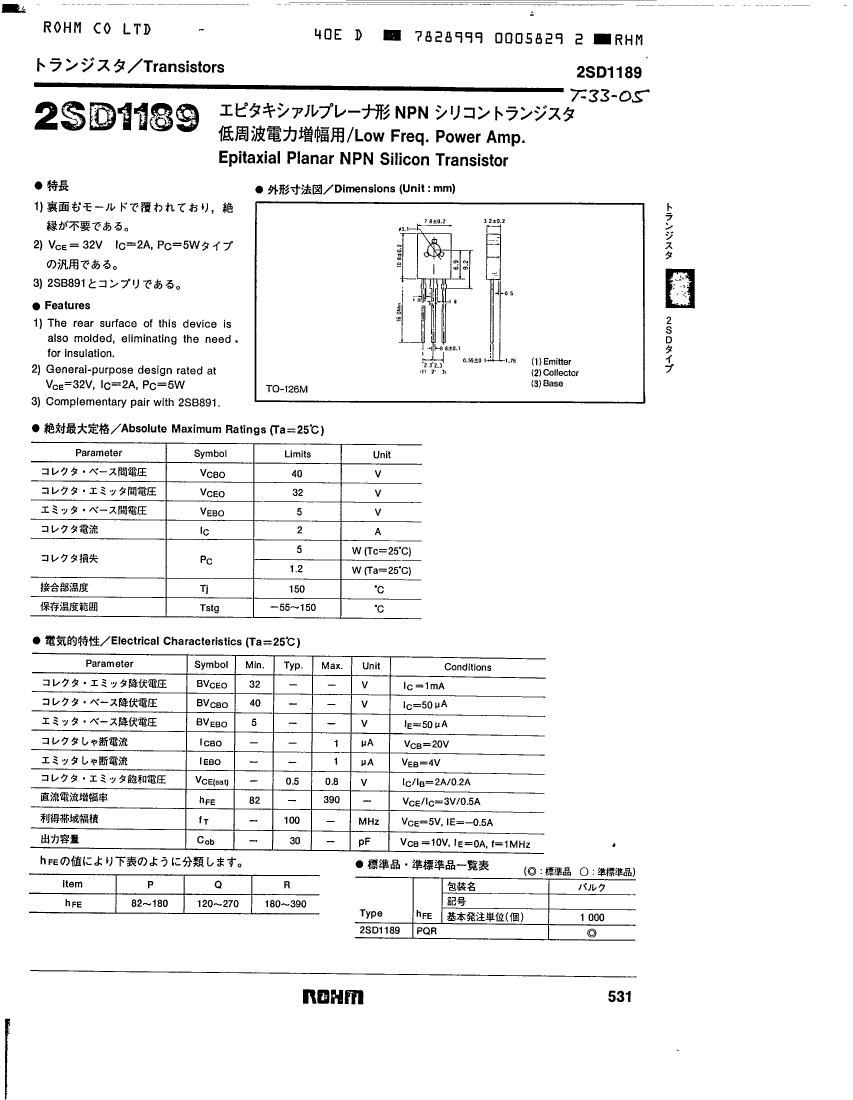

2SD1189P datasheet, PDF - EEWORLD Datasheet

2SD1189P: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size180KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

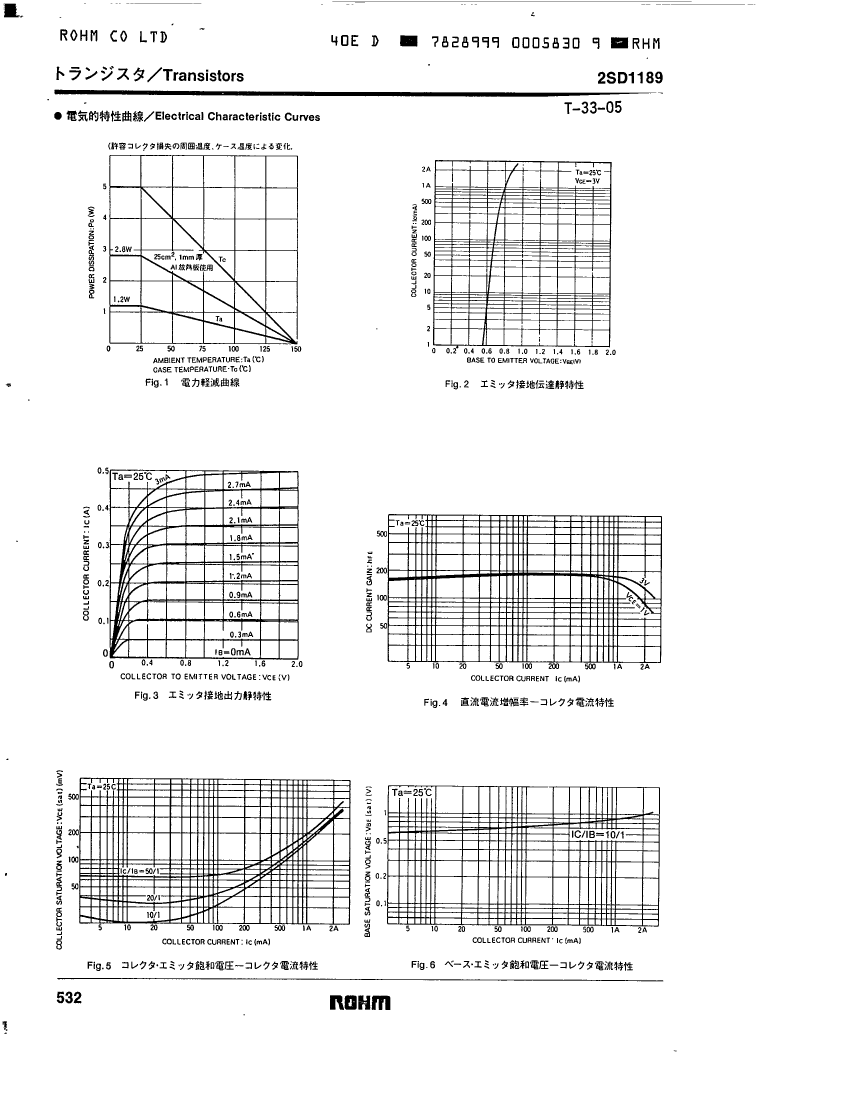

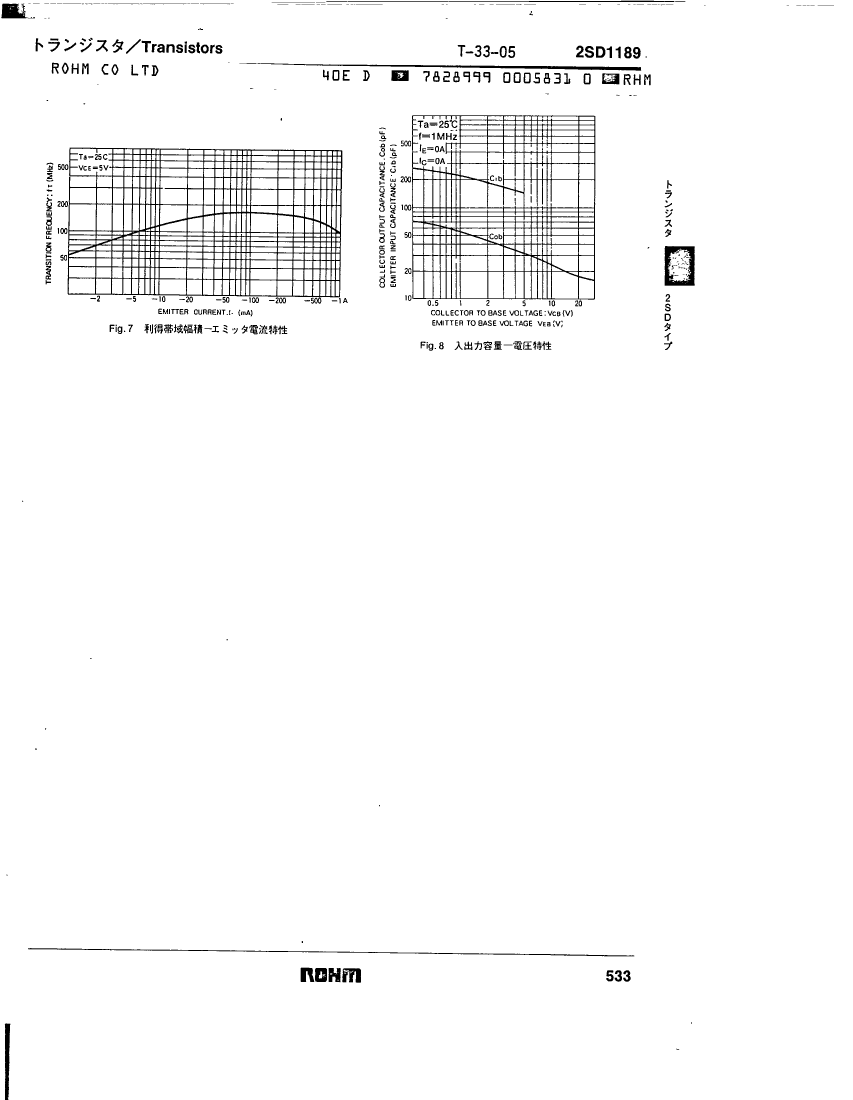

2SD1189P Overview

Transistor,

Parameter Name	Attribute value
package instruction	TO-126M, 3 PIN
Reach Compliance Code	compli
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	32 V
Configuration	SINGLE
Minimum DC current gain (hFE)	82
JEDEC-95 code	TO-126
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

	2SD1189P	2SD1189R
Description	Transistor,	Transistor,
package instruction	TO-126M, 3 PIN	TO-126M, 3 PIN
Reach Compliance Code	compli	compli
Maximum collector current (IC)	2 A	2 A
Collector-emitter maximum voltage	32 V	32 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	82	180
JEDEC-95 code	TO-126	TO-126
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz
Base Number Matches	1	1
