LPC-B24FG

Description
Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal,
CategoryThe connector    The connector
File Size70KB，1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Download Datasheet Parametric Compare View All

LPC-B24FG Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal,

LPC-B24FG Parametric

Parameter NameAttribute value
MakerHonda Tsushin Kogyo Co., Ltd.
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation typeCABLE
Number of rows loaded2
OptionsGENERAL PURPOSE
Termination typeIDC
Total number of contacts24

Preview

Download Datasheet

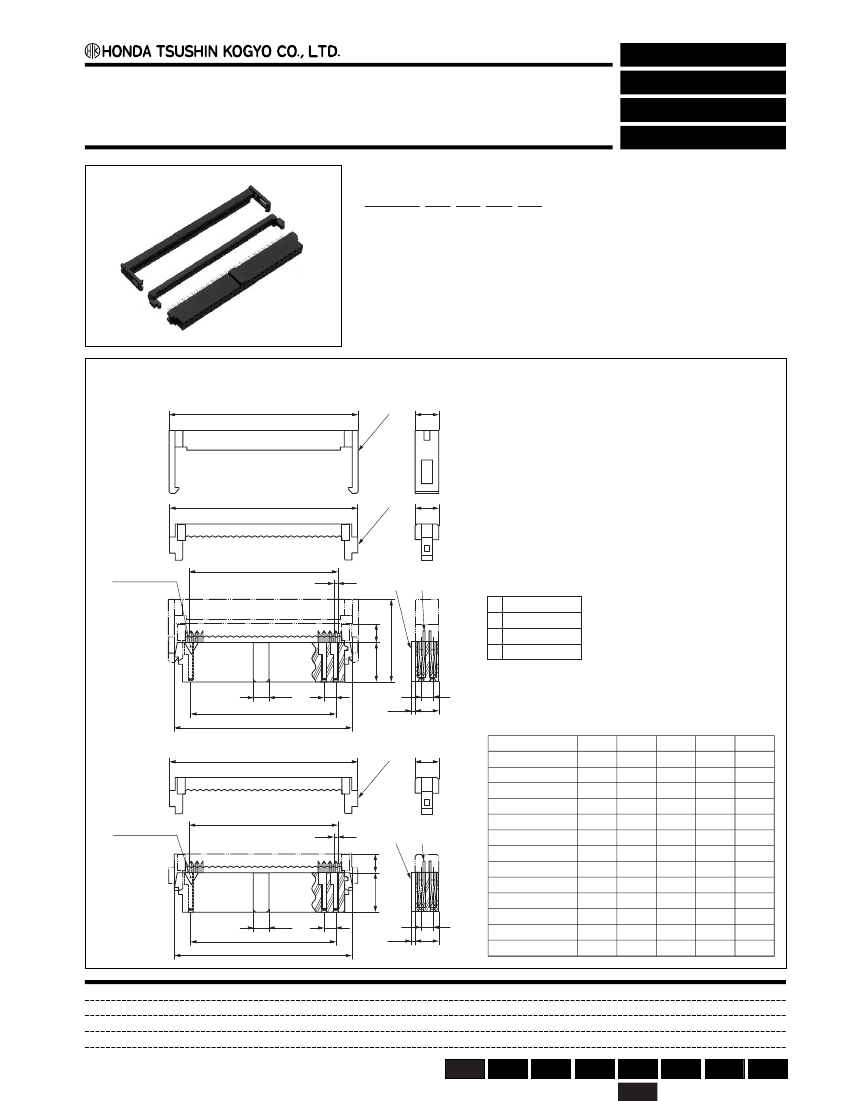

2 mm pitch connectors
IDC type female connector for flat cables
LPC-B( )( )FA( )
●
Configuration of product Part No.
For 1 mm pitch flat cables
IDC
LPC-B ( ) ( ) FA ( )
➀
➁
➂
➃
➄
➀
Series name
➁
No. of contacts: 10, 12, 14, 16, 20, 22, 24, 26, 30, 36, 40, 44 or 50
➂
Strain relief
Blank: Not provided
R
: Provided
➃
Type of contact: Female connector
➄
Contact plating
G : Contact area 0.2
µm
Gold plating
G2: Contact area 0.05
µm
Gold plating
When strain relief is provided:
E
¢
4
D
£
4
Triangle mark
B
1
¡
™
●
Components
➀
Insulator
➁
Contacts
➂
Cable housing
➃
Strain relief
6.5
2.6
A
C
When strain relief is not provided:
D
2
2
0.8
2.9
13.6
4
●
Dimensions
£
4
Part No.
LPC-B10RFA( ),FA( )
LPC-B12RFA( ),FA( )
LPC-B14RFA( ),FA( )
LPC-B16RFA( ),FA( )
A
8
10
12
14
18
20
22
24
28
34
38
42
48
B
9
11
13
15
19
21
23
25
29
35
39
43
49
C
13.8
15.8
17.8
19.8
23.8
25.8
27.8
29.8
33.8
39.8
43.8
47.8
53.8
D
15.8
17.8
19.8
21.8
25.8
27.8
29.8
31.8
35.8
41.8
45.8
49.8
55.8
E
16
18
20
22
26
28
30
32
36
42
46
50
56
Triangle mark
B
1
2.9
LPC-B20RFA( ),FA( )
¡
™
LPC-B22RFA( ),FA( )
LPC-B24RFA( ),FA( )
LPC-B26RFA( ),FA( )
LPC-B30RFA( ),FA( )
LPC-B36RFA( ),FA( )
LPC-B40RFA( ),FA( )
6.5
2.6
A
C
2
2
0.8
4
LPC-B44RFA( ),FA( )
LPC-B50RFA( ),FA( )
Mating connectors:
LPC-B series of male connectors for PCBs
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
SMT
DIP
