NVG47SNRCDAABBFREQ

Description
Sine Output Oscillator, 5MHz Min, 13MHz Max,
CategoryPassive components    oscillator
File Size173KB,4 Pages
ManufacturerBliley Technologies Inc
Download Datasheet Parametric View All

NVG47SNRCDAABBFREQ Overview

Sine Output Oscillator, 5MHz Min, 13MHz Max,

NVG47SNRCDAABBFREQ Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerBliley Technologies Inc
Reach Compliance Codeunknown
Ageing0.05 PPM/FIRST YEAR
Frequency Adjustment - MechanicalNO
frequency stability0.03%
input power1.5 W
Installation featuresTHROUGH HOLE MOUNT
offset frequency1 kHz
Maximum operating frequency13 MHz
Minimum operating frequency5 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeSINE
Oven power supply voltage5V
phase noise-150 dBc/Hz

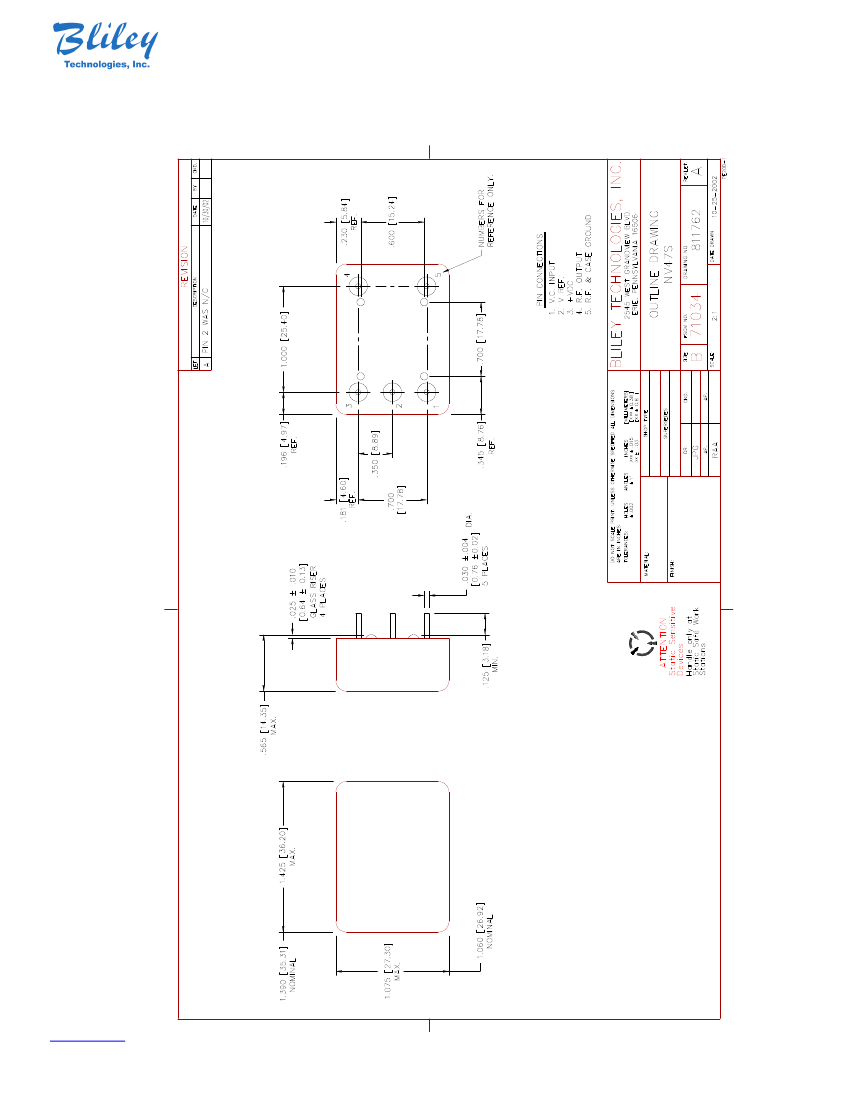

physical size36.2mm x 27.3mm x 14.35mm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
Preheating power3.5 W

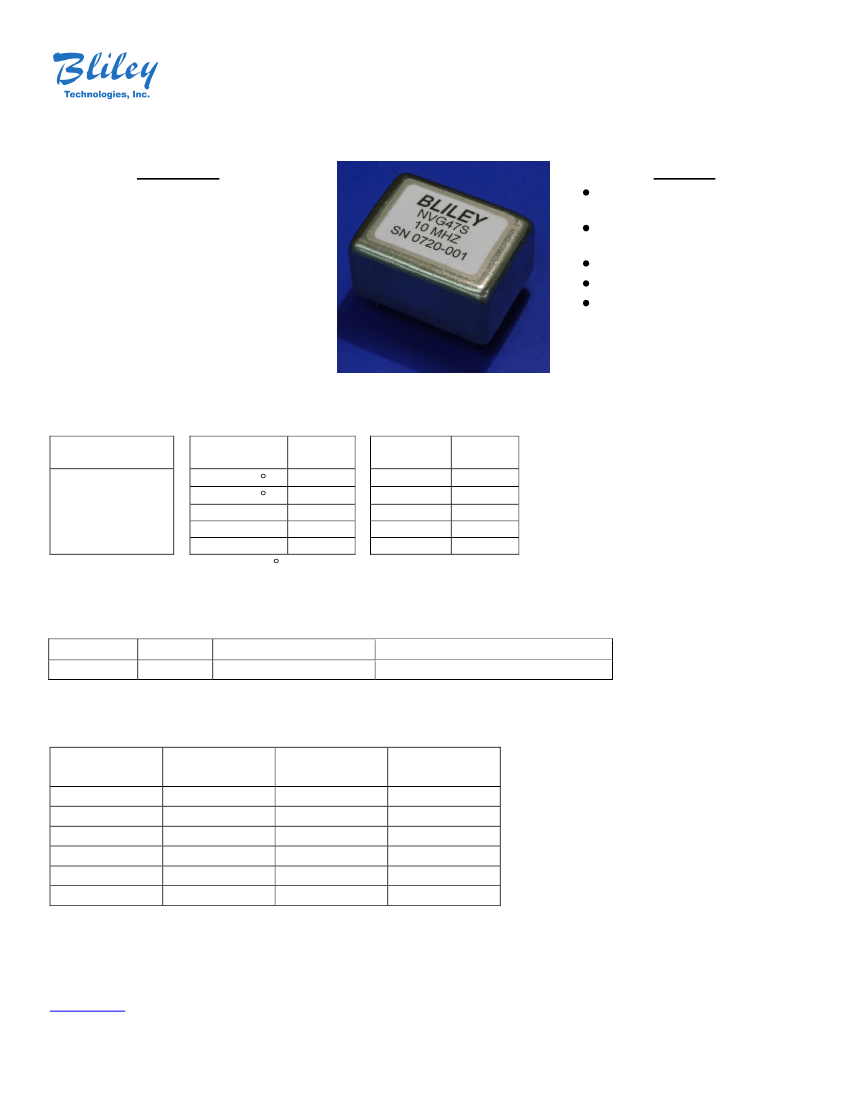

Euro-Style Low Noise
High Stability OCXO
Description:
The NVG47S Ovenized Oscillator
Series products provide a low
noise highly stable frequency
reference for base stations, test
equipment, synthesizers, and
digital switching applications.
NVG47S Series
Features:
Available in frequencies from 5
to 13 MHz
CMOS and Sine Wave output
available
RoHS-6 / Lead-free complaint
5V and 12V available
Phase Noise Options
Frequency Range, Operating Temperature, and Frequency Stability:
Frequency
Range
Operating
Temperature
-20 to +70 C
-40 to +85 C
Product
Code
C
D
Frequency
Stability
+/- 5 ppb
+/- 10 ppb
+/- 20 ppb
+/- 30 ppb
Product
Code
A
B
C
D
5 to 13 MHz
* +/-5ppb is not available with -40 to +85
C operating temperature range.
** For tighter frequency stabilities or wider frequency range consult Bliley Sales.
Aging:
(typical at 10 MHz after 30 days continuous operation)
Frequency
10 MHz
Timeframe
1 Year
Aging
Less than +/- 50 ppb
Product Code
N/A
Phase Noise:
Frequency
Offset
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Option A
Square Wave
-80 dBc/Hz
-115 dBc/Hz
-145 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-155 dBc/Hz
Option B
Sine Wave
-90 dBc/Hz
-120 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-160 dBc/Hz
Option C
Sine Wave
-95 dBc/Hz
-125 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-165 dBc/Hz
-165 dBc/Hz
Options B and C are not available with square wave out.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel
(814) 838-3571
Rev 1.2
