LPC-4FD+C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LPC-4FD+C

LPC-4FD+C: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LPC-4FD+C Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

LPC-4FD+C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN COPPER
Contact completed and terminated	Tin/Copper (Sn/Cu)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e2
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

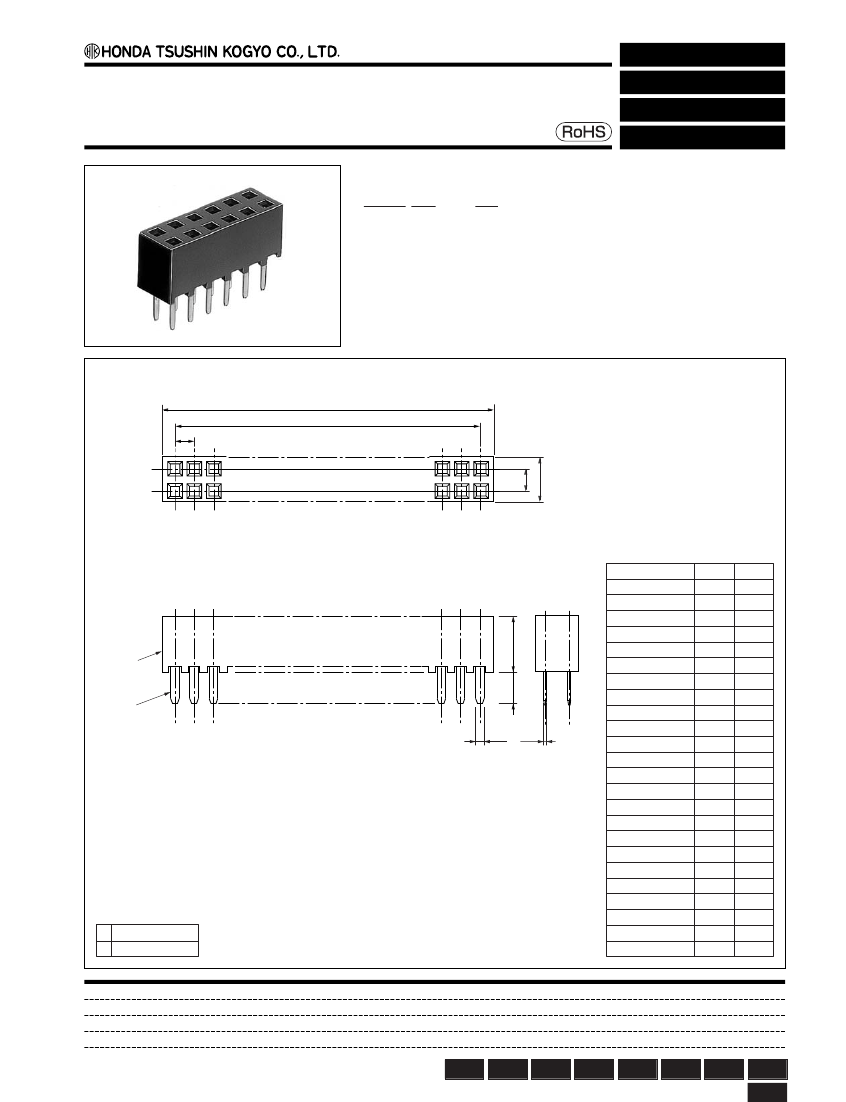

2 mm pitch connector

Straight through hole type female connector for PCB

LPC-( )FD( )

●

Configuration of product Part No.

For PCB

Straight Through hole

LPC- ( ) FD ( )

➀

➁

➂

➀

Series name

➁

No. of contacts: 4-50

➂

Contact plating

+C : Tin copper plate

G+: Gold plate

●

Dimensions

Part No.

LPC-4FD( )

LPC-6FD( )

LPC-8FD( )

LPC-10FD( )

LPC-12FD( )

LPC-14FD( )

LPC-16FD( )

LPC-18FD( )

LPC-20FD( )

0.6

0.2

LPC-22FD( )

LPC-24FD( )

LPC-26FD( )

LPC-28FD( )

LPC-30FD( )

LPC-32FD( )

LPC-34FD( )

LPC-36FD( )

LPC-38FD( )

LPC-40FD( )

LPC-42FD( )

LPC-44FD( )

4.6

6.6

8.6

10.6

12.6

14.6

16.6

18.6

20.6

22.6

24.6

26.6

28.6

30.6

32.6

34.6

36.6

38.6

40.6

42.6

44.6

46.6

48.6

50.6

™

●

Components

➀

Insulator

➁

Contacts

Because some combinations of “Configurations of

Product Part No.”, are under consideration for

development, please contact us for availability details.

LPC-46FD( )

LPC-48FD( )

LPC-50FD( )

Mating connectors:

LPC series male connectors

Accessories:

Polarization key: LPC-PK1

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole
