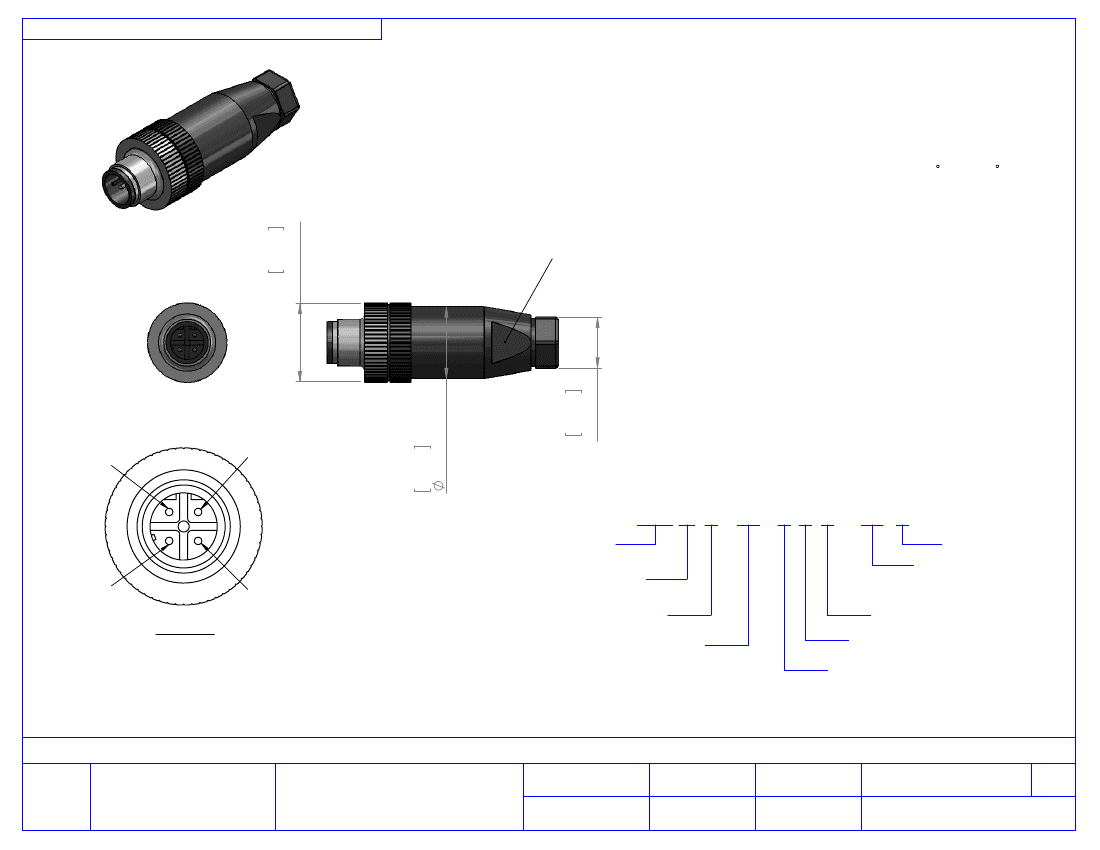

DESCRIPTION: M12 - MALE - FIELD INSTALL - (D-CODE) - 4 POS
UNITS = MM [INCHES]
CHARACTERISTICS
MATERIALS
HOUSING : PA66, BLACK
SCREW : BRASS, NICKEL PLATED
CONTACTS : BRASS, GOLD FLASH
MECHANICAL
DURABILITY: 100 CYCLES
OPERATING TEMP. RANGE: -25 C ~ +85 C
WIRE GAUGE : 24 to 26 AWG
IP RATING: 67
0.781
19.83
[0.546] 13.87
(ACROSS FLATS)
PIN 2
PIN 1
0.714
18.14
0.504
12.80
858 F D 04 1 7 0 L YY 1
SERIES
M12
PIN 4
PIN 4
F = FIELD INSTALL
D = D CODE
# OF POSITIONS
04 = 4 POSITION
1 = GOLD FLASH
CABLE DIAMETER
46 = 4-6 MM
69 = 6-9 MM
PLASTIC SHELL
CABLE MOUNT
1 = MALE
4 POSITION
RATED VOLTAGE : 250 VOLTS
RATED CURRENT : 4 AMPS
CONTACT RESISTANCE : 3 m
Ω
INSULATION RESISTANCE : 100M
Ω
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
03-22-17
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
0
CHECKED:
DATE:
DWG NO.
858FD04170LYY1
