FD600-D4E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> FD600-D4E

FD600-D4E: DescriptionPower/Signal Relay, 3PDT, Momentary, 0.077A (Coil), 48VDC (Coil), 3716.13mW (Coil), 10A (Contact), 56VDC (Contact), DC Input, DC Output, Socket Mount,; CategoryMechanical and electronic products relay; File Size449KB，12 Pages; ManufacturerEsterline Power Systems

Download Datasheet Parametric View All

FD600-D4E Overview

Power/Signal Relay, 3PDT, Momentary, 0.077A (Coil), 48VDC (Coil), 3716.13mW (Coil), 10A (Contact), 56VDC (Contact), DC Input, DC Output, Socket Mount,

FD600-D4E Parametric

Parameter Name	Attribute value
Maker	Esterline Power Systems
Reach Compliance Code	unknown
ECCN code	EAR99
body width	26 mm
body height	25.7 mm
Body length or diameter	37.7 mm
Maximum coil current (DC)	0.077 A
Coil operating voltage (DC)	34.1 V
Coil power	3716.13 mW
Coil release voltage (DC)	2 V
Coil resistance	620 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@56VDC
Maximum contact voltage (DC)	56 V
Contact/Output Power Type	DC
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Installation features	SOCKET MOUNT
operating hours	21 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	37.7mm x 26mm x 25.7mm
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	21 ms
seal	CORROSION PROOF; HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD
Termination type	SNAP-ON

FD600-D4E Preview

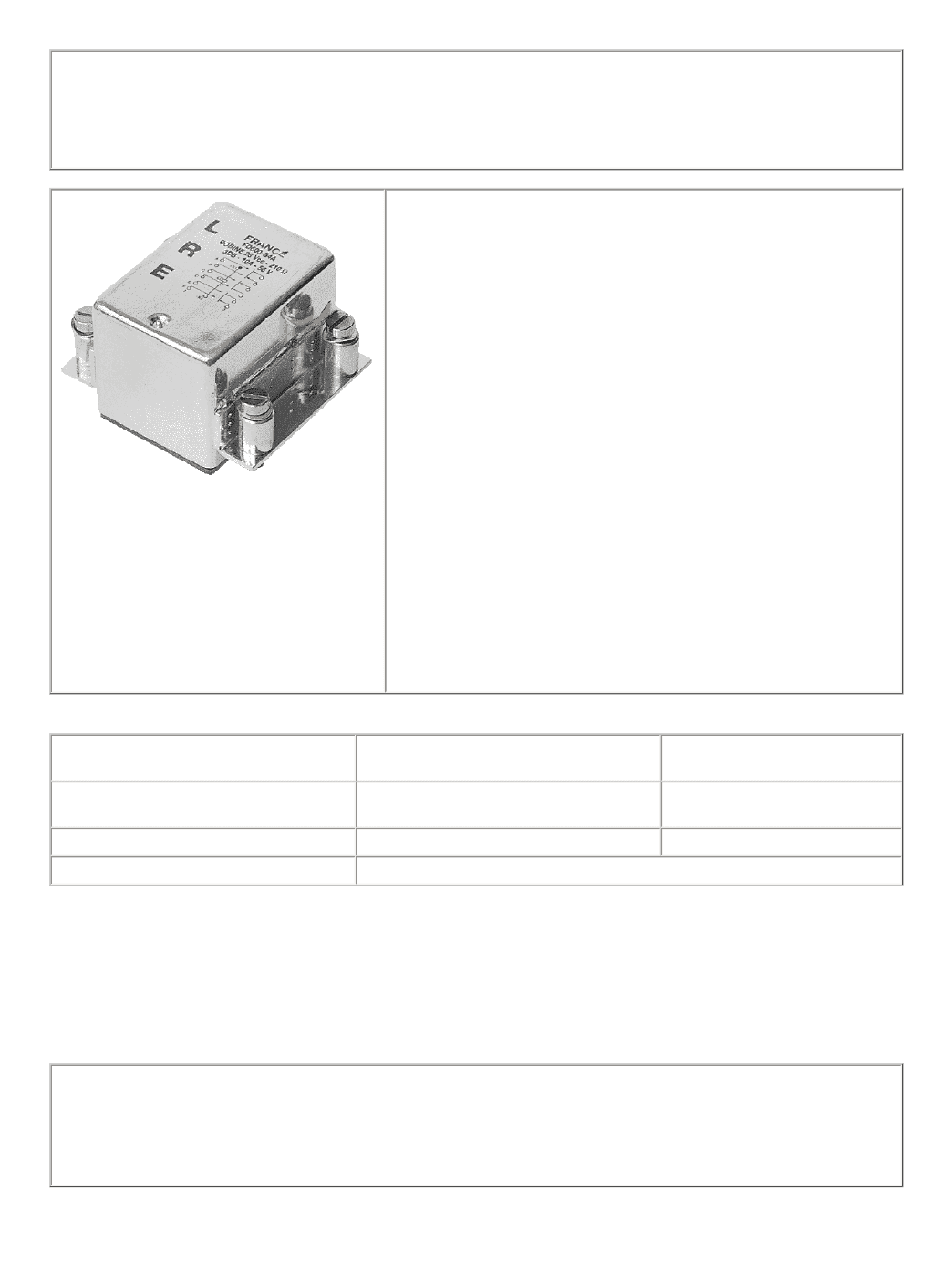

ENGINEERING DATA SHEET

FD600

RELAY - NONLATCH

3 PDT/10 AMP/56VDC

Polarized, non latching hermetically sealed relay

Contact arrangement

Coil supply

3 PDT NC - NO (DB - DM)

Direct current

PRINCIPLE TECHNICAL CHARACTERISTICS

Contacts rated at

Weight

Dimensions of case

Balanced-force design.

Hermetically sealed, corrosion protected metal can.

Intrinsically safe relay.

10 Amps / 56 Vdc

95 grams max

26mm x 25.7mm x 37.7mm max

APPLICATION NOTES:

001

002

007

APPLICABLE SOCKET:

SFD600CE40E

CONTACT ELECTRICAL CHARACTERISTICS

Minimum

operating cycles

100,000 cycles

20,000 cycles

50 cycles

400,000 cycles

Contact rating per

pole and load type

resistive load

inductive load (L/R=5ms)

resistive overload

at 25% rated resistive load

Load Current in Amps

@56Vdc

LEACH

INTERNATIONAL

Solutions for Power Switching and Control

North America

6900 Orangethorpe Ave.

P.O. Box 5032

Buena Park, CA 90622 USA

Tel: (01) 714-736-7599

Fax: (01) 714-670-1145

Europe, SA

2 Rue Goethe

57430 Sarralbe

France

Tel: (33) 3 87 97 98 97

Fax: (33) 3 87 97 84 04

Asia-Pacific Ltd.

20/F Shing Hing Commercial Bldg.

21-27 Wing Kut Street

Central, Hong Kong

Tel: (852) 2 191 2886

Fax: (852) 2 389 5803

www.leachintl.com

Date of issue: 6/00

- 113 -

Page 1 of 4

COIL CHARACTERISTICS (Vdc)

CODE

FD600

Nominal operating voltage

110

Maximum operating voltage

125

Maximum pickup voltage at +125° C

19.8

34.1

Guaranteed drop-out voltage at -65° C

Coil resistance in

Ω

±10% at +25° C

0.5

1.5

210

620

3200

Back EMF suppression to (Vdc)

N/A

-42

N/A

GENERAL CHARACTERISTICS

Temperature range

Dielectric strength at sea level

- Contacts to ground and between contacts

- Coil to ground

Dielectric strength at altitude 25,000 m (all points)

Initial insulation resistance at 500 Vdc

Sinusoidal vibration

Shock

Maximum contact opening time under vibration and shock

Operate time at nominal voltage

Release time

Bounce time

Contact voltage drop at rated current

- initial value

200 mV max

1250 V / 50 Hz

1000 V / 50 Hz

350 V / 50 Hz

100 M

Ω

min

30 G / 75 to 3000 Hz

50 G / 6 ms

10 µs

20 ms max

1 ms max

-65°C to +125°C

Date of issue: 6/00

- 114 -

Page 2 of 4

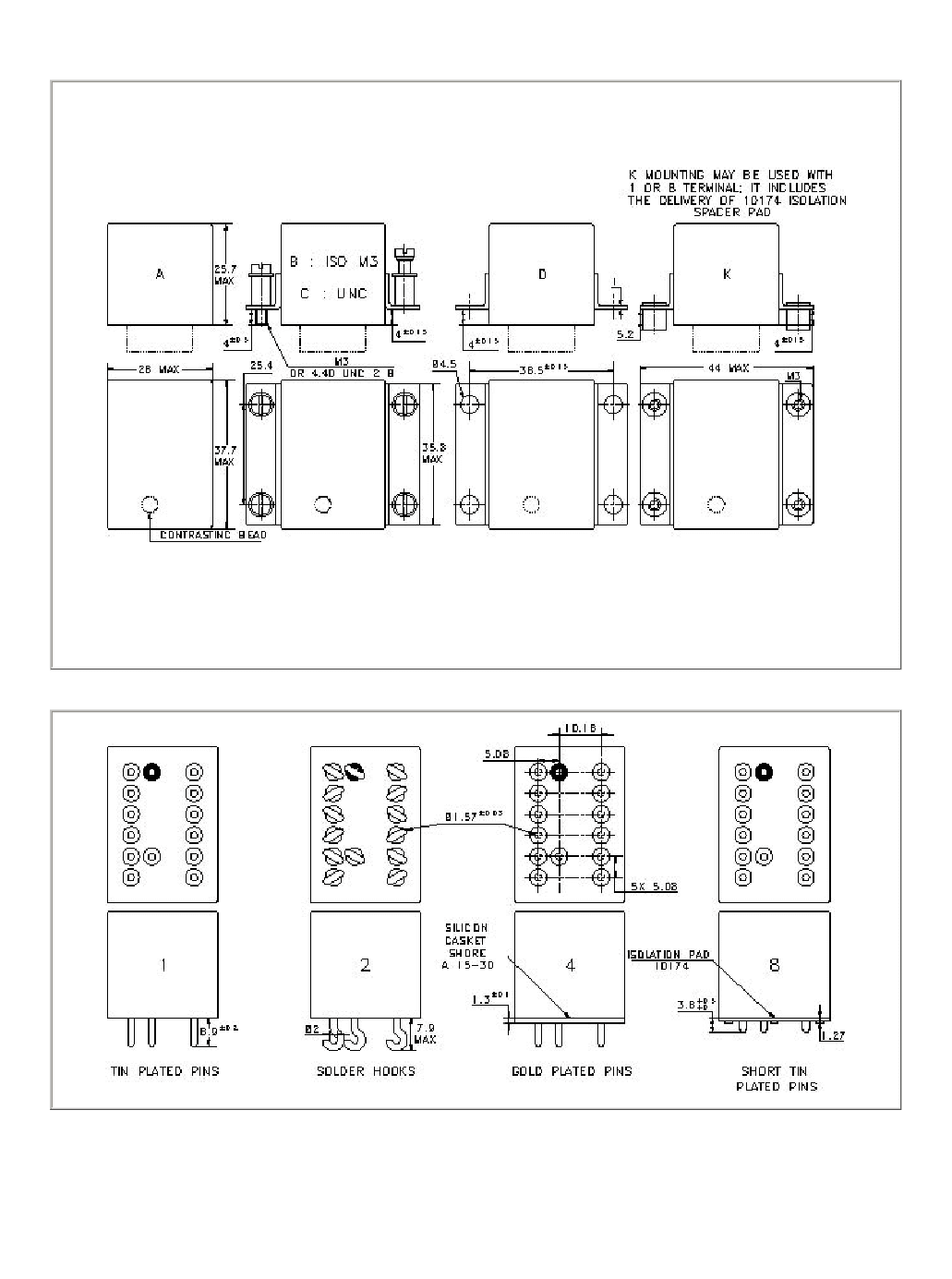

MOUNTING STYLES

FD600

Dimensions in mm

Tolerances unless otherwise specified ±0.25mm

TERMINAL TYPES

Date of issue: 6/00

- 115 -

Page 3 of 4

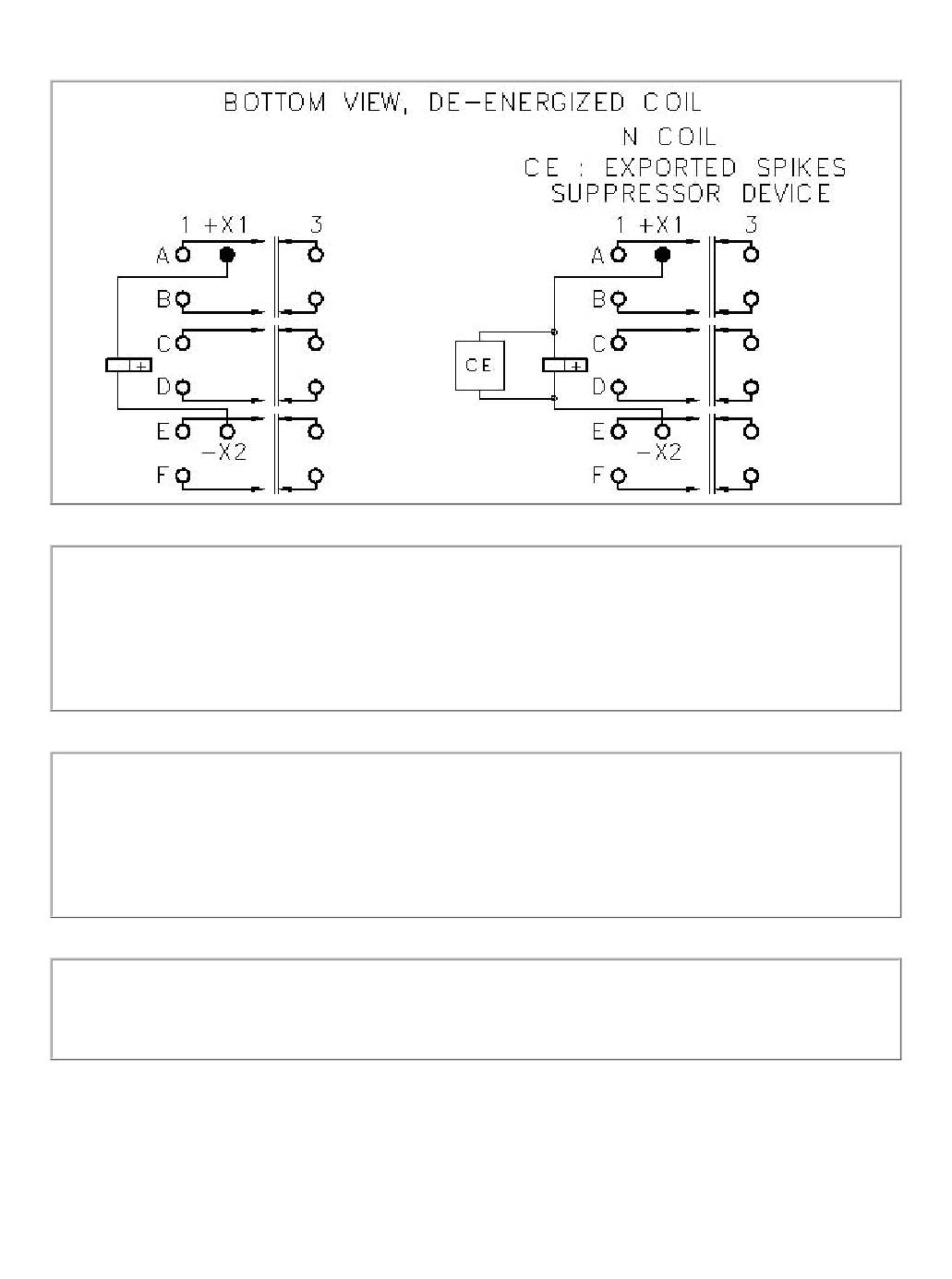

SCHEMATIC DIAGRAM

FD600

NUMBERING SYSTEM

FD600 - B

Basic series designation__________________________|

1-Mounting Style (A,B,C,D,K)____________________________|

2-Terminal Types (1,2,4,8)__________________________________|

3-Coil Voltage (B,A,N,E,V)______________________________________|

NOTES

Relays with mounting styles B,D and terminal type 4 are compatible with socket families S600, SF600 and SFD600.

Isolation spacer pads for PCB mounting available on request.

For other mounting styles or terminal types, please contact the factory.

TYPICAL CHARACTERISTICS

Coil resistance/temperature change: See application note no. 001

L/R ratio for all types of DC coils is: = 11 ms

Contact life expectancy for loads other than 28V: See application note no. 002

Date of issue: 6/00

- 116 -

Page 4 of 4

Application notes

N°001

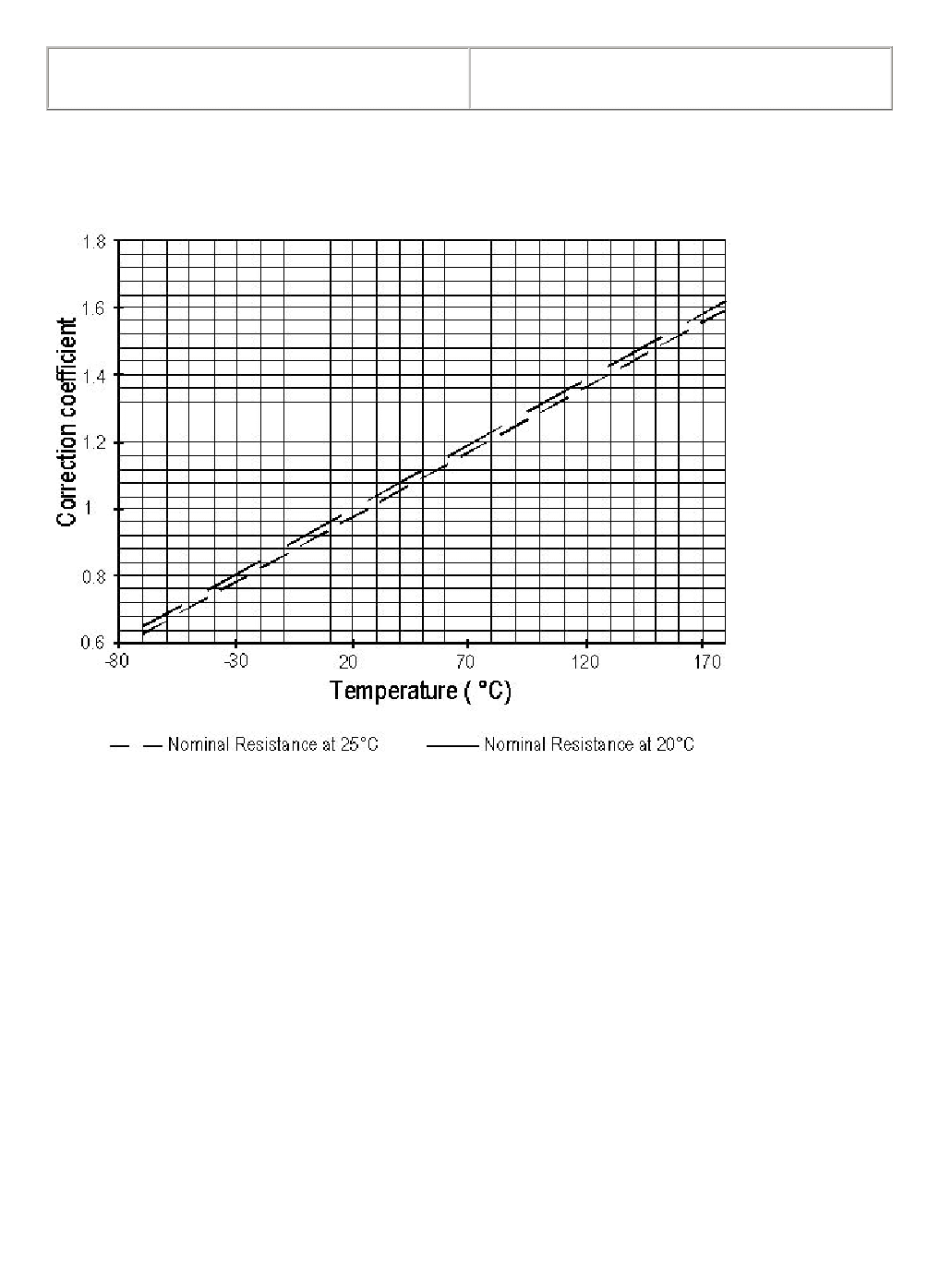

CORRECTION DUE TO COIL COPPER WIRE RESISTANCE

CHANGE IN TEMPERATURE

Example: Coil resistance at 25°C: 935 ohms. What is it at 125°C?

Correction coefficient on diagram is: 1.39 at 125°C. R becomes: 935x1.39=1299 Ohms

Correction also applies to operating voltages

Date of issue: 6/00

-1-

Page 1 of 1
