M80-8542005: Description4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG; CategoryThe connector; File Size680KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-8542005 Overview

4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG

M80-8542005 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	PHOSPHOR BRONZE
Terminal spacing	2 mm
Total number of contacts	4
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
width	0.1570 inch
body_depth	0.2190 inch
body_diamete	0.4550 inch
Shell style	PLUG
Contact surface matching	GOLD (30)
Contact coated terminals	TIN (118) OVER NICKEL
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	25 mohm
contact_style	RND PIN-SKT
dielectric_withstanding_voltage__v_	360VAC
According to DIN	NO
durability	500 Cycles
Filter characteristics	NO
Comply with IEC	NO
insulation_resistance	1.00E8 ohm
insulator_col	BLACK
insulator_material	POLYAMIDE
jesd_609_code	e3
Manufacturer Series	M80-852
mating_contact_pitch__inch_	0.079
Meet MIL	NO
hybrid connection	NO
mounting_option_1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	1
Number of load rows	1
Minimum operating temperature	-55 Cel
erating_temperature_max__cel_	125
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
lating_thickness__inch_	30u
larization_key	POLARIZED HOUSING
ed_current__signal_	3 A
eference_standard	UL
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1180 inch
Terminal type	SOLDER
UL flammability code	94V-0
dditional_feature	POLARIZED, SHROUDED

Preview

Download Datasheet

View All

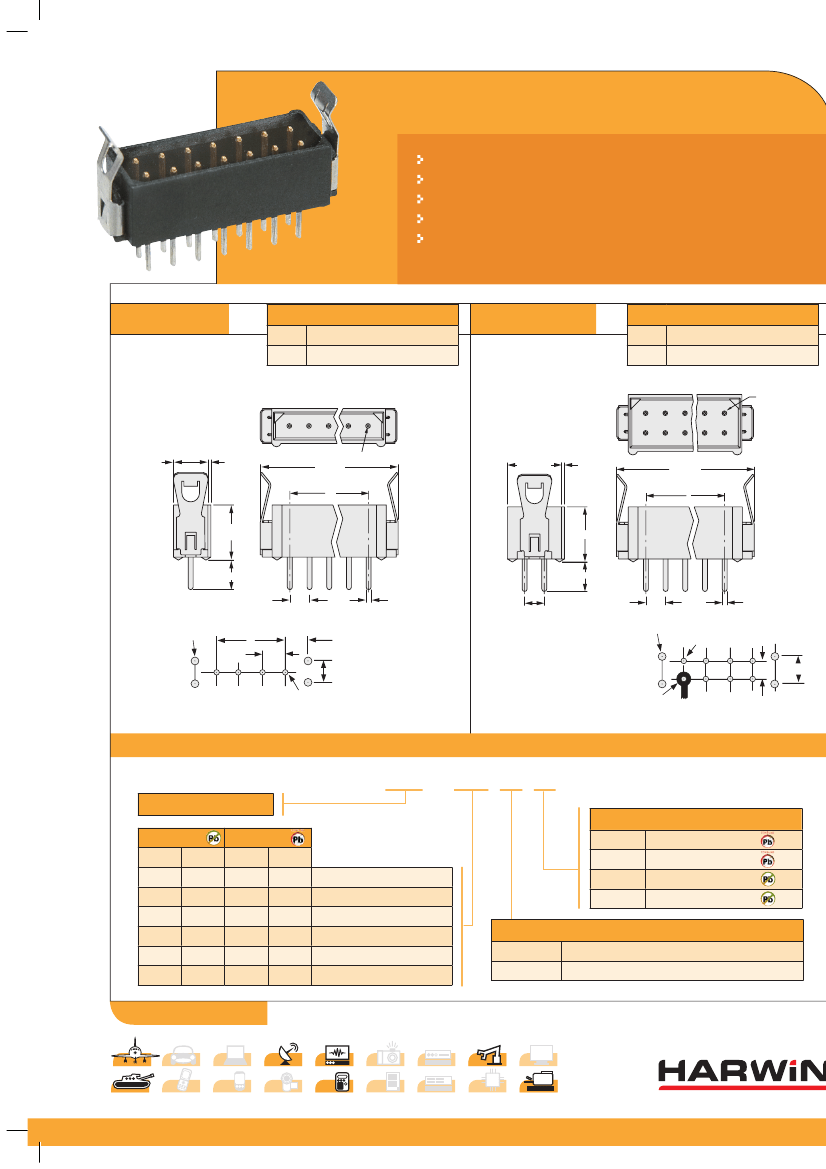

Datamate Connectors

Male Vertical PC tail

Polarised mouldings.

Fully shrouded contacts.

Mates with female connectors shown on pages 18 to 20.

For British Standard versions see pages 14 to 15.

Can be used with Strain Relief straps:

order code m80-0030006.

single roW

Friction lock or latch

(when fitted) adds

0.5mm to overall

length ‘A’

caLcULatioN

a

B

B + 5.60

(Total No. of contacts – 1) x 2

Double roW

Friction lock or latch

(when fitted) adds

0.5mm to overall

length ‘A’

caLcULatioN

a

B

B + 5.60

Total No. of contacts – 2

No. 1 contact

3.50

max.

No. 1 contact

0.30

A max.

B

5.50 max.

0.30

A max.

Strain relief strap holes (optional)

B

Ø0.90 min.

B

2.25

4.75

2.00

5.60

max.

5.60 max.

Hole Ø0.80 max.

Tail

2.00

Strain relief strap holes (optional)

Ø0.90 min.

B

Tail

Ø0.50

2.00

Strain relief strap holes

Ø0.90 min.

4.75

2.00

Ø0.50

2.25

2.00

B

2.25

0.50

4.75

Strain relief strap holes (optional)

Ø0.90 min.

Hole Ø0.80 max.

2.00

4.75

Hole Ø0.80 max.

Hole

Ø0.80 max.

Ø Pad 1.50

recommended PC board Pattern

HoW to orDer

Strain relief strap holes (optional)

Ø0.90 min.

Hole Ø0.80 max.

m80 –

Strain relief strap

XX XX

XXX

holes

Ø0.90 min.

2.00

4.75

Ø Pad 1.50

SerieS coDe

rohS

Pad 1.50

Ø

Single

Double

Hole Ø0.80 max.

2.00

FiNiSh

0.50

Non-rohS

Single

Double

4.75

05

22

42

45

Gold

Gold + Tin/Lead

Gold + Tin

Gold

852

882

881

752

782

781

854

853

863

754

753

763

879

877

805

752

782

781

869

867

815

754

753

763

Unlatched (3mm tail)

Latched (3mm tail)

Friction latched (3mm tail)

Unlatched (4.5mm tail)

Latched (4.5mm tail)

Friction latch (4.5mm tail)

totaL No. oF coNtactS

Single Row

Double Row

02 to 07, 17, 22

04, 06, 08, 10, 12, 14, 16, 18, 20, 26, 34, 44

www.harwin.com

All dimensions in mm
