M80-8780445: Description10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, PLUG; CategoryThe connector; File Size525KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-8780445 Overview

10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, PLUG

M80-8780445 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	PHOSPHOR BRONZE
Terminal spacing	2 mm
Total number of contacts	10
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
width	0.2350 inch
body_depth	0.3310 inch
body_diamete	0.5330 inch
Shell style	PLUG
Contact surface matching	GOLD (30) OVER NICKEL
Contact coated terminals	GOLD (30) OVER NICKEL
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	25 mohm
contact_style	RND PIN-SKT
dielectric_withstanding_voltage__v_	360VAC
According to DIN	NO
durability	500 Cycles
Filter characteristics	NO
Comply with IEC	NO
insulation_resistance	1.00E8 ohm
insulator_col	BLACK
insulator_material	POLYAMIDE
jesd_609_code	e4
Manufacturer Series	M80-841
mating_contact_pitch__inch_	0.079
mating_contact_row_spacing__inch_	0.079
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	2
Number of load rows	2
Minimum operating temperature	-55 Cel
erating_temperature_max__cel_	125
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
cb_contact_row_spacing__mm_	2.0066
lating_thickness__inch_	30u
ed_current__signal_	3 A
eference_standard	UL
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1180 inch
Terminal type	SOLDER
UL flammability code	94V-0
dditional_feature	ROHS COMPLIANT

Preview

Download Datasheet

View All

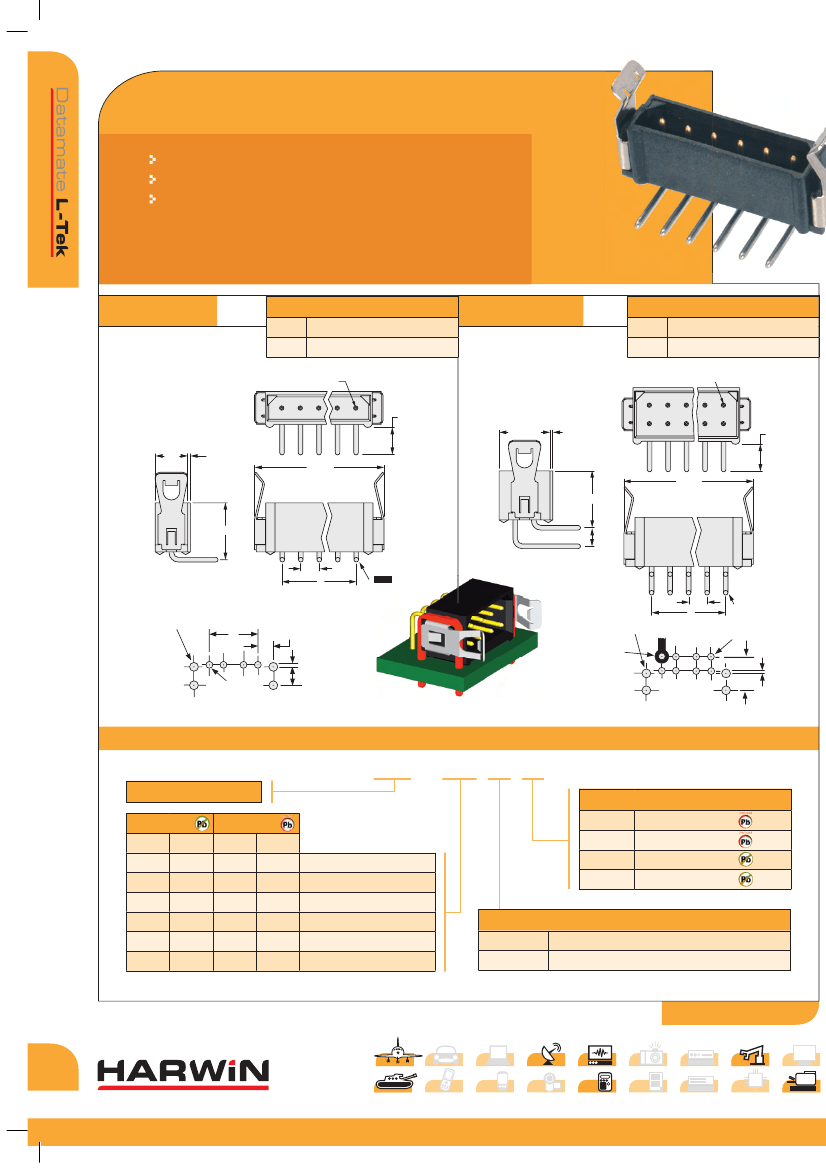

Datamate Connectors

Male Horizontal PC tail

Mates with female connectors on pages 18 to 20.

For British Standard versions see pages 14 to 15.

Supplied with strain relief straps:

order code m80-0030006.

single roW

Friction lock or latch

(when fitted) adds

0.5mm to overall

length ‘A’

caLcULatioN

a

B

B + 5.60

(Total No. of contacts – 1) x 2

No. 1 contact

Double roW

Friction lock or latch

(when fitted) adds

0.5mm to overall

length ‘A’

5.50 max.

0.30

caLcULatioN

a

B

No. 1 contact

B + 5.60

Total No. of contacts – 2

No. 1 contact

Tail

A max.

Tail

3.50

max.

Ø0.30

Strain relief strap holes (optional)

Ø0.90 min.

A max.

B

2.25

4.75

5.50 max.

0.30

Strain relief strap holes

Ø0.90 min.

2.00

B

A max.

2.25

0.50

4.75

5.90

Hole Ø0.80 max.

2.00

5.90

2.00

B

Ø0.50

2.00

Hole

Ø0.80 max.

Ø0.50

B

Strain relief strap holes

Ø0.90 min.

Strain relief strap holes (optional)

Ø0.90 min.

Hole Ø0.80 max.

B

2.25

2.00

0.50

4.75

Ø Pad 1.50

4.75

B

Ø0.50

.75

Strain relief strap holes

Ø0.90 min.

Ø Pad 1.50

Hole Ø0.80 max.

2.00

4.75

0.50

80 max.

Hole

Ø0.80 max.

recommended PC board Pattern

View of strap in place

recommended PC board Pattern

HoW to orDer

m80 – XXX XX XX

SerieS coDe

Strain relief strap holes

Ø0.90 min.

Ø Pad 1.50

Hole Ø0.80 max.

2.00

FiNiSh

05

Gold

Gold + Tin/Lead

Gold + Tin

Gold

4.75

rohS

843

842

846

793

792

796

Non-rohS

Double

Single

Double

0.50

22

42

45

841

851

839

791

771

789

878

876

804

793

792

796

868

866

814

791

771

789

4.75

Unlatched (3mm tail)

Latched (3mm tail)

Friction latched (3mm tail)

Unlatched (4.5mm tail)

Latched (4.5mm tail)

Friction latch (4.5mm tail)

totaL No. oF coNtactS

Single Row

Double Row

02 to 07, 17, 22

04, 06, 08, 10, 12, 14, 16, 18, 20, 26, 34, 44

Strain relief straps are supplied with all horizontal pc tail connectors. There is no need to order separately. Straps are located at the end of each connector.

All dimensions in mm.

www.harwin.com
