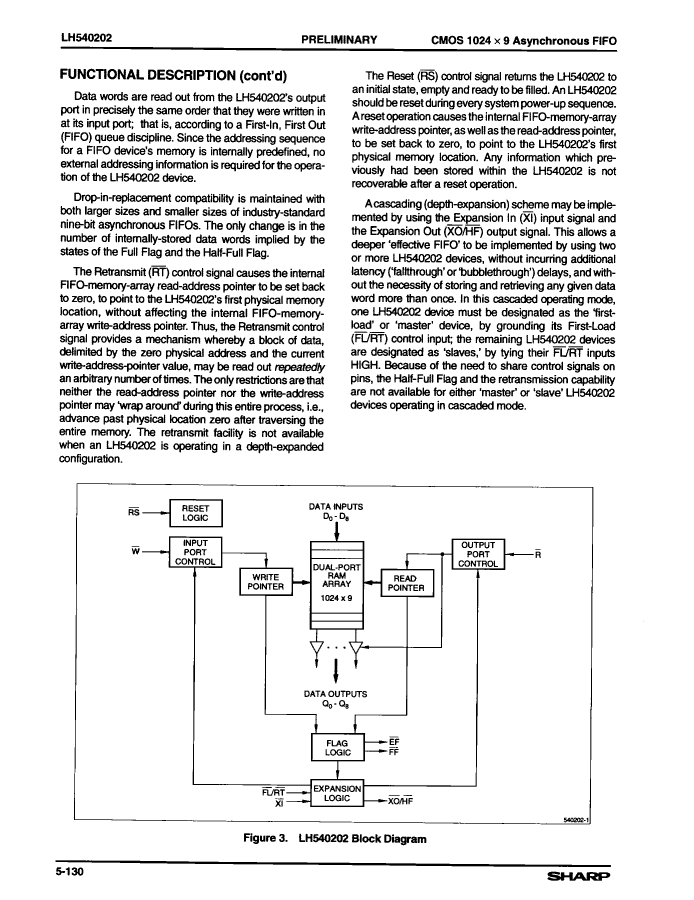

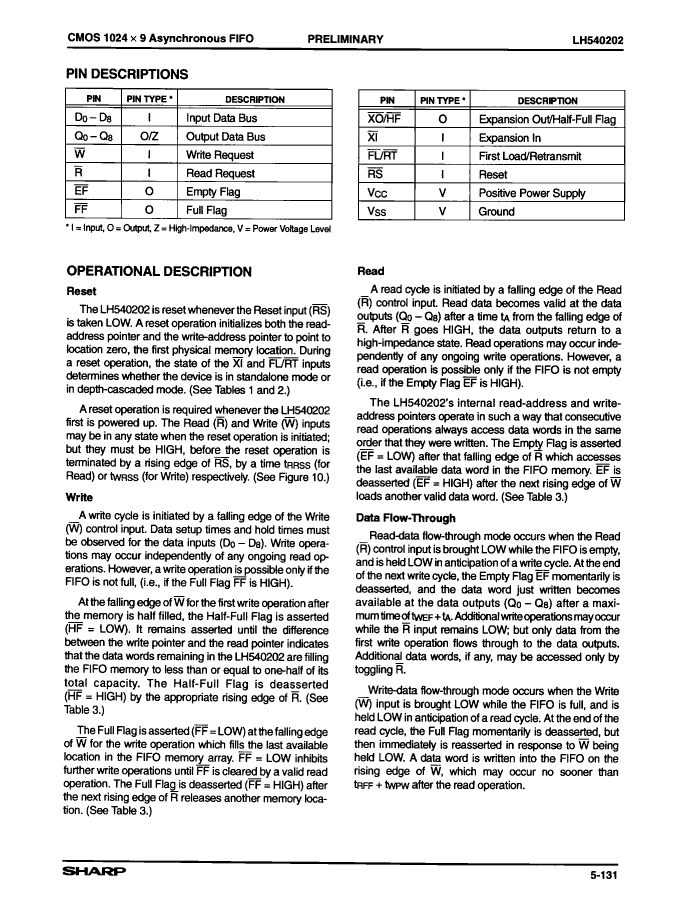

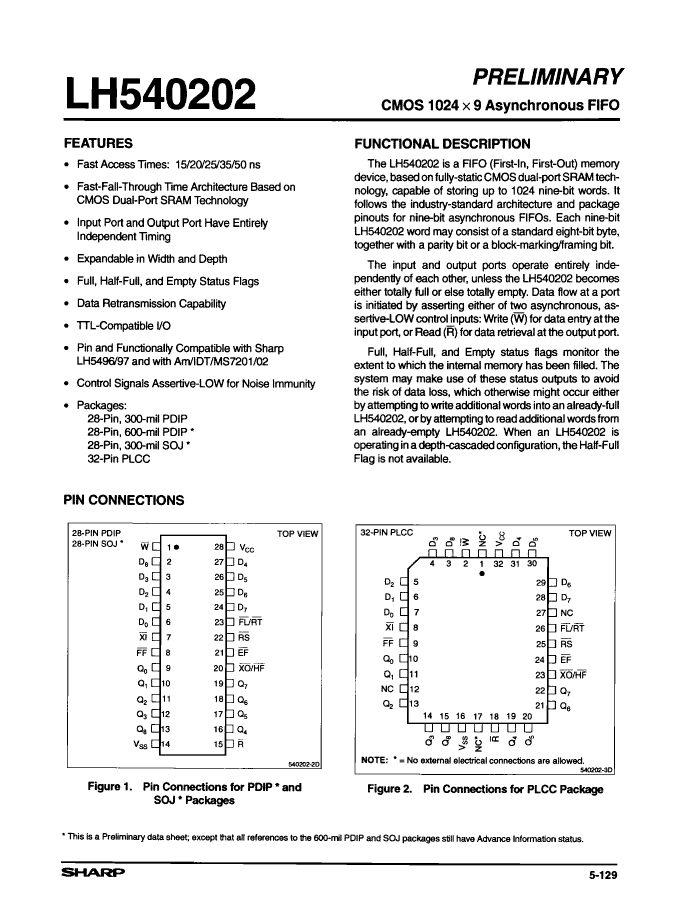

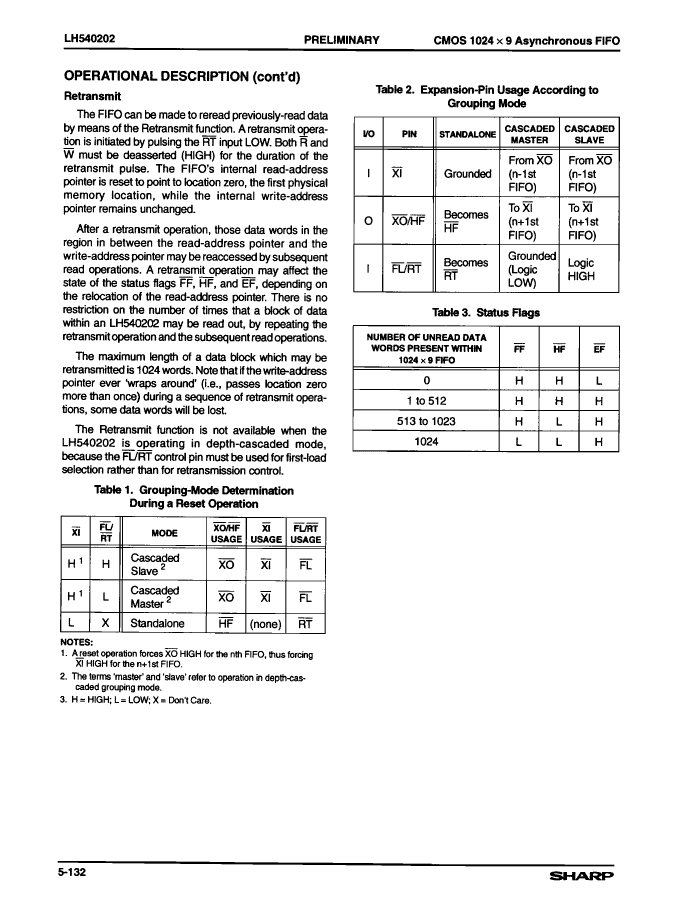

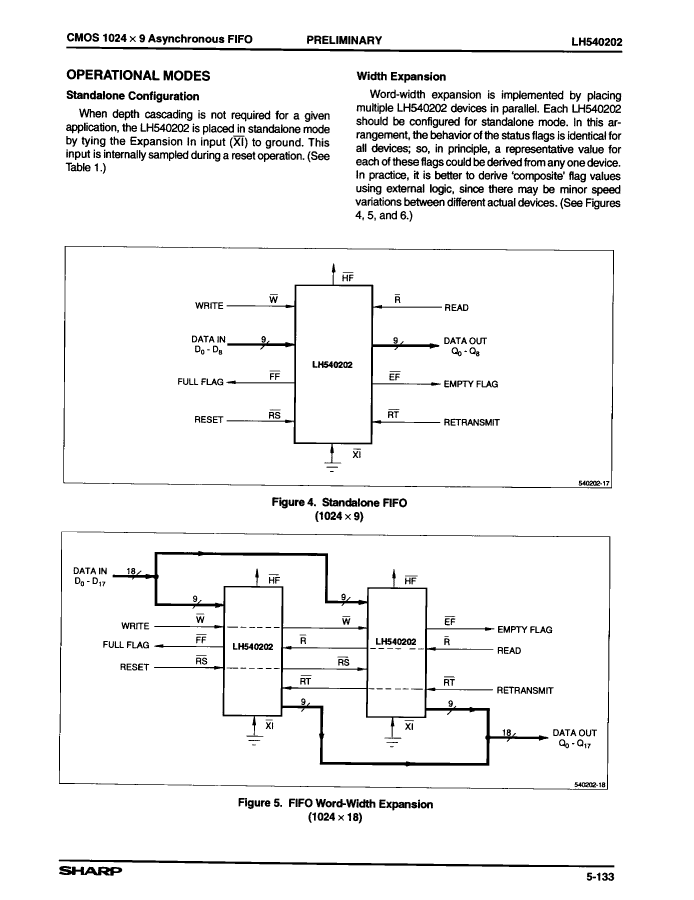

FIFO, 1KX9, 20ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | SHARP |
| package instruction | 0.600 INCH, PLASTIC, DIP-28 |
| Reach Compliance Code | unknown |
| Maximum access time | 20 ns |
| Other features | RETRANSMIT |
| Maximum clock frequency (fCLK) | 33.3 MHz |
| period time | 30 ns |
| JESD-30 code | R-PDIP-T28 |
| JESD-609 code | e0 |
| length | 36 mm |
| memory density | 9216 bit |
| Memory IC Type | OTHER FIFO |
| memory width | 9 |
| Number of functions | 1 |
| Number of terminals | 28 |
| word count | 1024 words |
| character code | 1000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 1KX9 |
| Output characteristics | 3-STATE |
| Exportable | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP28,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.2 mm |
| Maximum standby current | 0.005 A |
| Maximum slew rate | 0.1 mA |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| LH540202-20 | LH540202-35 | LH540202-25 | LH540202-15 | LH540202-50 | |
|---|---|---|---|---|---|
| Description | FIFO, 1KX9, 20ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 | FIFO, 1KX9, 35ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 | FIFO, 1KX9, 25ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 | FIFO, 1KX9, 15ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 | FIFO, 1KX9, 50ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | SHARP | SHARP | SHARP | SHARP | SHARP |
| package instruction | 0.600 INCH, PLASTIC, DIP-28 | 0.600 INCH, PLASTIC, DIP-28 | 0.600 INCH, PLASTIC, DIP-28 | 0.600 INCH, PLASTIC, DIP-28 | 0.600 INCH, PLASTIC, DIP-28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Maximum access time | 20 ns | 35 ns | 25 ns | 15 ns | 50 ns |
| Other features | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT |
| Maximum clock frequency (fCLK) | 33.3 MHz | 22.2 MHz | 28.6 MHz | 40 MHz | 15.4 MHz |
| period time | 30 ns | 45 ns | 35 ns | 25 ns | 65 ns |
| JESD-30 code | R-PDIP-T28 | R-PDIP-T28 | R-PDIP-T28 | R-PDIP-T28 | R-PDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| length | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| memory density | 9216 bit | 9216 bit | 9216 bit | 9216 bit | 9216 bit |
| Memory IC Type | OTHER FIFO | OTHER FIFO | OTHER FIFO | OTHER FIFO | OTHER FIFO |
| memory width | 9 | 9 | 9 | 9 | 9 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 |
| word count | 1024 words | 1024 words | 1024 words | 1024 words | 1024 words |
| character code | 1000 | 1000 | 1000 | 1000 | 1000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 1KX9 | 1KX9 | 1KX9 | 1KX9 | 1KX9 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Exportable | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP28,.6 | DIP28,.6 | DIP28,.6 | DIP28,.6 | DIP28,.6 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.2 mm | 5.2 mm | 5.2 mm | 5.2 mm | 5.2 mm |
| Maximum standby current | 0.005 A | 0.005 A | 0.005 A | 0.005 A | 0.005 A |
| Maximum slew rate | 0.1 mA | 0.1 mA | 0.1 mA | 0.1 mA | 0.1 mA |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm |
