LTC1265CN-3.3

Description
IC 1.2 A SWITCHING REGULATOR, 700 kHz SWITCHING FREQ-MAX, PDIP14, PLASTIC, DIP-14, Switching Regulator or Controller
CategoryPower/power management    The power supply circuit
File Size47KB,1 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html

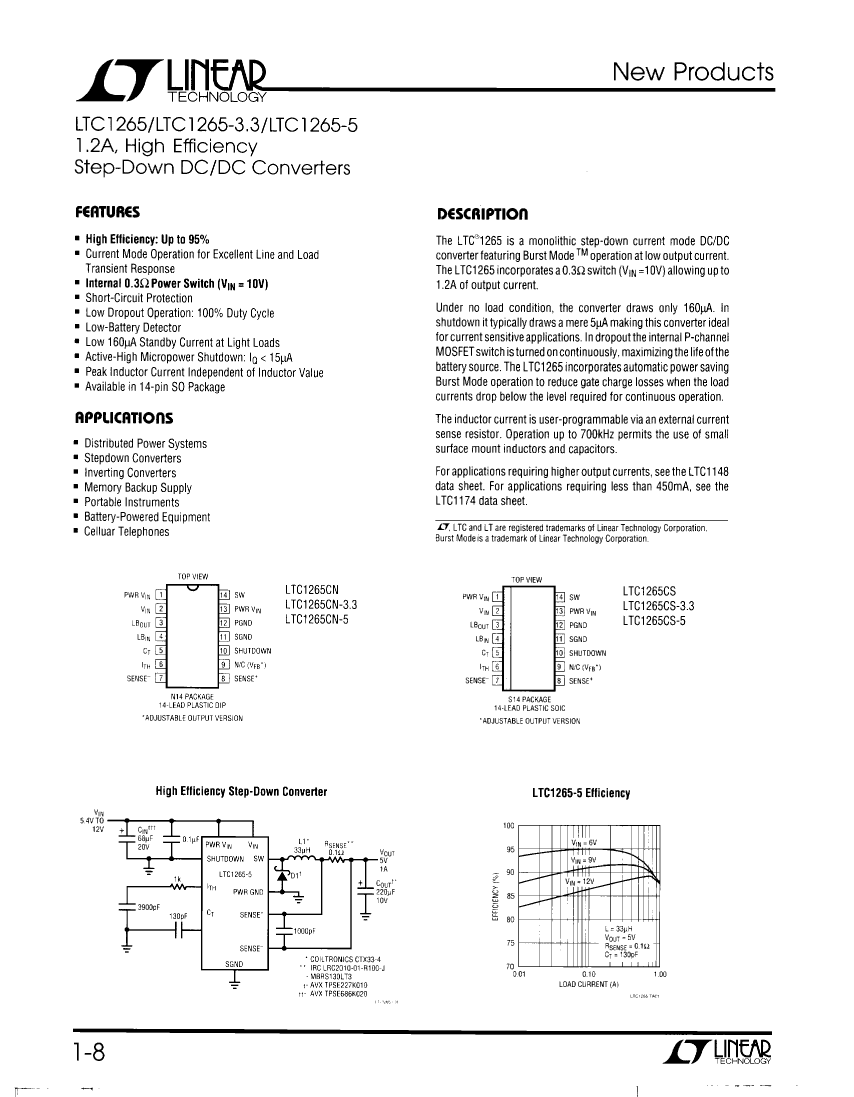

Download Datasheet Parametric Compare View All

LTC1265CN-3.3 Overview

IC 1.2 A SWITCHING REGULATOR, 700 kHz SWITCHING FREQ-MAX, PDIP14, PLASTIC, DIP-14, Switching Regulator or Controller

LTC1265CN-3.3 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLinear ( ADI )
Parts packaging codeDIP
package instructionDIP, DIP14,.3
Contacts14
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeCURRENT-MODE
Control TechnologyCONSTANT OFF TIME
Maximum input voltage13.5 V
Minimum input voltage3.5 V
JESD-30 codeR-PDIP-T14
JESD-609 codee0
Number of functions1
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Maximum output current1.2 A
Nominal output voltage3.3 V
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Maximum seat height3.937 mm
Maximum supply current (Isup)2.4 mA
surface mountNO
Switch configurationBUCK
Maximum switching frequency700 kHz
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm

LTC1265CN-3.3 Related Products

LTC1265CN-3.3 LTC1265CN-5 LTC1265CN
Description IC 1.2 A SWITCHING REGULATOR, 700 kHz SWITCHING FREQ-MAX, PDIP14, PLASTIC, DIP-14, Switching Regulator or Controller IC 1.2 A SWITCHING REGULATOR, 700 kHz SWITCHING FREQ-MAX, PDIP14, PLASTIC, DIP-14, Switching Regulator or Controller IC 1.2 A SWITCHING REGULATOR, 700 kHz SWITCHING FREQ-MAX, PDIP14, PLASTIC, DIP-14, Switching Regulator or Controller
Is it Rohs certified? incompatible incompatible incompatible
Maker Linear ( ADI ) Linear ( ADI ) Linear ( ADI )
Parts packaging code DIP DIP DIP
package instruction DIP, DIP14,.3 DIP, DIP14,.3 DIP, DIP14,.3
Contacts 14 14 14
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Analog Integrated Circuits - Other Types SWITCHING REGULATOR SWITCHING REGULATOR SWITCHING REGULATOR
control mode CURRENT-MODE CURRENT-MODE CURRENT-MODE
Control Technology CONSTANT OFF TIME CONSTANT OFF TIME CONSTANT OFF TIME
Maximum input voltage 13.5 V 13.5 V 13.5 V
Minimum input voltage 3.5 V 3.5 V 3.5 V
JESD-30 code R-PDIP-T14 R-PDIP-T14 R-PDIP-T14
JESD-609 code e0 e0 e0
Number of functions 1 1 1
Number of terminals 14 14 14
Maximum operating temperature 70 °C 70 °C 70 °C
Maximum output current 1.2 A 1.2 A 1.2 A
Nominal output voltage 3.3 V 5 V 1.25 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP DIP
Encapsulate equivalent code DIP14,.3 DIP14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 3.937 mm 3.937 mm 3.937 mm
Maximum supply current (Isup) 2.4 mA 2.4 mA 2.4 mA
surface mount NO NO NO
Switch configuration BUCK BUCK BUCK
Maximum switching frequency 700 kHz 700 kHz 700 kHz
technology CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL
width 7.62 mm 7.62 mm 7.62 mm
