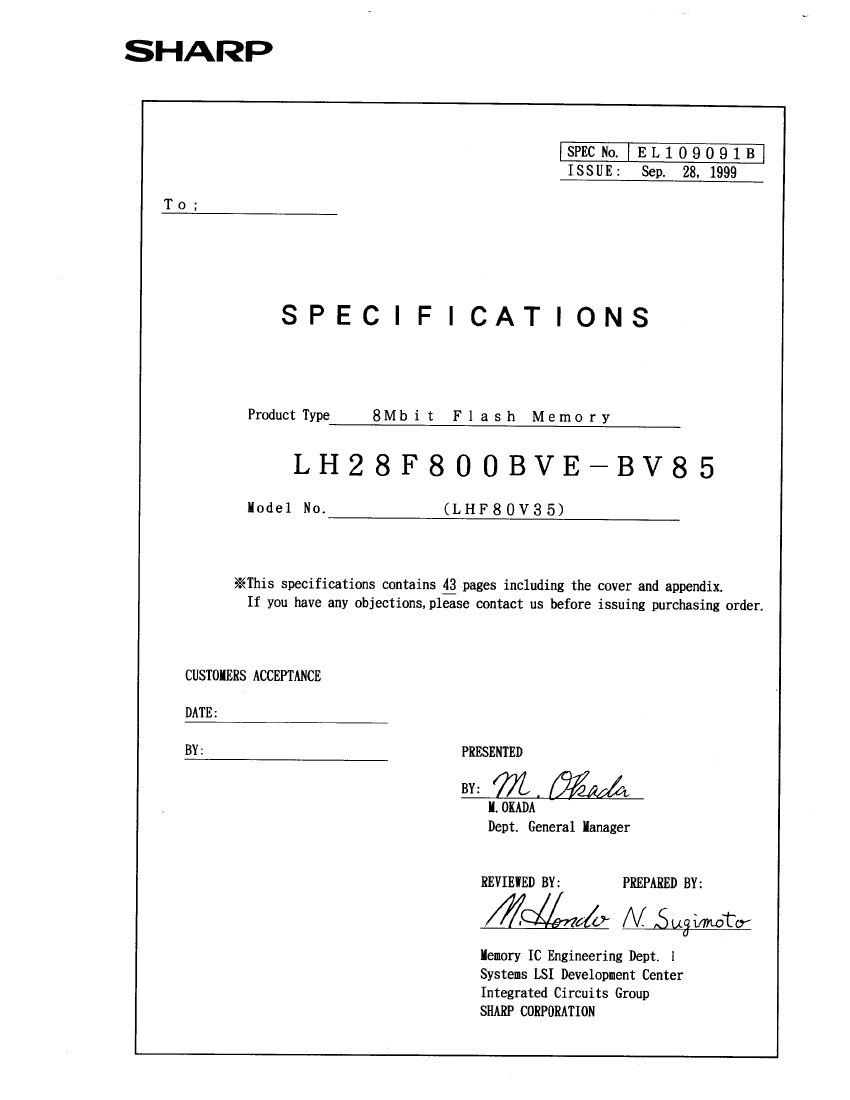

P
RODUCT
S
PECIFICATIONS
®
Integrated Circuits Group
LH28F800BVE-BV85
8M (1MB × 8 / 512KB × 16)
(Model No.: LHF80V35)
Flash Memory
Spec No.: EL109091B
Issue Date: September 28, 1999
sharp
LHF80V35
●Handle
this document carefully for it contains material protected by international copyright law.
Any reproduction, full or in part, of this material is prohibited without the express written
permission of the company.
●When
using the products covered herein, please observe the conditions written herein and the
precautions outlined in the following paragraphs. In no event shall the company be liable for any
damages resulting from failure to strictly adhere to these conditions and precautions.
(1) The products covered herein are designed and manufactured for the following application
areas. When using the products covered herein for the equipment listed in Paragraph (2),
even for the following application areas, be sure to observe the precautions given in
Paragraph (2). Never use the products for the equipment listed in Paragraph (3).
•Office
electronics
•Instrumentation
and measuring equipment
•Machine
tools
•Audiovisual
equipment
•Home
appliance
•Communication
equipment other than for trunk lines
(2) Those contemplating using the products covered herein for the following equipment which
demands high reliability, should first contact a sales representative of the company and then
accept responsibility for incorporating into the design fail-safe operation, redundancy, and
other appropriate measures for ensuring reliability and safety of the equipment and the
overall system.
•Control
and safety devices for airplanes, trains, automobiles, and other
transportation equipment
•Mainframe
computers
•Traffic
control systems
•Gas
leak detectors and automatic cutoff devices
•Rescue
and security equipment
•Other
safety devices and safety equipment, etc.
(3) Do not use the products covered herein for the following equipment which demands
extremely high performance in terms of functionality, reliability, or accuracy.
•Aerospace
equipment
•Communications
equipment for trunk lines
•Control
equipment for the nuclear power industry
•Medical
equipment related to life support, etc.
(4) Please direct all queries and comments regarding the interpretation of the above three
Paragraphs to a sales representative of the company.
●Please
direct all queries regarding the products covered herein to a sales representative of the
company.
Rev. 1.1
sharp
LHF80V35
1
CONTENTS
PAGE
1 INTRODUCTION.............................................................. 3
1.1 Features ........................................................................ 3
1.2 Product Overview......................................................... 3
2 PRINCIPLES OF OPERATION........................................ 7
2.1 Data Protection............................................................. 8
3 BUS OPERATION ............................................................ 8
3.1 Read.............................................................................. 8
3.2 Output Disable.............................................................. 8
3.3 Standby......................................................................... 8
3.4 Deep Power-Down ....................................................... 8
3.5 Read Identifier Codes Operation .................................. 9
3.6 Write............................................................................. 9
4 COMMAND DEFINITIONS............................................. 9
4.1 Read Array Command................................................ 12
4.2 Read Identifier Codes Command ............................... 12
4.3 Read Status Register Command ................................. 12
4.4 Clear Status Register Command................................. 12
4.5 Block Erase Command............................................... 12
4.6 Word/Byte Write Command....................................... 13
4.7 Block Erase Suspend Command ................................ 13
4.8 Word/Byte Write Suspend Command ........................ 14
4.9 Considerations of Suspend ......................................... 14
4.10 Block Locking .......................................................... 14
4.10.1 V
PP
=V
IL
for Complete Protection ...................... 14
4.10.2 WP#=V
IL
for Block Locking.............................. 14
4.10.3 WP#=V
IH
for Block Unlocking.......................... 14
PAGE
5 DESIGN CONSIDERATIONS ...................................... 20
5.1 Three-Line Output Control ....................................... 20
5.2 RY/BY# and Block Erase and Word/Byte Write
Polling...................................................................... 20
5.3 Power Supply Decoupling ........................................ 20
5.4 V
PP
Trace on Printed Circuit Boards ........................ 20
5.5 V
CC
, V
PP
, RP# Transitions ....................................... 21
5.6 Power-Up/Down Protection...................................... 21
5.7 Power Dissipation ..................................................... 21
6 ELECTRICAL SPECIFICATIONS ............................... 22
6.1 Absolute Maximum Ratings ..................................... 22
6.2 Operating Conditions ................................................ 22
6.2.1 Capacitance ......................................................... 22
6.2.2 AC Input/Output Test Conditions ....................... 23
6.2.3 DC Characteristics .............................................. 24
6.2.4 AC Characteristics - Read-Only Operations ....... 26
6.2.5 AC Characteristics - Write Operations ............... 29
6.2.6 Alternative CE#-Controlled Writes..................... 31
6.2.7 Reset Operations ................................................. 33
6.2.8 Block Erase and Word/Byte Write Performance 34
7 PACKAGE AND PACKING SPECIFICATIONS......... 35
Rev. 1.1
sharp
LHF80V35
2
LH28F800BVE-BV85
8M-BIT (1Mbit × 8 / 512Kbit × 16)
Smart5 Flash MEMORY
■
Smart5 Technology
4.5V-5.5V V
CC
4.5V-5.5V or 11.4V-12.6V V
PP
■
User-Configurable ×8 or ×16 Operation
■
High-Performance Access Time
85ns(4.5V-5.5V)
■
Operating Temperature
0°C to +70°C
■
Optimized Array Blocking Architecture
Two 4K-word Boot Blocks
Six 4K-word Parameter Blocks
Fifteen 32K-word Main Blocks
Bottom Boot Location
■
Extended Cycling Capability
100,000 Block Erase Cycles
■
Enhanced Automated Suspend Options
Word/Byte Write Suspend to Read
Block Erase Suspend to Word/Byte Write
Block Erase Suspend to Read
■
Enhanced Data Protection Features
Absolute Protection with V
PP
=GND
Block Erase and Word/Byte Write Lockout
during Power Transitions
Boot Blocks Protection with WP#=V
IL
■
Automated Word/Byte Write and Block Erase
Command User Interface
Status Register
■
Low Power Management
Deep Power-Down Mode
Automatic Power Savings Mode Decreases
I
CC
in Static Mode
■
SRAM-Compatible Write Interface
■
Industry-Standard Packaging
48-Lead TSOP
■
ETOX
TM*
Nonvolatile Flash Technology
■
CMOS Process (P-type silicon substrate)
■
Not designed or rated as radiation hardened
SHARP’s LH28F800BVE-BV85 Flash memory with Smart5 technology is a high-density, low-cost, nonvolatile, read/write
storage solution for a wide range of applications. LH28F800BVE-BV85 can operate at V
CC
=4.5V-5.5V and V
PP
=4.5V-5.5V.
Its low voltage operation capability realize battery life and suits for cellular phone application.
Its Boot, Parameter and Main-blocked architecture, flexible voltage and extended cycling provide for highly flexible
component suitable for portable terminals and personal computers. Its enhanced suspend capabilities provide for an ideal
solution for code + data storage applications. For secure code storage applications, such as networking, where code is either
directly executed out of flash or downloaded to DRAM, the LH28F800BVE-BV85 offers two levels of protection: absolute
protection with V
PP
at GND, selective hardware boot block locking. These alternatives give designers ultimate control of their
code security needs.
The LH28F800BVE-BV85 is manufactured on SHARP’s 0.35µm ETOX
TM*
process technology. It come in industry-standard
package: the 48-lead TSOP ideal for board constrained applications.
*ETOX is a trademark of Intel Corporation.
