MPR5364X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MPR5364X

MPR5364X: DescriptionSingle Color LED, Red, Clear Pale Red, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size272KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

MPR5364X Overview

Single Color LED, Red, Clear Pale Red, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

MPR5364X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
Lens type	CLEAR PALE RED
Nominal luminous intensity	10.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	700 nm
Maximum reverse voltage	4 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.5 mm
perspective	40 deg

Preview

Download Datasheet

View All

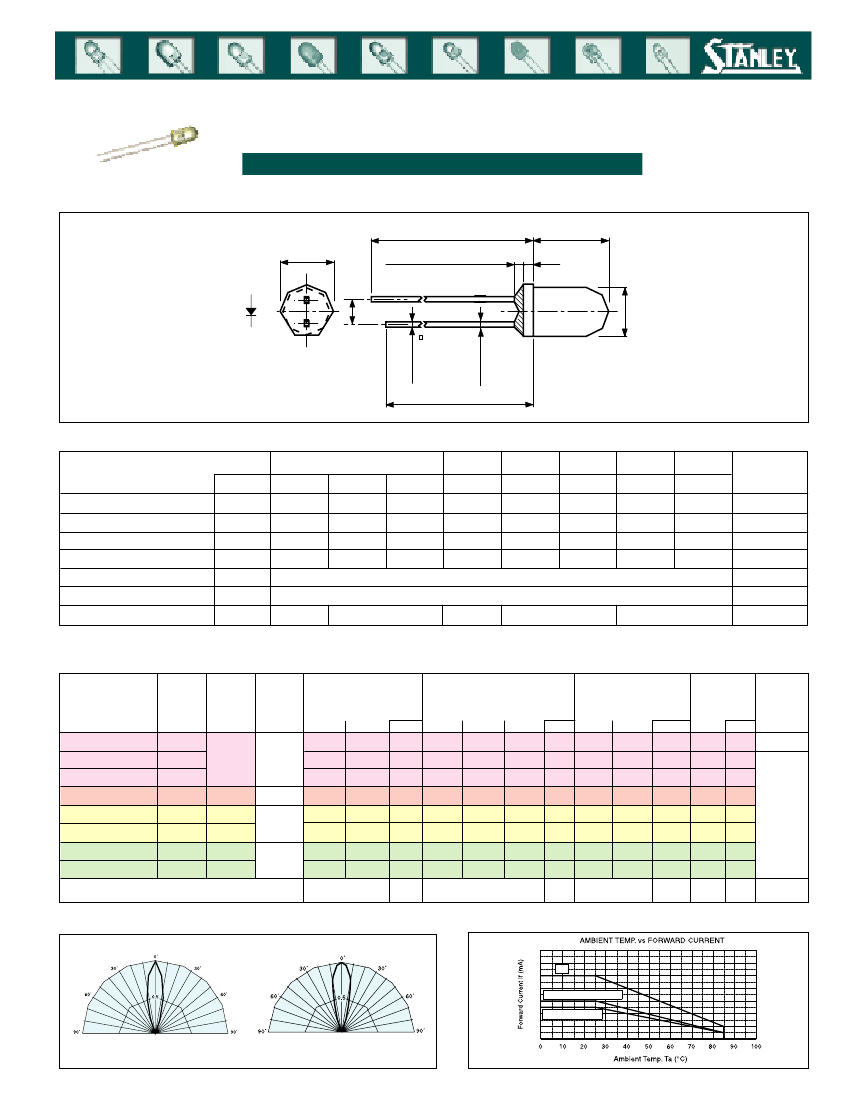

SINGLE COLOR LED

5mm Round Shape

5364X / 5374X Series

Outline Dimensions

28.5MIN.

5.6

0.2

7.6

0.3

(1)

0.2

Meniscus 1MAX.

(2.5)

0.7MAX.

0.5

0.1

26.5MIN.

Unit: mm

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Red

Orange

Yellow

Yellow Green

Green

Pure Green

(Ta=25°C)

100

300

MPR

MVR

MAA

MAY

MPY

MPG

MBG

Units

°C

mA/°C

(Ta=25°C)

Symbol

Topr

Tstg

-30 to +85

-30 to +100

0.33

0.40

0.67

0.40

0.33

* Ta=25°C, I

applies for the pulse width

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

Electro-Optical Characteristics

Part No.

Material Emitted Lens

Color Color*

GaAlAs

GaP

GaAsP

GaP

Units

Luminous

Intensity

MIN.

TYP

*5364X lens is clear and 5374X lens is diffused

**The viewing angle is an average and will vary by color

Peak

TYP

Spectral Line

Dominant Half Width

TYP

Wavelength

Forward

Voltage

TYP

MAX.

Reverse Viewing

Current

Angle**

1/2

)

MAX.

100

µA

40/40°

BR5364X/5374X

MPR5364X/5374X

MVR5364X/5374X

MAA5364X/5374X

MAY5364X/5374X

MPY5364X/5374X

MPG5364X/5374X

MBG5364X/5374X

Red

Pastel

Red

Pastel

Orange

Pastel

Yellow

Pastel

Green

Orange

Yellow

Yellow Green

Green

Pure Green

60/30

5/3

50/30

50/25

40/20

60/30

50/20

20/8

120/60

10/6

100/60

100/50

80/40

120/60

100/40

40/16

660

700

630

605

580

570

560

555

647

635

624

606

590

572

567

558

100

1.7

2.1

2.0

2.2

2.1

2.0

2.8

25/30°

mcd

Deg.

Spatial Distribution (x)

Operation Current Derating Chart

MPR, MVR, MAY, MPY

MAA, MPG, MBG

5364X

5374X

*Spatial distribution is viewed as a typical illustration and will vary by color

MPR5364X Related Products

	MPR5364X	MVR5364X	MPY5364X	MAA5364X	MPG5364X	BR5364X
Description	Single Color LED, Red, Clear Pale Red, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, Clear Pale Red, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow Green, Clear Pale Yellow, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Orange, Clear Pale Orange, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Green, Clear Pale Green, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, Clear Pale Red, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	RED	RED	YELLOW GREEN	ORANGE	GREEN	RED
color@wavelength	Red	Red	Yellow	Amber	Green	Red
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.025 A	0.025 A	0.05 A
Maximum forward voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2 V
Lens type	CLEAR PALE RED	CLEAR PALE RED	CLEAR PALE YELLOW	CLEAR PALE ORANGE	CLEAR PALE GREEN	CLEAR PALE RED
Nominal luminous intensity	10.0 mcd	100.0 mcd	120.0 mcd	100.0 mcd	100.0 mcd	120.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	700 nm	630 nm	570 nm	605 nm	560 nm	660 nm
Maximum reverse voltage	4 V	4 V	4 V	4 V	4 V	4 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	40 deg	25 deg	28 deg	25 deg	28 deg	40 deg
Maker	Stanley Electric Co	-	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
